VT19556 | Pneumatic Tie Rod Ball Joint Puller (6-piece)

The VT19556 is a 6-piece pneumatic-hydraulic spindle ball joint puller designed for efficient disassembly of various chassis components. The set uses compressed air to generate hydraulic power, allowing spindle ball joints, steering ball joints, and pitman arms to be loosened with minimal physical effort. Thanks to the included adapters with opening sizes of 16-28 mm, 20-32 mm, and 30-56 mm, the puller is widely applicable for vehicles from brands such as Audi, BMW, Land Rover, and Porsche.

The operation of this ball joint puller is based on a hydraulic cylinder powered by a standard air compressor. This provides controlled and powerful pressure needed to press out tapered connections without damaging surrounding parts. The set comes in a sturdy plastic storage case, ensuring organized storage and easy transport of the tool and accessories.

Application and functionality:

This set is specifically developed for disassembling ball joints in the suspension and steering system of vehicles.

• Pneumatic-hydraulic drive: The cylinder converts compressed air into hydraulic power, allowing stuck components to be removed with significantly less effort compared to manual pullers.
• Versatile adapters: The included puller arms cover a range from 16 mm to 56 mm, making the set suitable for a wide range of passenger cars and light commercial vehicles.
• Wide compatibility: The set has been tested and found suitable for use on various models from, among others, Audi, BMW, Land Rover, and Porsche.
• Targeted force transmission: The design ensures that the force is applied directly to the tapered pin, minimizing the risk of damage to the spindle, ball joint, or housing.

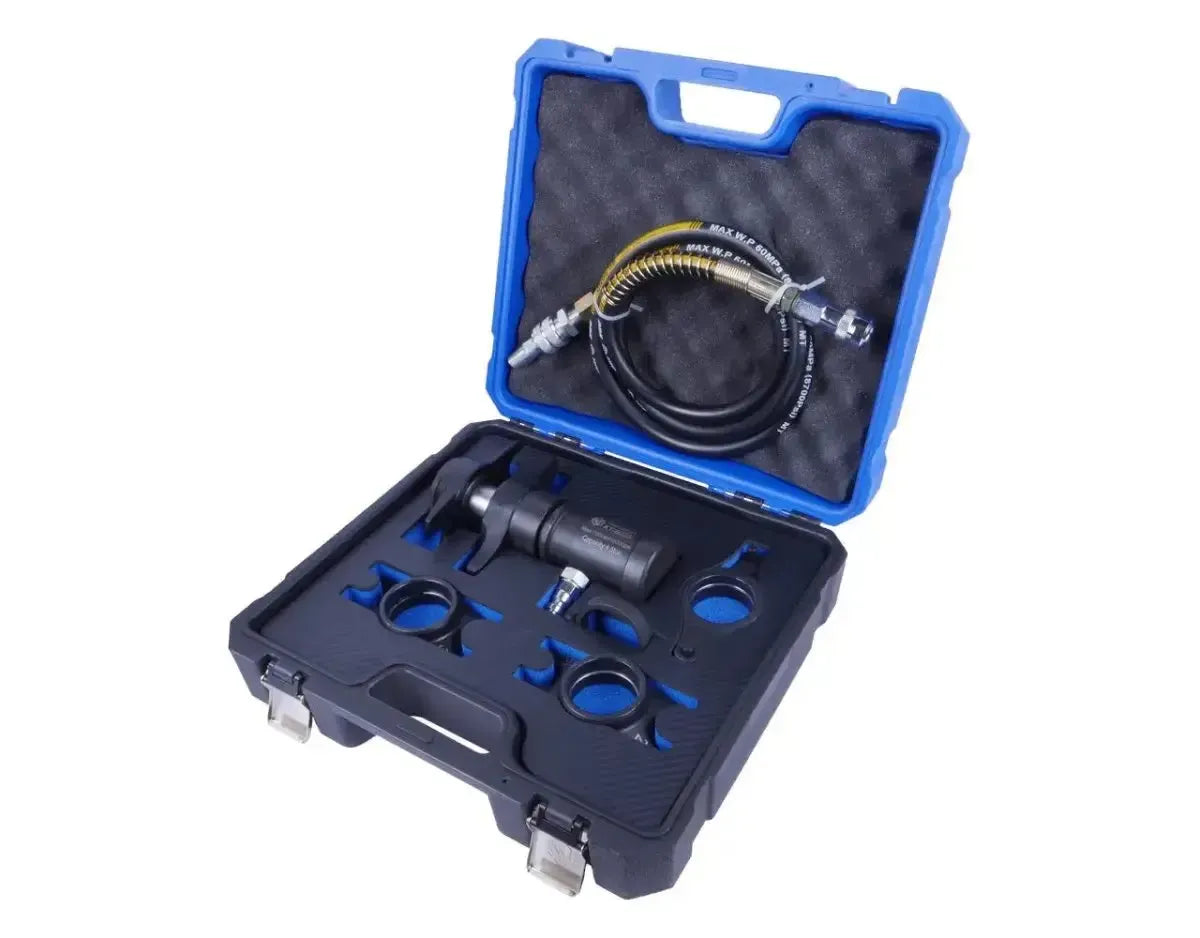

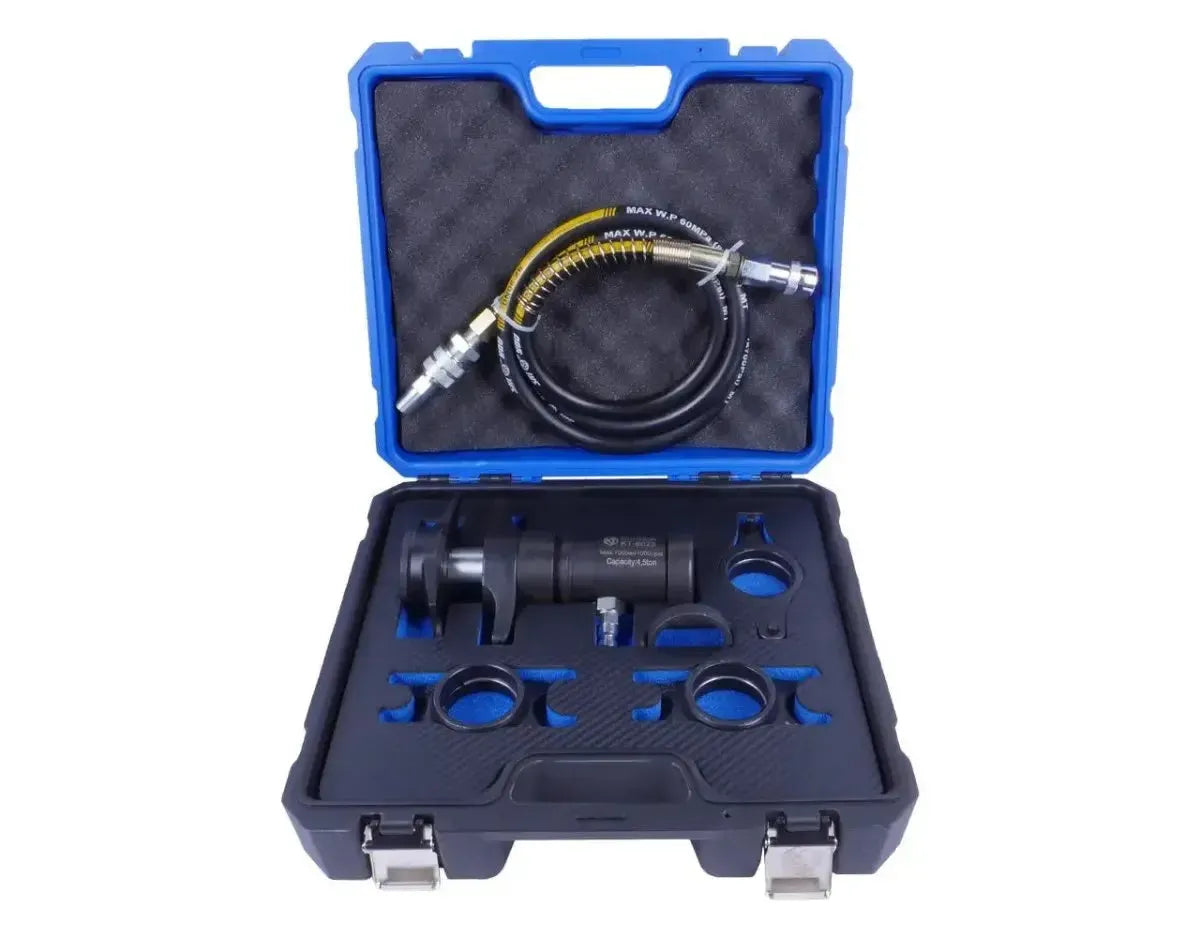

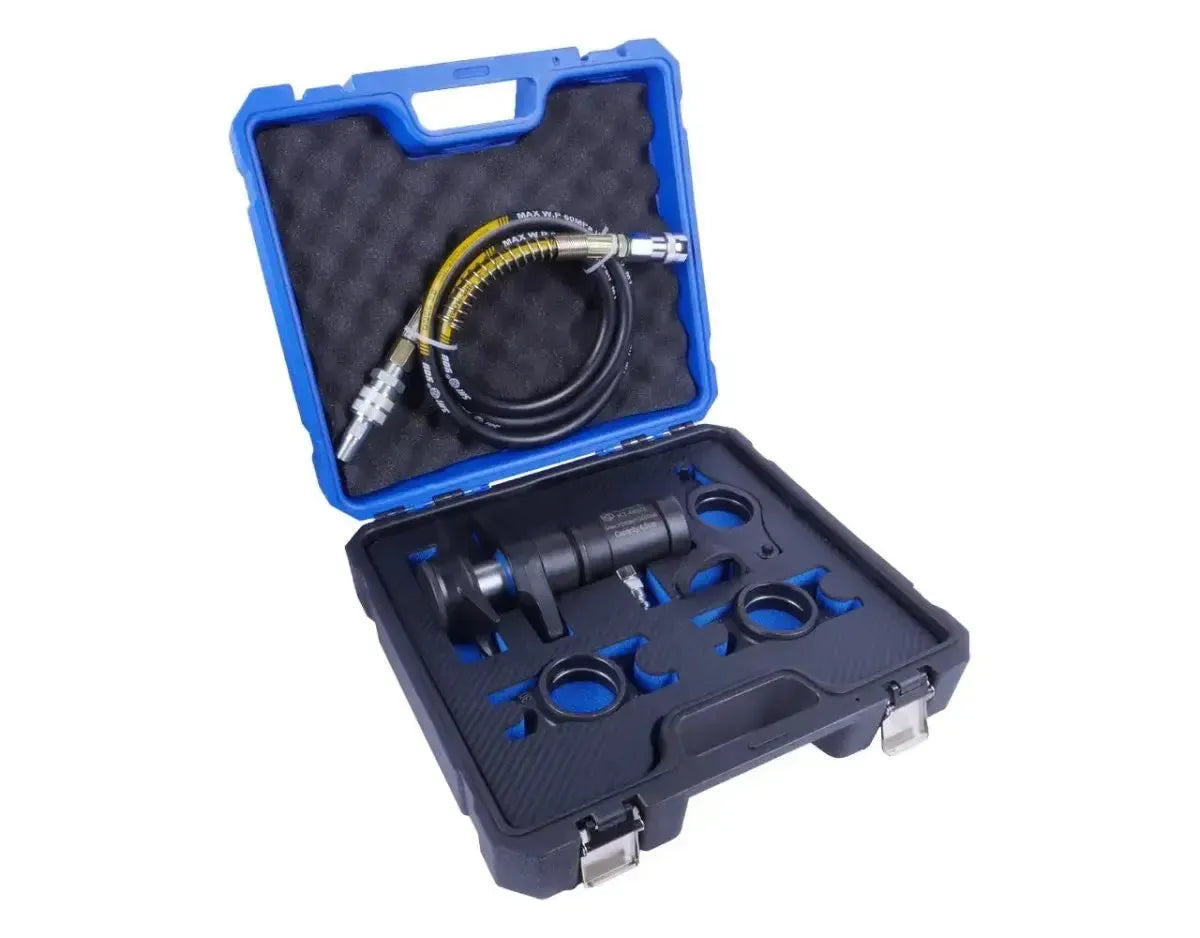

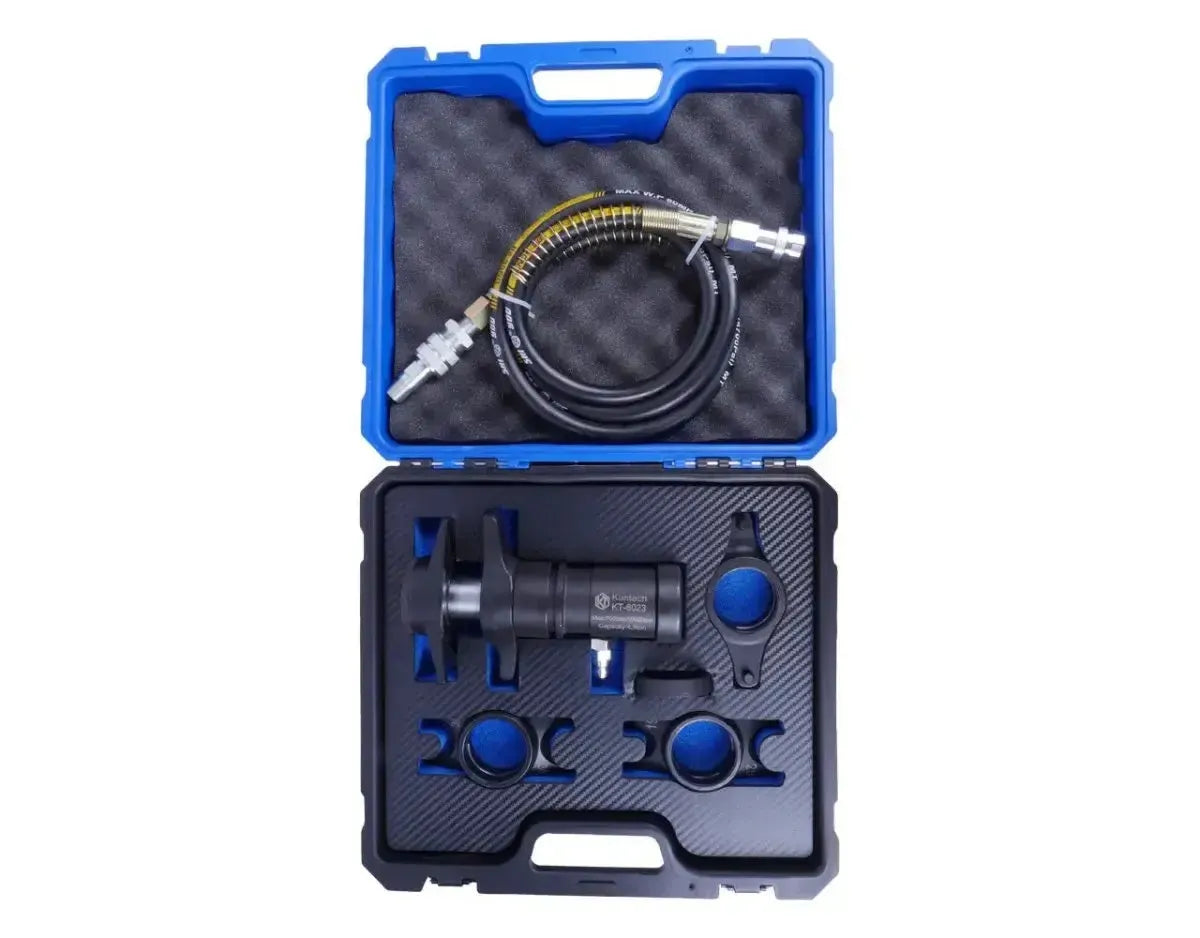

Package Contents:

• 1x Pneumatic-hydraulic cylinder
• 1x Large puller arm
• 1x Small puller arm
• 1x Spacer ring
• 1x Compressed air hose (2 m)
• 1x Quick coupling nipple
• 1x Plastic storage case

Technical specifications:
