The VT18269H is a 24-piece pneumatic diesel injector impact puller set, designed for the disassembly of seized common-rail diesel injectors. The set operates through a combination of pneumatic impact force and vibrations, effectively freeing the injector from the cylinder head. This method reduces the risk of damage to the injector or surrounding engine components and is supplied in a plastic storage case.
Thanks to an extensive selection of 19 adapters, the set is suitable for a wide range of diesel injectors with different threaded connections. The components are manufactured for use in professional garages and workshops. The included air pressure regulator allows controlled application of the impact force, tailored to the specific injector and degree of seizure.
Application and functionality:
The impact puller set is developed for disassembling diesel injectors stuck due to corrosion, carbon deposits, or thermal effects. The pneumatic operation ensures controlled and effective removal.
- Pneumatic impact force: Generates a combination of vibrations and impact force using compressed air to break the connection between the injector and the cylinder head.
- Wide compatibility: Includes 19 adapters with various internal and external threads, making the set suitable for a large number of different injector models.
- Controlled disassembly: The included air pressure regulator allows adjustment of the impact force intensity, minimizing the risk of component damage.
- Efficient operation: Speeds up the process of removing stuck injectors compared to manual methods.

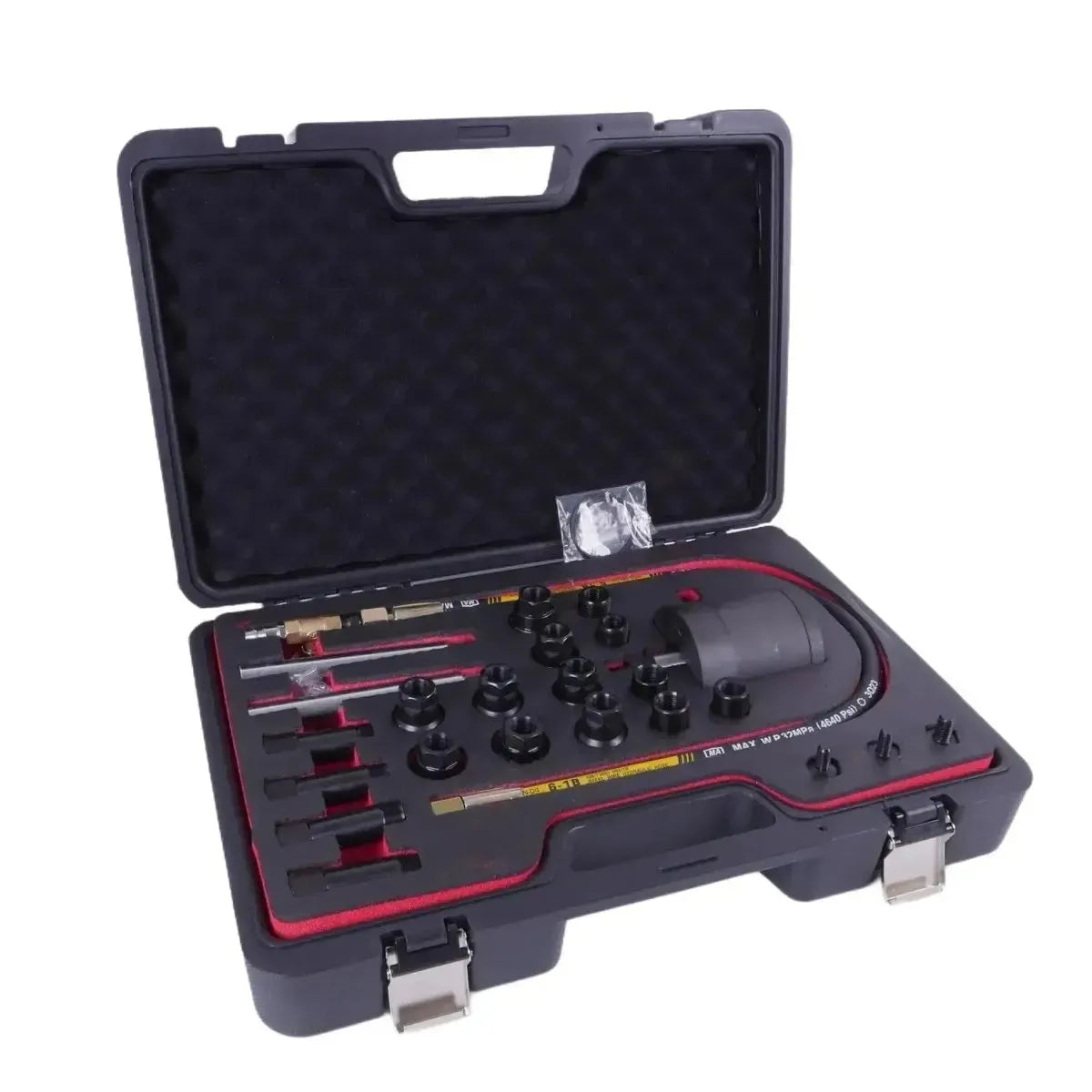

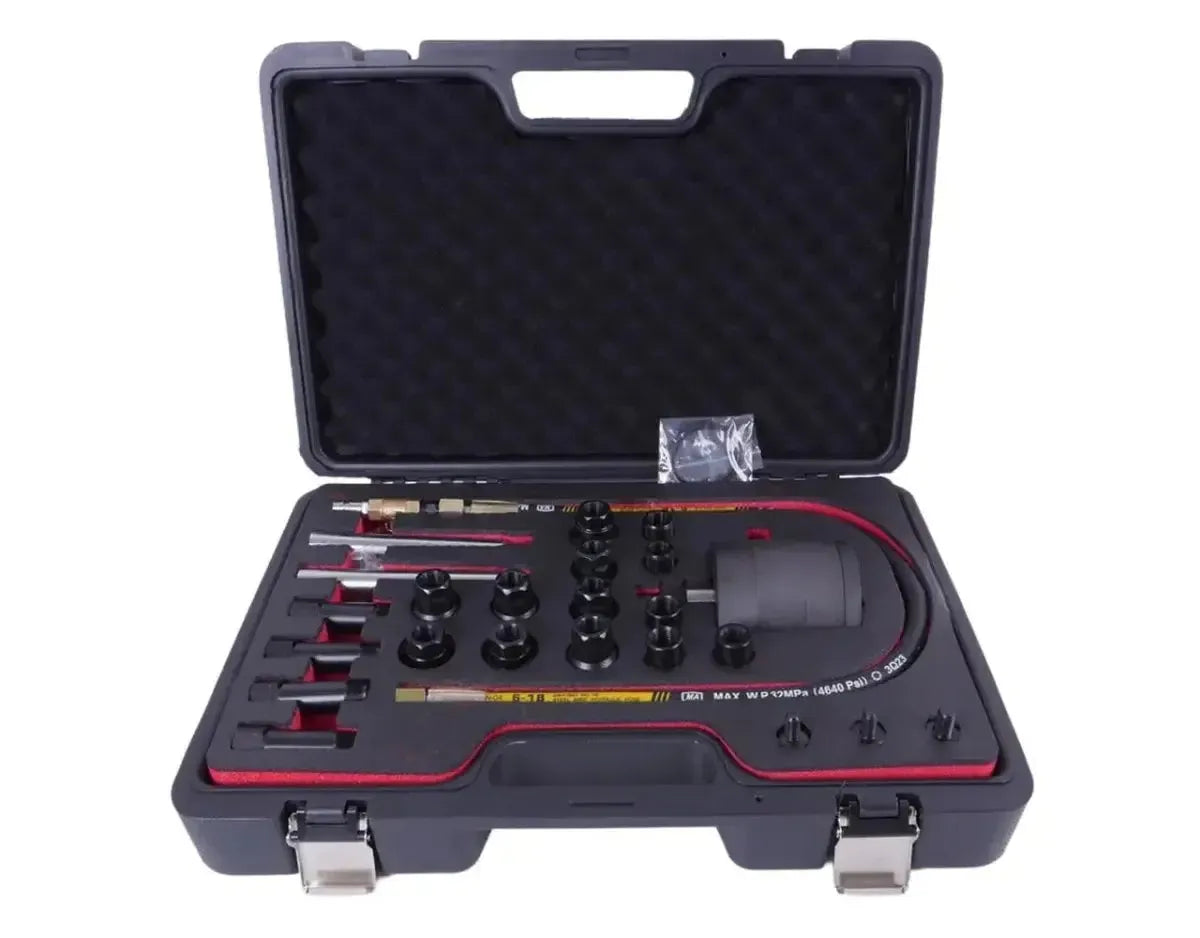

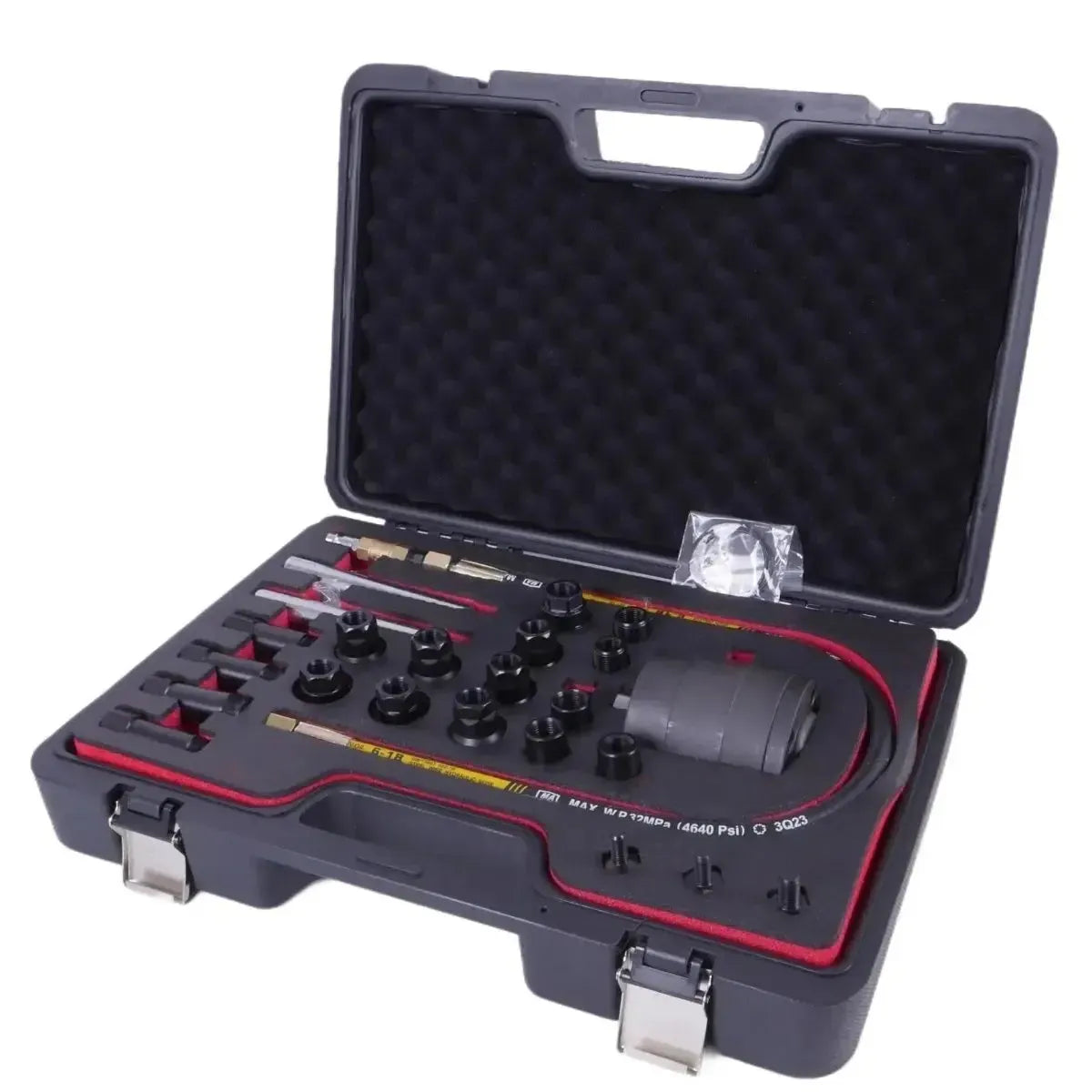

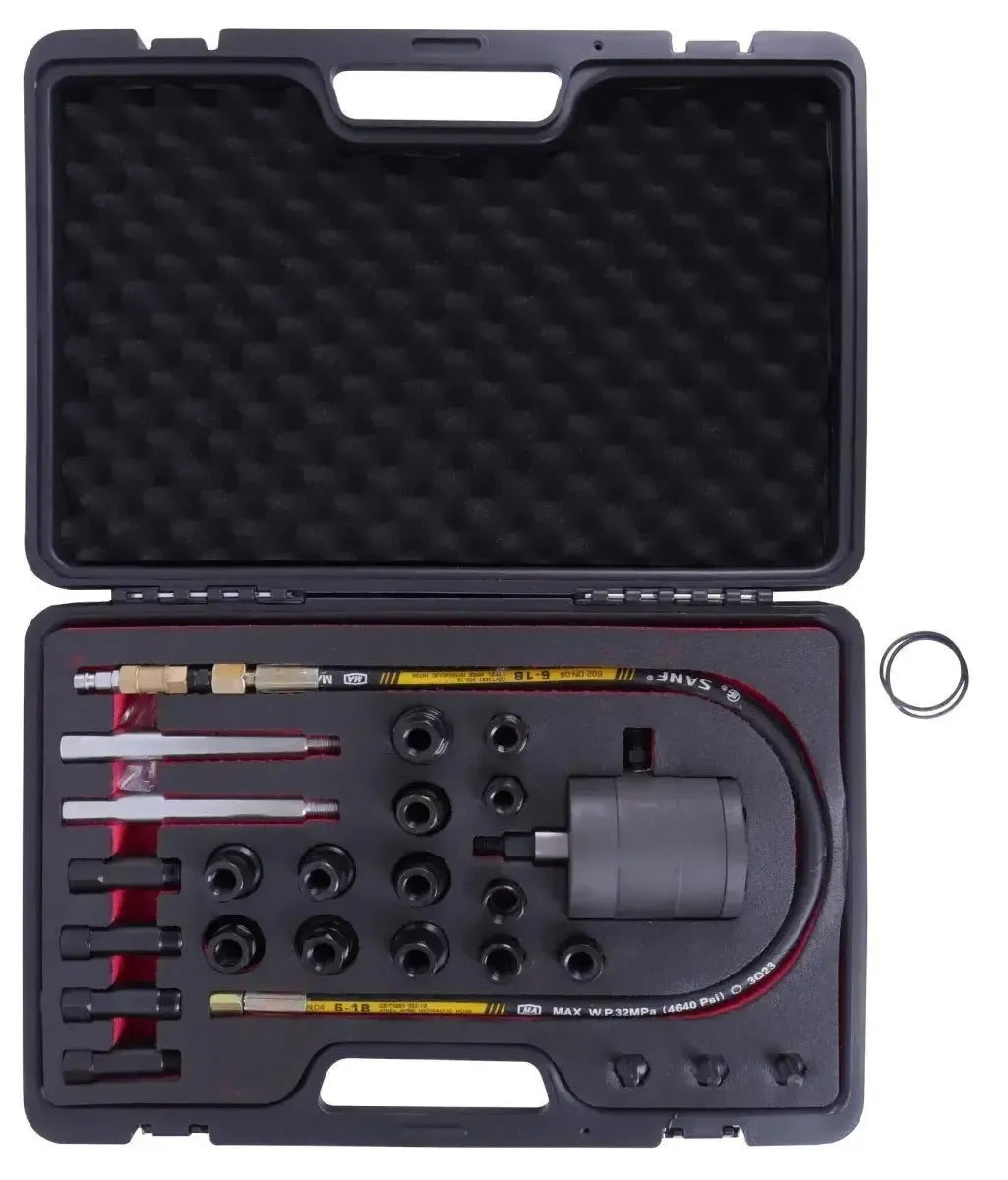

Package Contents:
- 1x Pneumatic impact wrench
- 1x Air pressure regulator
- 1x Pull rod
- 2x Extension piece (150 mm)
- 19x Adapter
- 1x Storage case
Adapter overview:
- M8x1.0
- M8x1.25
- M10x1.5 (external), M8x1.0 (internal)
- M14x1.5 + M16x1.0
- M16x1.5 (external), M10x1.0 (internal)
- M16x1.5 (external), M10x1.5 (internal)
- M16x1.5 + M18x1.5
- M17x1.0 (external), M10x1.5 (internal)
- M18x1.5 + M20x1.0
- M20x1.0 (external), M10x1.5 (internal)
- M20x1.5 (external), M10x1.5 (internal)
- M20x1.5 + M22x1.5
- M22x1.5 (external), M8x1.25 (internal)
- M25x1.0
- M25x1.0 (external), M10x1.5 (internal)
- M27x1.0
- M27x1.0 (external), M10x1.5 (internal)
- M29x1.0
- M31x1.0
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT18269H |
| Number of parts | 24 |
| Drive | Pneumatic |
| Required working pressure | 5 - 8 bar (72.5 - 116 psi) |
