The VT14104 is a Forming Gas Leak Detector designed for detecting leaks in air conditioning systems. The tester works by detecting forming gas, a gas mixture consisting of 95% nitrogen (N2) and 5% hydrogen (H2). Thanks to adjustable sensitivity across seven levels, the tester can locate both large and small leaks. The flexible probe with a length of 40 cm provides access to hard-to-reach components.
This leak detector is equipped with a microprocessor (MCU) that provides digital signal processing. Leak signaling occurs both visually via a three-color LED indicator and audibly through a sound signal. The tester has a reset function allowing the sensor to be immediately recalibrated to the ambient concentration. For efficient battery use, an automatic shut-off function is integrated, which powers off the device after 10 minutes of inactivity. The tester complies with SAE J1627 and EN14624 standards.
Application and functionality:
The tester is developed for systematically checking air conditioning systems for leaks using forming gas detection. The features support an accurate and efficient workflow.
- Adjustable sensitivity: The tester has seven sensitivity levels to adapt detection to the size of the expected leak.
- Visual and audible signaling: A three-color LED bar indicates the intensity of the detected gas concentration, while a sound signal alerts the user. The sound function can be disabled.
- Direct reset function: The reset button allows the tester to be recalibrated at any time, ignoring background gas concentrations.
- Flexible probe: The 40 cm long probe allows inspection in hard-to-reach locations within the air conditioning system.
- Low battery indication: A visual indicator warns when the batteries are nearly empty.
- Automatic shut-off: To extend battery life, the tester automatically turns off after 10 minutes of inactivity.

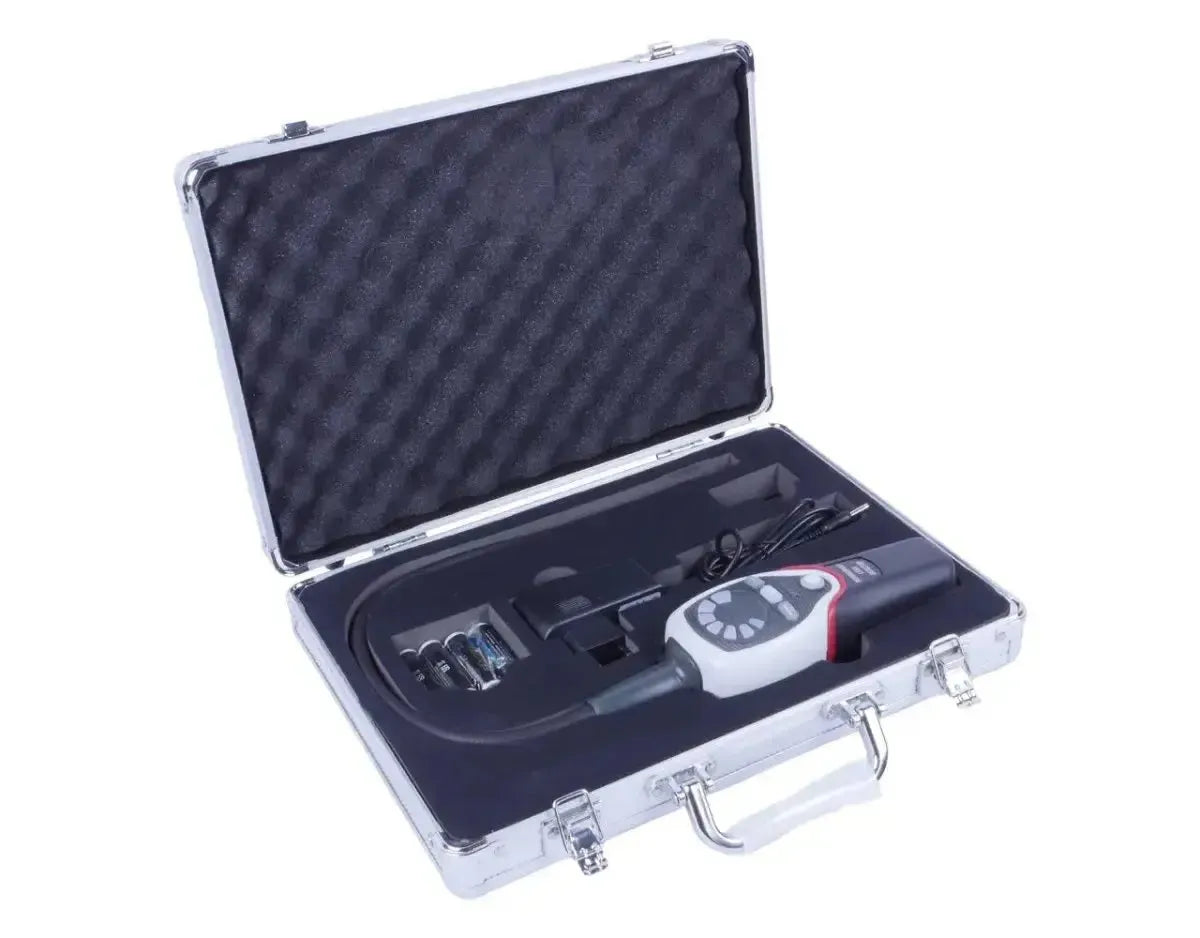

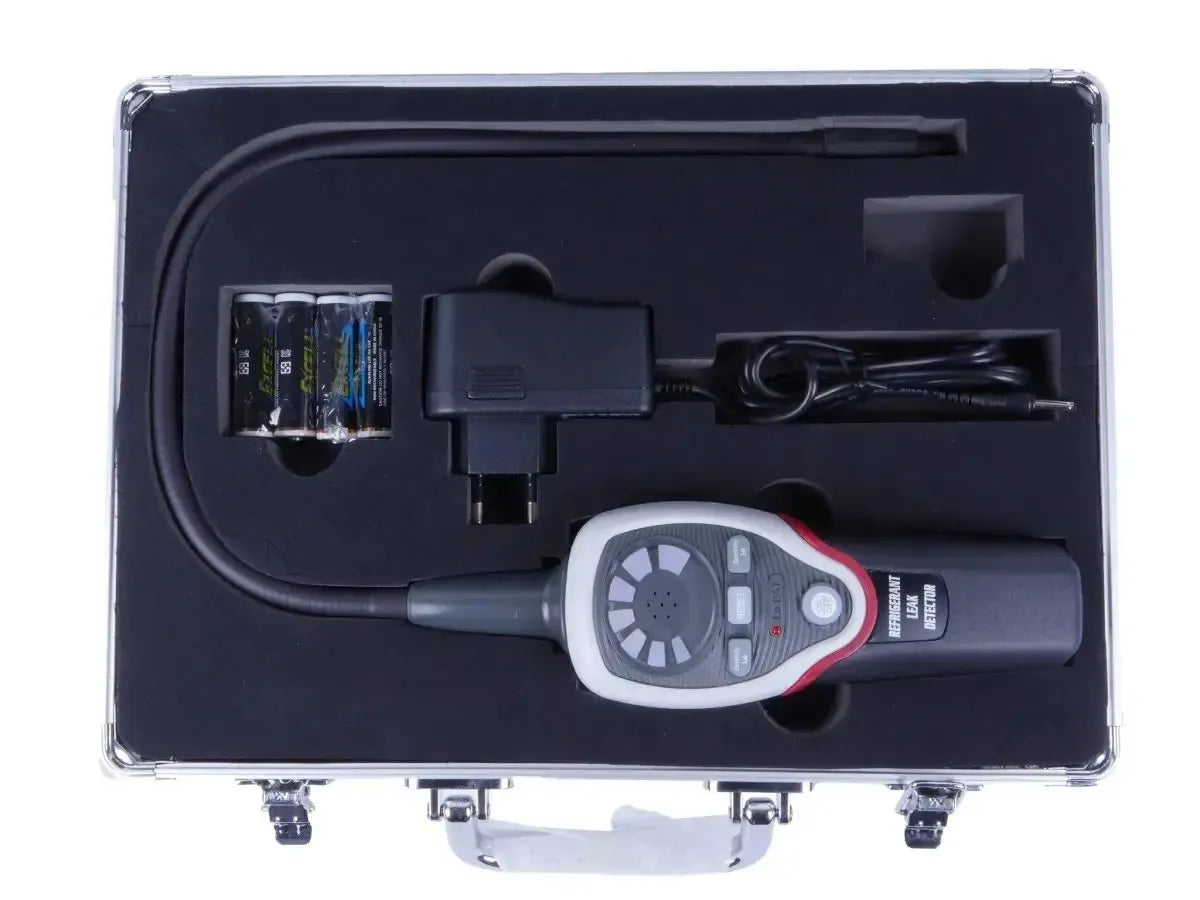

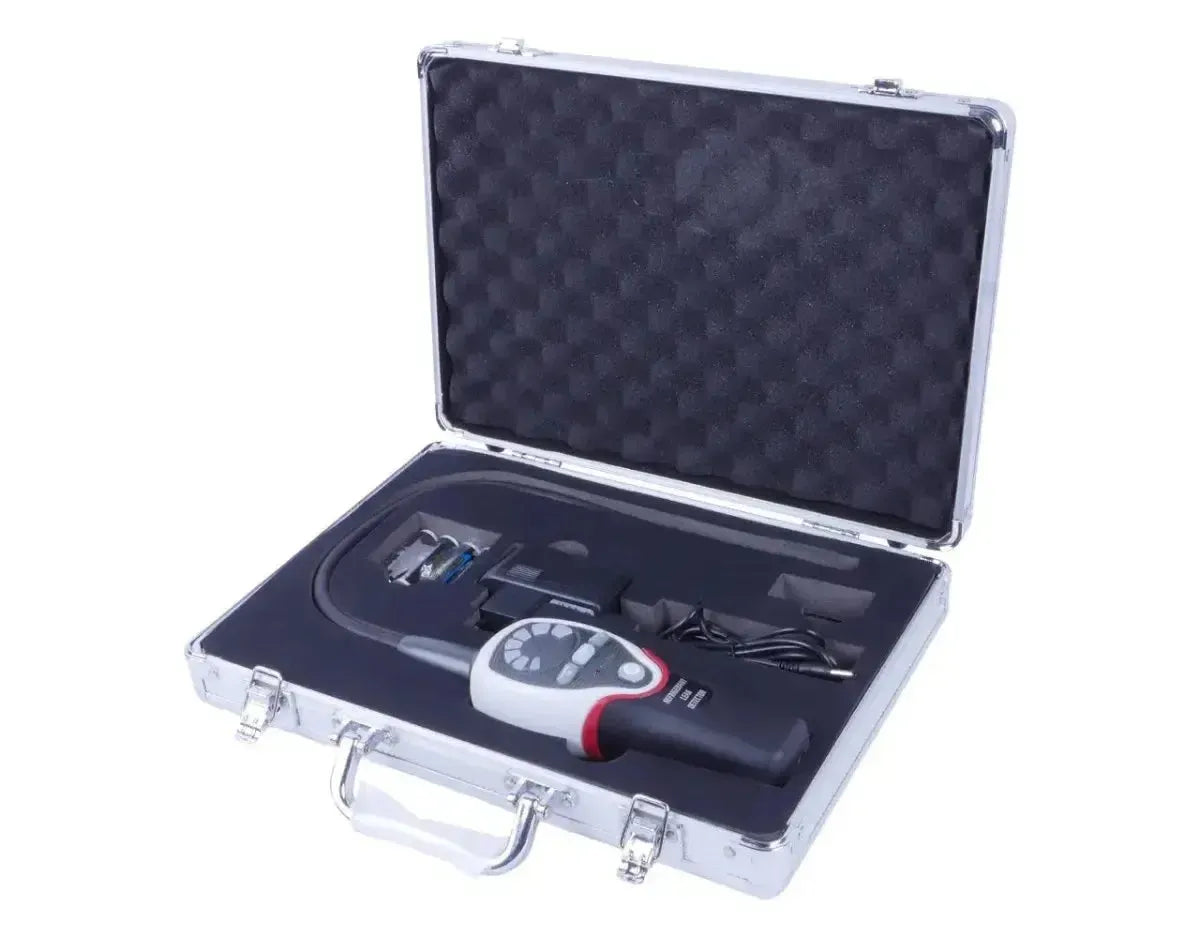

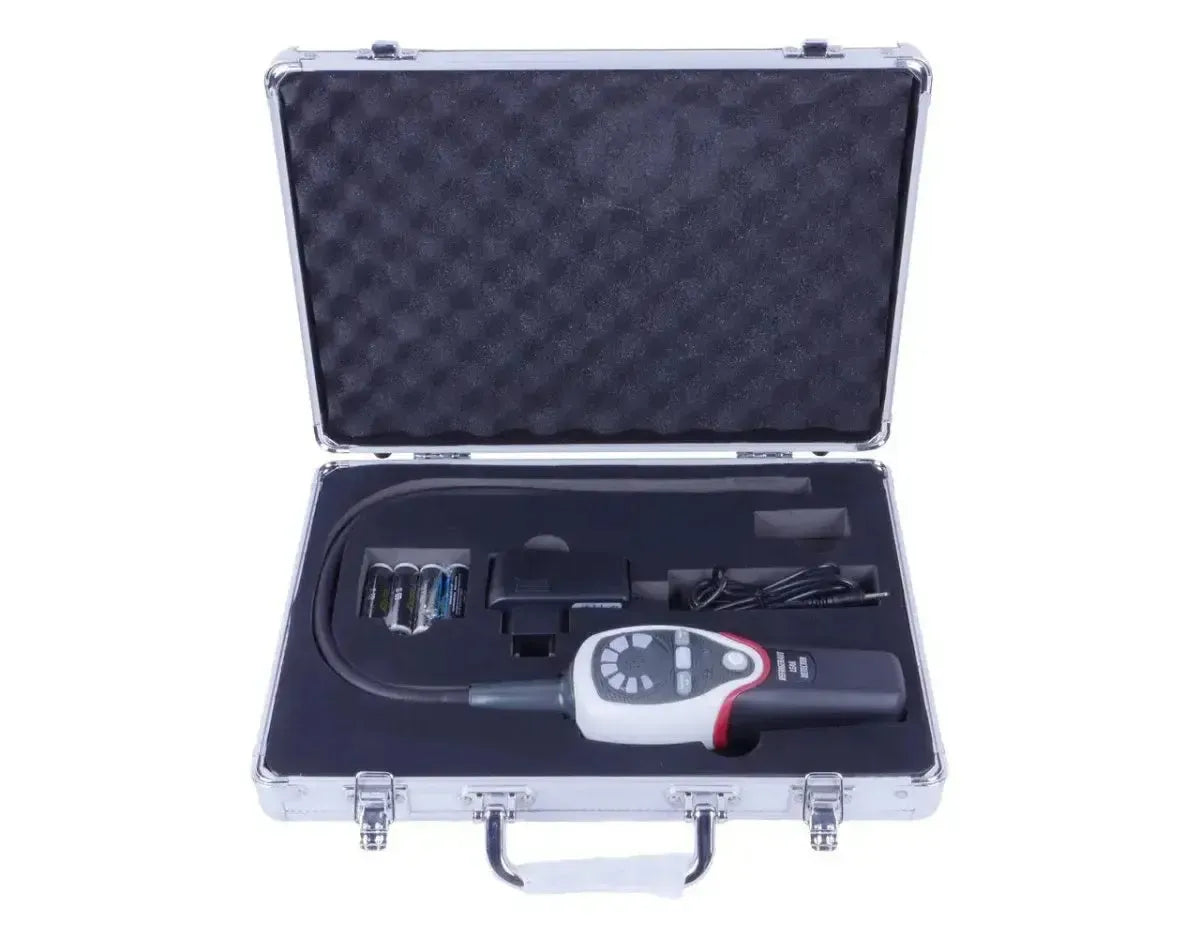

Package Contents:
- 1x VT14104 Forming Gas Leak Detector
- 1x Flexible probe (40 cm)
- 4x AA alkaline battery
- 1x Charging Plug
- 1x Storage Case
Technical Specifications:
| Specification | Description |
|---|---|
| Model | VT14104 |
| Product Type | Forming Gas Leak Detector |
| Detected Gases | Forming Gas Leak Detector (5% hydrogen H2 + 95% nitrogen N2) |
| Sensitivity Levels | 7 |
| Probe Length | 40 cm |
| Signaling | Visual (three-color LED) and auditory |
| Power Supply | 4x AA alkaline battery |
| Standards | SAE J1627, EN14624 |
