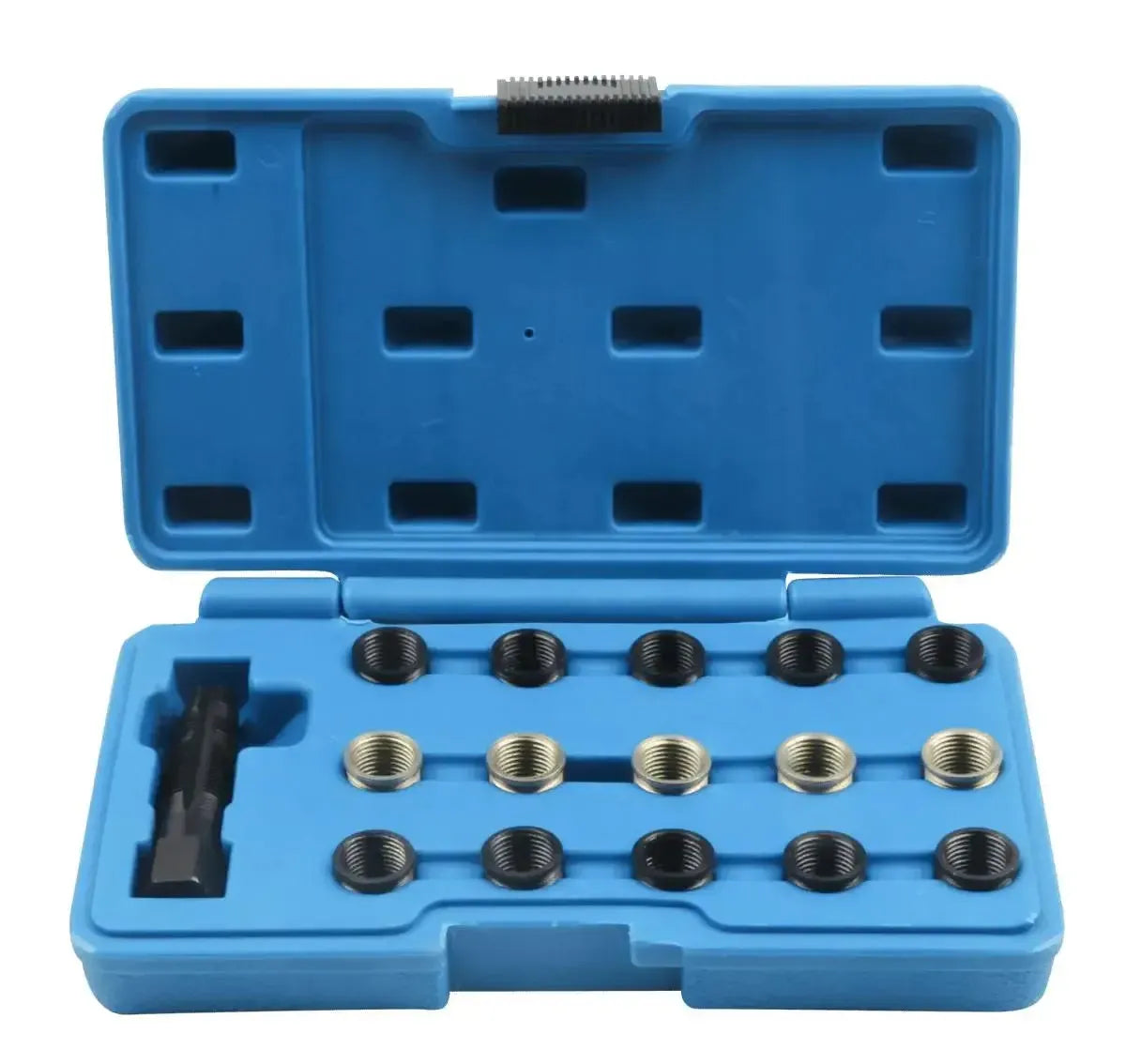

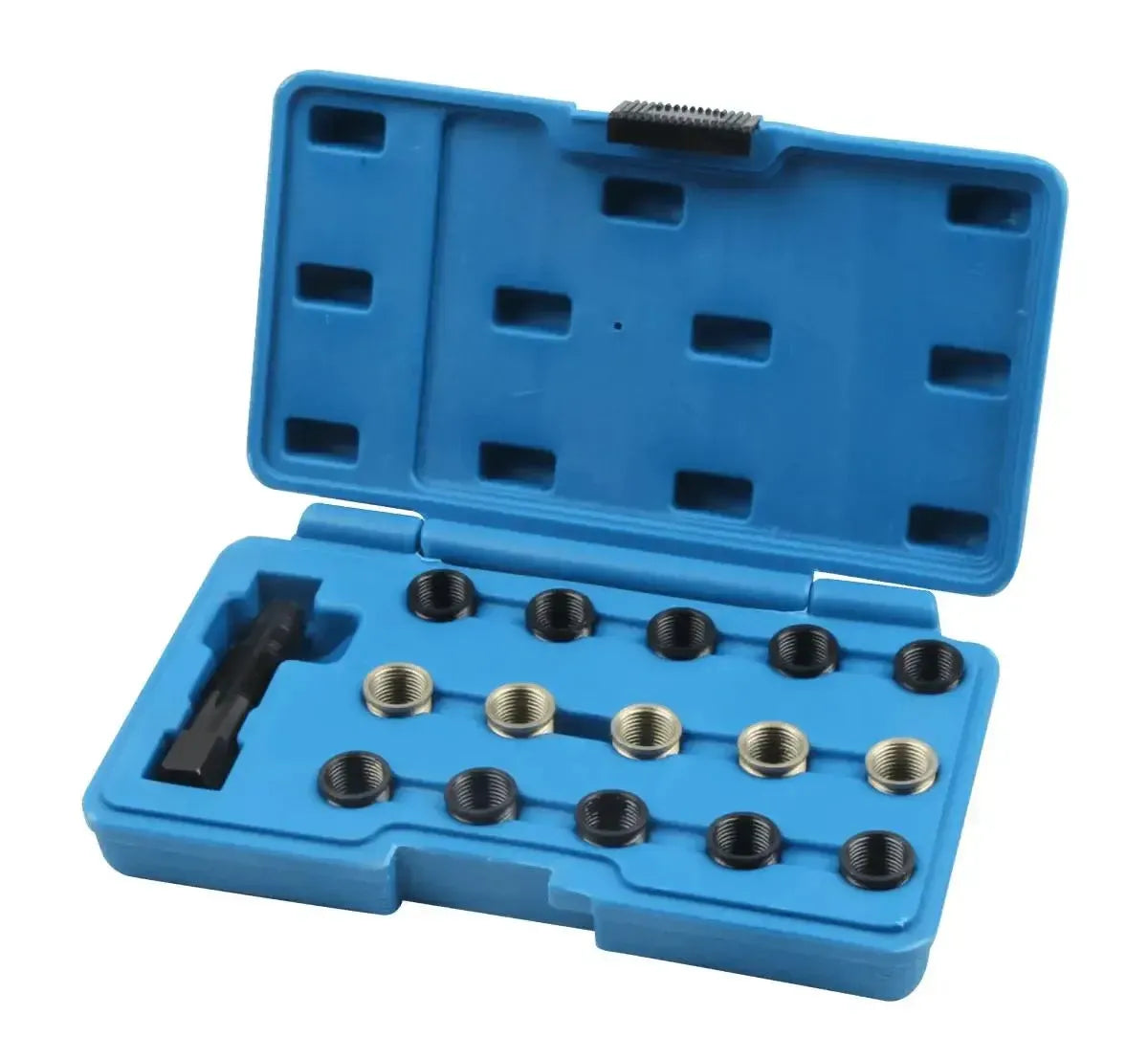

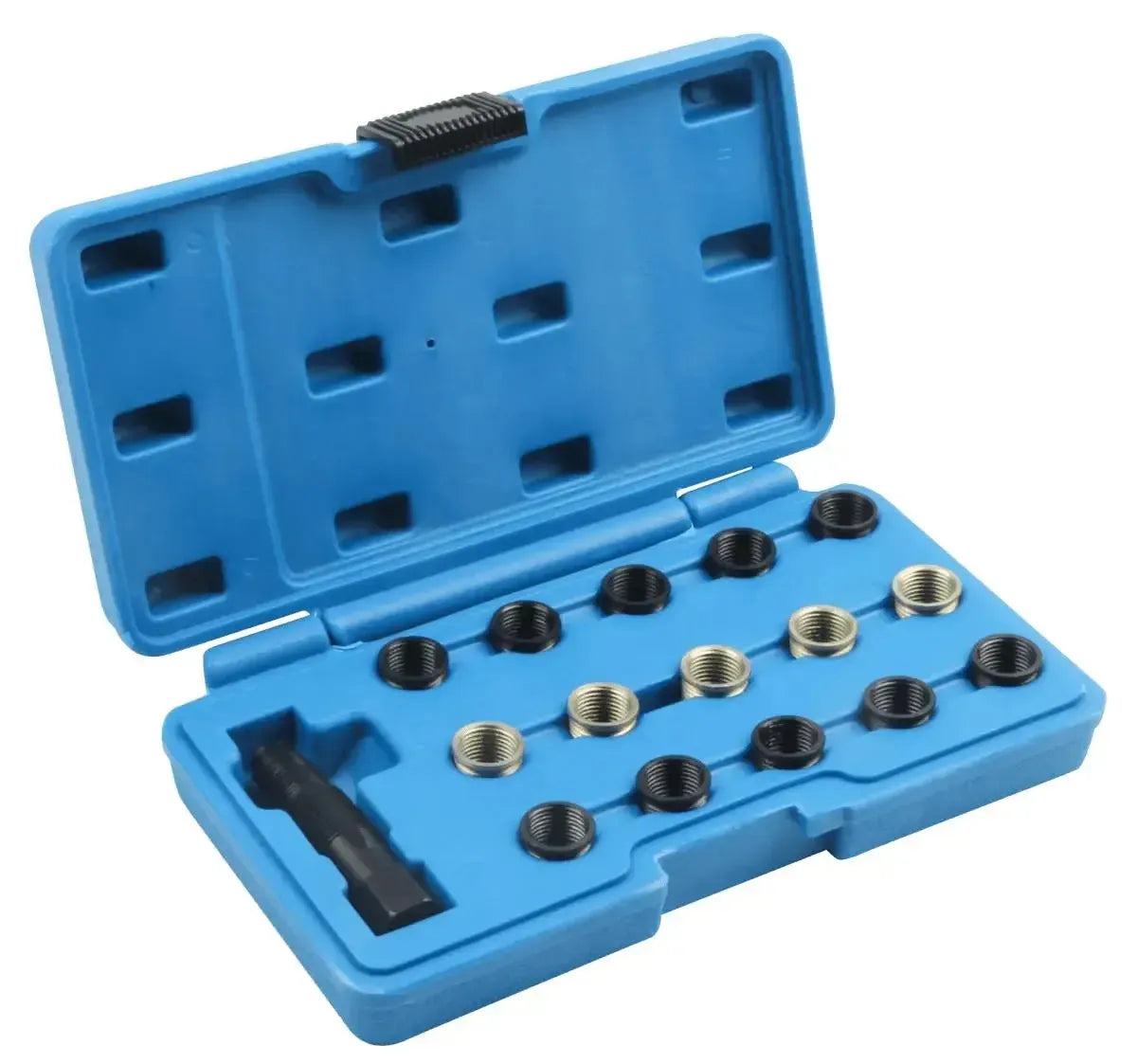

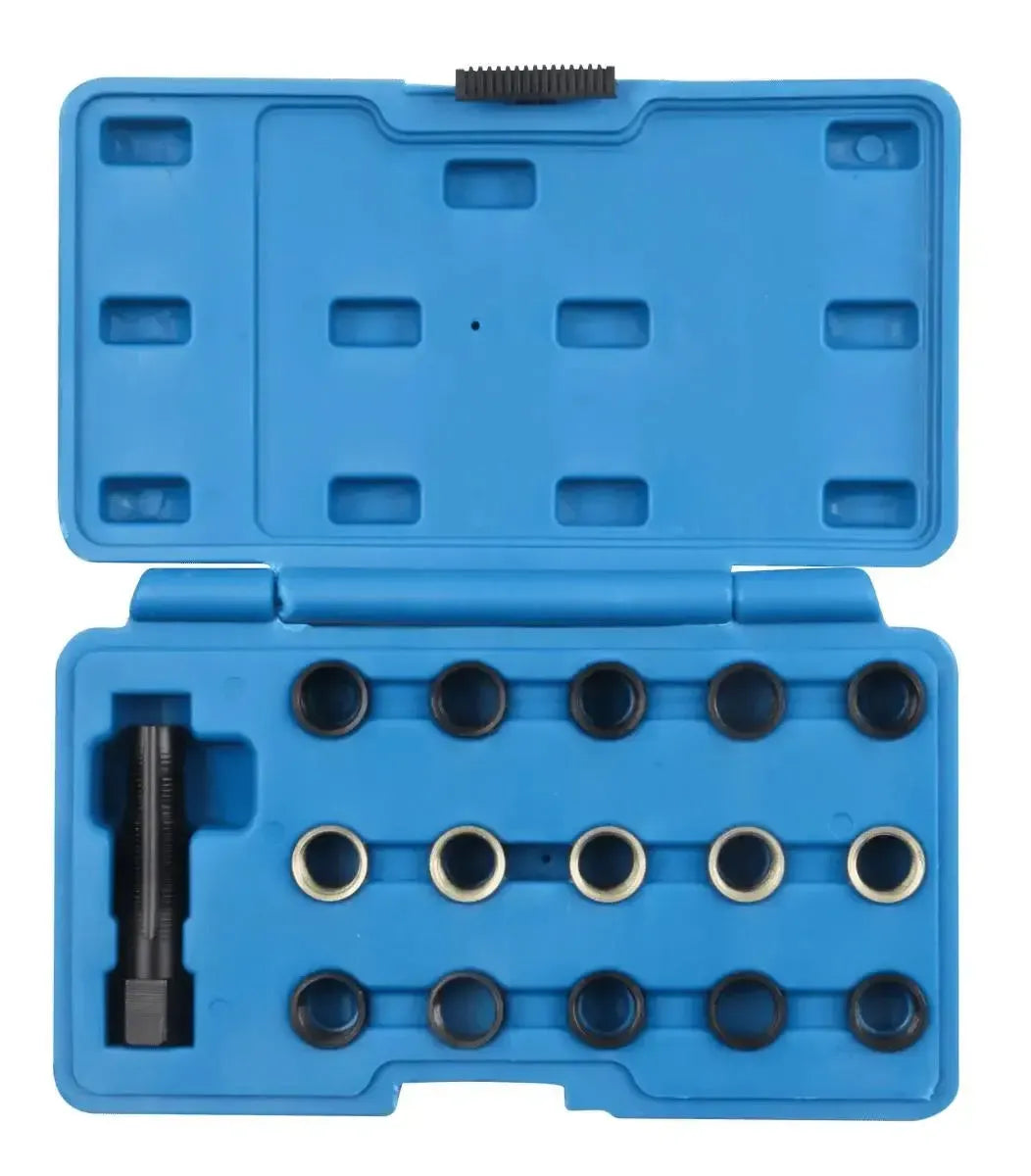

The VT13516 is a 16-piece spark plug thread repair set specifically designed for repairing damaged M14 x 1.25mm threads in cylinder heads. The set includes a reamer tap and 15 thread inserts in various lengths and finishes, allowing repair without disassembling the cylinder head.
The included M16 x 1.25mm tap is used to ream the damaged thread, after which one of the M14 x 1.25mm thread inserts can be installed. The set contains inserts with lengths of 11.2mm and 17.5mm, with different finishes such as blackened and zinc plated. All components are made of hardened steel and come in a plastic storage case for organization and protection of the tools.
Application and functionality:
This set offers a method for repairing spark plug threads directly on the engine.
- Reaming thread: The M16 x 1.25mm tap enlarges the original, damaged M14 thread to a new, clean M16 thread.
- Installing thread inserts: A steel thread insert (insert) is placed in the newly tapped thread, which on the inside has the correct M14 x 1.25mm thread for the spark plug.
- Different lengths: The presence of inserts with lengths of 11.2mm and 17.5mm makes the set suitable for various depths of spark plug holes in different engine types.
- Durable repair: The steel thread insert provides a stronger threaded connection than the original thread in, for example, an aluminum cylinder head.

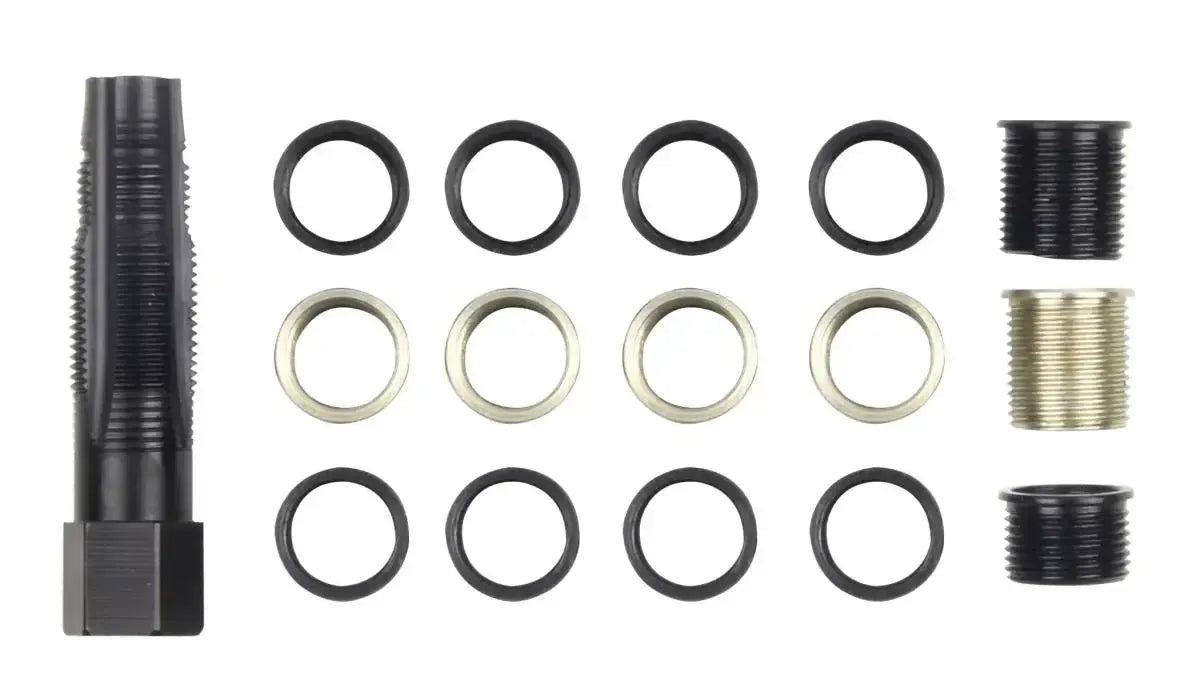

Package Contents:
- 1x M16 x 1.25mm reamer tap (70mm)
- 5x M14 x 1.25mm thread insert (11.2mm, blackened)
- 5x M14 x 1.25mm thread insert (17.5mm, blackened)
- 5x M14 x 1.25mm thread insert (17.5mm, yellow zinc plated)
- 1x Plastic storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT13516 |
| Number of parts | 16 |
| Application | Repair of spark plug thread |
| Spark plug thread size | M14 x 1.25mm |
| Tap thread size | M16 x 1.25mm |
| Tap length | 70mm |
| Thread bushing lengths | 11.2mm, 17.5mm |
| Material | Carbon steel |
| Thread bushing finish | Blackened, yellow zinc plated |
| Weight | approx. 451 g |
