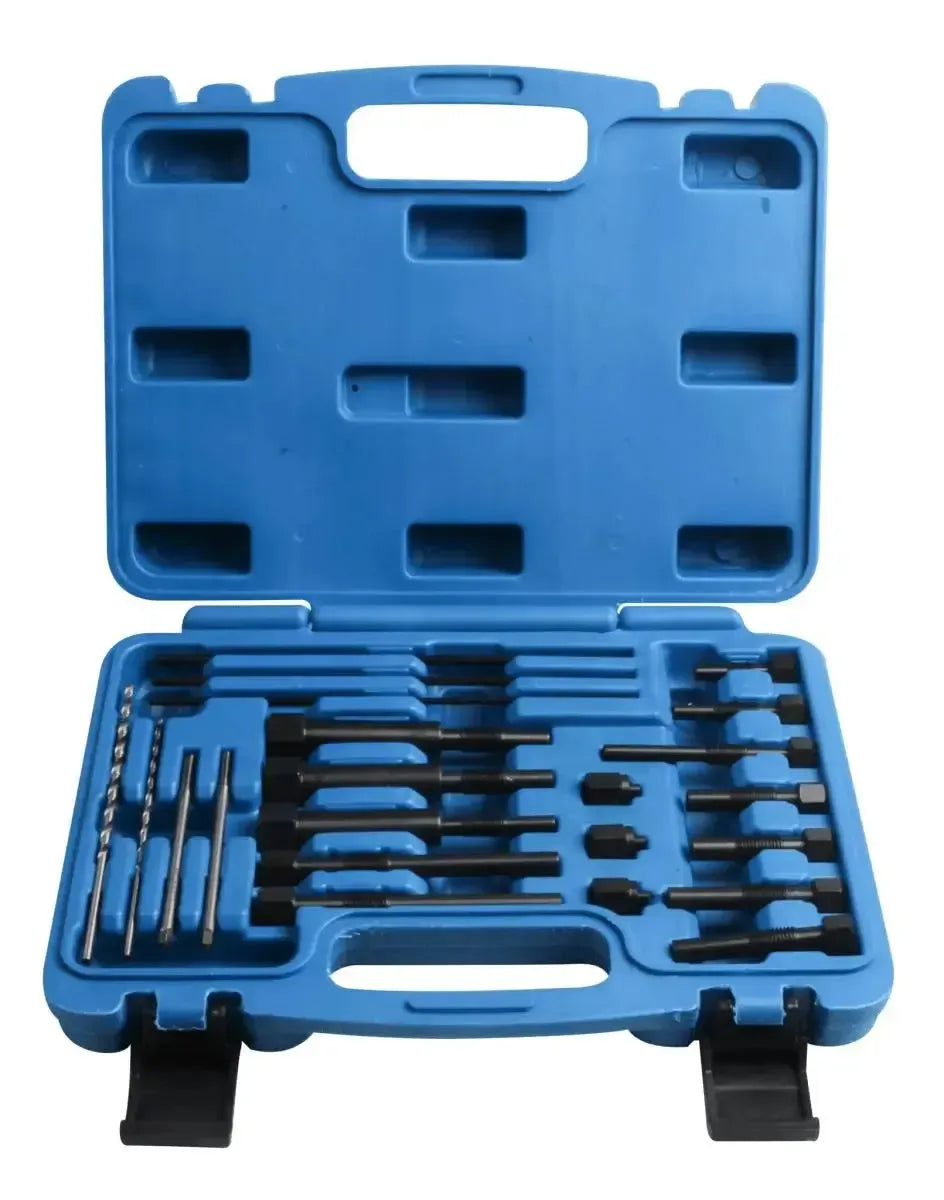

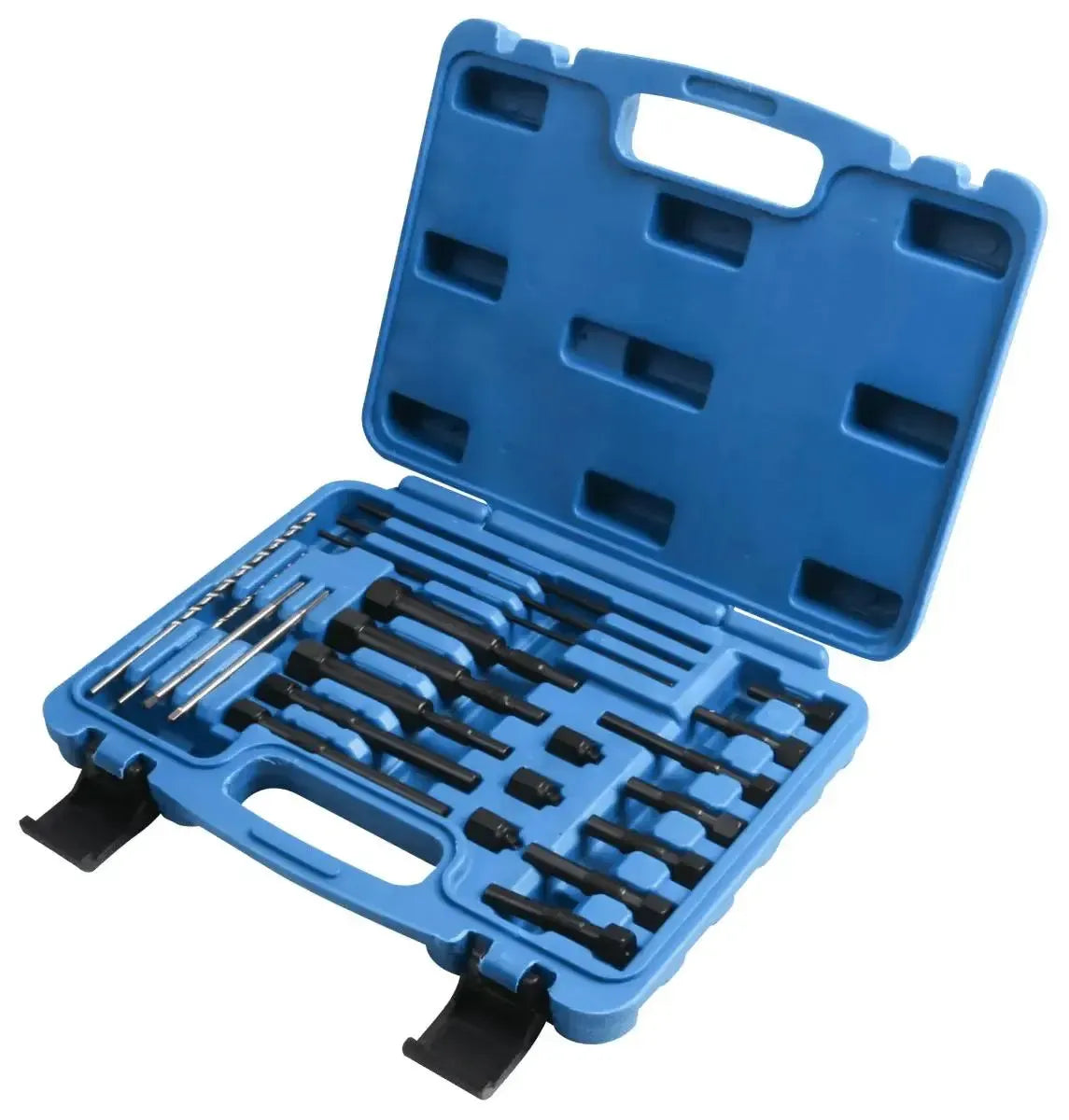

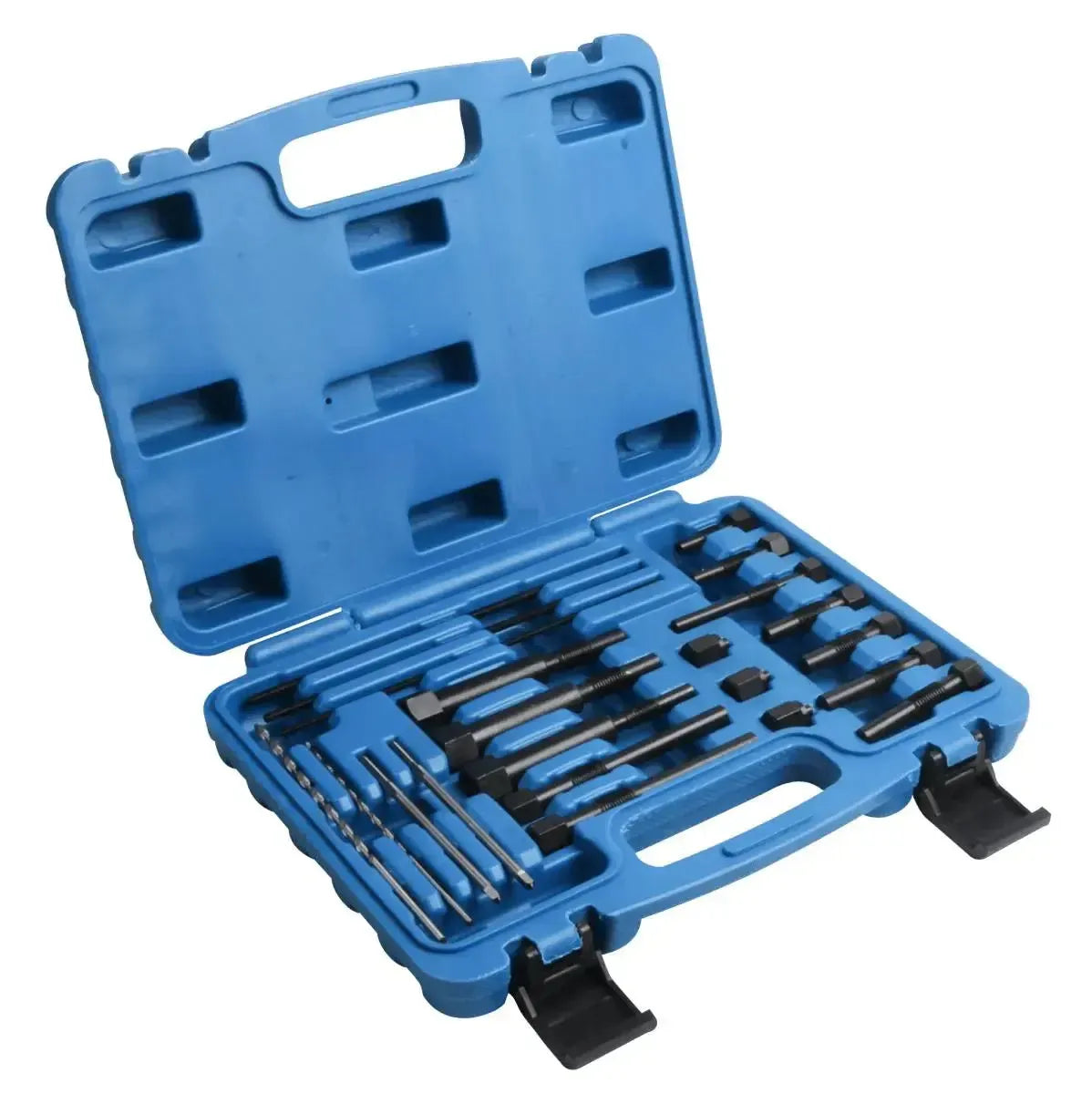

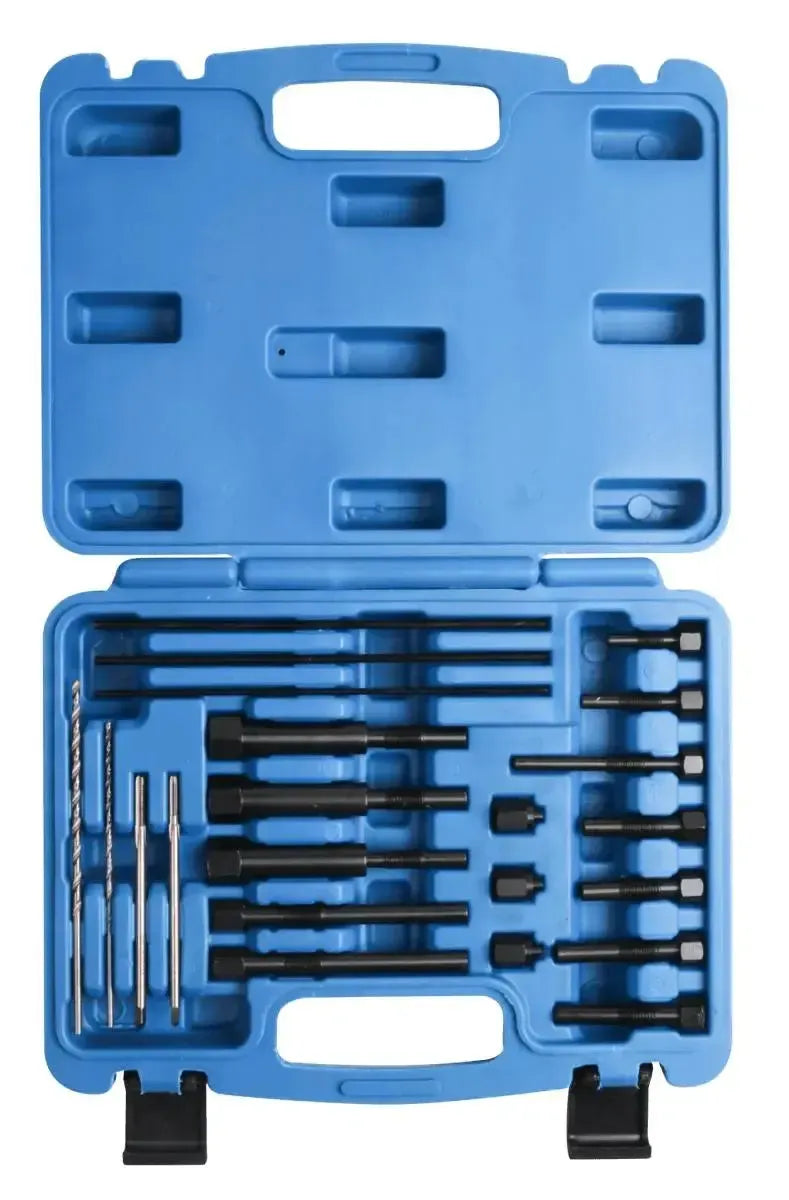

VT13472 | Glow plug electrode removal tool set (22-piece)
Sign up and receive an email as soon as it is back in stock.
Warranty handled directly by AsTools
Warranty handled directly by AsTools
We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.
Easy returns via Returnless
Easy returns via Returnless
Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
The VT13472 is a 22-piece glow plug electrode removal tool set, specifically assembled for removing broken or stuck glow plug electrodes from the cylinder head. This set enables repair without the need to disassemble the cylinder head, which saves considerable time. The set contains various drills, taps, and pulling tools for controlled removal of electrode residues.
This tool set is universally applicable to diesel engines using glow plugs with thread sizes M8 x 1.0 mm, M10 x 1.0 mm, and M10 x 1.25 mm. The included parts make it possible to precisely drill out the stuck electrode, tap new threads for the pull adapter, and then extract the broken tip. All components are neatly organized in a sturdy plastic storage case.
Application and functionality:
The set is developed for the following tasks:
- Electrode removal: Designed for the safe extraction of the stuck or broken tip of a glow plug from the cylinder head.
- Thread repair: Contains taps to clean or restore the original glow plug thread after drilling out.
- Drilling and tapping: Includes special drills and thread cutters (M3, M4) to drill out the electrode residue and tap a thread for the pulling mechanism.
- Pulling: A pull bolt and various adapters are used to carefully pull the drilled-out electrode from the cylinder head.
Package Contents:
- 3x Tap (M8 x 1.0, M10 x 1.0, M10 x 1.25)
- 2x Special drill (2.5 mm, 3.3 mm)
- 2x Thread cutter (M3 x 0.5, M4 x 0.7)
- 1x Pull bolt (180 mm)
- 1x T-handle for tapping
- 1x Various adapters and guide sleeves
- 1x Plastic storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT13472 |
| Number of parts | 22 |
| Application | Removal of broken glow plug electrodes |
| Suitable for thread size | M8 x 1.0 mm, M10 x 1.0 mm, M10 x 1.25 mm |
| Material | Steel |
| Package Contents | Plastic storage case |
