VT13104 | Ford - 1.0L (EcoBoost) | Timing set (16-piece)
Warranty handled directly by AsTools
Warranty handled directly by AsTools
We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.
Easy returns via Returnless
Easy returns via Returnless
Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
The timing set (VT13104) is designed for locking and adjusting the camshafts, crankshaft, and VCT units (Variable Camshaft Timing) on Ford 1.0L EcoBoost petrol engines. This tool is intended for use during timing belt replacement or other engine maintenance where timing must be correctly set.

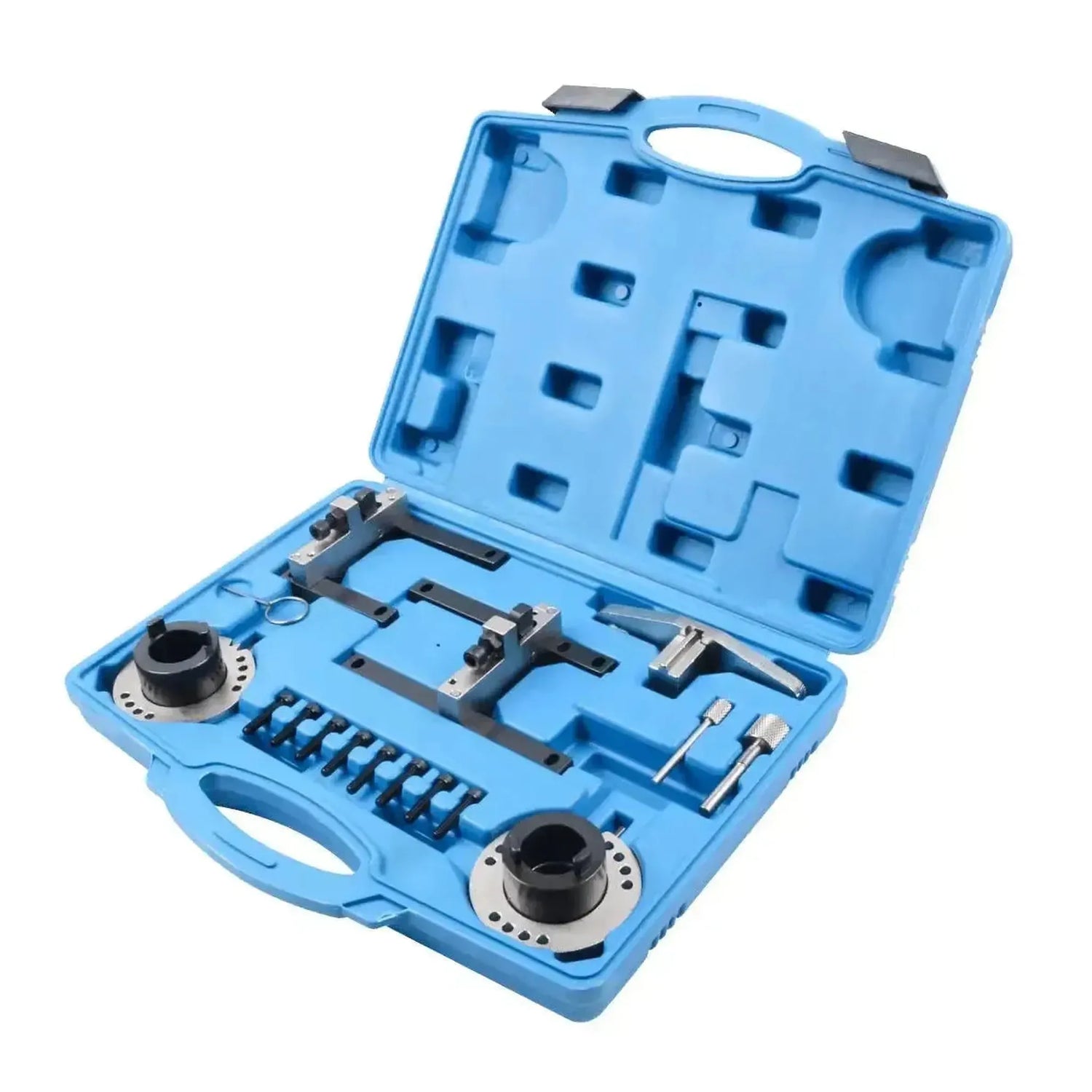

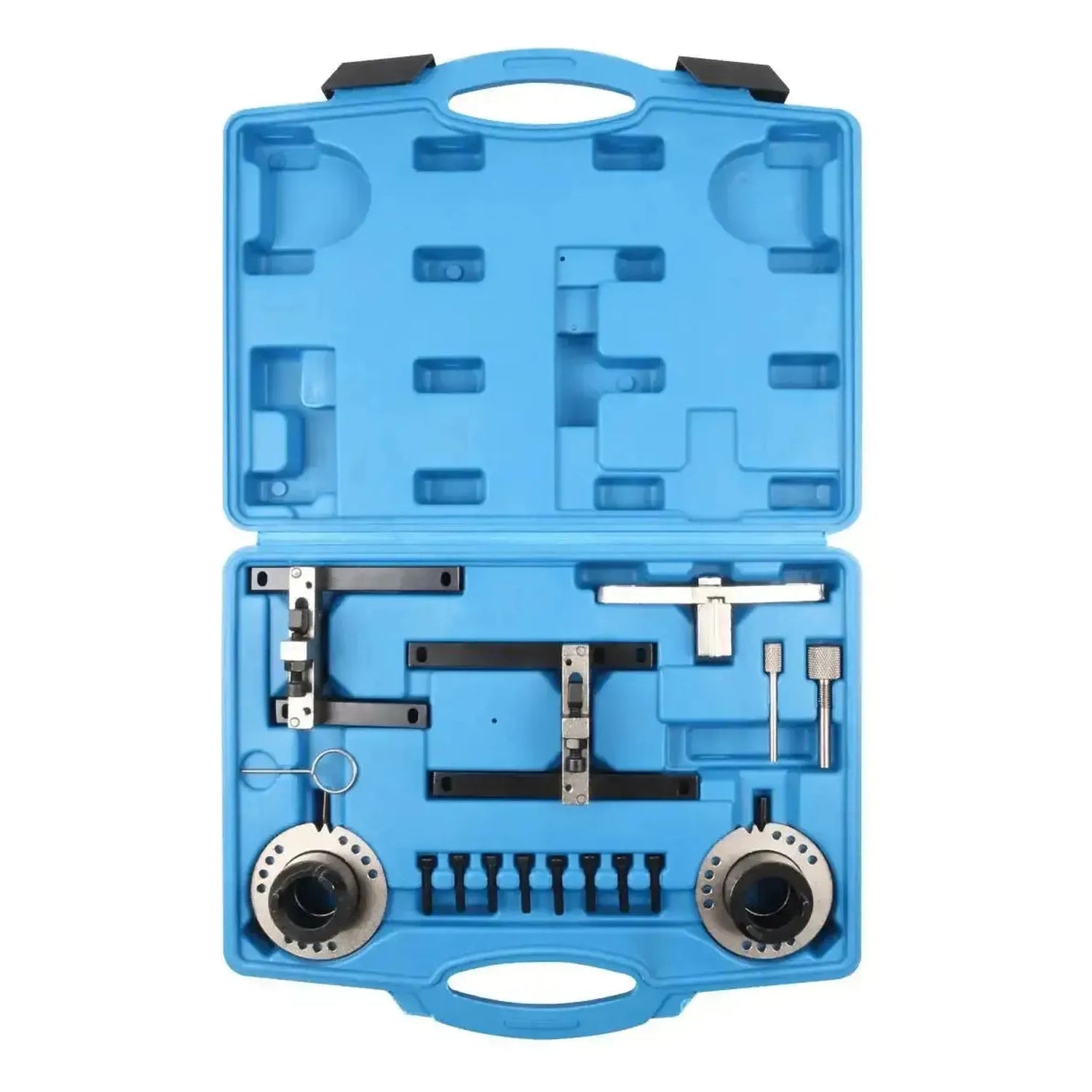

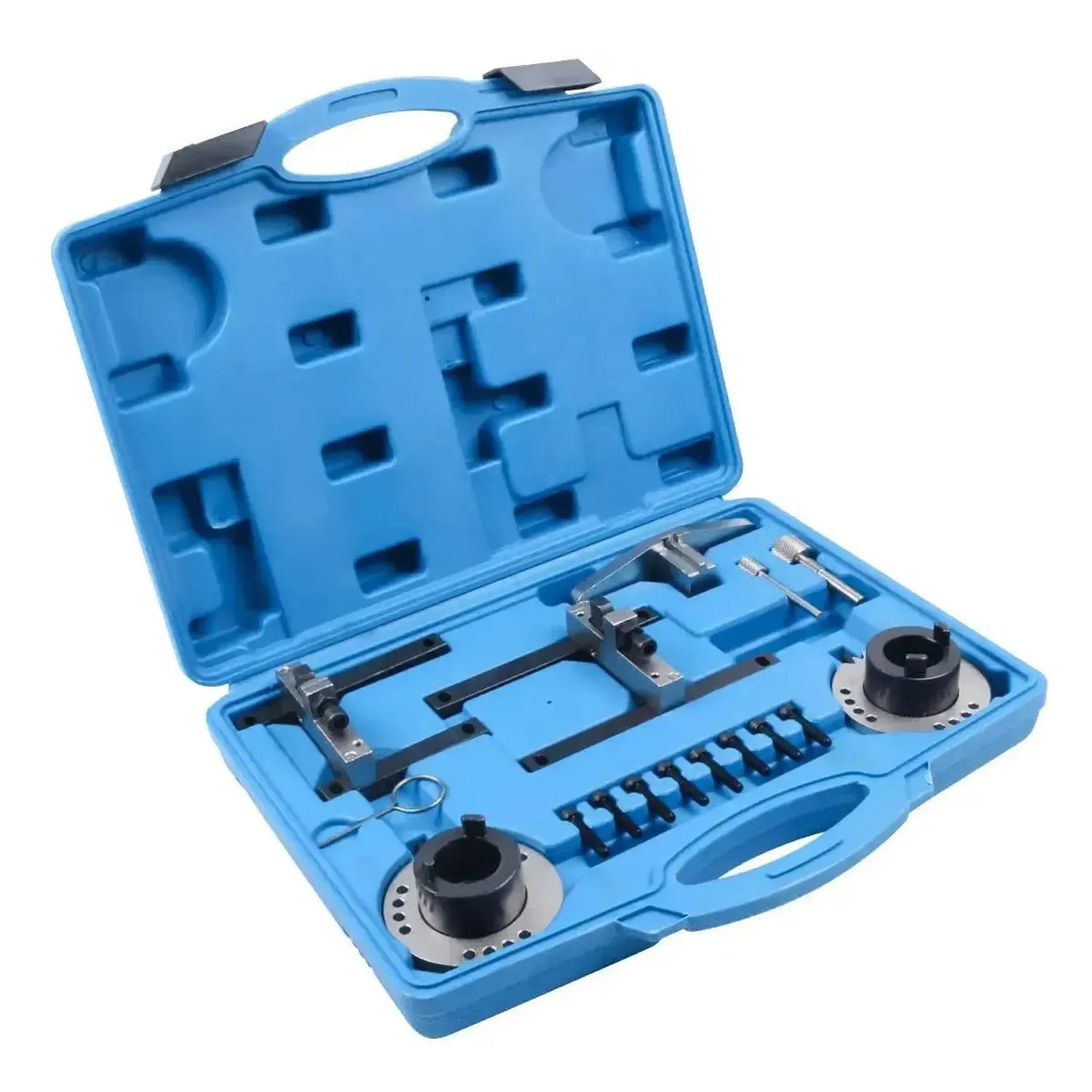

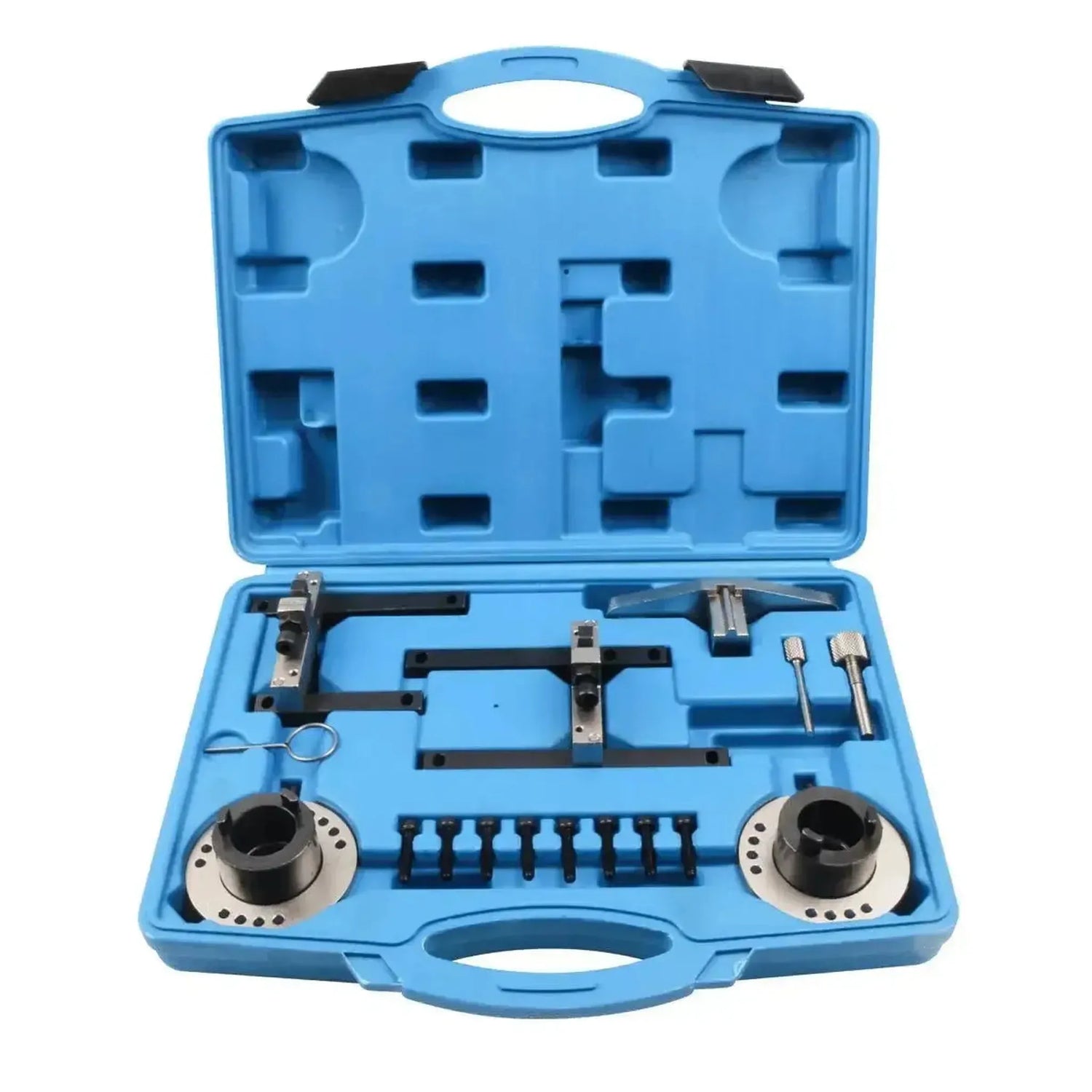

The 16-piece set includes specific tools such as a camshaft locking plate, VCT adjustment tool, a flywheel locking pin, and various alignment tools. These parts ensure precise positioning of engine components, which is necessary for the correct operation of the engine and the VCT system.
Application and functionality:
This set contains the tools needed for checking, adjusting, and replacing the timing belt on Ford 1.0L EcoBoost engines.
- Camshaft locking: The supplied locking plate secures the camshafts in their TDC position (Top Dead Center).
- Crankshaft locking: A locking pin is used to block the flywheel, securing the crankshaft in the correct position.
- Adjusting the VCT units: Specific tools allow the variable camshaft timing to be correctly aligned and set.
- Aligning the crankshaft pulley: An alignment tool ensures the correct installation and positioning of the crankshaft pulley.
- Locking the belt tensioner: The locking pin can hold the belt tensioner in a relaxed position during belt installation.
Compatible vehicles and engine codes:
Suitable for various Ford models equipped with 1.0L EcoBoost petrol engines.
Ford:
- B-Max: (2012–2018)
- C-Max: (2012–2018)
- EcoSport: (2013–present)
- Fiesta: (2013–2017)
- Focus: (2012–2018)
- Grand C-Max: (2012–2018)
- Mondeo: (2015–2018)
- Tourneo Connect: (2013–2018)
- Tourneo Courier: (2014–present)
- Transit Connect: (2013–2018)
- Transit Courier: (2014–present)
Engine Codes:
- 1.0L EcoBoost: M1DA, M1DD, M1JA, M1JC, M1JE, M1JH, M2DA, M2DB, M2DC, P4JA, P4JB, P4JC, P4JD, SFCA, SFCB, SFDB, SFJA, SFJB, SFJC, SFJD, XMJA, XMJB
Package Contents:
- 1x Camshaft locking plate – OEM: 303-1606
- 1x Camshaft VCT adjustment tool – OEM: 303-1605
- 1x Flywheel locking pin – OEM: 303-1602, 303-393A, 21-168
- 1x Camshaft VCT alignment tool – OEM: 303-1604
- 1x Crankshaft pulley alignment tool – OEM: 303-732
- 1x Belt tensioner locking pin – OEM: 303-1054
- 8x Mounting screws
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT13104 |
| Number of parts | 16 |
| Compatible vehicle brands | Ford |
| Compatible vehicle models | B-Max, C-Max, EcoSport, Fiesta, Focus, Grand C-Max, Mondeo, Tourneo Connect, Tourneo Courier, Transit Connect, Transit Courier |
| Compatible engine codes | M1DA, M1DD, M1JA, M1JC, M1JE, M1JH, M2DA, M2DB, M2DC, P4JA, P4JB, P4JC, P4JD, SFCA, SFCB, SFDB, SFJA, SFJB, SFJC, SFJD, XMJA, XMJB |
