The VT01884 is an 11-piece universal clutch alignment tool set, designed for precise centering of the clutch plate. This set is specifically developed for vehicles that do not have a pilot bearing in the crankshaft, which is often the case with cars featuring front-wheel drive. By using the included expanding mandrels and centering sleeves, the clutch plate can be positioned exactly in line with the crankshaft before the pressure plate is mounted.
The set consists of steel components for long service life and is suitable for a wide range of car makes and models. The different diameters of the sleeves and the adjustable range of the mandrels provide broad compatibility. The tool is supplied in a robust plastic storage case, which helps organize and protect the parts.
Application and functionality:
This tool set is used to center the clutch plate during clutch installation, which simplifies the installation of the transmission.
- Precise centering: The combination of the expanding mandrel and the matching centering sleeve ensures that the clutch plate is perfectly centered. This prevents issues when installing the transmission input shaft.
- Universal design: Suitable for most single-plate clutches on vehicles without a pilot bearing in the crankshaft.
- Simple operation: The mandrel is inserted through the hub of the clutch plate into the crankshaft. By turning the adjusting knob, the mandrel expands and clamps the plate firmly in place for securing the pressure plate.

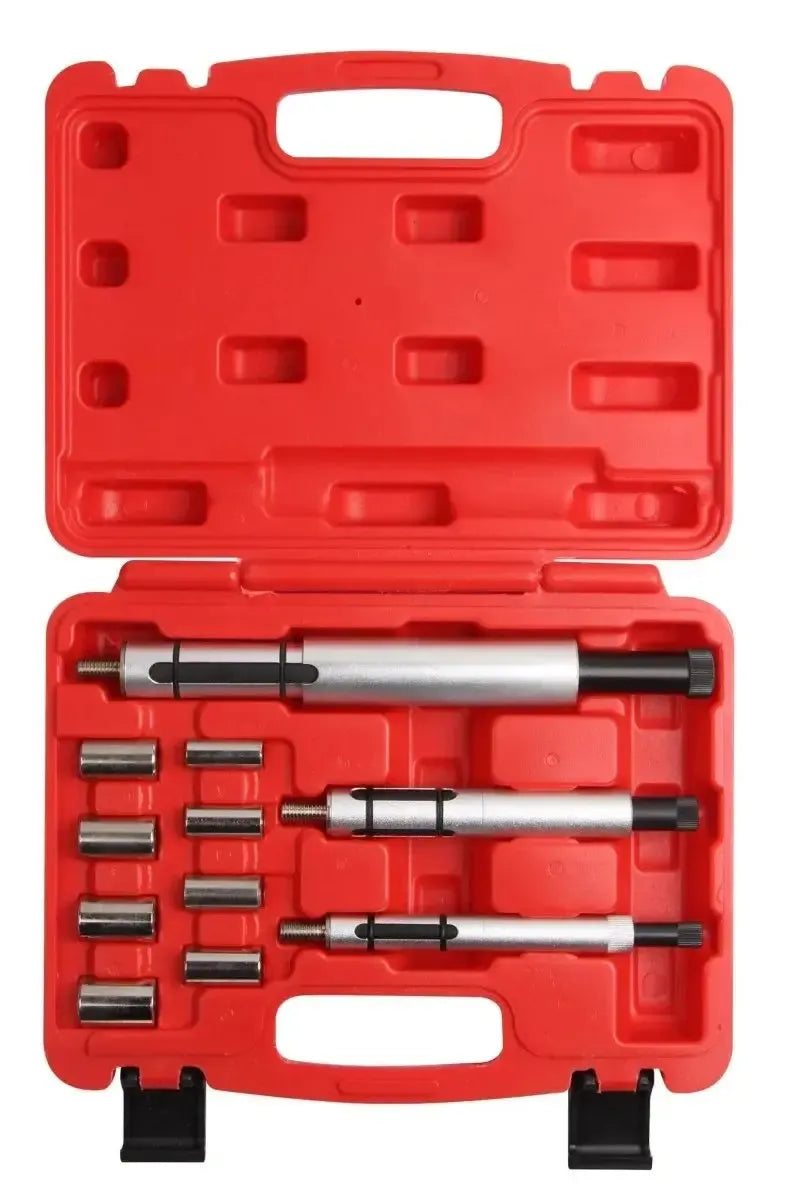

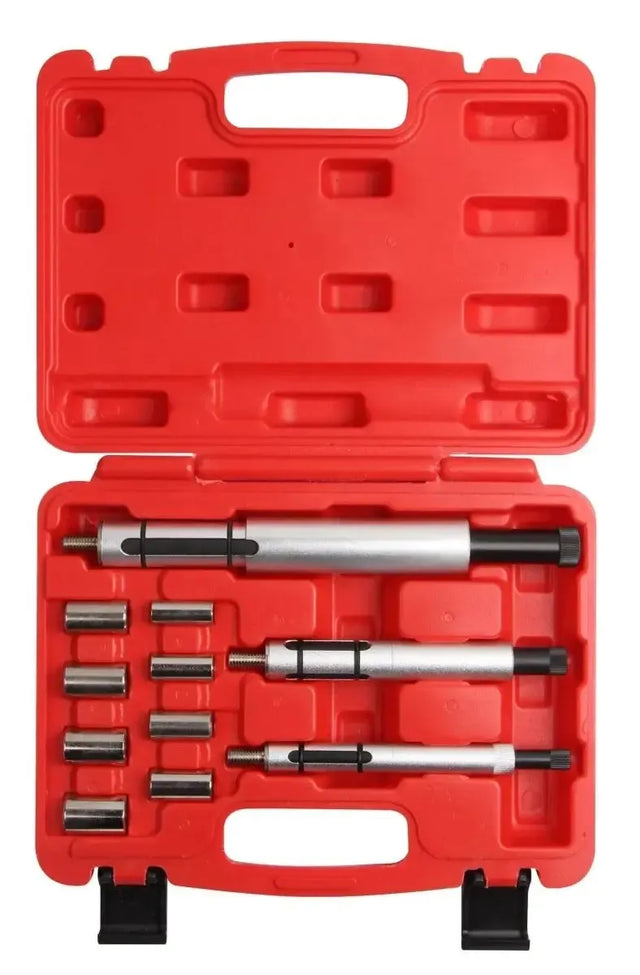

Package Contents:
- 1x Expanding mandrel (15 - 19 mm)
- 1x Expanding mandrel (20 - 26.6 mm)
- 1x Expanding mandrel (23 - 36 mm)
- 8x Centering bushing (12, 14, 15, 16, 17, 18, 19, 20 mm)
- 1x Plastic storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01884 |
| Number of parts | 11 |
| Material | Steel |
| Application | Centering clutch plates without pilot bearing |
| Range centering bushings | 12 mm to 20 mm |
| Range expanding mandrels | 15 mm to 36 mm |
| Package Contents | Plastic storage case |
