VT01864 | Ford - 2.0/2.2/2.4/3.2L (Duratorq) | Timing set (9-piece)

The timing set (VT01864) is a 9-piece set designed for performing maintenance on the timing chain of Ford 2.0, 2.2, 2.4, and 3.2 liter Duratorq diesel engines. The tools are used for locking the flywheel and fixing the crankshaft and the high-pressure fuel pump in the correct timing position.

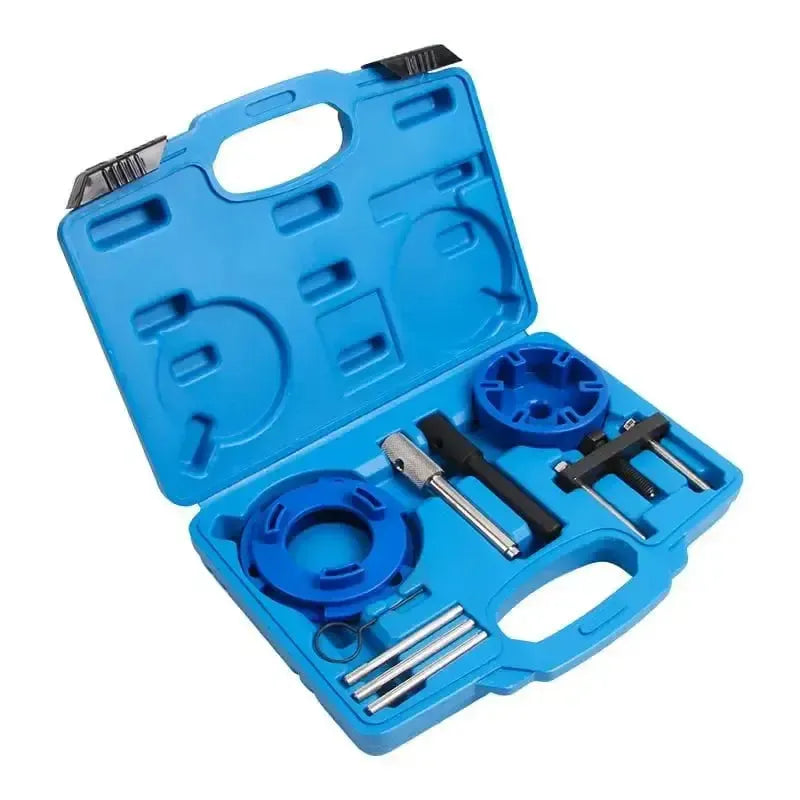

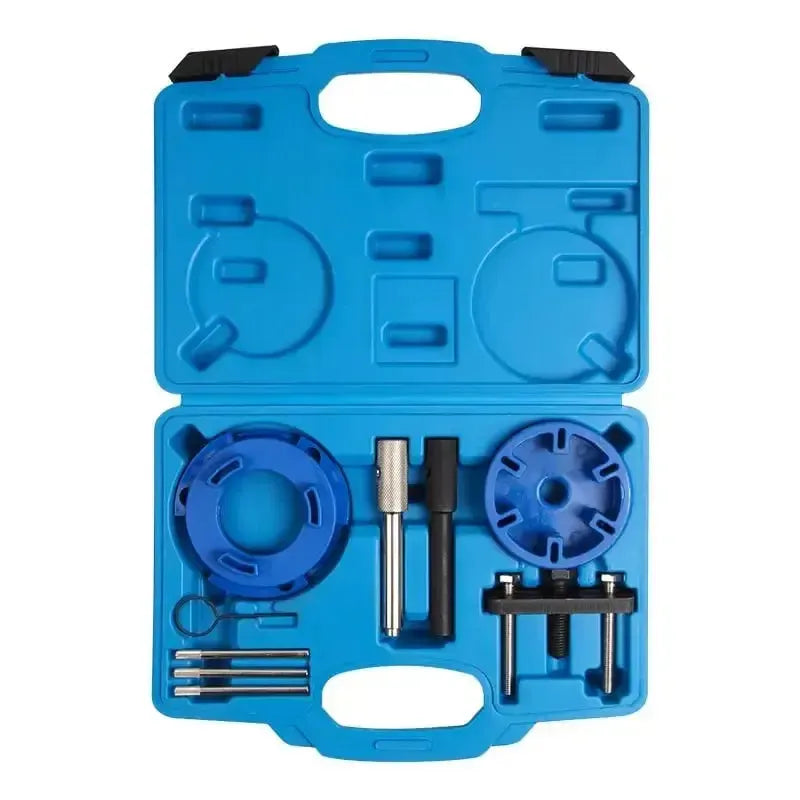

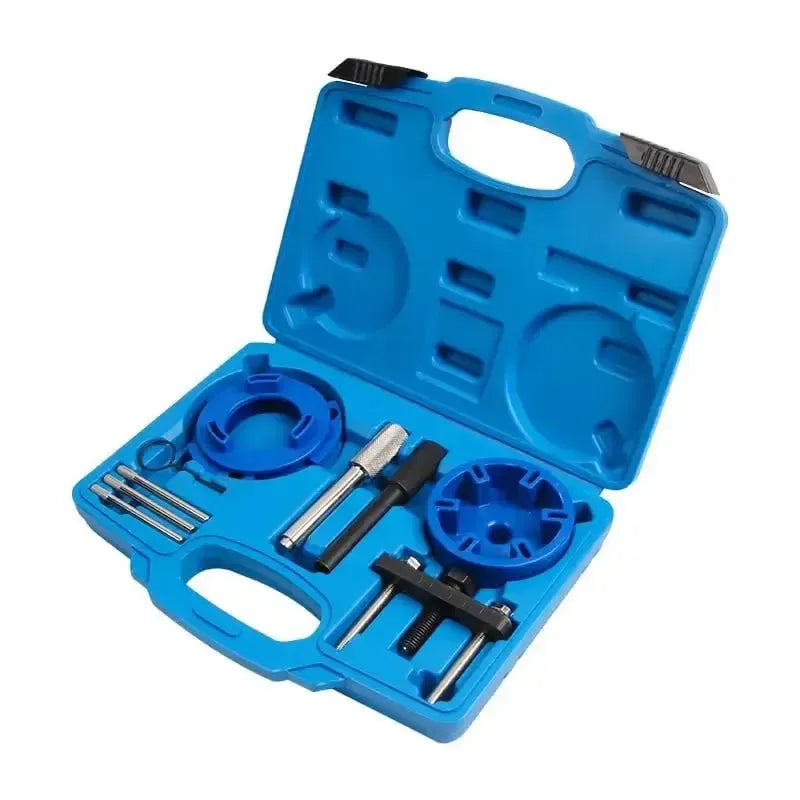

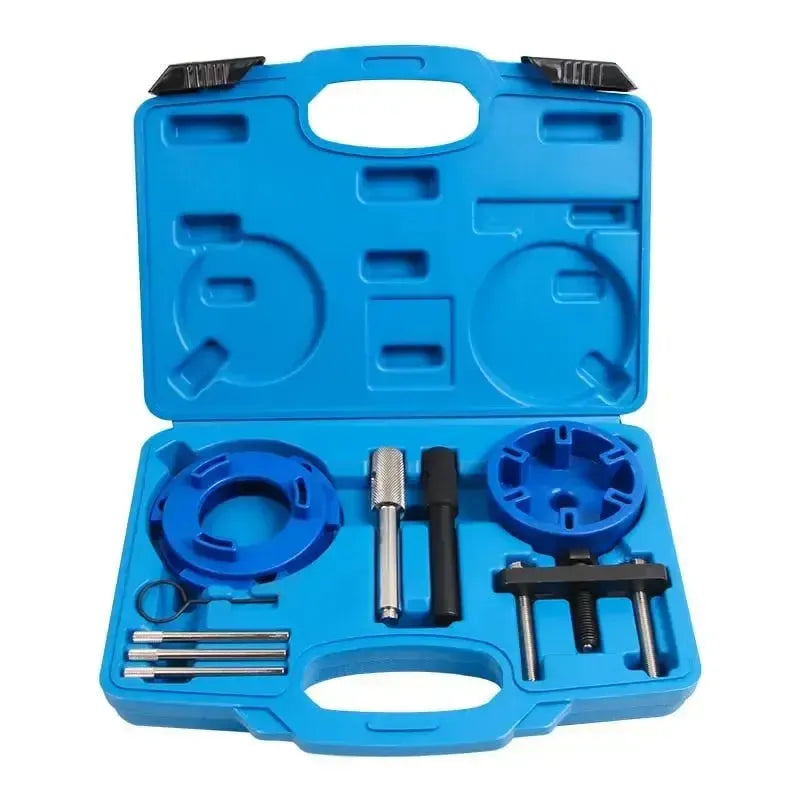

The set contains specific tools for dismantling the high-pressure pump, adjusting the engine cover and crankshaft seal, and various locking pins for the flywheel and tensioner. All parts are supplied in a plastic storage case for transport and storage.

Application and functionality:

This set is used for performing various maintenance tasks on the timing system, such as replacing the timing chain and dismantling the fuel pump.

• Locking the flywheel: Two pins (OEM 303-675, 303-698) for blocking the flywheel in the correct timing position.
• Dismantling the high-pressure pump: A dismantling tool (OEM 303-249) and a holder for the belt pulley (OEM 303-1151) enable the removal of the pump.
• Adjusting the crankshaft seal: Tools (OEM 303-679A and 303-682) for correctly positioning the engine cover and the crankshaft seal.
• Fixing components: Various pins for locking the tensioner (2 mm) and other components (6 mm).

Compatible vehicles and engine codes:

Suitable for various models of Citroën, Fiat, Ford, Jaguar, Land Rover, LDV, and Peugeot with Duratorq TDCi, TDdi, and HDi diesel engines.

Citroën:

• Jumper/Relay: (2006–2012)

Fiat:

• Ducato: (2006–2011)

Ford:

• Mondeo: (2000–2007)
• Ranger: (2011–present)
• Tourneo Custom: (2012–present)
• Transit: (2000–2014)
• Transit Custom: (2012–present)

Jaguar:

• X-Type: (2001–2010)

Land Rover:

• Defender: (2006–2011)

LDV:

• Convoy: (2002–2006)

Peugeot:

• Boxer: (2006–2012)

Engine Codes:

• 2.0L Duratorq: ABFA, D3FA, D5BA, D6BA, F3FA, FIFA, FMBA, FMBB, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB
• 2.2L Duratorq: 4HM, 4HU, 4HV, CYFA, CYFB, CYFC, CYRA, CYRB, DRFA, DRFB, DRFC, DRRA, DRRB, P22DTE, P8FA, P8FB, PGFA, PGFB, QJBA, QJBB, QJBC, QJBD, QVFA, QWFA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA
• 2.4L Duratorq: 244DT, D2FA, D2FB, D2FE, D4FA, DOFA, F4FA, FXFA, H9FA, H9FB, H9FD, JXFA, JXFC, PD24P, PHFA, PHFC, ZSD 424
• 3.2L Duratorq: SAFA, SAFB

Package Contents:

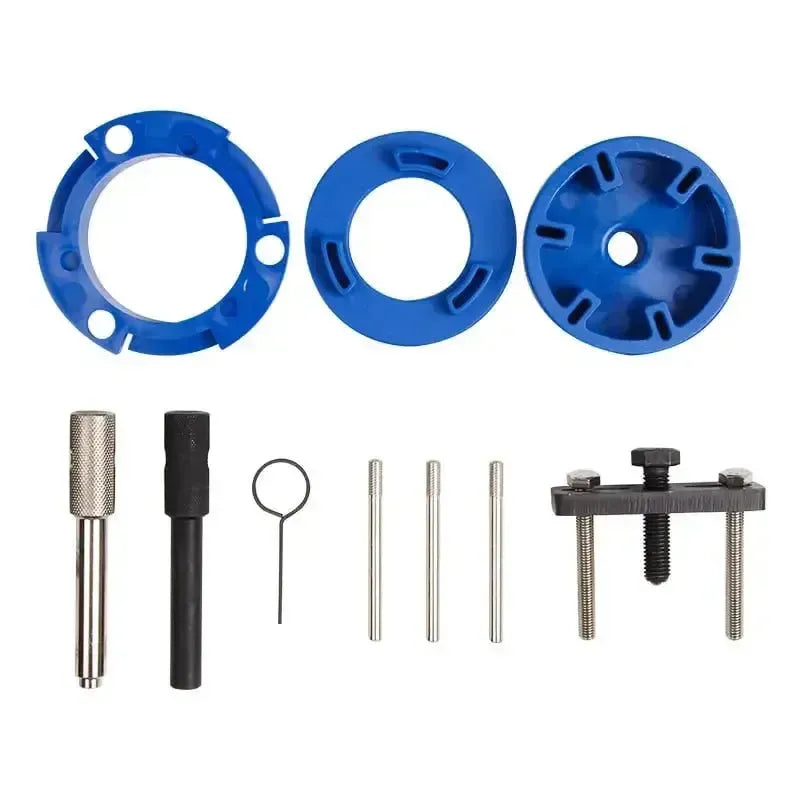

• 1x Adjustment tool for engine cover – OEM: 303-682
• 1x Tools for engine cover and crankshaft seal – OEM: 303-679A
• 1x Holder for high-pressure pump pulley – OEM: 303-1151
• 1x Removal tool for high-pressure pump – OEM: 303-249
• 1x Flywheel locking pin (black) – OEM: 303-675
• 1x Flywheel locking pin (silver) – OEM: 303-698
• 3x Locking pins (6 mm)
• 1x Locking pin for tensioning element (2 mm)
• 1x Storage case
