VT01765B | Diesel Injector Maintenance Kit (35-piece)

The VT01765B is a 35-piece maintenance set, designed for cleaning and restoring the seats and shafts of diesel injectors and glow plugs. This set contains specialized tools, including various cutters and brushes, suitable for a wide range of diesel engines. The tools are made to remove carbon and rust deposits, contributing to proper sealing and fuel injection.

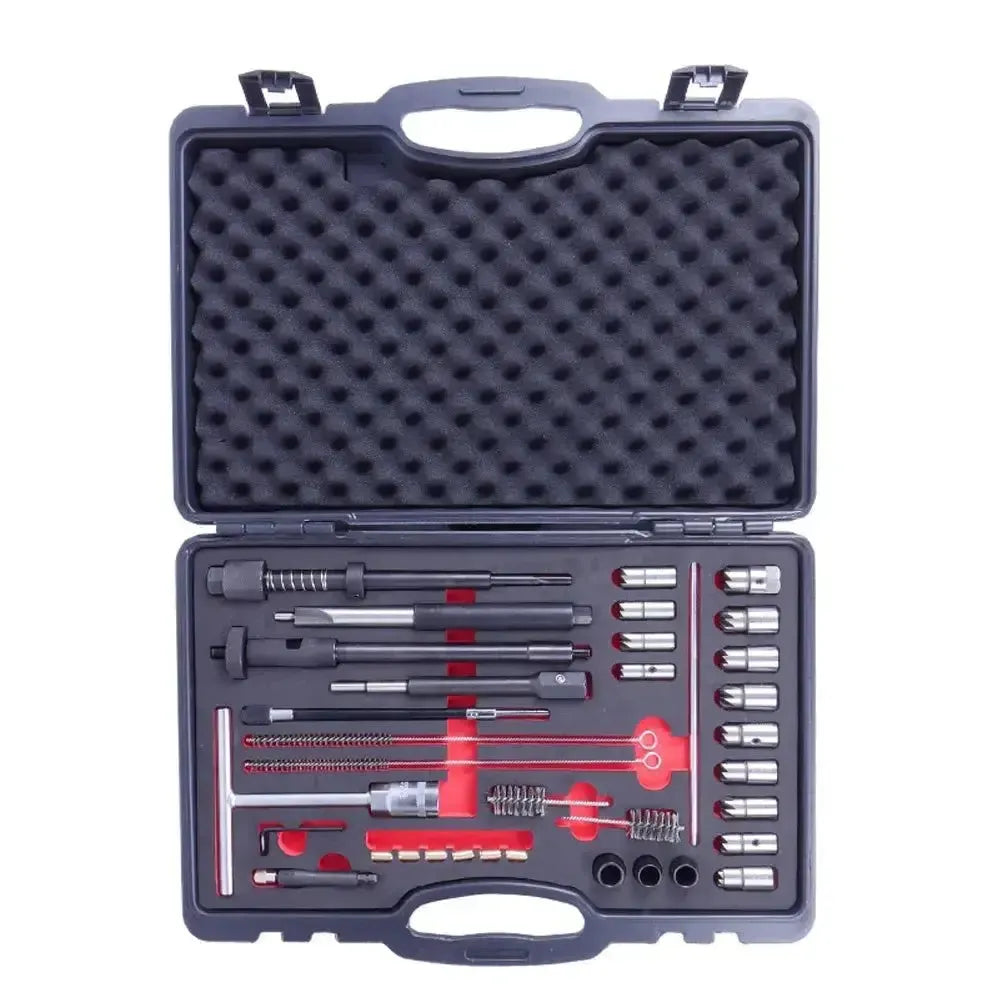

All parts are neatly organized in a sturdy plastic storage case. This ensures that the components are protected from damage and that the set can be easily transported. The set also includes stop plugs to prevent dirt from entering the combustion chamber during the cleaning process.

Application and functionality:

This set is intended for maintaining the contact surfaces of diesel injectors and the associated shafts in the cylinder head.

• Cleaning injector shafts: The included steel wire brushes and cylinder head brushes are intended for removing carbon deposits, rust, and other dirt from the injector shafts and glow plug holes.
• Restoring injector seats: The seat cutters are used to clean and flatten the contact surface of the injector seat in the cylinder head. This ensures a gas-tight seal when a new or cleaned injector is installed.
• Preventing leakage: By creating a clean and flat surface, the set helps prevent leaks along the injector (blow-by), which can lead to power loss and engine damage.
• Wide compatibility: With a variety of cutter and brush sizes, the set is suitable for common diesel engines from Bosch, Delphi, Fiat, Ford, Iveco, Mazda, Mercedes-Benz, PSA, and Renault, among others.

Package Contents:

• 11x Seat cutter:
  • 15.5 mm x 15.5 mm (e.g., Delphi, Bosch)
  • 17 mm x 17 mm
  • 17 mm x 19 mm (e.g., Mercedes-Benz CDI, VW)
  • 17 mm x 19.5 mm
  • 17 mm x 21 mm (e.g., Fiat, Iveco)
  • 18 mm x 21.5 mm
  • Other various models
• 4x Steel wire brush:
  • 15.5 mm x 15.5 mm
  • 17 mm x 17 mm (e.g., Mercedes-Benz, PSA, Renault)
  • 17 mm x 17.5 mm
  • 19 mm x 20.5 mm (e.g., Ford, Mazda)
• 3x Cylinder head brush (18 mm, 22 mm, 25 mm)
• 6x Stop plug for injector opening
• 3x Sealing ring (17.1 mm, 19.4 mm, 19 mm)
• 1x Flexible, extendable drive
• 1x Handle (T-handle)
• 1x Brush holder
• 1x Centering for brush (19.2 mm)
• 1x Allen key (2.5 mm)
• 1x Plastic storage case
