VT01753 | Alternator Freewheel Pulley Set (30-piece)

Applications and functions

The VT01753 is intended for workshops that replace freewheel pulleys or alternators.

Functions

• Loosening the pulley: With the correct pulley socket.
• Holding the shaft: Spline, Torx or hex bit in the shaft.
• Fitting: Tightening the pulley at the correct moment.

What you use it for

• Faulty freewheel: Replace the pulley in case of noise or vibration.
• Alternator replacement: Transferring the pulley.
• Belt drive: For a complete overhaul.

How to use it

1. Removing the belt: Remove the multi-ribbed belt from the alternator.
2. Selecting tools: Choose the pulley socket and the bit for the shaft.
3. Holding the shaft: Insert the bit through the socket into the shaft.
4. Loosening: Loosen the pulley with the socket while holding the shaft.
5. Fitting: Fit the new pulley and tighten it to specification.

Special features and capabilities

What makes the VT01753 practical:

• Spline, Torx and hex bits: For most alternator shafts.
• Pulley sockets: In common sizes and profiles.
• Bit holder: For 10 mm bits on a 1/2” drive.

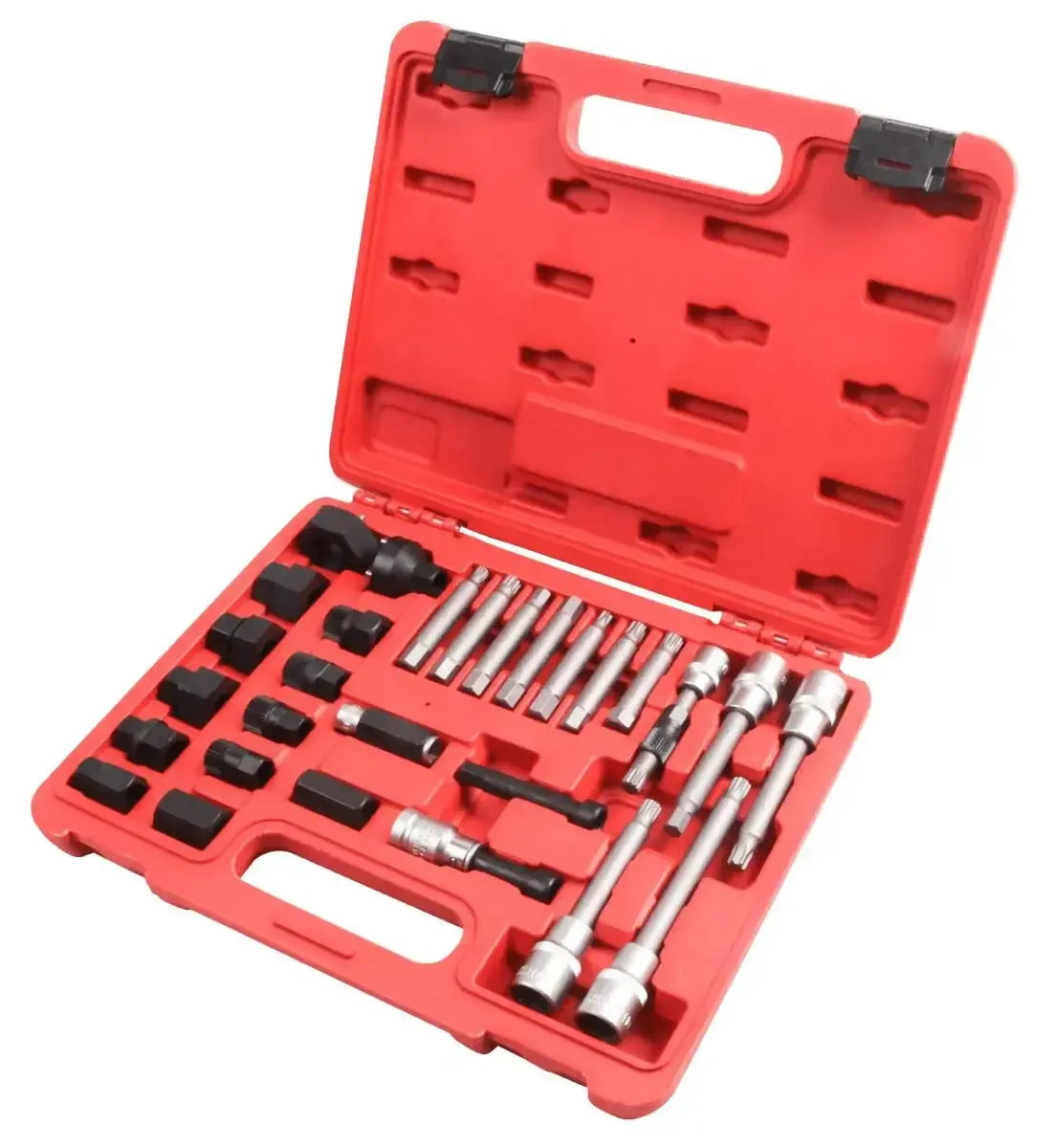

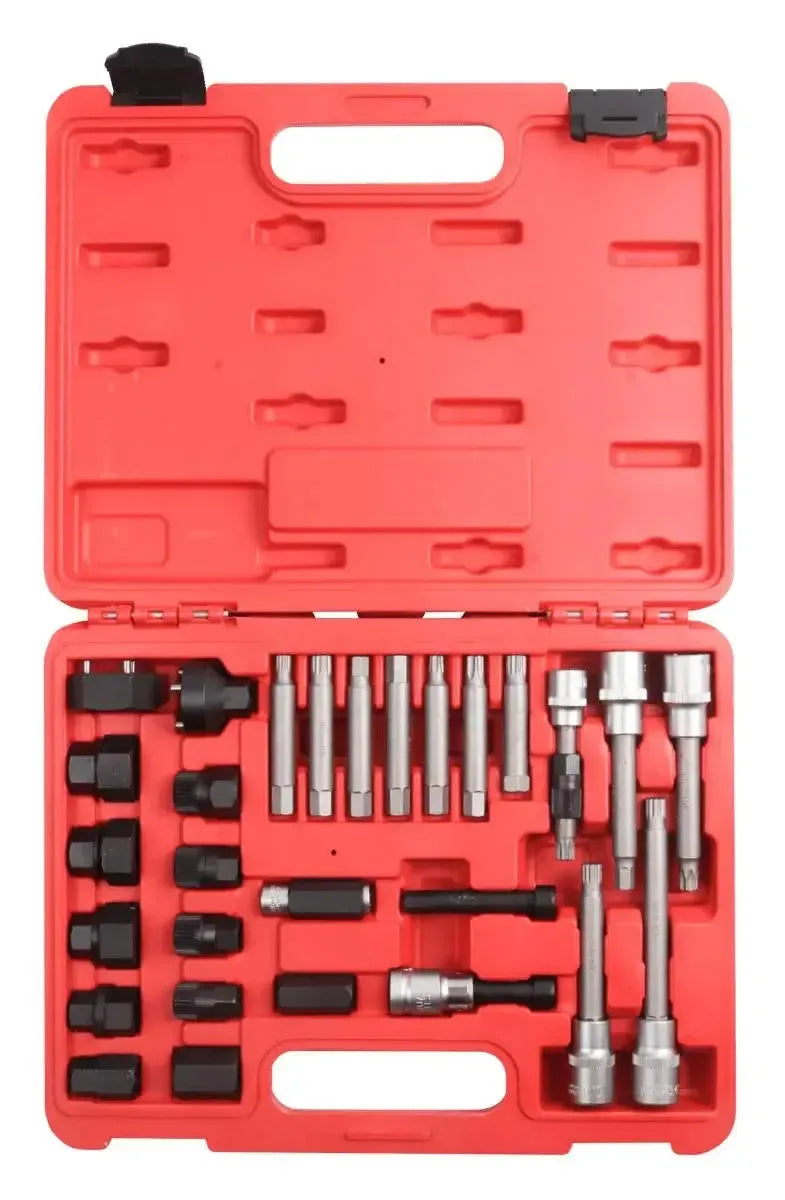

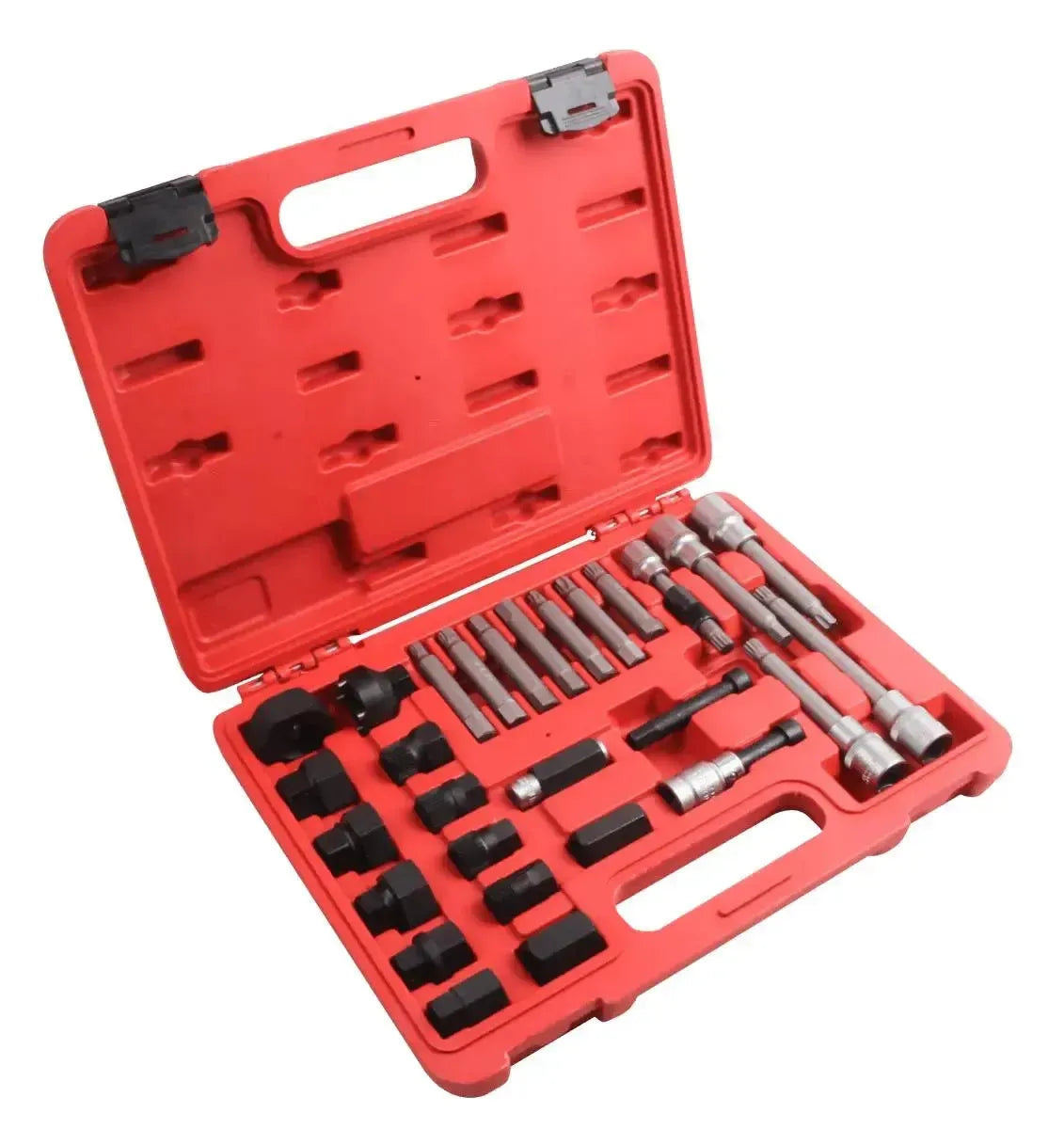

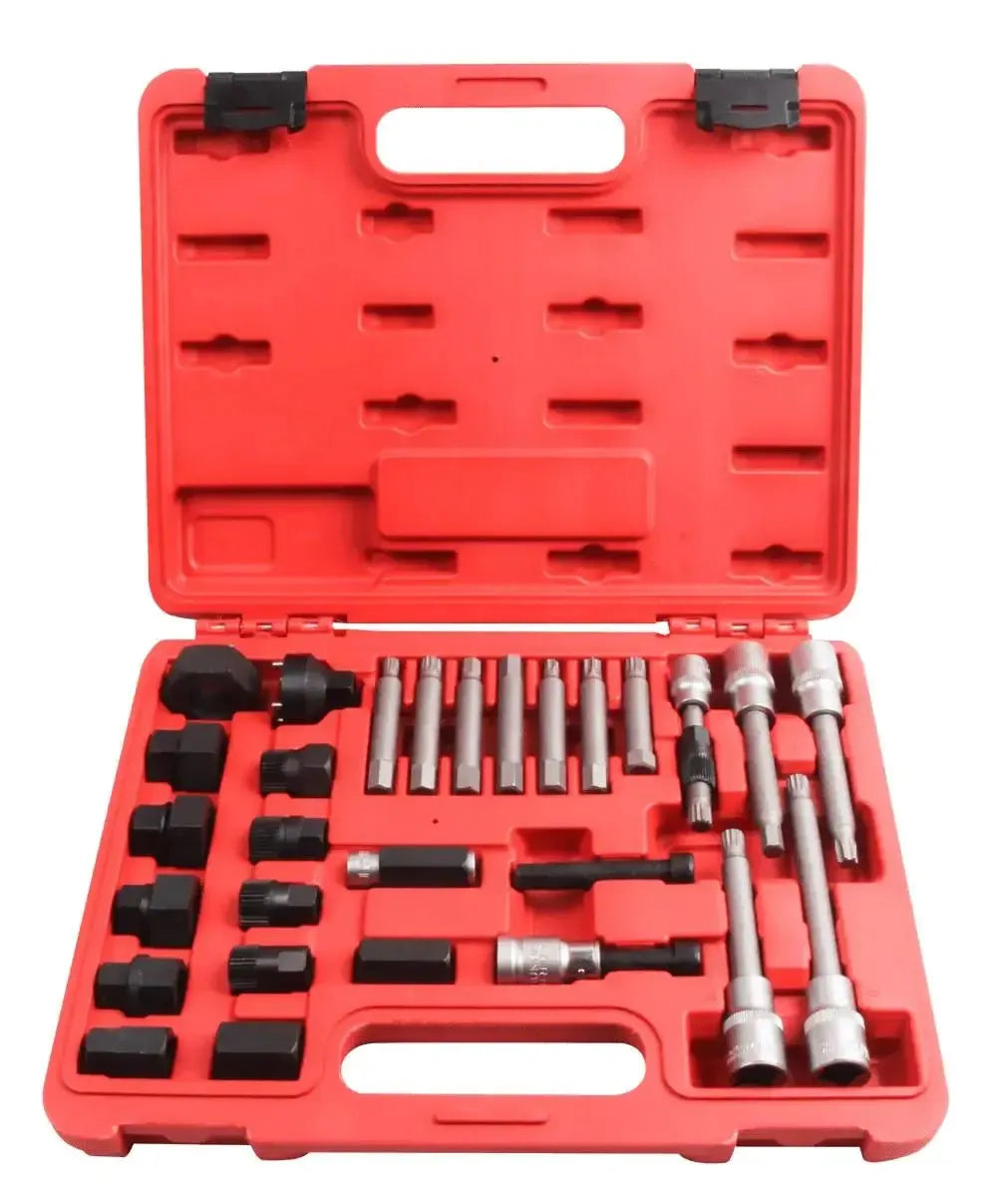

Package contents

• 1x T50 bit socket 1/2”, 110 mm, 33T
• 1x T50 bit, 75 mm
• 1x T40 bit, 75 mm
• 1x Spline bit M8, 75 mm
• 2x Spline bit M10, 75 mm
• 1x Hex bit 10 mm, 75 mm
• 1x 8 mm hex bit, 75 mm
• 1x M10 1/2" spline bit socket, 33T, 110 mm
• 1x M10 1/2" spline bit socket, 31T, 98 mm
• 1x M10 1/2" spline bit socket, 110 mm
• 1x 14 mm hex socket, 57 mm
• 1x 33T pulley socket, 22 mm
• 1x 33T pulley socket, 17 mm
• 1x 33T pulley socket, 15 mm
• 1x 22 mm pulley socket
• 1x 21 mm pulley socket
• 1x 19 mm pulley socket
• 1x 17 mm pulley socket
• 1x 38 mm pulley socket, 3-pin
• 1x 4-pin pulley socket
• 1x H28 × H22 mm pulley socket
• 1x 10 mm, 1/2" bit holder
• 1x Storage case
