VT01741 | BMW S54 Timing Set (11-piece) | Engine Tools

The VT01741 is a timing set for checking and adjusting engine timing on BMW S54 engines. This tool is suitable for models such as the BMW M3 (E46), Z3 M, and Z4 M, equipped with the 3.2L S54B32 engine.

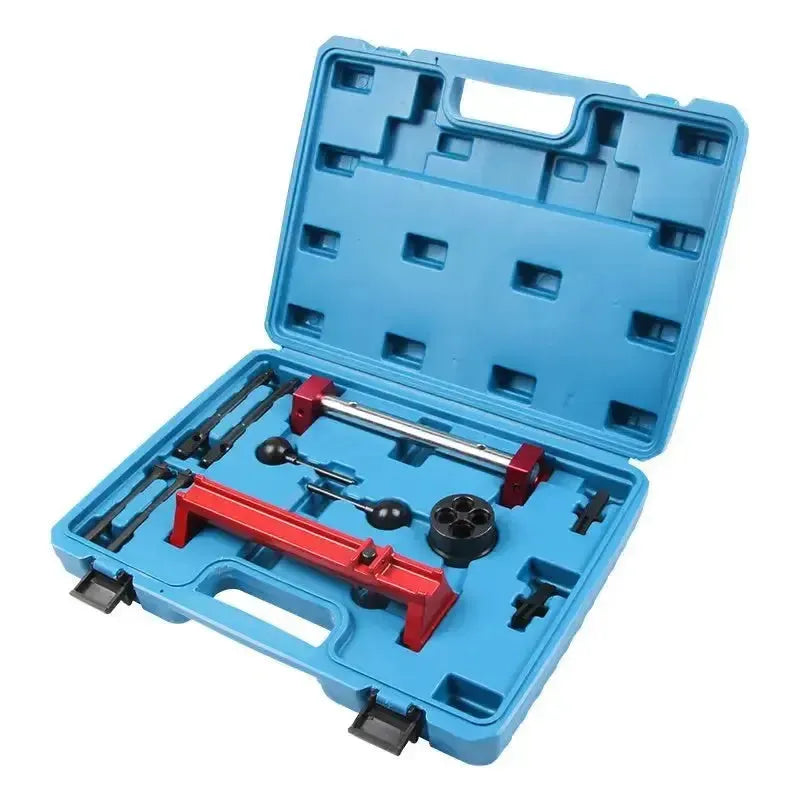

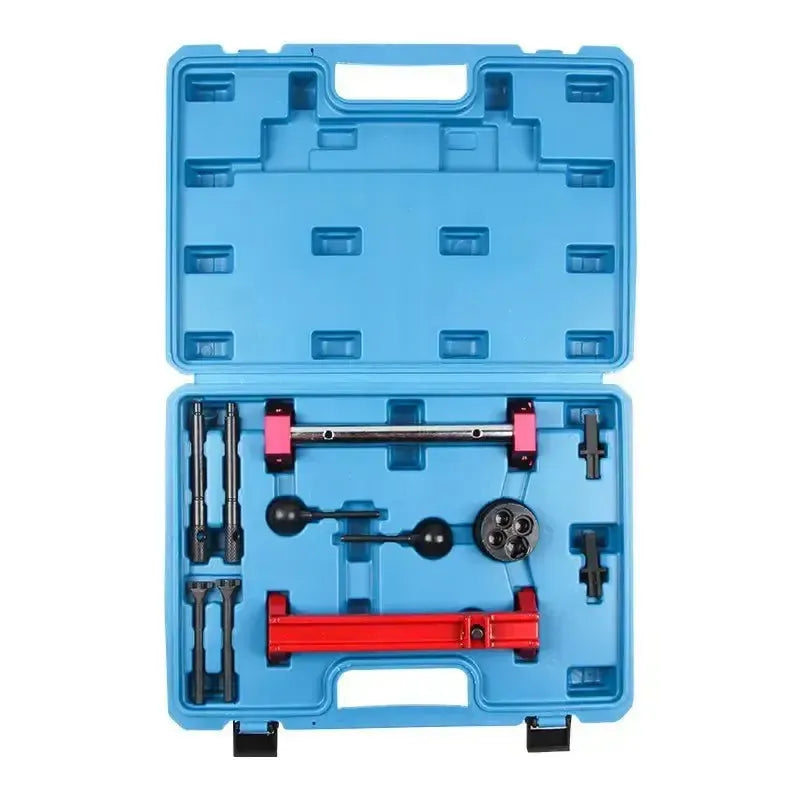

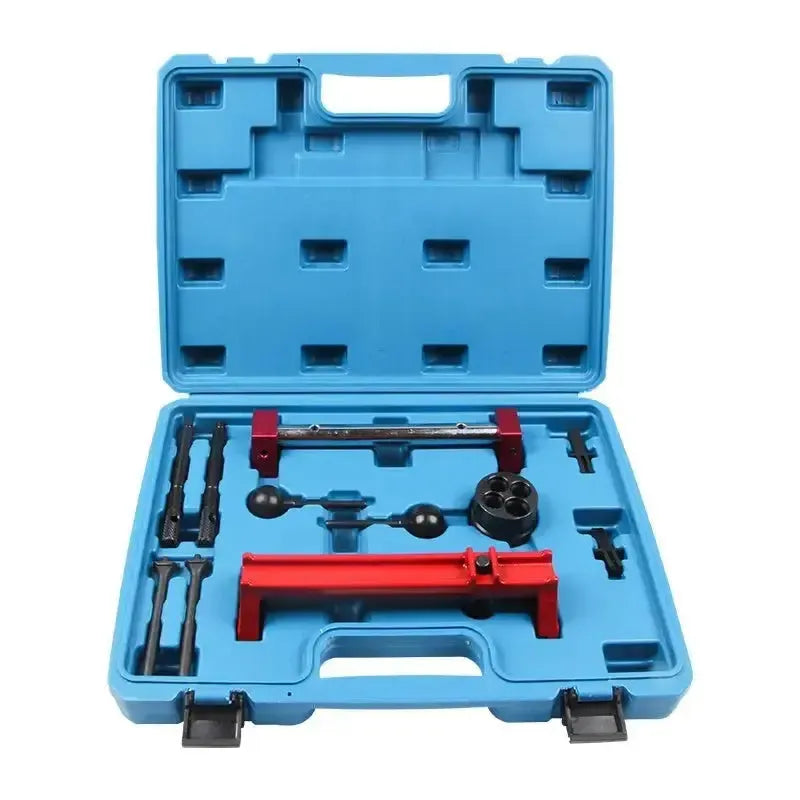

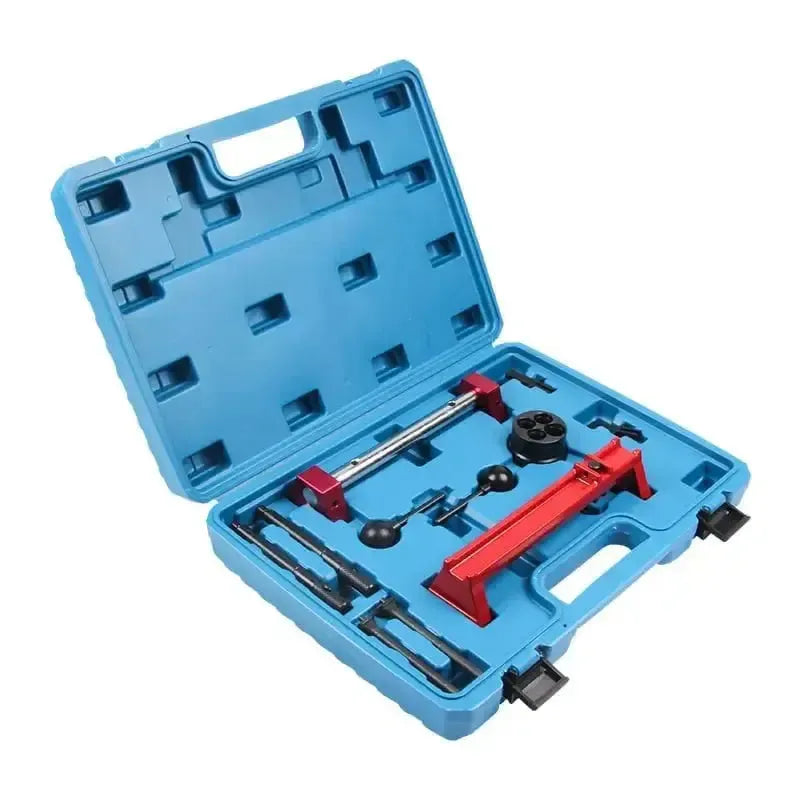

The 11-piece set contains all necessary components for correctly performing timing procedures, including a camshaft alignment jig, VANOS adjustment tool, and various locking pins for the crankshaft and chain tensioners. The tools come in a sturdy storage case for protection and organization.

Application and functionality:

This set is used for performing maintenance and repairs on the timing system of BMW S54 engines. The tools ensure precise positioning of engine components.

• Camshaft adjustment: The alignment jig and pins are used to lock the camshafts in the correct position during timing checks or timing chain replacement.
• Crankshaft locking: The crankshaft locking pin secures the crankshaft in the TDC (Top Dead Center) position, which is essential for correct timing adjustment.
• VANOS adjustment: Specific tools are included for adjusting and checking the VANOS system, which controls variable valve timing.

Compatible vehicles and engine codes:

This timing set is designed for use with specific BMW M models.

BMW:

• M3 (E46): (2000–2006)
• Z3 M (E36/7, E36/8): (2001–2002)
• Z4 M (E85, E86): (2006–2008)

Engine codes:

• 3.2L Petrol: S54B32

Package Contents:

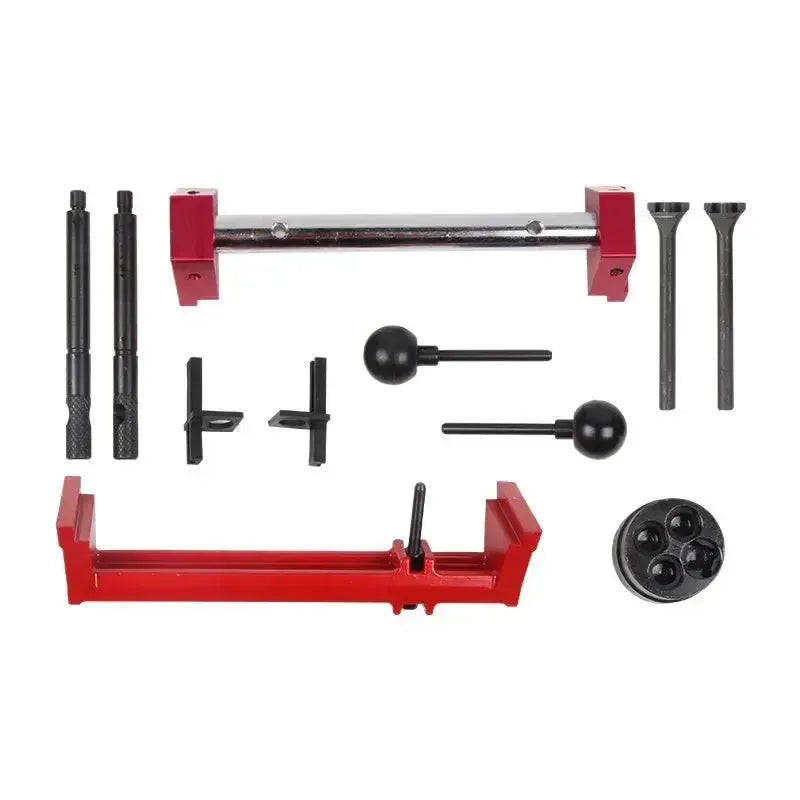

• 1x Camshaft alignment template – OEM: 119140
• 1x VANOS adjustment tool – OEM: 119170
• 1x VANOS rotation adapter – OEM: 115100
• 2x Camshaft alignment pin – OEM: 117342
• 2x Crankshaft locking pin – OEM: 119130
• 2x Chain tensioner locking pin – OEM: 112300
• 2x Secondary chain tensioner locking clip
• 1x Storage case

Technical specifications:
