VT01715 | BMW - M41/M51/M47/M57 | Timing set (13-piece)

The timing set (VT01715) is a collection of tools for locking the camshaft, crankshaft, and fuel pump on various diesel engines from BMW, Land Rover, Opel, and Rover. This set applies to the M41, M51, M47, and M57 engine families.

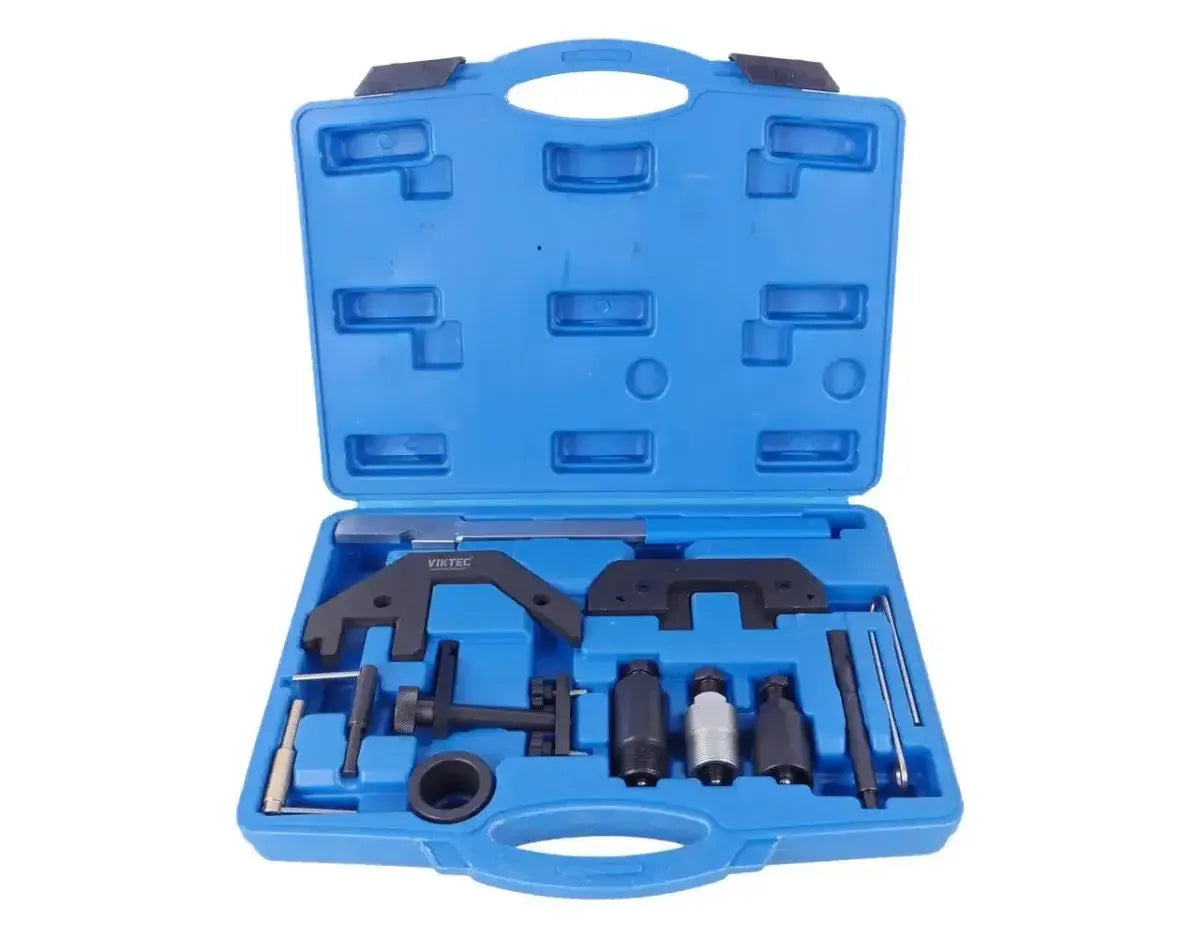

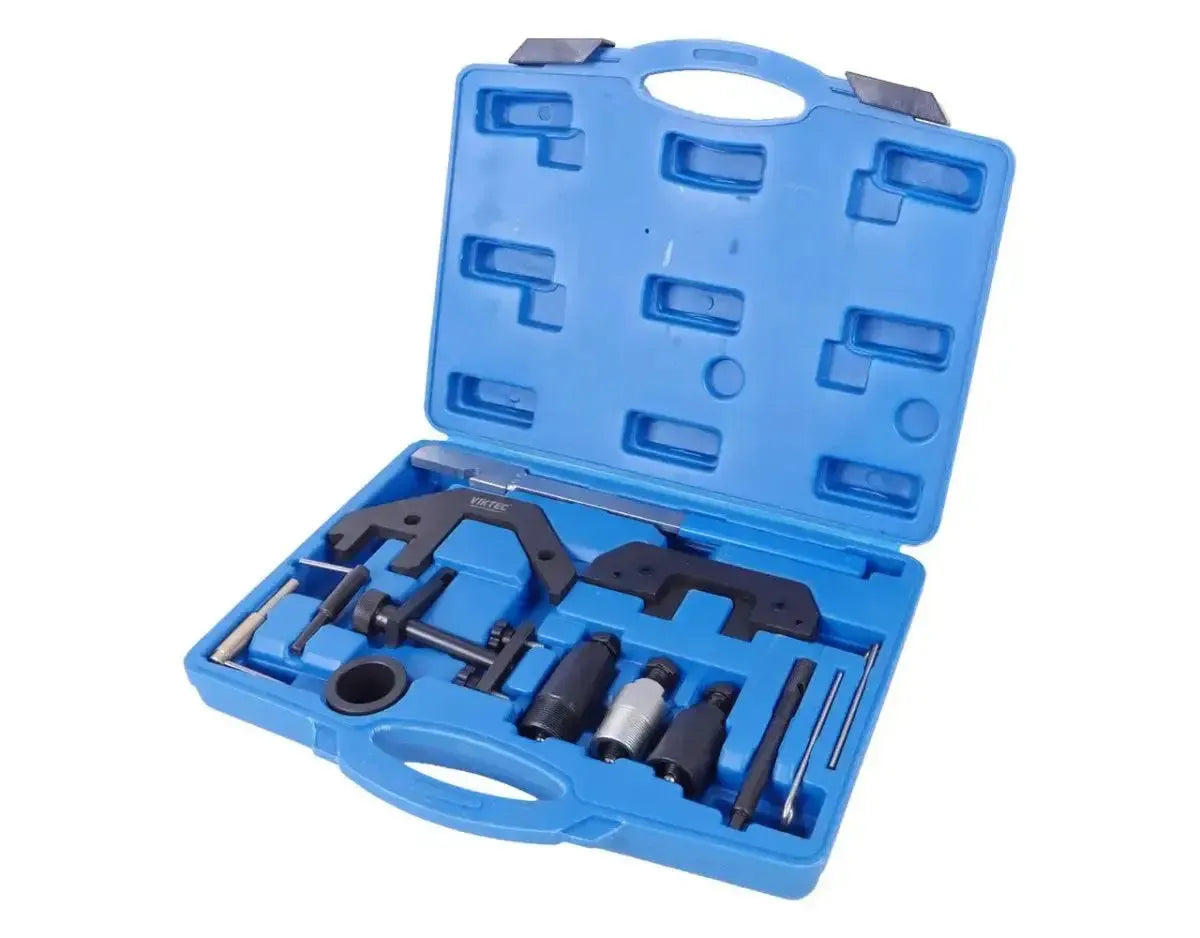

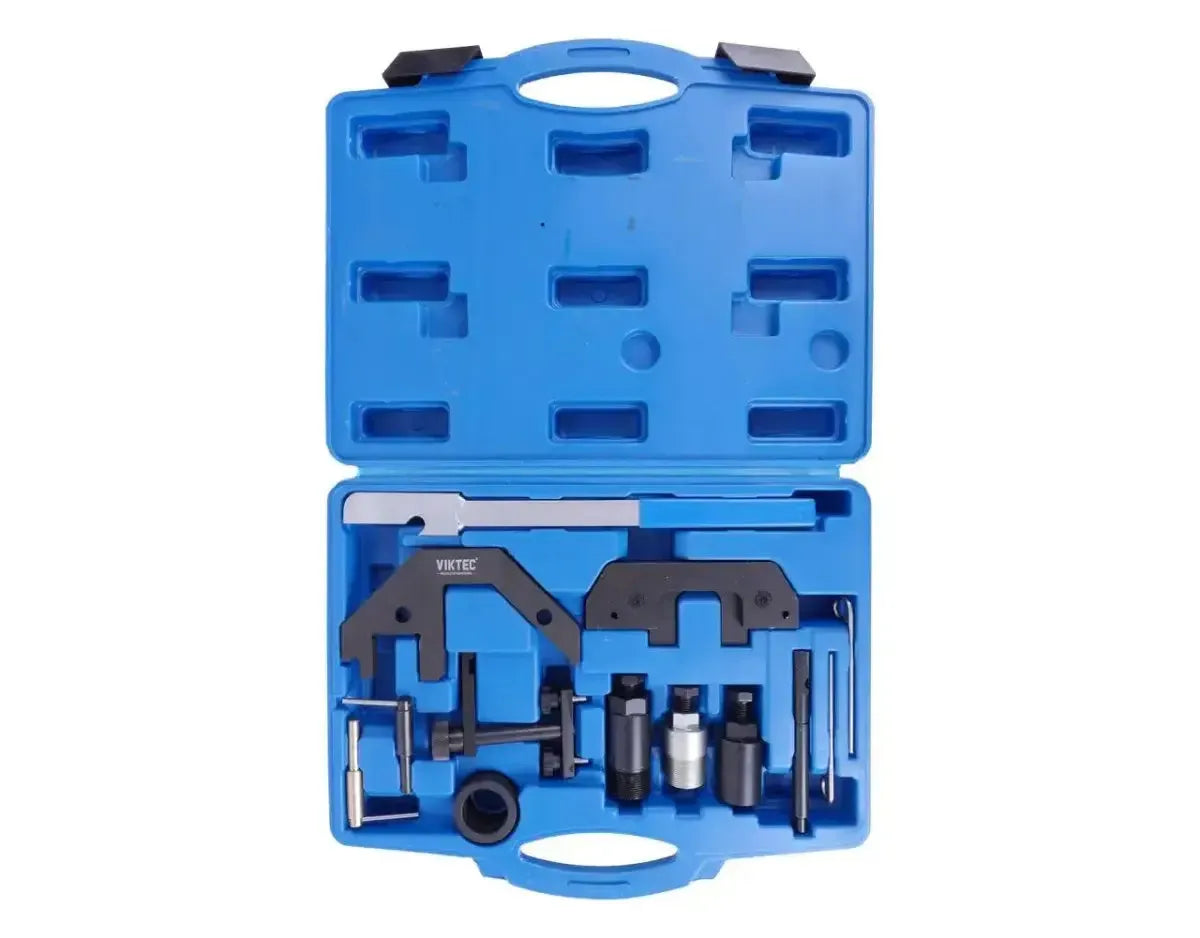

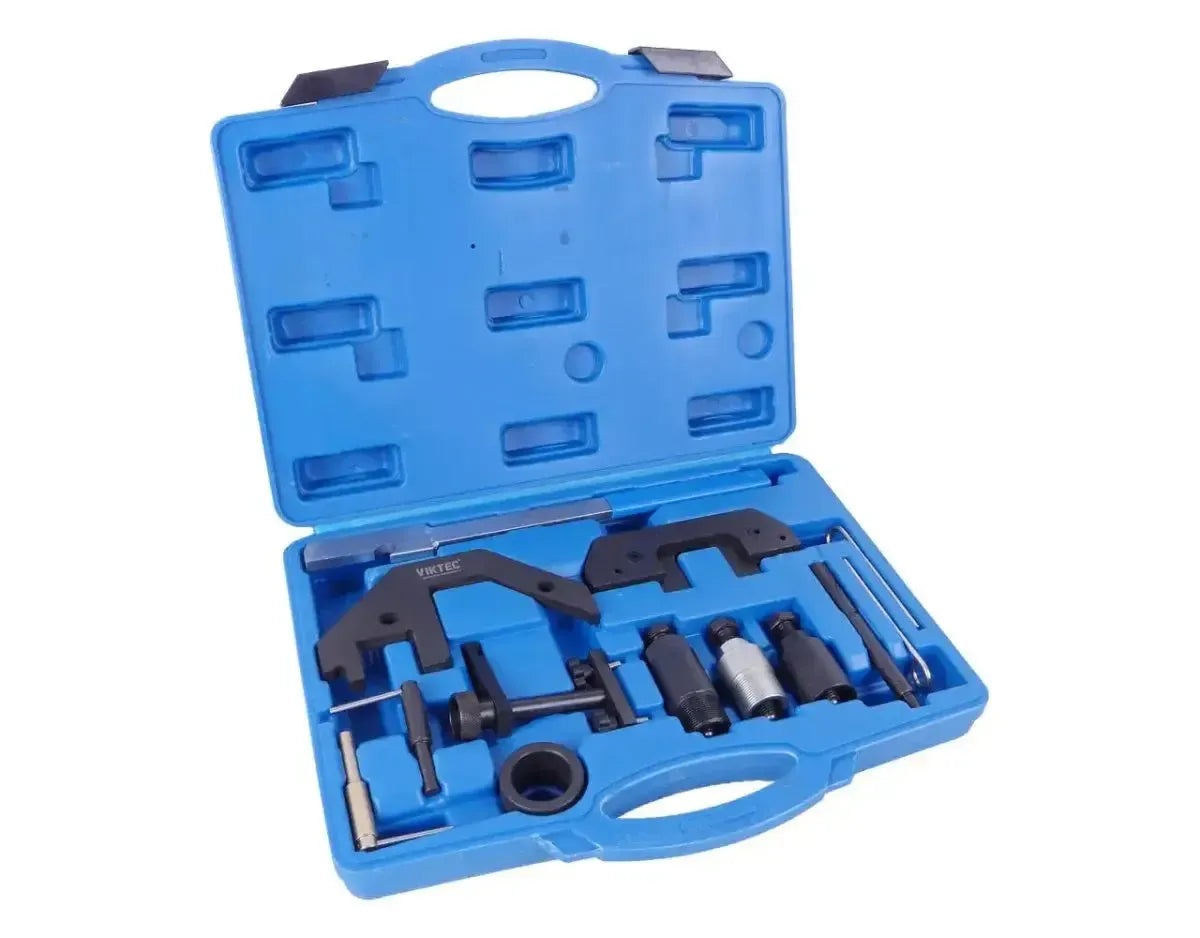

The 13-piece set includes various locking pins for the crankshaft, alignment tools for the camshaft, and specific pullers for the fuel pump. The tools are required for maintenance tasks such as replacing the timing chain or the cylinder head gasket. All parts are supplied in a plastic storage case.

Application and functionality:

This set is assembled for performing maintenance and repairs on the timing system of various diesel engines.

• Locking the camshaft: Secures the camshaft in the correct position with an alignment bridge or alignment tool, depending on the engine type.
• Locking the crankshaft: Locks the crankshaft via the flywheel at TDC (top dead center) using one of the supplied pins.
• Dismantling the fuel pump: Enables removal of the high-pressure fuel pump gear without disturbing the timing settings.
• Locking the chain tensioner: Holds the chain tensioner in a retracted position during assembly using the tensioner pins.

Compatible vehicles and engine codes:

Suitable for a range of models from BMW, Land Rover, Opel, and Rover with the diesel engines specified below.

BMW:

• 1 Series (E87): (2004–2007)
• 3 Series (E36): (1991–2000)
• 3 Series (E46): (1998–2007)
• 3 Series (E90, E91, E92, E93): (2005–2013)
• 5 Series (E34): (1991–1996)
• 5 Series (E39): (1996–2004)
• 5 Series (E60, E61): (2003–2010)
• 6 Series (E63, E64): (2007–2010)
• 7 Series (E38): (1996–2001)
• 7 Series (E65, E66): (2002–2008)
• X3 (E83): (2004–2010)
• X5 (E53): (2001–2006)
• X5 (E70): (2007–2010)
• X6 (E71): (2008–2010)

Land Rover:

• Freelander (L314): (2000–2006)
• Range Rover (L322): (2002–2006)

Opel:

• Omega B: (1994–2001)

Rover / MG:

• MG ZT / ZT-T: (2001–2005)
• Rover 75 (RJ): (1999–2005)

Engine codes:

• 1.7L Diesel: M41
• 2.0L Diesel: M47, M47D20, M47R, M47T2, M47TU
• 2.5L Diesel: M51, 25DT, X25DT
• 3.0L Diesel: M57, M57D25, M57D29, M57D30, M57T2, M57TU

Package Contents:

• 1x Camshaft alignment tool – OEM: 116321, 116320, KM6267
• 1x Fixing bracket for alignment tool – OEM: 116322, 116320
• 1x Camshaft fixing bridge – OEM: 113320, LRT-12-112
• 1x Crankshaft locking pin – OEM: 112300, LRT-12-108
• 1x Crankshaft locking pin – OEM: 115180
• 1x Crankshaft locking pin – OEM: 116080
• 1x Timing chain counter holder – OEM: 113360, LRT-12-115
• 2x Tensioner locking pins – OEM: 113340, LRT-12-114, KM-823
• 1x Fuel pump puller – OEM: 135120, LRT-12-119
• 1x Fuel pump puller with circlips – OEM: 135190, 135191, 135192, KM6270
• 1x Storage case
