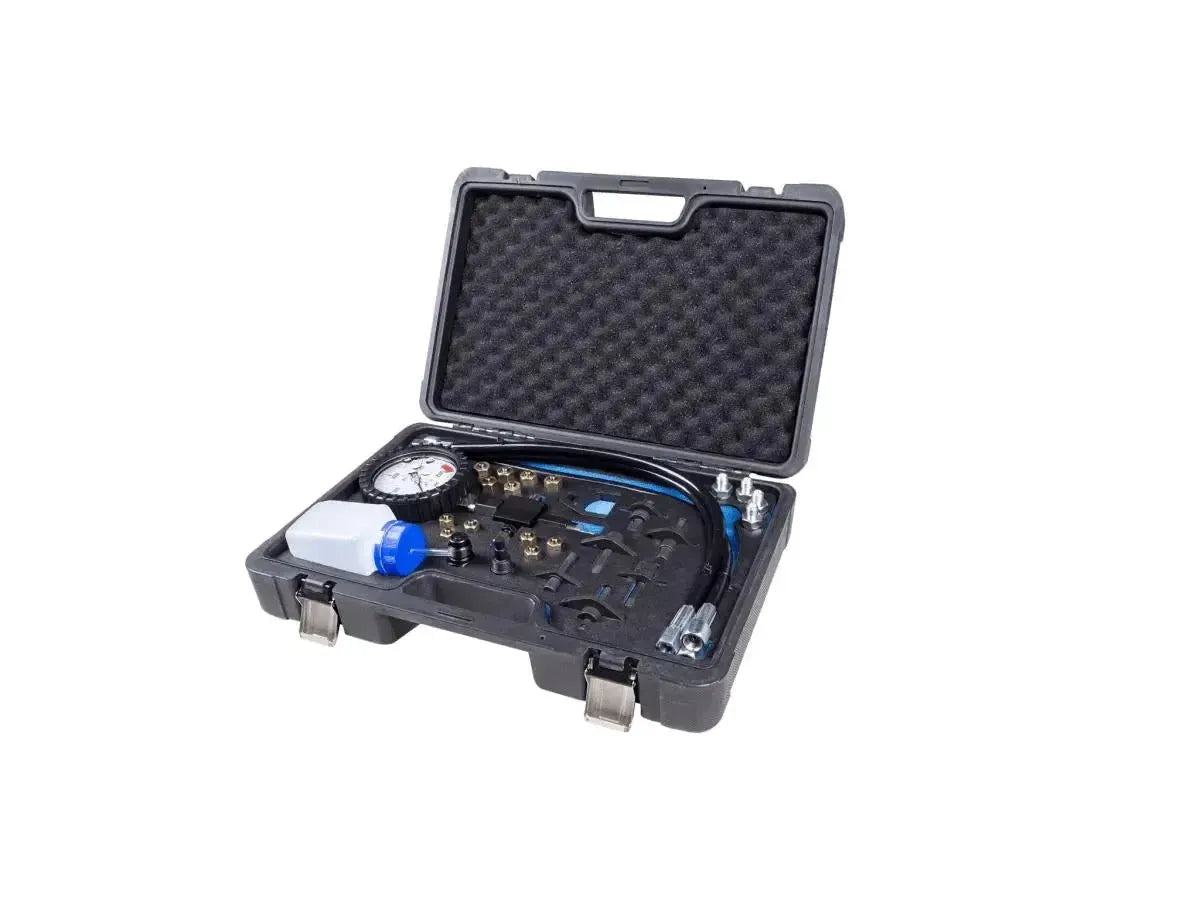

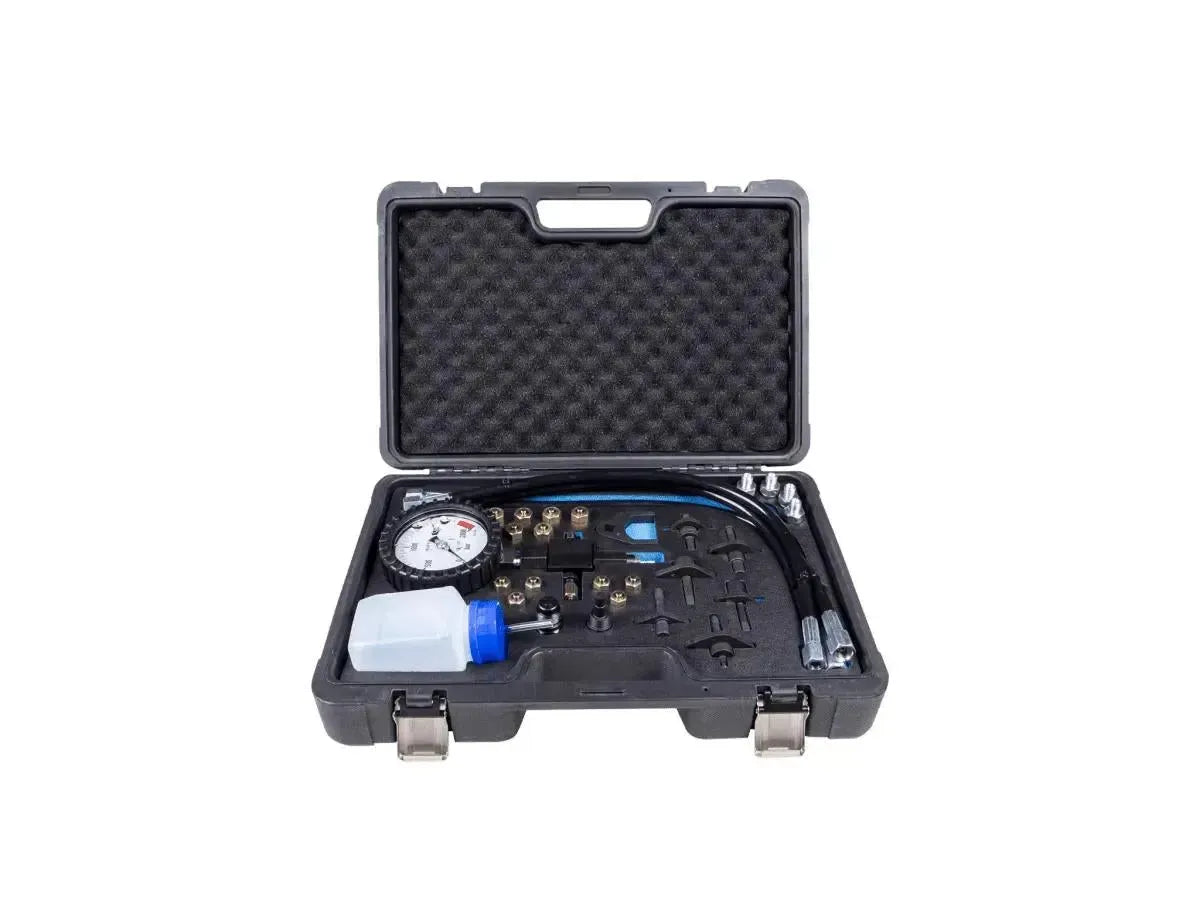

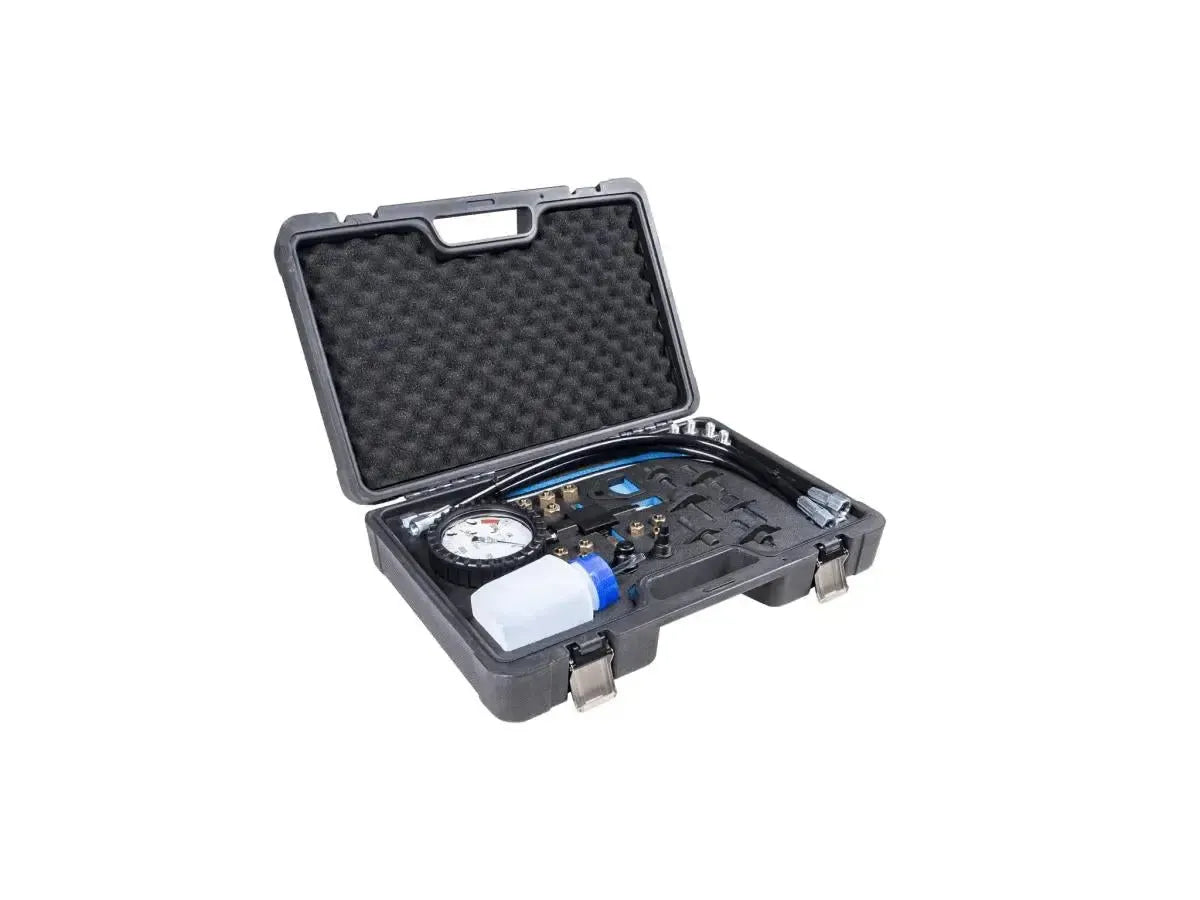

VT01705B | Common-rail high pressure test set
Sign up and receive an email as soon as it is back in stock.
Warranty handled directly by AsTools
Warranty handled directly by AsTools
We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.
Easy returns via Returnless
Easy returns via Returnless
Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
The VT01705B is a common-rail high-pressure test set for diagnosing fuel pressure problems in modern diesel vehicles. The set is designed to measure the pressure in the common-rail system directly at the high-pressure pump, the fuel rail, and between the lines to the injectors. The included Pressure Gauge has a measuring range of 0 to 2000 bar (0 - 29000 PSI) and is filled with glycerin to dampen vibrations and increase reading accuracy.
Thanks to the various adapters and blind plugs with M12x1.5 and M14x1.5 threads, this tester is compatible with a wide range of common-rail systems. The set makes it possible to check the pressure during engine start or operation. All components are housed in a sturdy storage case, providing protection and organized transport.
Application and functionality:
This test set is developed for performing pressure measurements and diagnostics on common-rail diesel systems.
- Pressure measurement: Direct measurement of the system pressure of the high-pressure pump. This can determine whether the pump delivers the required pressure.
- Diagnosis of starting problems: Identifies whether low fuel pressure is the cause of starting issues in a diesel engine.
- Component inspection: The set can be used to check the pressure of the high-pressure pump, the injectors, and the fuel lines separately.
- Leak detection: The blind plugs can be used to seal the fuel rail to check for pressure loss, which may indicate leaking injectors or a faulty pressure control valve.
- Wide compatibility: The included adapters and flexible hoses allow connection to various brands and types of common-rail systems.

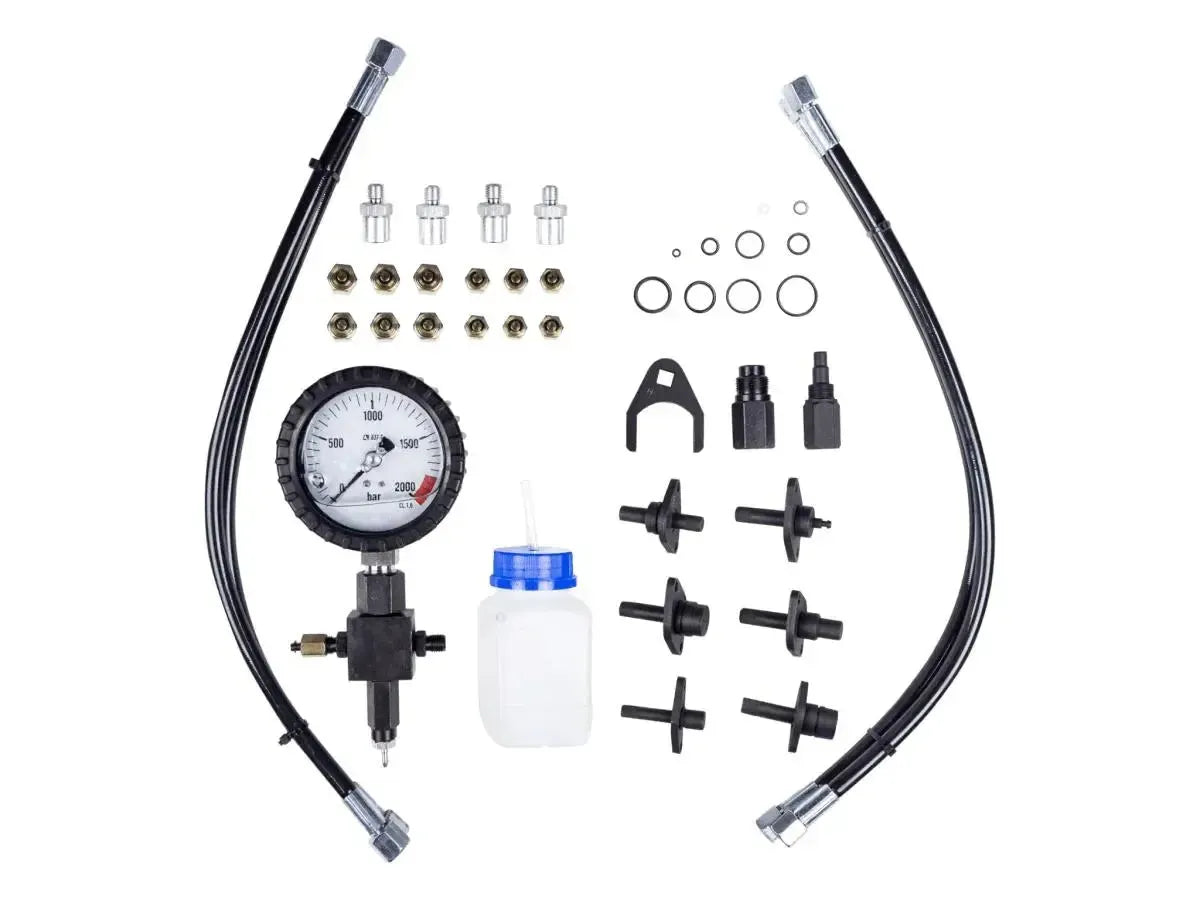

Package Contents:
- 1x Pressure Gauge with measuring range of 0 - 2000 bar
- 2x High-pressure hose (M12x1.5)
- 2x Hose adapter (M12x1.5)
- 2x Hose adapter (M14x1.5)
- 6x Blind plug (M12x1.5)
- 6x Blind plug (M14x1.5)
- 1x Diesel collection bottle
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01705B |
| Application | Common-rail diesel systems |
| Pressure Gauge measuring range | 0 - 2000 bar / 0 - 29000 PSI |
| Connections | M12 x 1.5, M14 x 1.5 |
| Pressure Gauge filling | Glycerine |
