The timing set (VT01704) is designed for locking the camshafts and crankshaft on 1.4 and 1.6 liter gasoline engines used in various models of BMW, MINI, Citroën, and Peugeot. Using this tool is necessary when replacing the timing chain, setting the valve timing, or performing other engine repairs to ensure correct engine settings.

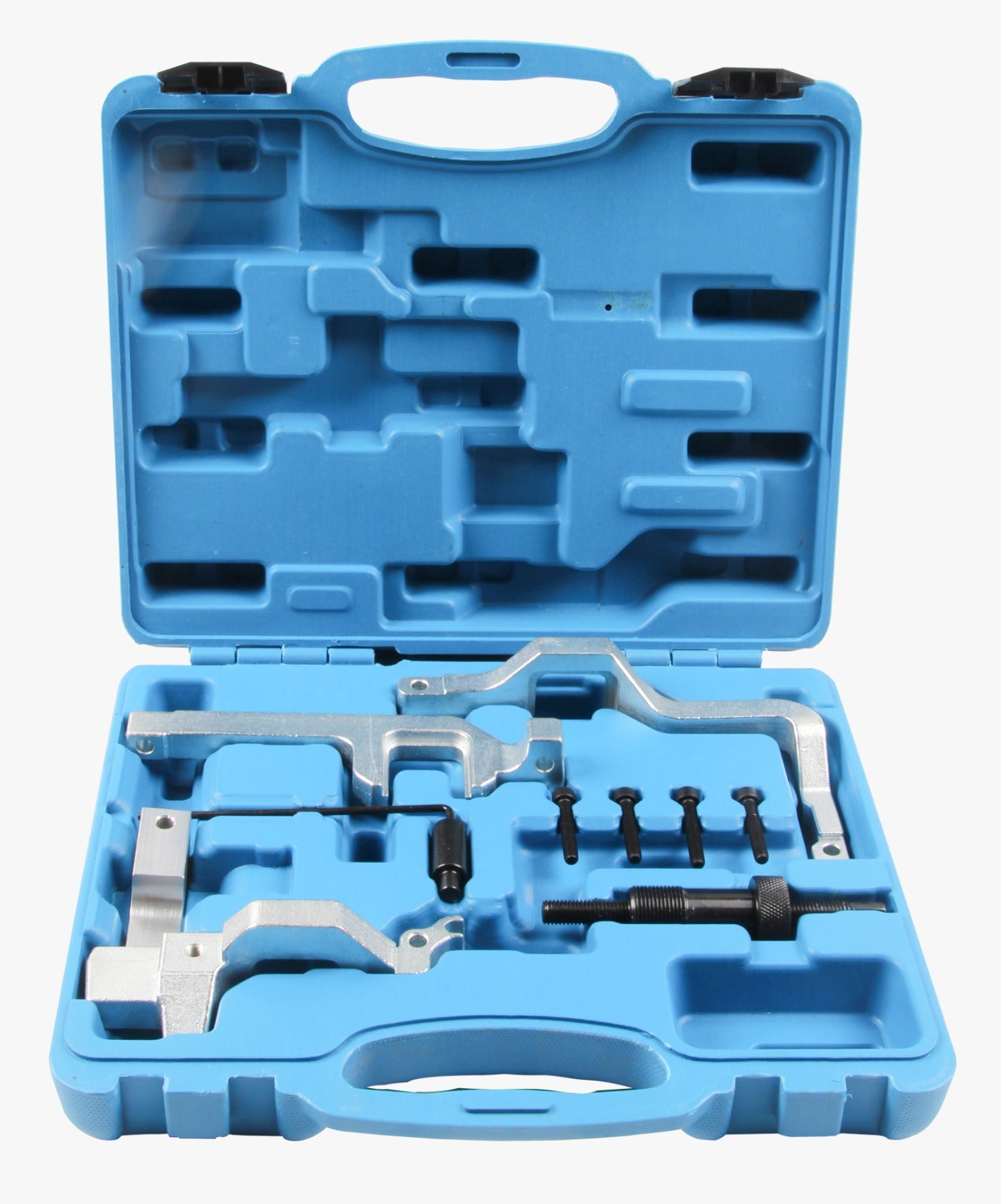

The set contains specific components such as a camshaft locking tool, a crankshaft locking pin, and a timing chain tensioner. These parts ensure precise alignment of the engine components, which is essential for engine performance and longevity. The tools are supplied in a sturdy storage case for transport and storage.
Application and functionality:
This set provides the necessary tools for properly performing maintenance on the timing chain of BMW/MINI and PSA engines.
- Locking the camshafts: The supplied tools fix the intake and exhaust camshafts in the correct timing position, allowing adjustment or replacement of the timing chain.
- Fixing the crankshaft: The crankshaft locking pin is used to lock the crankshaft via the flywheel at the top dead center (TDC) of the first cylinder.
- Tensioning the timing chain: The tensioning tool is used to press and lock the hydraulic chain tensioner during the (dis)assembly of the chain.
Compatible vehicles and engine codes:
This set is suitable for various models of BMW, Citroën, MINI, and Peugeot equipped with 1.4L and 1.6L VTi and THP gasoline engines (Prince engines).
BMW:
- 1 Series (F20/F21): (2011–2015)
- 3 Series (F30/F31): (2012–2015)
Citroën:
- Berlingo III: (2009–2016)
- C3 III: (2009–2016)
- C3 Picasso: (2009–2015)
- C4 I/II: (2008–2016)
- C4 Picasso / Grand Picasso: (2008–2015)
- C5 III: (2009–2015)
- DS3: (2009–2015)
- DS4: (2011–2015)
- DS5: (2012–2015)
MINI:
- Clubman (R55): (2007–2014)
- Cooper (R56/R57): (2006–2015)
- Countryman (R60): (2010–2016)
- Coupé (R58): (2011–2015)
- Paceman (R61): (2013–2016)
- Roadster (R59): (2012–2015)
Peugeot:
- 207: (2006–2013)
- 208: (2012–2015)
- 2008: (2013–2016)
- 308: (2007–2015)
- 3008: (2009–2016)
- 508: (2011–2015)
- 5008: (2009–2016)
- Partner III: (2009–2016)
- RCZ: (2010–2015)
Engine codes:
- 1.4L VTi: 8FP (EP3C), 8FS (EP3), N12B14A
- 1.6L VTi/THP: 5FN (EP6CDT), 5FS (EP6C), 5FW (EP6), 5FX (EP6DT), 5FY (EP6DTS), N12B16A, N13B16A, N14B16A, N16B16A, N18B16A
Package Contents:
- 1x Crankshaft locking tool – OEM: 119590, 0197-BZ
- 1x Camshaft locking tool – OEM: 119540, 0197-A1, 0197-A3
- 1x Timing chain tensioner – OEM: 119340, 0197-M
- 1x Holder for camshaft locking tool – OEM: 119552
- 4x Mounting screws
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01704 |
| Compatible vehicle brands | BMW, Citroën, MINI, Peugeot |
| Compatible engine codes | 5FN, 5FS, 5FW, 5FX, 5FY, 8FP, 8FS, N12B14A, N12B16A, N13B16A, N14B16A, N16B16A, N18B16A |
