VT01703 | BMW - M40/M44/M50/M52/M54/M56 | Timing set (11-piece)

The timing set (VT01703) is a comprehensive collection of tools for adjusting and locking the camshafts and crankshaft on a wide range of BMW petrol engines. The set is specifically developed for maintenance work on the timing chain, the VANOS system, and the cylinder head of M40, M44, M50, M52, M54, and M56 engines.

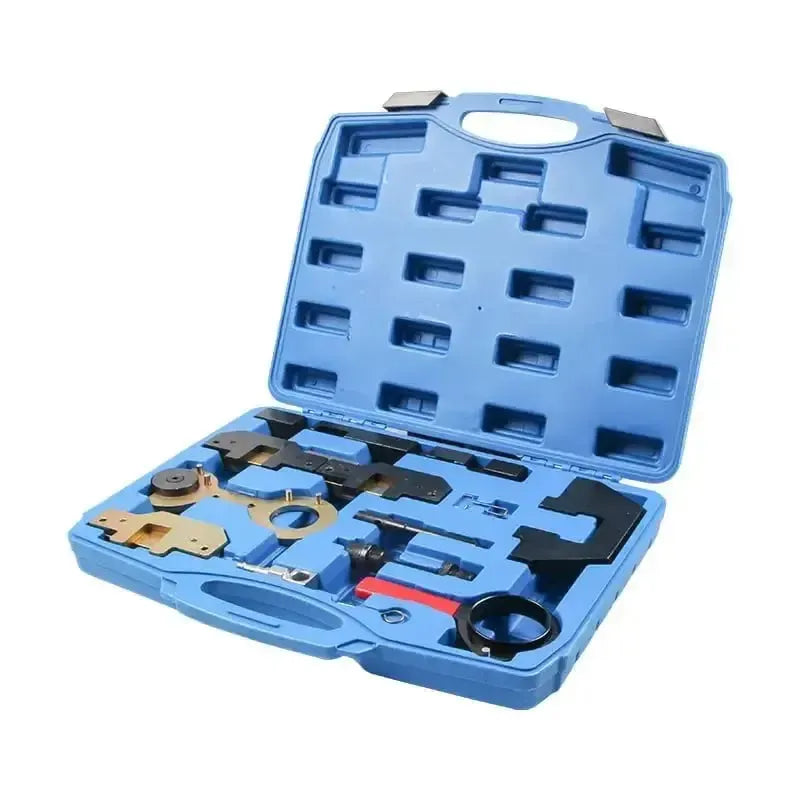

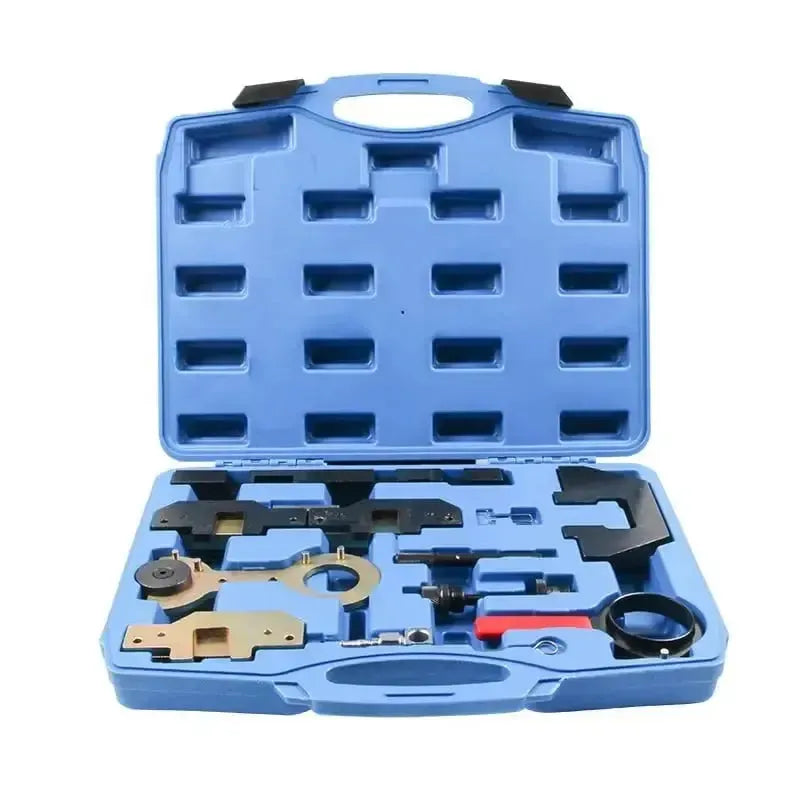

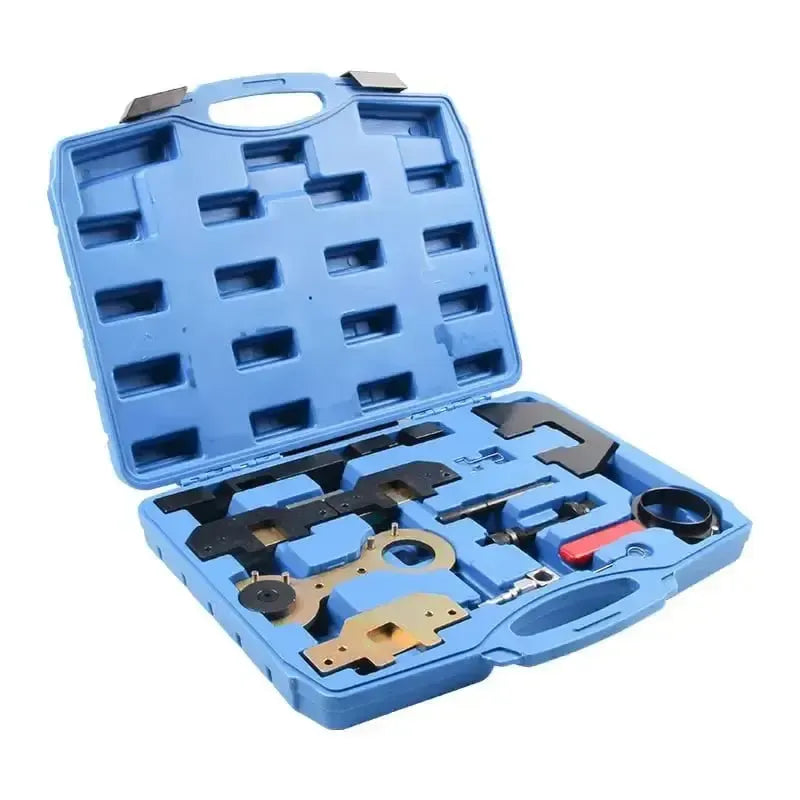

This 11-piece set contains all necessary components for engines with both single VANOS (M50, M52) and double VANOS (M52TU, M54, M56). Included are various camshaft alignment plates, a crankshaft locking pin, a tool for the chain tensioner, and specific tools for adjusting the VANOS unit. All parts are supplied in a plastic storage case.

Application and functionality:

This set makes it possible to accurately set the timing when replacing the timing chain, the cylinder head gasket, or performing other engine maintenance.

• Locking the crankshaft: Locks the crankshaft in the TDC position (Top Dead Center) using a locking pin for correct timing.
• Aligning the camshafts: The supplied alignment tools fix the camshafts in the correct position relative to each other and the crankshaft.
• Adjusting the VANOS system: Special tools for positioning and adjusting the single and double VANOS adjustment systems.
• Tensioning the timing chain: A tool to correctly tension the primary timing chain during assembly.

Compatible vehicles and engine codes:

Suitable for various BMW models with 4- and 6-cylinder petrol engines, including the M40, M44, M50, M52, M54, and M56 series.

BMW:

• 3 Series (E30): (1987–1994)
• 3 Series (E36): (1990–2000)
• 3 Series (E46): (1998–2007)
• 5 Series (E34): (1988–1996)
• 5 Series (E39): (1995–2004)
• 5 Series (E60/E61): (2003–2005)
• 7 Series (E38): (1994–2001)
• 7 Series (E65/E66): (2001–2005)
• X3 (E83): (2004–2006)
• X5 (E53): (2000–2006)
• Z3 (E36/7/8): (1996–2002)
• Z4 (E85): (2003–2005)

Engine codes:

• 1.6L: M40 B16
• 1.8L: M40 B18
• 1.9L: M44 B19
• 2.0L: M50 B20, M52 B20, M52TU B20
• 2.2L: M54 B22
• 2.5L: M50 B25, M52 B25, M52TU B25, M54 B25, M56 B25
• 2.8L: M52 B28, M52TU B28
• 3.0L: M54 B30

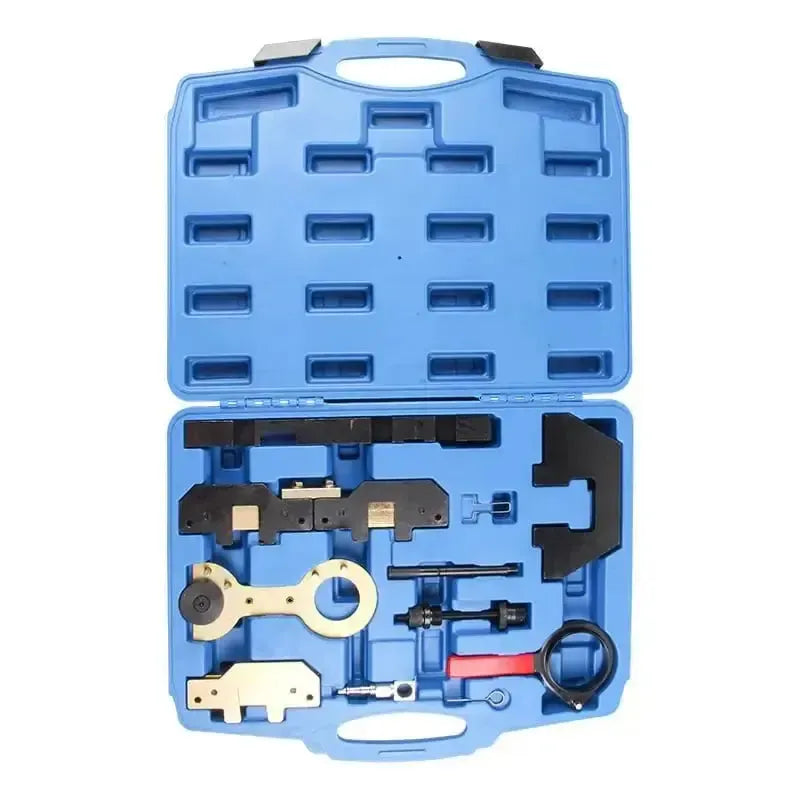

Package Contents:

• 1x Crankshaft locking tool – OEM: 112300
• 1x Camshaft alignment tool (M50, M52) – OEM: 113240
• 1x Camshaft alignment tool (M40, M44) – OEM: 113190
• 1x VANOS unit wrench – OEM: 115490
• 1x Double VANOS alignment tool (M52TU, M54, M56) – OEM: 116150
• 1x Chain tensioner tool – OEM: 114220
• 1x VANOS alignment tool (secondary) – OEM: 116180
• 1x Air connection tool – OEM: 113450
• 1x Lock pin and detent clip set – OEM: 113290, 113291, 113292
• 1x Storage case

Technical specifications:
