VT01697 | VAG - 2.7/3.0L (TDI) | Timing set (10-piece)
Warranty handled directly by AsTools
Warranty handled directly by AsTools
We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.
Easy returns via Returnless
Easy returns via Returnless
Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

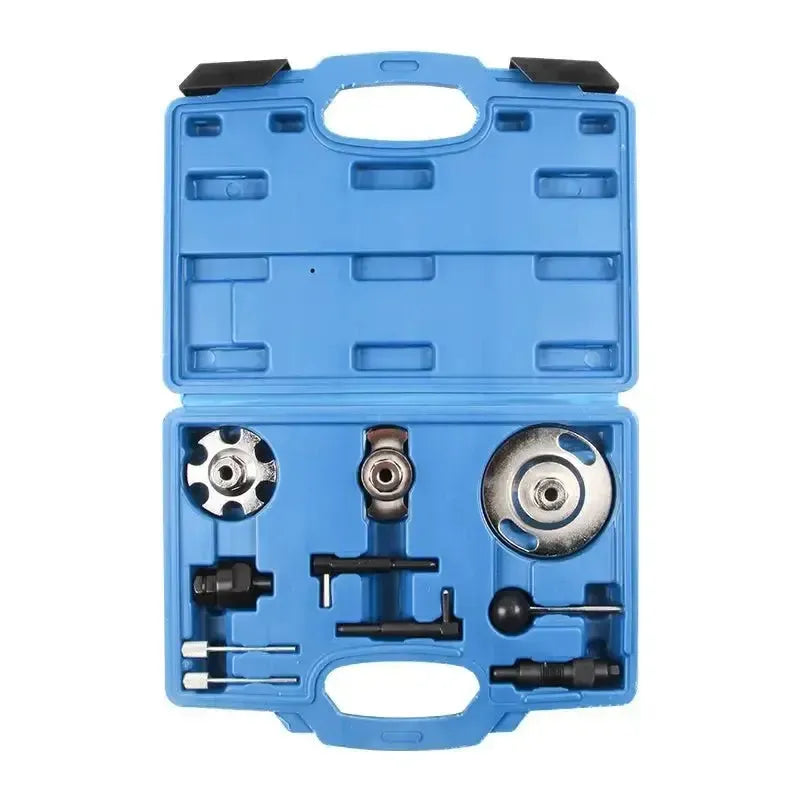

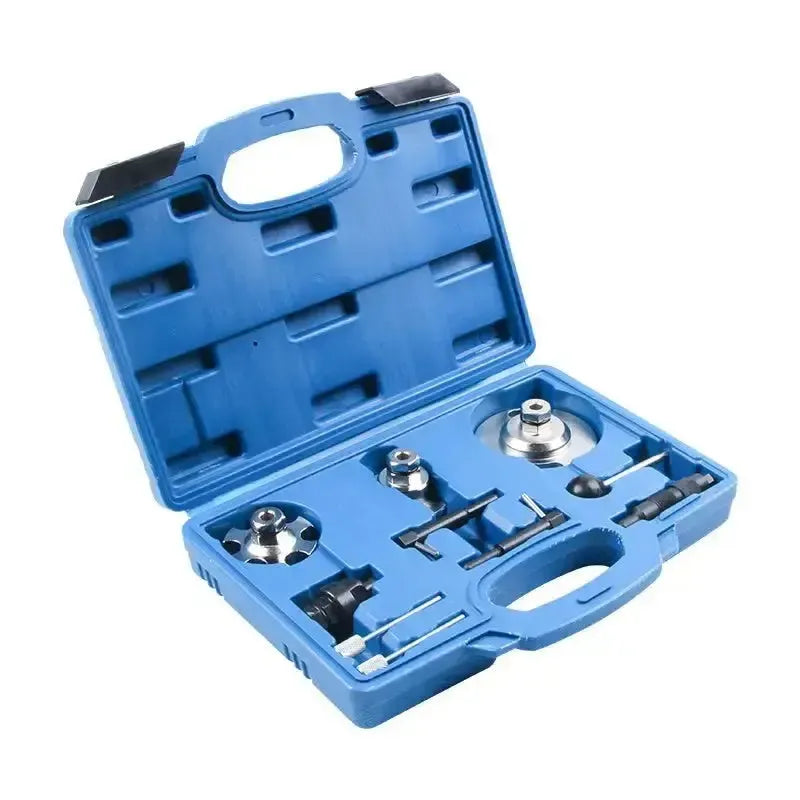

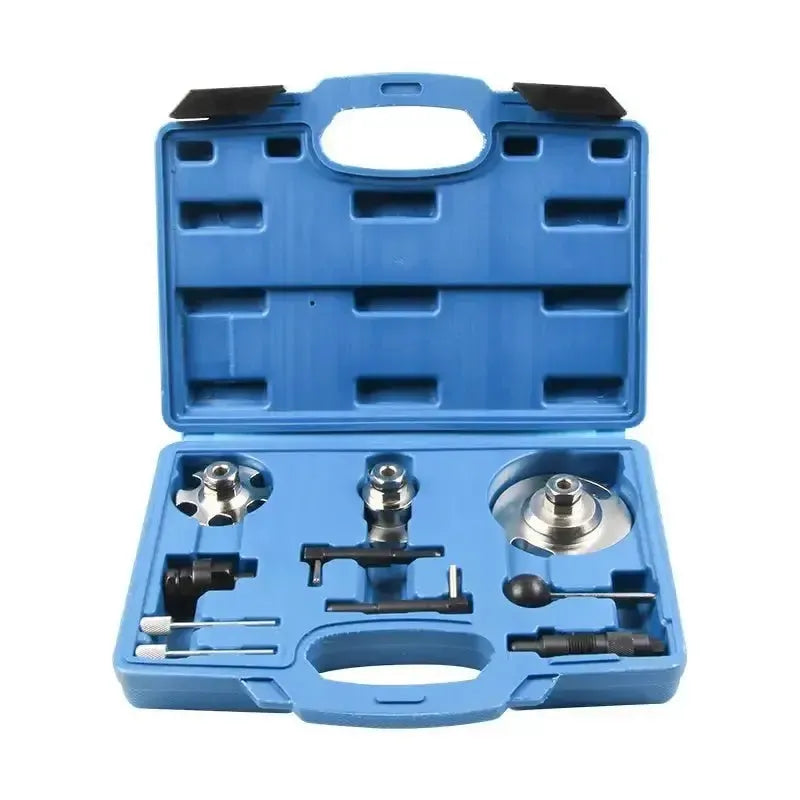

The timing set (VT01697) is a collection of tools for locking the camshafts and crankshaft. This set is specifically developed for maintenance and repair of the timing chain of various VAG 2.7L and 3.0L V6 TDI common rail engines, as well as certain 4.0L and 4.2L V8 TDI engines.
The set includes, among other things, a crankshaft locking pin, camshaft locking tools, various locking pins for the chain tensioner, and special turning tools for the crankshaft and camshafts. All parts are supplied in a plastic storage case for storage and transport.
Application and functionality:
This set is used for adjusting and checking the engine timing during maintenance of the timing chain.
- Locking the crankshaft: A locking pin for fixing the crankshaft in the TDC position (Top Dead Center).
- Locking the camshafts: Tools for locking the camshafts in the correct position relative to the crankshaft.
- Turning the engine: Various adapters and wrenches for manually turning the crankshaft and camshafts during adjustment work.
- Tensioning the timing chain: Locking pins for securing the hydraulic chain tensioners during assembly or disassembly.
Compatible vehicles and engine codes:
Suitable for various models of Audi, Porsche, and Volkswagen with 2.7L, 3.0L V6 TDI and certain 4.0L/4.2L V8 TDI engines.
Audi:
- A4: (2005–2016)
- A5: (2007–2017)
- A6: (2004–2018)
- A7: (2010–2018)
- A8: (2003–2018)
- Allroad: (2006–2018)
- Q5: (2008–2017)
- Q7: (2006–2015)
Porsche:
- Cayenne: (2009–2017)
- Panamera: (2013–2017)
Volkswagen:
- Phaeton: (2004–2016)
- Touareg: (2005–2018)
Engine Codes:
- 2.7L TDI: BPP, BSG, CAMA, CAMB, CANA, CANB, CANC, CAND, CGKA, CGKB
- 3.0L TDI: ASB, BKN, BKS, BMK, BMZ, BNG, BUG, BUN, CAPA, CARA, CASA, CASB, CASC, CASD, CATA, CCLA, CCMA, CCWA, CCWB, CDTA, CDTB, CDUC, CDUD, CDYA, CDYB, CDYC, CEXA, CGQB, CJGA, CJGC, CJGD, CJMA, CKVB, CKVC, CLAA, CLAB, CLZB, CNRB, CPNB, CRCA, CRTD, CRTE, CRTF, CTBA, CTBC, CTBB, CTCC
- 4.0L TDI: ASE
- 4.2L TDI: BTR, BVN, CCFA, CCFC, CDSB
Package Contents:
- 1x Crankshaft locking pin – OEM: 3242
- 1x Locking pin for chain tensioner – OEM: 3359
- 1x Adapter for crankshaft adjustment – OEM: T40058
- 1x Crankshaft turning tool – OEM: T40049
- 1x Camshaft locking tools – OEM: T40060
- 1x Camshaft turning tool left – OEM: T40061
- 1x Camshaft turning tool right – OEM: T40062
- 2x Timing tensioner locking pin – OEM: T40071
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01697 |
| Compatible vehicle brands | Audi, Porsche, Volkswagen |
| Compatible vehicle models | A4, A5, A6, A7, A8, Allroad, Cayenne, Panamera, Phaeton, Q5, Q7, Touareg |
| Compatible engine codes | ASB, ASE, BKN, BKS, BMK, BMZ, BNG, BPP, BSG, BTR, BUG, BUN, BVN, CAMA, CAMB, CANA, CANB, CANC, CAND, CAPA, CARA, CASA, CASB, CASC, CASD, CATA, CCLA, CCMA, CCFA, CCFC, CCWA, CCWB, CDSB, CDTA, CDTB, CDUC, CDUD, CDYA, CDYB, CDYC, CEXA, CGKA, CGKB, CGQB, CJGA, CJGC, CJGD, CJMA, CKVB, CKVC, CLAA, CLAB, CLZB, CNRB, CPNB, CRCA, CRTD, CRTE, CRTF, CTBA, CTBC, CTBB, CTCC |
