The timing set (VT01695) is a collection of tools for adjusting and checking engine timing on Volkswagen 2.5 R5 TDI and 4.9/5.0 V10 TDI diesel engines. The set allows the camshafts and crankshaft to be locked during maintenance of the gear-driven timing system or when performing engine repairs.

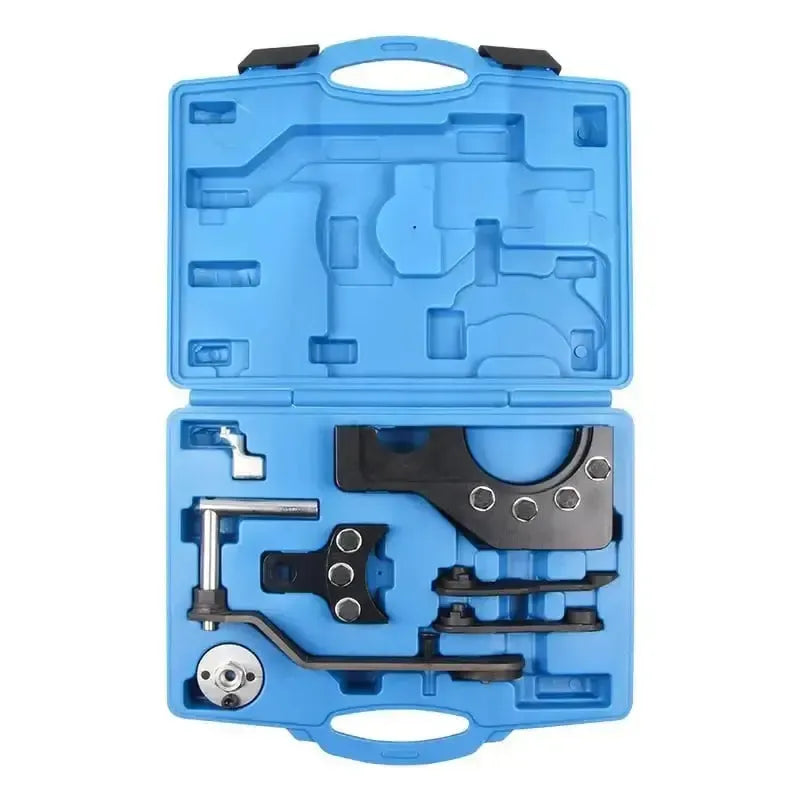

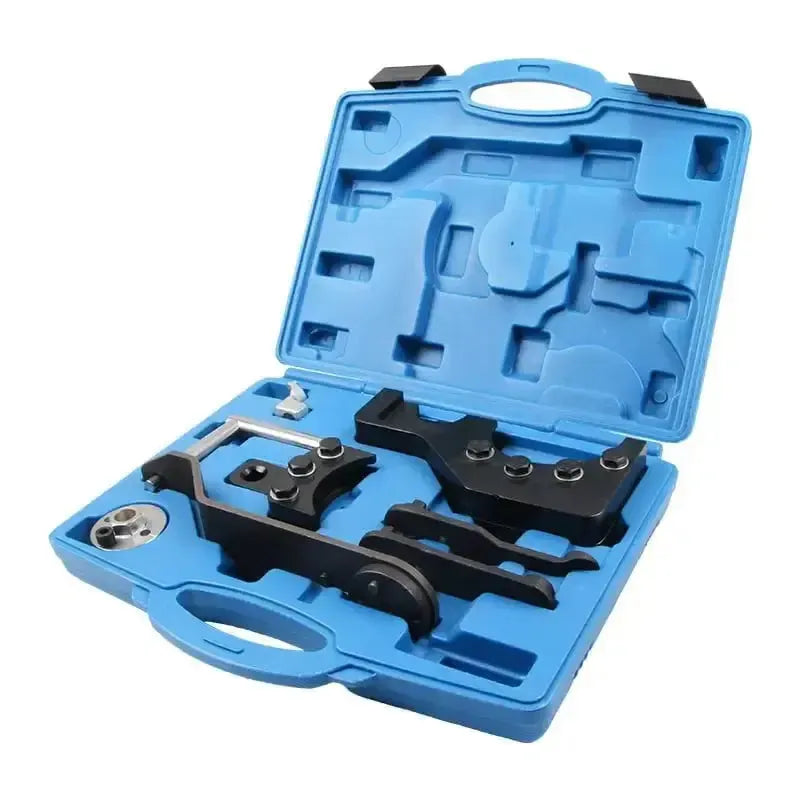

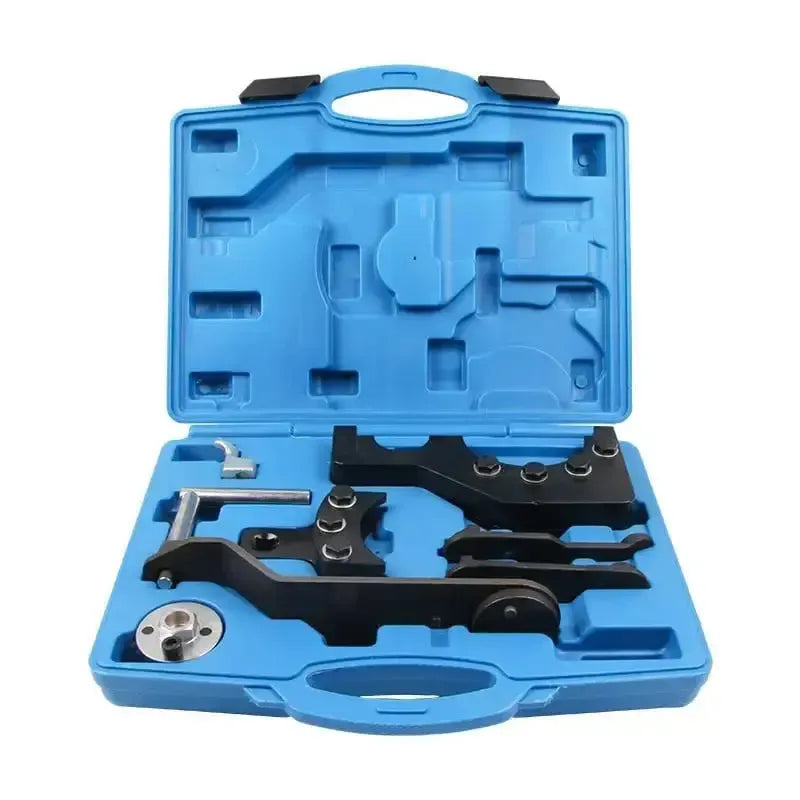

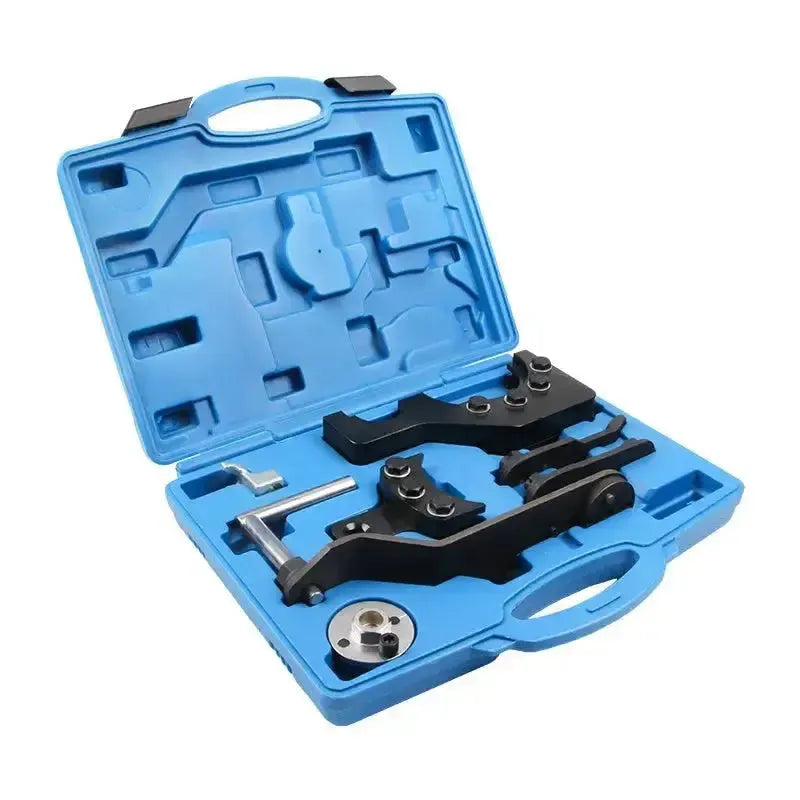

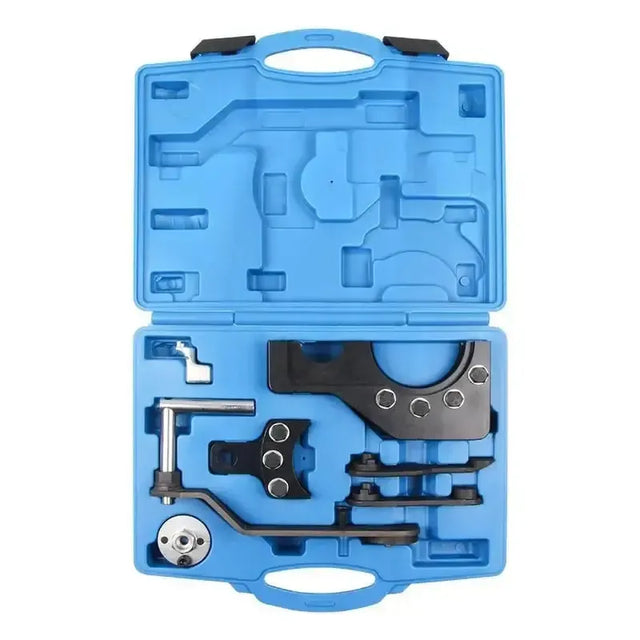

This 8-piece set includes specific tools such as camshaft locking plates for both R5 and V10 engines, a crankshaft locking tool, a crankshaft turning tool, and a clamping tool for removing the camshaft gear. All parts are supplied in a plastic storage case for transport and storage.
Application and functionality:
These tools are designed for performing maintenance on the gear-driven timing system of the specified Volkswagen engines.
- Locking the camshafts: Fixes the camshafts in the correct position using the specific locking plates for 5- and 10-cylinder engines.
- Locking the crankshaft: Locks the crankshaft in the TDC position (Top Dead Center) with the T10226 tool.
- Turning the crankshaft: Enables precise rotation of the crankshaft with the T10225 turning tool for adjustment work.
- Removing camshaft gear: The clamping tool is used to fix and remove the camshaft gear.
- Adjusting clearance: The tensioner tool is used for correctly adjusting the clearance in the gear drive.
Compatible vehicles and engine codes:
Suitable for various Volkswagen models equipped with 2.5 R5 TDI and 4.9/5.0 V10 TDI engines.
Volkswagen:
- Multivan: (2003–2015)
- Phaeton: (2002–2016)
- Touareg: (2002–2010)
- Transporter T5: (2003–2015)
Engine codes:
- 2.5L R5 TDI: AXD, AXE, BAC, BLJ, BLK, BPC, BPD, BPE
- 4.9L/5.0L V10 TDI: AJS, AYH, BLE, BWF
Package Contents:
- 1x Camshaft locking tool (5-cylinder) – OEM: T10193
- 1x Camshaft locking tool (10-cylinder) – OEM: T10194
- 1x Clamping tool for camshaft sprocket – OEM: T10199
- 1x Counter-hold wrench for clamping tool – OEM: T10199/1
- 1x Crankshaft turning tool – OEM: T10225
- 1x Crankshaft locking tool – OEM: T10226
- 1x Tensioning tool
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01695 |
| Compatible vehicle brands | Volkswagen |
| Compatible vehicle models | Multivan, Phaeton, Touareg, Transporter T5 |
| Compatible engine codes | AJS, AXD, AXE, AYH, BAC, BLE, BLJ, BLK, BPC, BPD, BPE, BWF |
