The timing set (VT01656) is designed for locking the camshafts and crankshaft on BMW vehicles. This tool is specifically intended for use with 6-cylinder petrol engines with the engine codes N51, N52, N53, and N54. It ensures correct engine timing during maintenance procedures such as replacing the timing chain or the cylinder head gasket.

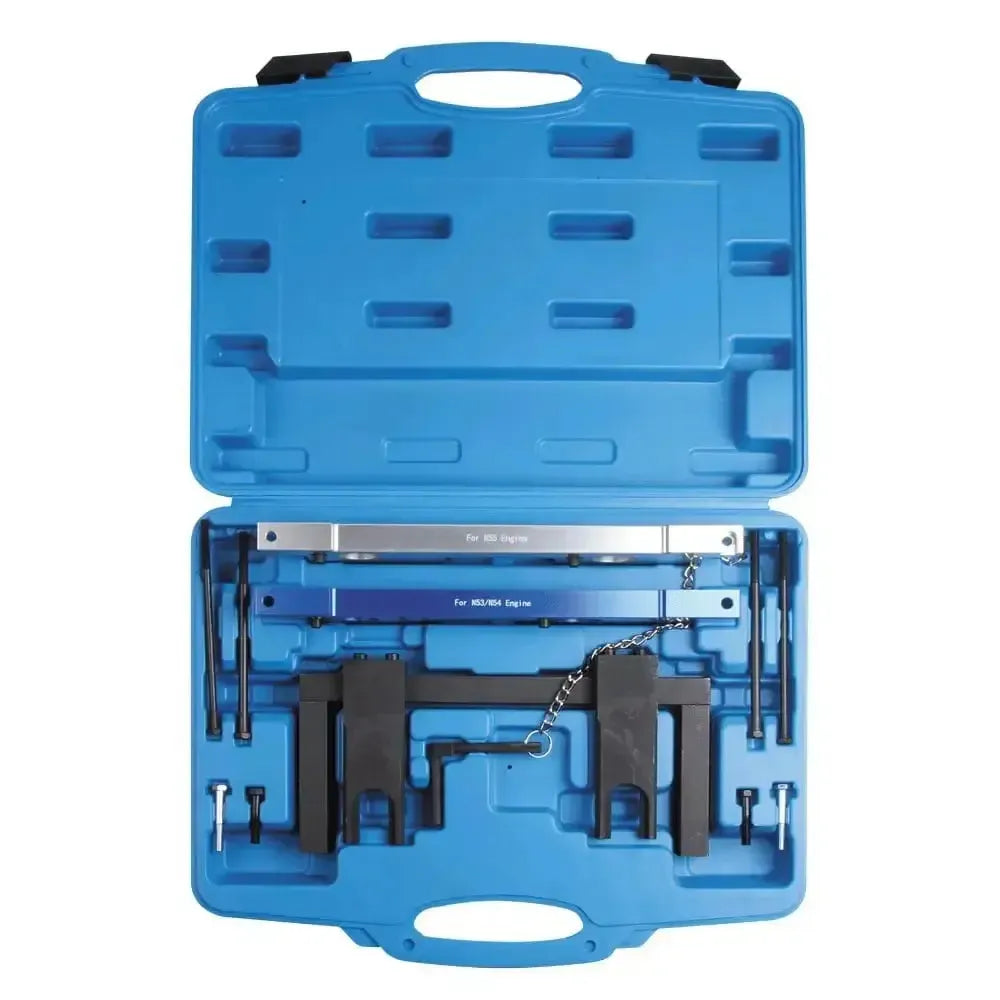

This 12-piece set contains all necessary components for correct adjustment, including two different camshaft locking templates for the various engine series, tools for locking the camshaft sensors (VANOS), and a flywheel locking pin to secure the crankshaft in the TDC (top dead center) position. The parts are supplied in a plastic storage case.
Application and functionality:
This set is used for adjusting and checking engine timing during maintenance of the timing system.
- Locking the crankshaft: The supplied flywheel locking pin is used to fix the crankshaft in the TDC position, providing a stable base for further adjustments.
- Fixing the camshafts: The specific alignment tools for the N51/N52 and N53/N54 engines lock the camshafts in their correct position relative to the crankshaft.
- Aligning the VANOS sensors: With the locking tools for the camshaft sensors, the VANOS adjusters can be precisely positioned and secured during assembly.
Compatible vehicles and engine codes:
This set is suitable for various BMW models equipped with N51, N52, N53, and N54 petrol engines.
BMW:
- 1 Series (E81, E82, E87, E88): (2005–2013)
- 3 Series (E90, E91, E92, E93): (2005–2013)
- 5 Series (E60, E61, F10, F11): (2005–2013)
- 6 Series (E63, E64): (2007–2010)
- 7 Series (F01, F02): (2008–2012)
- X1 (E84): (2009–2015)
- X3 (E83, F25): (2006–2012)
- X5 (E70): (2006–2010)
- Z4 (E85, E86, E89): (2006–2016)
Engine codes:
- 2.5L: N52B25, N53B25
- 3.0L: N51B30, N52B30, N53B30, N54B30
Package Contents:
- 1x Camshaft fixing templates – OEM: 114281
- 1x Adapter plate for intake camshaft – OEM: 114282
- 1x Camshaft fixing bracket – OEM: 114283
- 1x Camshaft sensor locking tool – OEM: 114290
- 1x Camshaft sensor locking tool – OEM: 118520
- 1x Flywheel locking tool – OEM: 110300
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT01656 |
| Compatible vehicle brands | BMW |
| Compatible vehicle models | 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, X1, X3, X5, Z4 |
| Compatible engine codes | N51B30, N52B25, N52B30, N53B25, N53B30, N54B30 |
