VT01595 | Ford/Volvo - 1.6L (Ti-VCT) | Timing set (5-piece)
Warranty handled directly by AsTools
Warranty handled directly by AsTools
We handle warranty cases ourselves, quickly and without the intervention of the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually help you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This way, you are assured of long-lasting quality and service.
Easy returns via Returnless
Easy returns via Returnless
Returns are easy via Returnless. Register your return online and choose your own shipping method. Return costs are at your own expense.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

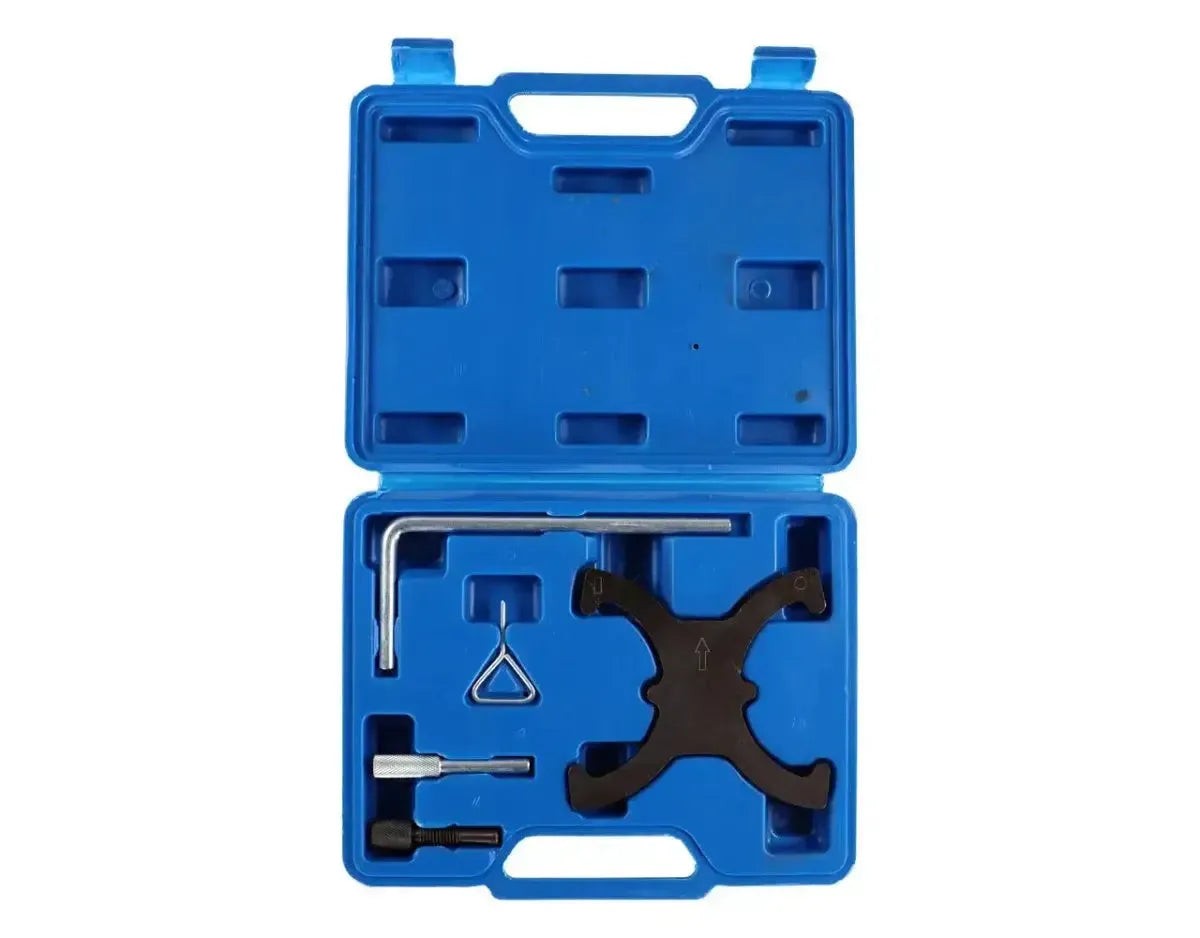

The timing set (VT01595) is a 5-piece set designed for correctly adjusting and locking the camshafts and crankshaft. The tool is specifically developed for 1.6L Ti-VCT gasoline engines used in various models of Ford and Volvo.
The set contains all necessary components, such as a camshaft locking plate, a crankshaft locking pin, and a flywheel locking pin. These parts are intended for performing maintenance on the timing belt, adjusting valve timing, and checking engine settings with variable valve timing (Ti-VCT).
Application and functionality:
This set is used when replacing the timing belt and other maintenance on the engine timing system.
- Locking the camshafts: The locking plate secures the camshafts in the correct timing position, which is necessary when working on the timing system.
- Locking the crankshaft: The locking pin is screwed into the engine block to fix the crankshaft at top dead center (TDC).
- Fixing the flywheel: An additional locking pin is used to secure the flywheel.
- Positioning the belt tensioner: The locking pin holds the timing belt tensioner in a relaxed position during installation or removal of the belt.
Compatible vehicles and engine codes:
The set is compatible with various models of Ford and Volvo equipped with 1.6L Ti-VCT gasoline engines.
Ford:
- B-Max: (2012–2018)
- C-Max: (2007–2018)
- Fiesta: (2008–2017)
- Focus: (2004–2018)
- Focus C-Max: (2003–2007)
- Galaxy: (2010–2015)
- Grand C-Max: (2010–2018)
- Grand Tourneo Connect: (2013–present)
- Mondeo: (2007–2015)
- S-Max: (2010–2015)
- Tourneo Connect: (2013–present)
Volvo:
- C30: (2006–2013)
- S40: (2004–2012)
- S60: (2011–2015)
- S80: (2010–2016)
- V40: (2012–2015)
- V50: (2004–2012)
- V60: (2011–2015)
- V70: (2010–2016)
Engine codes:
- 1.6L Ti-VCT: B4164S3, HWDA, HWDB, HXDA, HXJA, HXJB, IQDA, IQDB, IQJA, IQJC, JQDA, JQDB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, PNBA, PNDA, PNDD, RHBA, RHBC, SHDA, SHDB, SHDC, SIDA

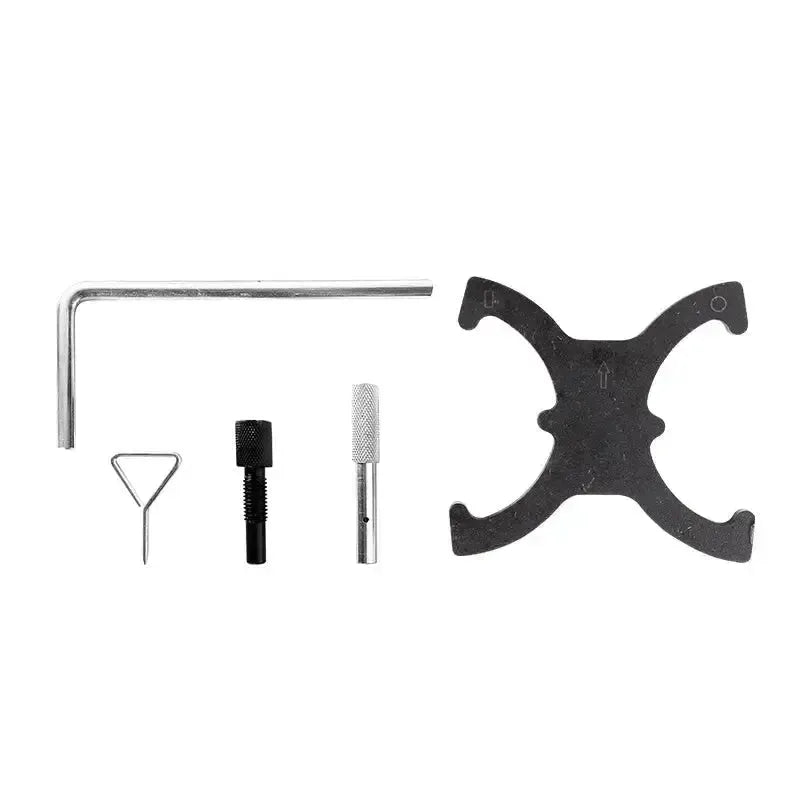

Package Contents:
- 1x Camshaft locking plate – OEM: 303-1097
- 1x Crankshaft locking pin – OEM: 303-748
- 1x Spanner locking pin – OEM: 303-1054
- 1x Flywheel locking pin – OEM: 303-734
- 1x VCT adjustment tool – OEM: 303-1059
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01595 |
| Compatible vehicle brands | Ford, Volvo |
| Compatible vehicle models | B-Max, C-Max, C30, Fiesta, Focus, Focus C-Max, Galaxy, Grand C-Max, Grand Tourneo Connect, Mondeo, S-Max, S40, S60, S80, Tourneo Connect, V40, V50, V60, V70 |
| Compatible engine codes | B4164S3, HWDA, HWDB, HXDA, HXJA, HXJB, IQDA, IQDB, IQJA, IQJC, JQDA, JQDB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, PNBA, PNDA, PNDD, RHBA, RHBC, SHDA, SHDB, SHDC, SIDA |
