The timing set with article number VT01581C is designed for blocking the crankshaft, camshaft, and injection pump during timing maintenance. The set is specifically intended for various VAG (Volkswagen, Audi, Seat, Skoda) diesel engines with a displacement of 1.4, 1.6, 1.9, and 2.0 liters, including both Pumpe-Düse (PD) and Common-Rail (CR) variants.

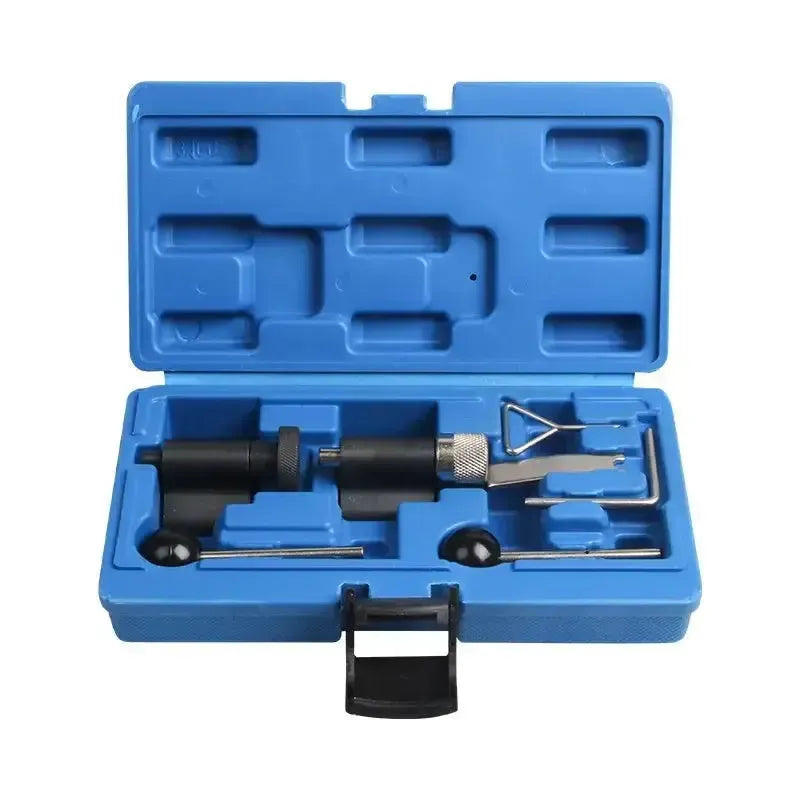

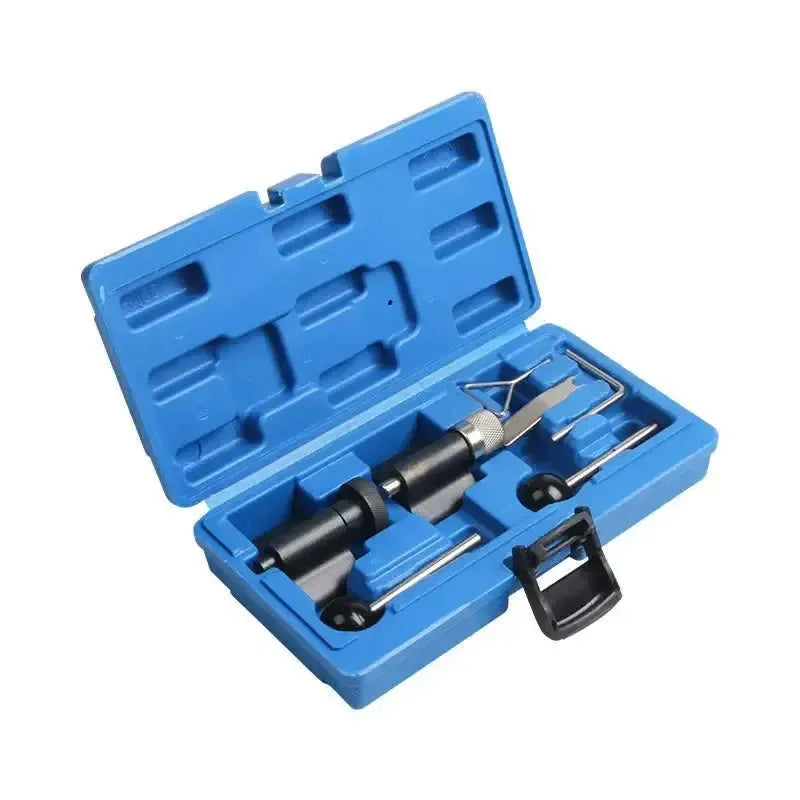

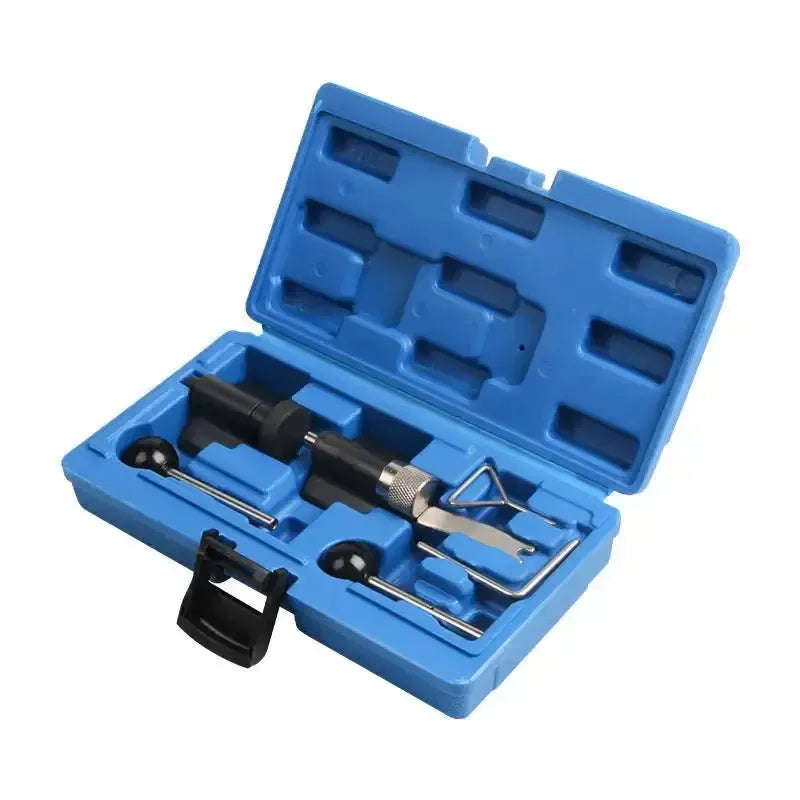

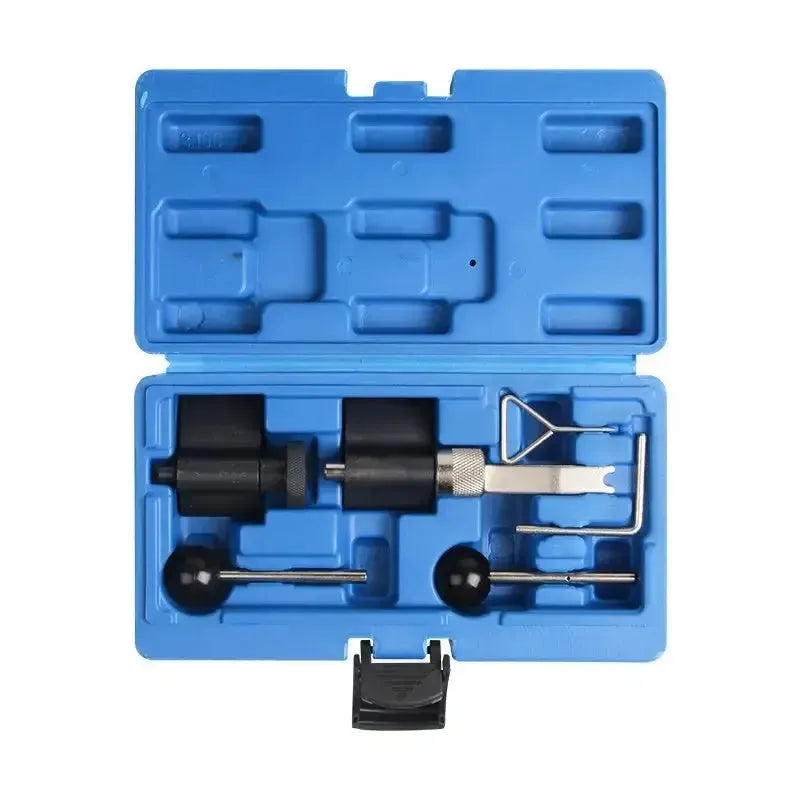

The Package Contents of the set include the necessary tools for correctly performing a timing belt replacement. There are two different crankshaft locking tools included, suitable for both round and oval crankshaft gears. Additionally, the set contains various locking pins for fixing the camshaft, injection pump, and belt tensioner. All parts are supplied in a plastic storage case.
Application and functionality:
This set is used when replacing the timing belt and other related maintenance work on VAG TDI engines.
- Blocking the crankshaft: Includes two types of blocking tools for securing the crankshaft pulley, depending on the gear profile (round or oval).
- Fixing the camshaft and injection pump: Locking pins ensure the correct positioning of the camshaft and fuel pump relative to the crankshaft.
- Locking the belt tensioner: A specific locking pin is used to secure the automatic tensioner in the relaxed position during the installation of the new belt.
Compatible vehicles and engine codes:
Suitable for various models of Audi, Seat, Skoda, and Volkswagen with the following TDI engine codes.
Audi:
- A1: (2010–2015)
- A2: (2000–2005)
- A3: (2001–2013)
- A4: (2000–2013)
- A5: (2008–2012)
- A6: (2002–2011)
- Q3: (2011–present)
- Q5: (2008–present)
- TT: (2008–2014)
Seat:
- Alhambra: (2000–2010)
- Altea: (2004–2015)
- Arosa: (2000–2004)
- Cordoba: (2002–2009)
- Ibiza: (2002–2015)
- Leon: (2000–2013)
- Toledo: (2000–2013)
Skoda:
- Fabia: (2000–2014)
- Octavia: (2000–2013)
- Praktik: (2007–2015)
- Rapid: (2012–present)
- Roomster: (2006–2015)
- Superb: (2002–2015)
- Yeti: (2009–present)
Volkswagen:
- Amarok: (2010–present)
- Beetle: (2011–present)
- Bora: (1999–2005)
- Caddy: (2004–present)
- Crafter: (2011–2017)
- Eos: (2006–2015)
- Fox: (2005–2011)
- Golf: (1998–2013)
- Jetta: (2005–2014)
- Lupo: (1999–2005)
- Passat: (1998–2014)
- Polo: (1999–2014)
- Scirocco: (2008–2014)
- Sharan: (1999–2010)
- Tiguan: (2007–present)
- Touran: (2003–2015)
- Transporter T5: (2003–2015)
Engine codes:
- 1.4L TDI: AMF, ATL, BHC, BMS, BNM, BNV, BWB
- 1.6L TDI: CAYA, CAYB, CAYC, CAYD, CAYE, CLNA
- 1.9L TDI: AJM, ANU, ARL, ASZ, ATD, AUY, AVB, AVF, AVQ, AWX, AXB, AXC, AXR, BJB, BKC, BLS, BMT, BPZ, BRM, BRR, BRS, BRU, BSU, BSV, BSW, BTB, BVK, BXE, BXF, BXJ
- 2.0L TDI: AZV, BDK, BGW, BHW, BKD, BKE, BLB, BMA, BMM, BMN, BMP, BMR, BNA, BPW, BRC, BRD, BRE, BRF, BRT, BSS, BUY, BUZ, BVA, BVE, BVF, BVG, BVH, BWV, CAGA, CAGB, CAGC, CAHA, CAHB, CBAA, CBAB, CBAC, CBBA, CBBB, CBDA, CBDB, CBDC, CBEA, CFFB, CFFA, CFGB, CGLA, CGLB, CJAA, CMEA

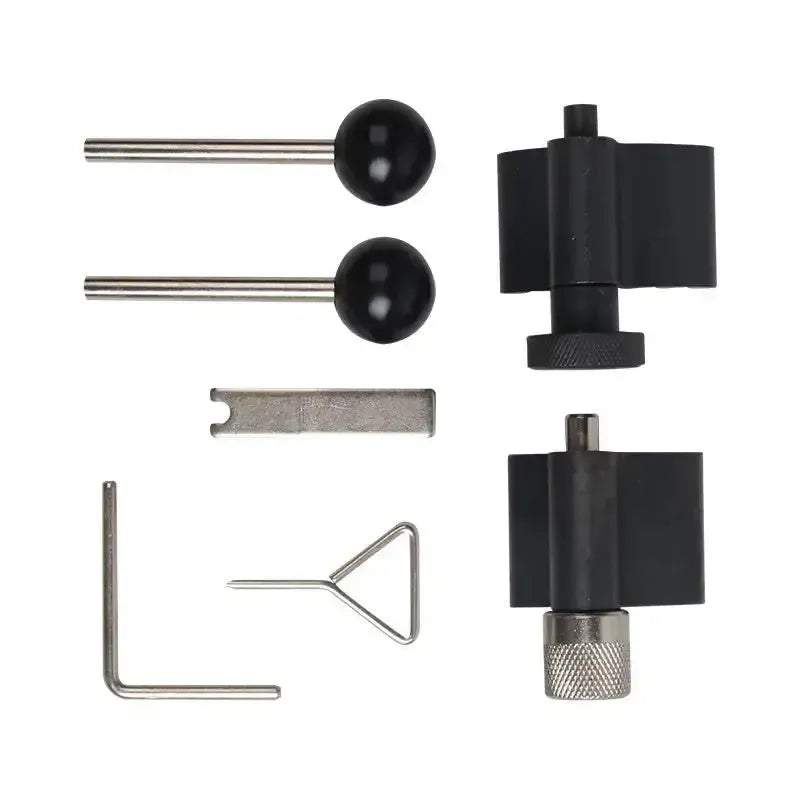

Package Contents:
- 1x Crankshaft locking tool (for oval gears) – OEM: T10050
- 1x Crankshaft locking tool (for round gears) – OEM: T10100
- 1x Timing tensioner locking pin – OEM: T10115
- 1x Injection pump locking pin – OEM: 3359
- 1x Assembly tool – OEM: T10060A
- 2x Camshaft locking pin
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT01581C |
| Compatible vehicle brands | Audi, Seat, Skoda, Volkswagen |
| Compatible engines | 1.4 TDI, 1.6 TDI, 1.9 TDI, 2.0 TDI (PD and CR) |
| Compatible engine codes | AJM, AMF, ANU, ARL, ASZ, ATD, ATL, AUY, AVB, AVF, AVQ, AWX, AXB, AXC, AXR, AZV, BDK, BGW, BHC, BHW, BJB, BKD, BKE, BLB, BLS, BMA, BMM, BMN, BMP, BMR, BMT, BNA, BNM, BNV, BPW, BPZ, BRC, BRD, BRE, BRF, BRM, BRR, BRS, BRT, BRU, BSS, BSU, BSV, BSW, BTB, BUY, BUZ, BVA, BVE, BVF, BVG, BVH, BVK, BWV, BWB, BXE, BXF, BXJ, CAGA, CAGB, CAGC, CAHA, CAHB, CAYA, CAYB, CAYC, CAYD, CAYE, CBAA, CBAB, CBAC, CBBA, CBBB, CBDA, CBDB, CBDC, CBEA, CFFB, CFFA, CFGB, CGLA, CGLB, CJAA, CLNA, CMEA |
