The timing set (VT01554C) is a collection of tools for locking the crankshaft and camshaft during timing chain work. This set is specifically developed for 1.6, 2.0, and 3.0 liter diesel engines of BMW and MINI with engine codes N47, N47S, N57, and N57S.
The set contains parts for locking the camshaft, positioning the crankshaft, and dismantling the sprocket of the high-pressure fuel pump. Using this tool ensures correct engine adjustment when replacing the timing chain or performing other engine maintenance. The parts are supplied in a plastic storage case.
Application and functionality:
This set is used for adjusting and locking the engine components during timing work.
- Locking the camshaft: The camshaft locking tool is used to fix the camshafts in the correct position.
- Positioning the crankshaft: The turning tool and flywheel locking pin are used to set and hold the crankshaft at the top dead center (TDC) of the first cylinder.
- Counter-holding the crankshaft pulley: The counter-holder is used to fix the crankshaft pulley when loosening and tightening the central bolt.
- Dismantling the high-pressure pump sprocket: Specific tool for safely removing the sprocket from the high-pressure fuel pump.
- Locking of the chain tensioner: The locking pins are used to secure the chain tensioner in the retracted position.
Compatible vehicles and engine codes:
Suitable for various models of BMW and MINI equipped with N47, N47S, N57, and N57S diesel engines.
BMW:
- 1 Series (E81, E82, E87, E88): (2007–2013)
- 1 Series (F20, F21): (2011–2015)
- 2 Series (F22): (2014–2017)
- 3 Series (E90, E91, E92, E93): (2007–2013)
- 3 Series (F30, F31, F34): (2012–2016)
- 4 Series (F32, F33, F36): (2013–2016)
- 5 Series (E60, E61): (2007–2010)
- 5 Series (F07, F10, F11): (2010–2017)
- 6 Series (F06, F12, F13): (2011–2015)
- 7 Series (F01, F02): (2008–2015)
- X1 (E84): (2009–2015)
- X3 (E83): (2007–2010)
- X3 (F25): (2010–2014)
- X4 (F26): (2014–2018)
- X5 (E70): (2010–2013)
- X5 (F15): (2013–2015)
- X6 (E71): (2010–2014)
- X6 (F16): (2014–2015)
MINI:
- Clubman (R55): (2010–2014)
- Clubvan (R55): (2012–2014)
- Countryman (R60): (2010–2017)
- Coupé (R58): (2011–2015)
- Hatch (R56): (2010–2014)
- Paceman (R61): (2013–2017)
- Roadster (R59): (2012–2015)
Engine codes:
- 1.6L Diesel (N47): N47 D16
- 2.0L Diesel (N47): N47 D20A, N47 D20A/K0, N47 D20A/O0, N47 D20C, N47 D20C/K1, N47 D20C/O, N47 D20C/O1, N47 D20C/U1, N47 D20D, N47 D20D/T1, N47 D20K1, N47 D20O0, N47 D20O1, N47 D20T1, N47 D20U0, N47 D20U1, N47S D20B/D/T0, N47S D20D/T0, N47S1
- 3.0L Diesel (N57): N57 D30A, N57 D30A/O0, N57 D30A/O1, N57 D30B, N57 D30B/T0, N57 D30B/T1, N57 D30C, N57 D30O0, N57 D30O1, N57 D30T0, N57 D30T1, N57 D30TO, N57 D30UO, N57S

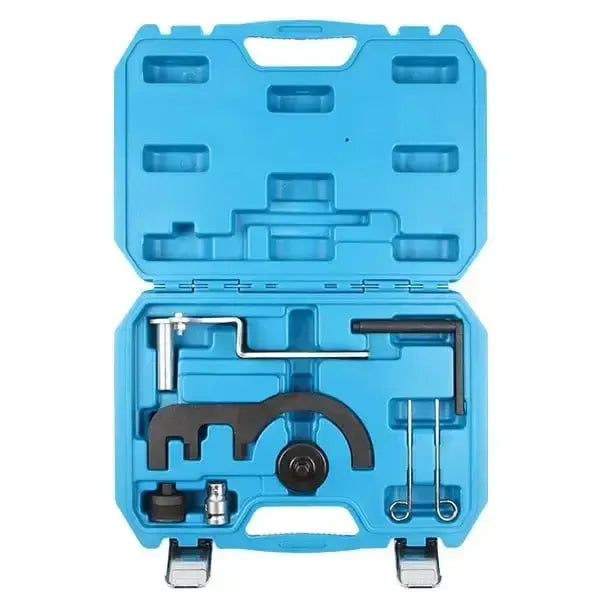

Package Contents:
- 1x Flywheel locking pin – OEM: 11 5 320
- 1x Crankshaft turning tool – OEM: 11 6 480
- 1x Crankshaft pulley holder – OEM: 11 7 220
- 1x High-pressure pump gear removal tool – OEM: 11 8 740, 11 8 741
- 1x Camshaft locking tool – OEM: 11 8 760
- 2x Chain tensioner locking pins
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT01554C |
| Compatible vehicle brands | BMW, MINI |
| Compatible engine codes | N47 D16, N47 D20A, N47 D20A/K0, N47 D20A/O0, N47 D20C, N47 D20C/K1, N47 D20C/O, N47 D20C/O1, N47 D20C/U1, N47 D20D, N47 D20D/T1, N47 D20K1, N47 D20O0, N47 D20O1, N47 D20T1, N47 D20U0, N47 D20U1, N47S D20B/D/T0, N47S D20D/T0, N47S1, N57 D30A, N57 D30A/O0, N57 D30A/O1, N57 D30B, N57 D30B/T0, N57 D30B/T1, N57 D30C, N57 D30O0, N57 D30O1, N57 D30T0, N57 D30T1, N57 D30TO, N57 D30UO, N57S |
