The timing set (VT01531) is a collection of tools for locking the crankshaft and camshafts. This set is specifically developed for maintenance of the timing chain of various VAG 2.4L, 3.2L, and 4.2L FSI engines with chain drive.

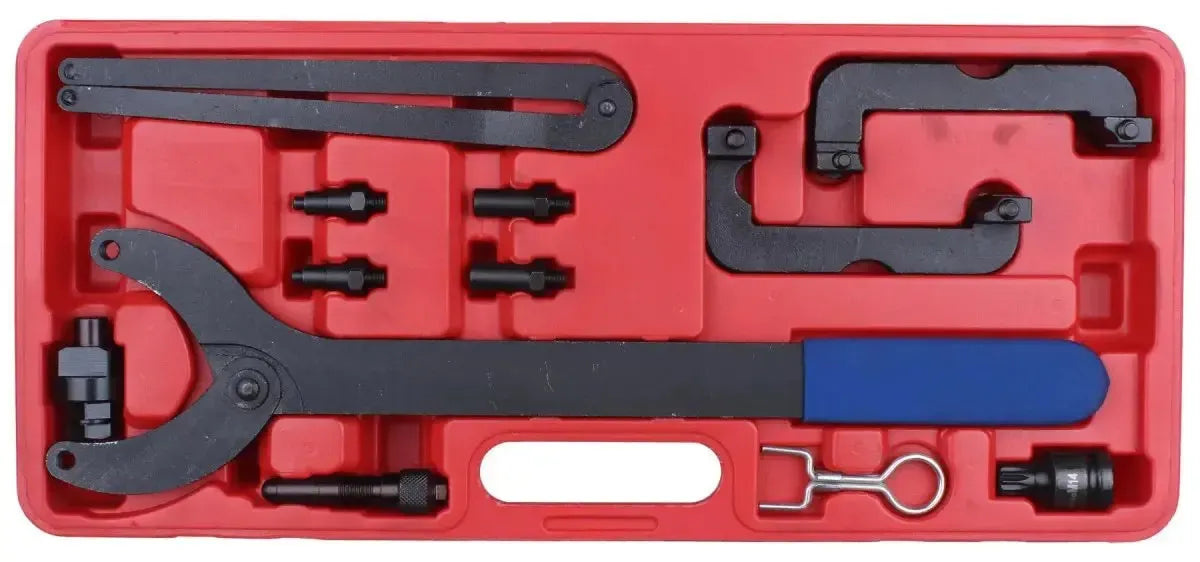

The set contains parts such as camshaft locking tool, a crankshaft locking pin, a turning tool for the crankshaft pulley, and various pins and holders for the chain tensioners. All tools are supplied in a plastic storage case for organized storage and transport.
Application and functionality:
These tools are intended for performing maintenance and repair work on the timing system, such as checking and adjusting the timing or replacing the timing chain.
- Locking the camshafts: Secures the camshafts in the correct position using the locking tools (T40133).
- Locking the crankshaft: Locks the crankshaft at the top dead center (TDC) with the locking pin (T40069).
- Turning the crankshaft: Enables manual rotation of the engine via the crankshaft pulley with the special turning tool (3212).
- Fixing the chain tensioner: Holds the timing chain tensioner pressed during assembly or disassembly with the locking pin (T40071) and holders (T10172).
- Aligning camshaft adjusters: The special socket wrench (T40058) is used for the central bolt of the camshaft adjuster.
Compatible vehicles and engine codes:
Suitable for various models of Audi and Volkswagen with V6 and V8 FSI chain engines.
Audi:
- A4: (2005–2008)
- A5: (2007–2012)
- A6: (2004–2011)
- A6 Allroad: (2006–2011)
- A8: (2005–2010)
- Q5: (2008–2012)
- Q7: (2006–2010)
- R8: (2007–2015)
- RS4: (2006–2008)
- RS6: (2008–2010)
- S4: (2003–2009)
- S5: (2007–2012)
Volkswagen:
- Touareg: (2006–2010)
Engine codes:
- 2.4L FSI: BDW
- 3.2L FSI: AUK, BKH, BPK, BYU, CALA, CALB
- 4.2L FSI V8: BAR, BBK, BHF, BNS, BVJ, BYH, CAUA, CNDA
- 5.0L TFSI V10: BUH, BXU
Package Contents:
- 2x Camshaft locking tool – OEM: T40133
- 2x Timing chain tensioner lock – OEM: T10172
- 2x Chain locking tool – OEM: T10035
- 1x Crankshaft pulley adjustment tool – OEM: 3212
- 1x Flywheel locking tool – OEM: T40069
- 1x Locking pin for timing belt tensioner – OEM: T40071
- 1x Adapter for timing adjustment – OEM: T40058
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Model | VT01531 |
| Compatible vehicle brands | Audi, Volkswagen |
| Compatible vehicle models | A4, A5, A6, A6 Allroad, A8, Q5, Q7, R8, RS4, RS6, S4, S5, Touareg |
| Compatible engine codes | AUK, BAR, BBK, BDW, BHF, BKH, BNS, BPK, BUH, BVJ, BXU, BYH, BYU, CALA, CALB, CAUA, CNDA |
