VT01513 | Mercedes - M271 | Timingset (5-piece)

The timing set (VT01513) is a collection of tools for locking the camshafts and securing the timing chain during maintenance on Mercedes-Benz M271 engines. This set is assembled for tasks such as replacing the timing chain or the cylinder head gasket.

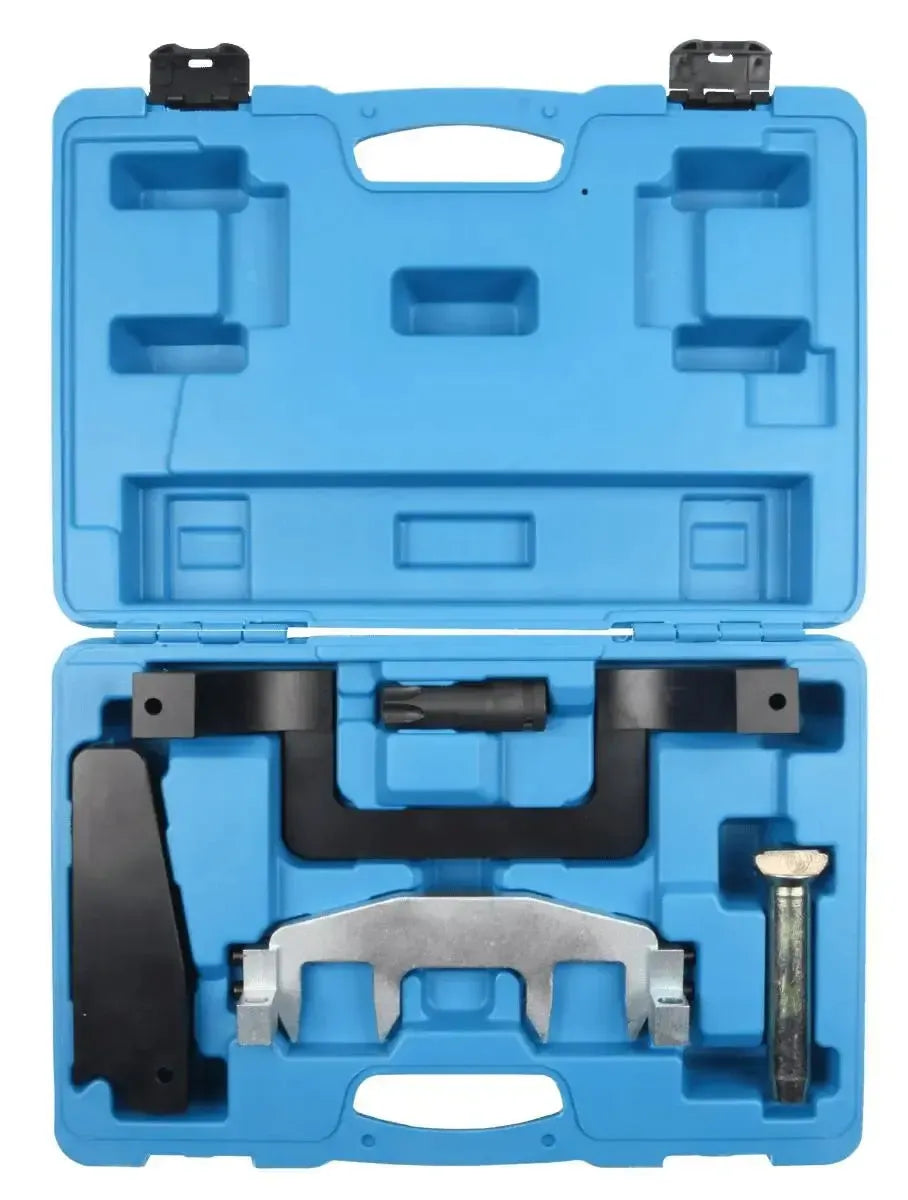

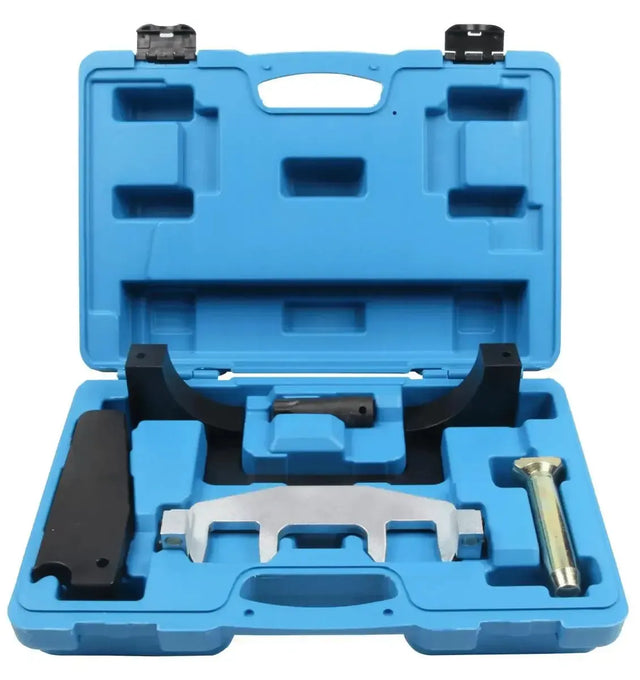

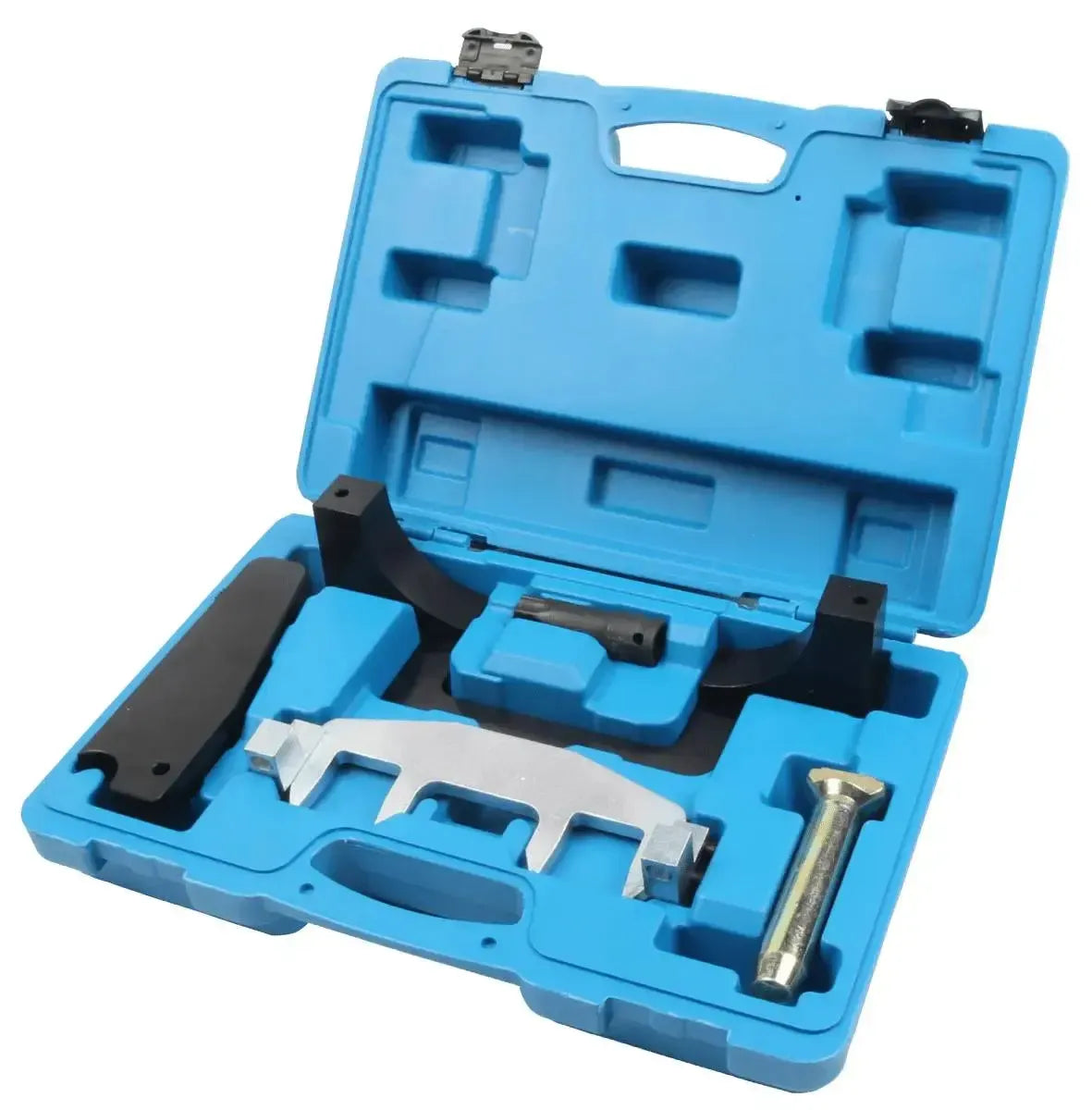

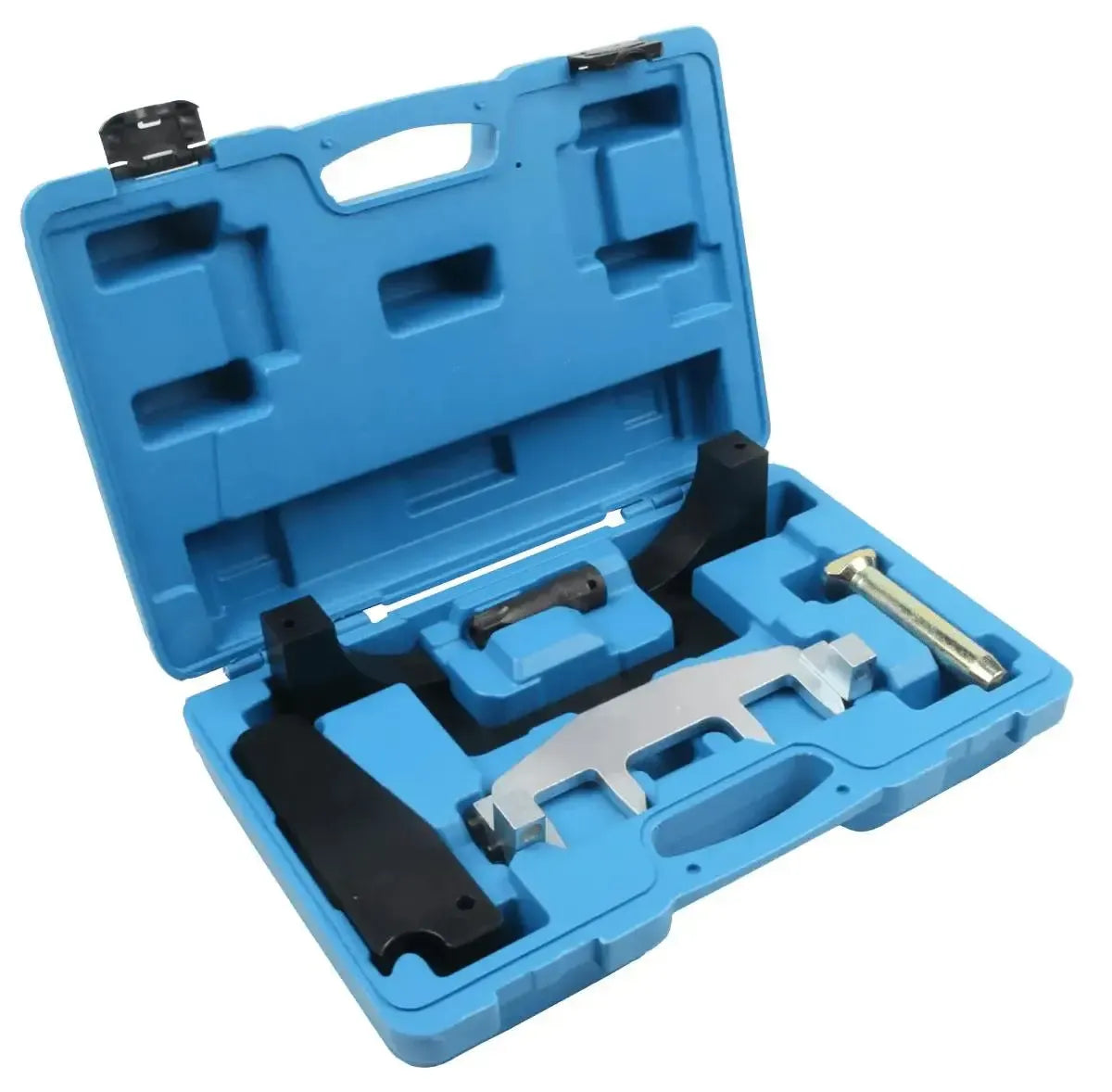

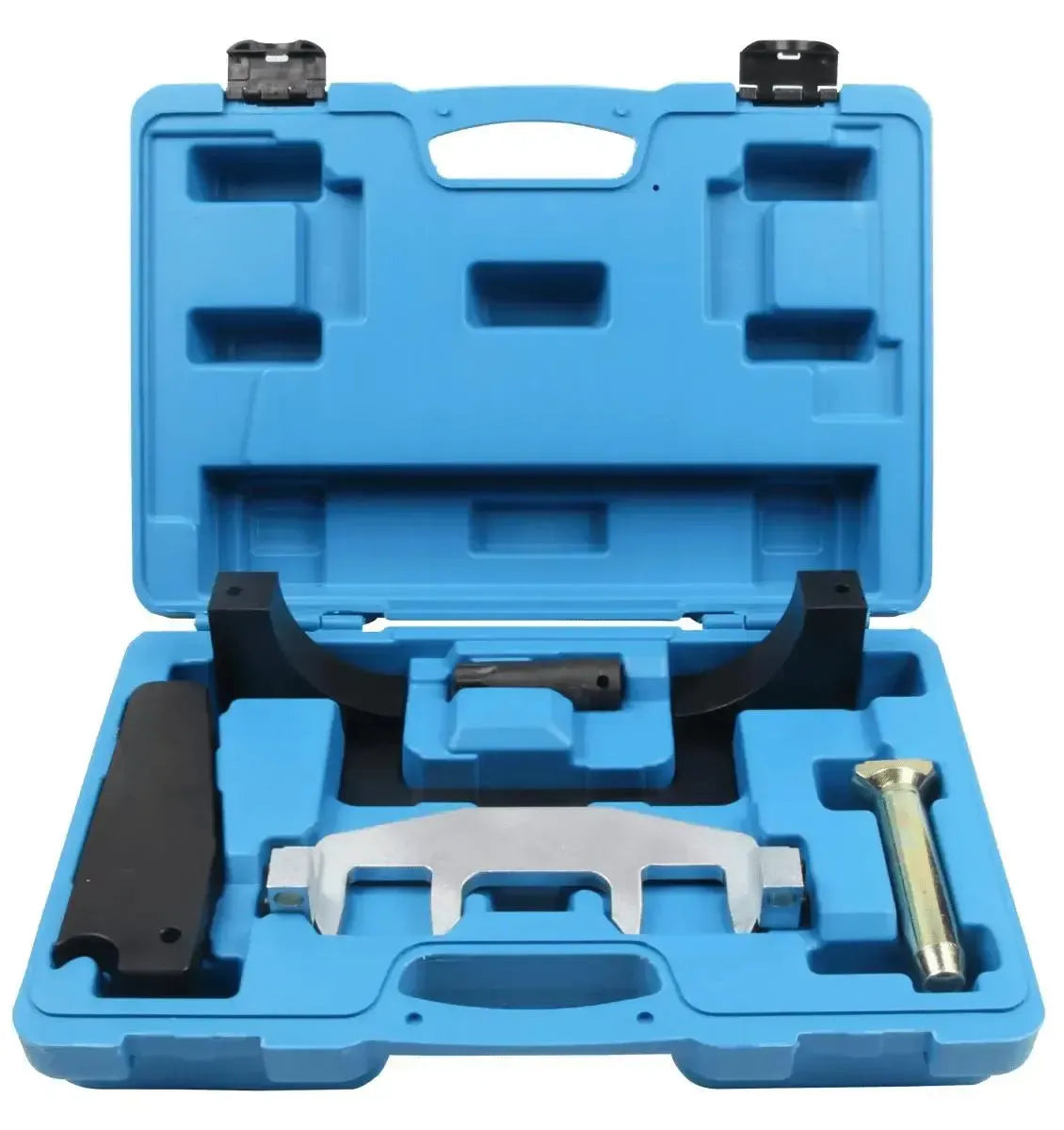

The Package Contents of the set include a camshaft locking tool, a holder to keep the timing chain in place, a locking pin for the chain tensioner, and a special T100 Torx socket. The tools are designed to correctly set and maintain engine timing during repairs. The set comes in a plastic storage case.

Application and functionality:

This set is designed for performing maintenance on the timing chain of Mercedes-Benz M271 engines.

• Locking camshafts: The locking tool secures the camshafts in the correct TDC position (Top Dead Center), ensuring the valve timing is maintained.
• Fixing the timing chain: The chain holder is used to clamp the timing chain on the camshaft sprockets, preventing the chain from jumping or falling into the crankcase.
• Relaxing the chain tensioner: The supplied locking pin allows the hydraulic chain tensioner to be safely relaxed and removed.
• Dismantling chain and sprockets: The set includes the required T100 Torx socket for the camshaft bolts and an assembly pin for dismantling and assembling the timing chain.

Compatible vehicles and engine codes:

Suitable for various models of Mercedes-Benz equipped with M271 gasoline engines (both Kompressor and CGI).

Mercedes-Benz:

• C-Class (C204): (2011–2015)
• C-Class (CL203): (2002–2008)
• C-Class (S203): (2002–2007)
• C-Class (S204): (2007–2014)
• C-Class (W203): (2002–2007)
• C-Class (W204): (2007–2014)
• CLK-Class (A209): (2003–2010)
• CLK-Class (C209): (2002–2009)
• E-Class (A207): (2010–2013)
• E-Class (C207): (2009–2013)
• E-Class (S211): (2003–2009)
• E-Class (W211): (2002–2009)
• E-Class (W212): (2009–2013)
• SLK-Class (R171): (2004–2011)
• SLK-Class (R172): (2011–2015)
• Sprinter (W906): (2008–2013)

Engine codes:

• 1.6L / 1.8L Petrol: M271.820, M271.860, M271.861, M271.910, M271.911, M271.921, M271.940, M271.941, M271.942, M271.944, M271.946, M271.948, M271.950, M271.951, M271.952, M271.954, M271.955, M271.956, M271.957, M271.958

Package Contents:

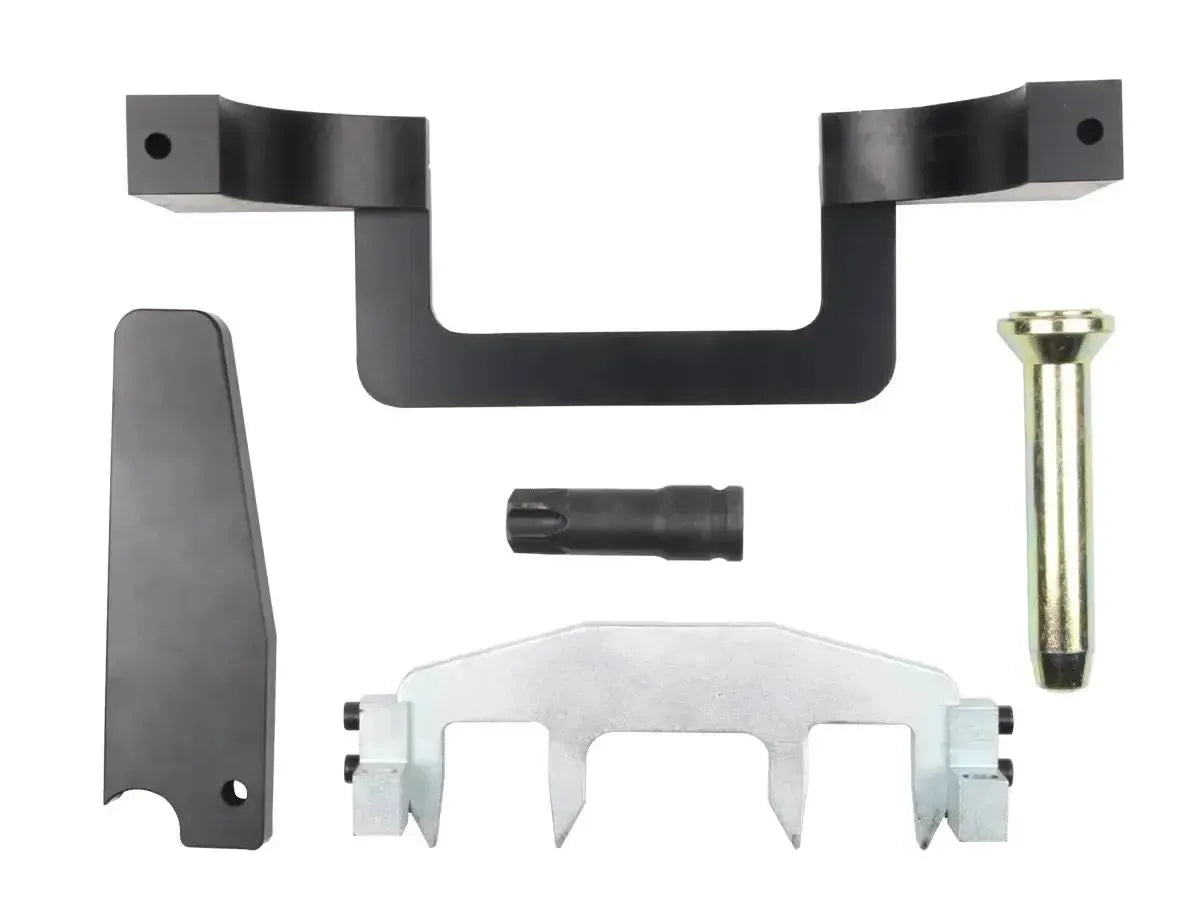

• 1x Timing chain holding tool – OEM: 271 589 01 40 00
• 1x Chain tensioner screw – OEM: 271 589 00 15 00
• 1x Camshaft locking tool – OEM: 271 589 00 61 00
• 1x Timing chain extender – OEM: 271 589 00 31 00
• 1x Torx T100 socket – OEM: 271 589 00 10 00
• 1x Storage case
