The timing set (VT01271) is designed for correctly adjusting the engine timing on various 1.2 16V petrol engines from Fiat and Lancia. The tool is used for locking the camshafts and determining the correct piston position during timing belt replacement or other engine maintenance.

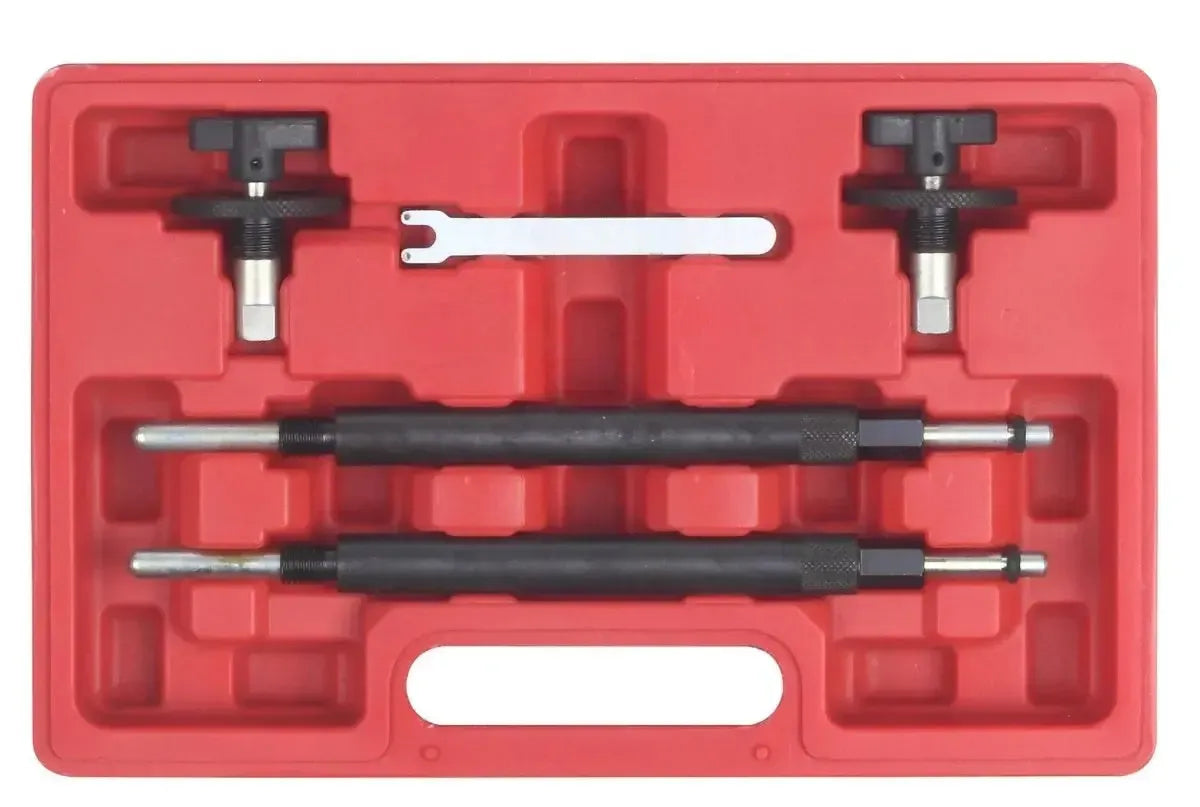

This 5-piece set contains specific tools such as camshaft adjustment tool to lock the camshafts, two piston height adapters to set the pistons at the required height, and a tensioner wrench for correctly tensioning the timing belt. All parts are supplied in a plastic storage case for organization and protection.
Application and functionality:
This set is assembled for performing maintenance on the timing system, such as replacing the timing belt.
- Locking camshafts: The adjustment tools fix the camshafts in the correct position relative to each other and the crankshaft, ensuring correct timing.
- Setting piston height: The adapters are screwed into the spark plug holes to accurately measure and set the piston height, which is required for correct installation of the timing belt.
- Adjusting the tensioner: The tensioner wrench allows precise adjustment of the timing belt tension according to the manufacturer's specifications.
Compatible vehicles and engine codes:
Suitable for various models of Fiat and Lancia equipped with 1.2 16V petrol engines.
Fiat:
- Brava: (1998–2002)
- Bravo I: (1998–2001)
- Doblo: (2001–2010)
- Idea: (2004–2012)
- Marea: (1998–2003)
- Palio: (1997–2012)
- Panda: (2003–2012)
- Punto: (1997–2011)
- Stilo: (2001–2008)
Lancia:
- Ypsilon: (1996–2011)
Engine codes:
- 1.2 16V: 176B9.000, 182B2.000, 188A5.000, 192B2.000
Package Contents:
- 2x Camshaft adjustment tool – OEM: 1860985000
- 2x Piston height adapter – OEM: 1860992000
- 1x Tensioner wrench – OEM: 1860987000
- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT01271 |
| Compatible vehicle brands | Fiat, Lancia |
| Compatible vehicle models | Brava, Bravo I, Doblo, Idea, Marea, Palio, Panda, Punto, Stilo, Ypsilon |
| Compatible engine codes | 176B9.000, 182B2.000, 188A5.000, 192B2.000 |
