The timing set (VT01173) is a 34-piece set, designed for locking and adjusting the camshaft, crankshaft, and injection pump. The Tools are used when replacing the timing belt or chain and during engine repairs on a wide range of gasoline and diesel engines from the VAG group (Volkswagen, Audi, Seat, Skoda).
The set contains various specific components such as locking pins, camshaft gauges, adjustment plates, and tensioning tools. These parts are required for correctly positioning engine parts and properly tensioning the timing belt. The Package Contents are suitable for both older TDI and SDI engines as well as more modern FSI and TFSI petrol engines.
Application and functionality:
This set is used for performing maintenance and repairs on the timing systems of various VAG engines. The tools have the following functions:
- Locking camshafts: Secures the camshafts in the correct position using camshaft gauges, adjustment plates, and specific locking tools.
- Fixing the crankshaft: Locks the crankshaft at top dead center (TDC) using various locking pins and stops.
- Locking the injection pump gear: Secures the timing of the diesel injection pump by locking the gear during the installation of the timing belt.
- Adjusting the belt tensioner: Enables correct tensioning of the timing belt using tensioner wrenches and other tensioning tools.
Compatible vehicles and engine codes:
The set is suitable for various petrol and diesel models from Audi, Ford, Seat, Skoda, and Volkswagen.
Audi:
- A2: (2000–2005)
- A3: (1996–2013)
- A4: (1994–2009)
- A6: (1995–2011)
- A8: (1997–2002)
- Allroad: (2000–2005)
- Convertible: (1997–2009)
- Coupe: (1995-2000)
- S3: (1999-2003)
- TT: (1998–2006)
Ford:
- Galaxy: (1997–2000)
Seat:
- Alhambra: (1996–2010)
- Altea: (2004–present)
- Arosa: (1997–2004)
- Cordoba: (1993–2009)
- Ibiza: (1993–2008)
- Inca: (1995–2003)
- Leon: (1999–present)
- Toledo: (1991–2009)
Skoda:
- Fabia: (1999–2014)
- Felicia: (1995–2001)
- Octavia: (1996–2013)
- Superb: (2002–2008)
Volkswagen:
- Bora: (1998–2005)
- Caddy: (1995–present)
- Eos: (2006–2008)
- Fox: (2005–present)
- Golf: (1991–2013)
- Jetta: (2005-2011)
- Lupo: (1998–2005)
- New Beetle: (1998–2010)
- Passat: (1988–2012)
- Polo: (1994–2012)
- Sharan: (1995–2010)
- Touran: (2003–2010)
- Transporter: (1990–2003)
Gasoline engines:
- 1.2 6V/12V: AWY, AZQ, BMD, BME
- 1.4/1.6 16V & FSI: AFK, AHW, AKQ, APE, AQQ, AUA, AUB, AXU, AXP, BAG, BBY, BBZ, BCA, BKG, BKY, BLF, BLN, BLP, BUD, BXW
- 1.8/1.8T: ADR, AEB, AFY, AGN, AGU, AJH, AJL, AJQ, AMK, ANB, APP, APU, APX, APY, AQA, AQX, ARG, ARH, ARX, ARY, ARZ, AUM, AUQ, AVC, AVJ, AWC, AWL, AWT, AWU, AYP, BAM, BFB, BFV, BVP, BVR
- 2.0 16V & FSI/TFSI: ABF, AXW, AXX, BGB, BHD, BLR, BLX, BLY, BMB, BPG, BPY, BWA
Diesel engines:
- 1.2/1.4 TDI PD: AMF, ANY, ATL, AYZ, BHC, BMS, BNM, BNV
- 1.7 SDI: AHB, AKU, AKW
- 1.9 D/SDI/TDI/TDI PD: 1Z, AAZ, AEY, AFF, AFN, AGP, AGR, AHB, AHF, AHG, AHH, AHU, AJM, AKU, AKW, ALE, ALH, ANU, AQM, ARL, ASV, ASY, ASZ, ATD, ATJ, AUY, AVB, AVF, AVG, AVQ, AWX, AXB, AXC, AXR, AYQ, BJB, BKC, BKE, BLS, BLT, BMT, BPW, BRM, BRU, BSU, BSV, BSW, BTB, BVK, BXE, BXF, BXJ
- 2.0 TDI PD: AZV, BDJ, BDK, BGW, BHW, BKD, BKP, BLB, BMA, BMM, BMN, BMP, BMR, BNA, BRC, BRD, BRE, BRF, BRT, BSS, BUY, BUZ, BVA, BVE, BVF, BVG, BVH, BWC

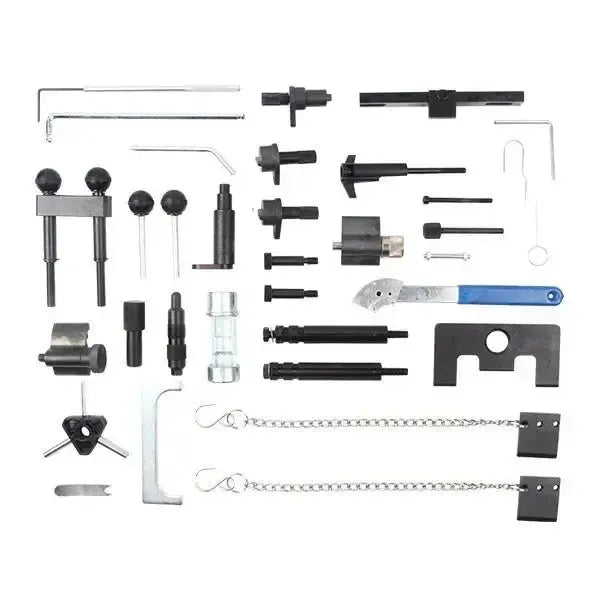

Package Contents:
- 1x Tools for injectors – OEM: 3078
- 1x Locking pin crankshaft – OEM: 3242
- 1x Adjustment plates camshaft and crankshaft – OEM: 3458
- 2x Locking pin injection pump gear – OEM: 2064, 3359
- 1x Fixing plate gear tensioning device – OEM: T10008
- 1x Camshaft locking – OEM: T10016
- 1x Crankshaft stop – OEM: T10050
- 1x Camshaft fixing – OEM: T10098A
- 1x Camshaft ruler – OEM: 2065A
- 1x Tensioning screw gear tensioning device – OEM: T10092
- 1x Locking pin tensioning device – OEM: T40011
- 1x Camshaft adjustment tool – OEM: 3418
- 1x Camshaft fixing timing chain – OEM: T10123
- 1x Crankshaft fixing bolts – OEM: T10120
- 1x Fixing pin
- 1x Crankshaft stop – OEM: T10100
- 1x Support rods – OEM: 3369
- 1x Engine adjustment tool
- 1x Clamping Tools chain tensioner – OEM: 3366
- 1x Open-ended tool tensioner – OEM: T10265
- 1x Angle screwdriver tensioner – OEM: T10264
- 1x Curved open-ended pin wrench – OEM: T10060, T10060A
- 1x Tensioner wrench with adjustment screw – OEM: T10020
- 1x Adjustment screw fan coupling

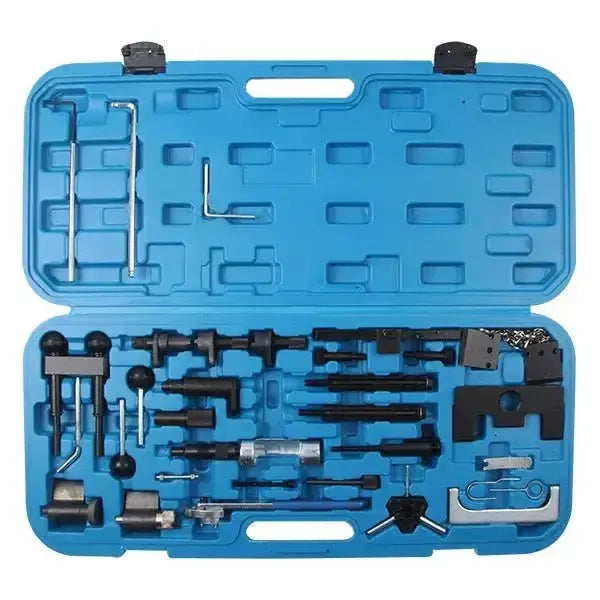

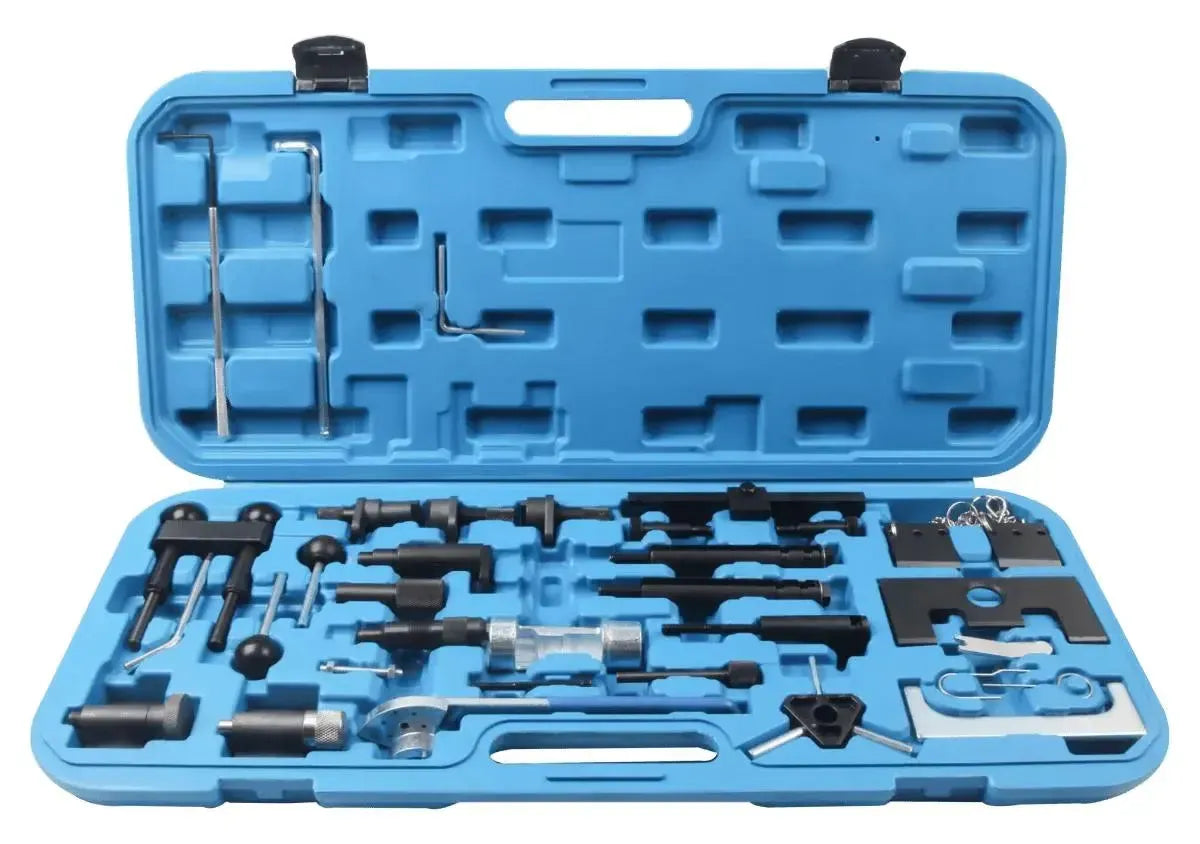

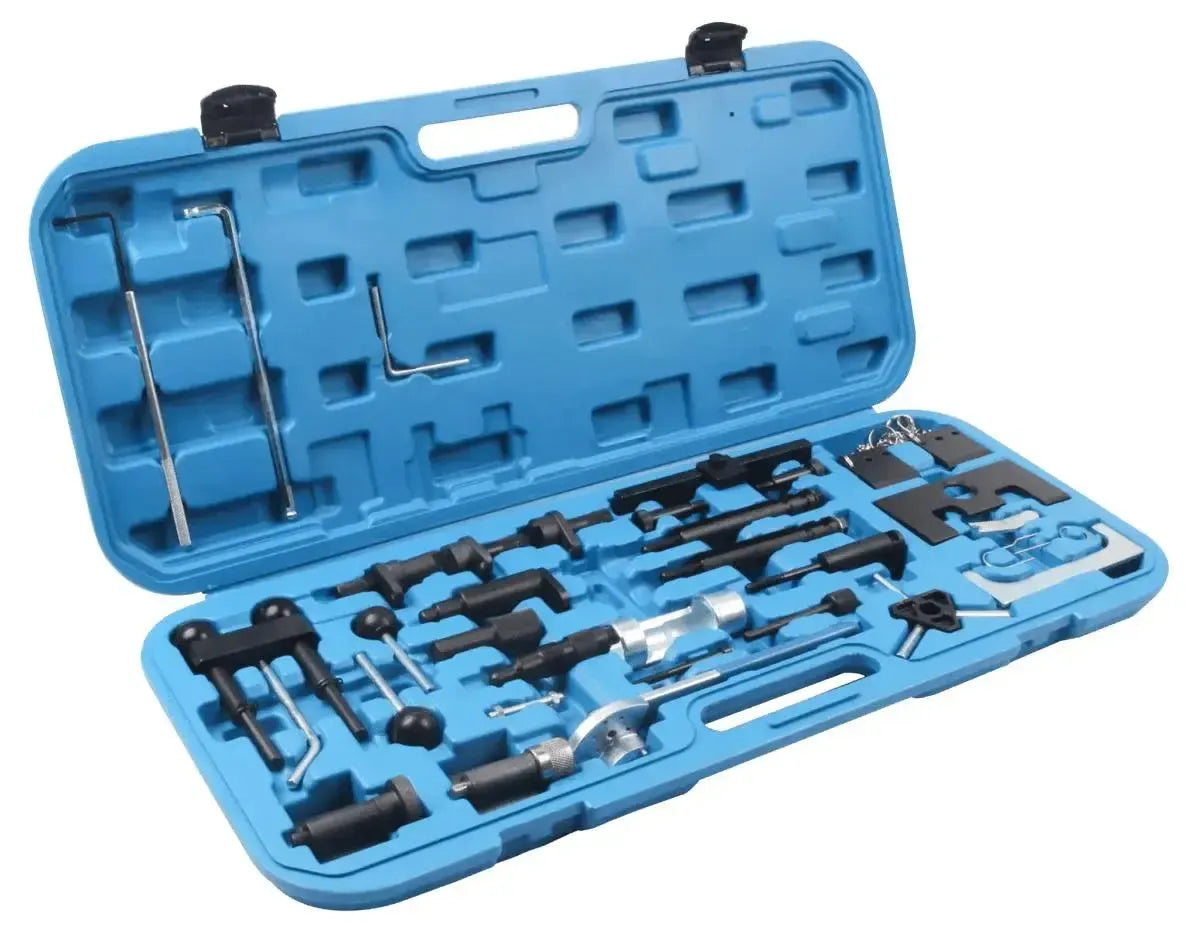

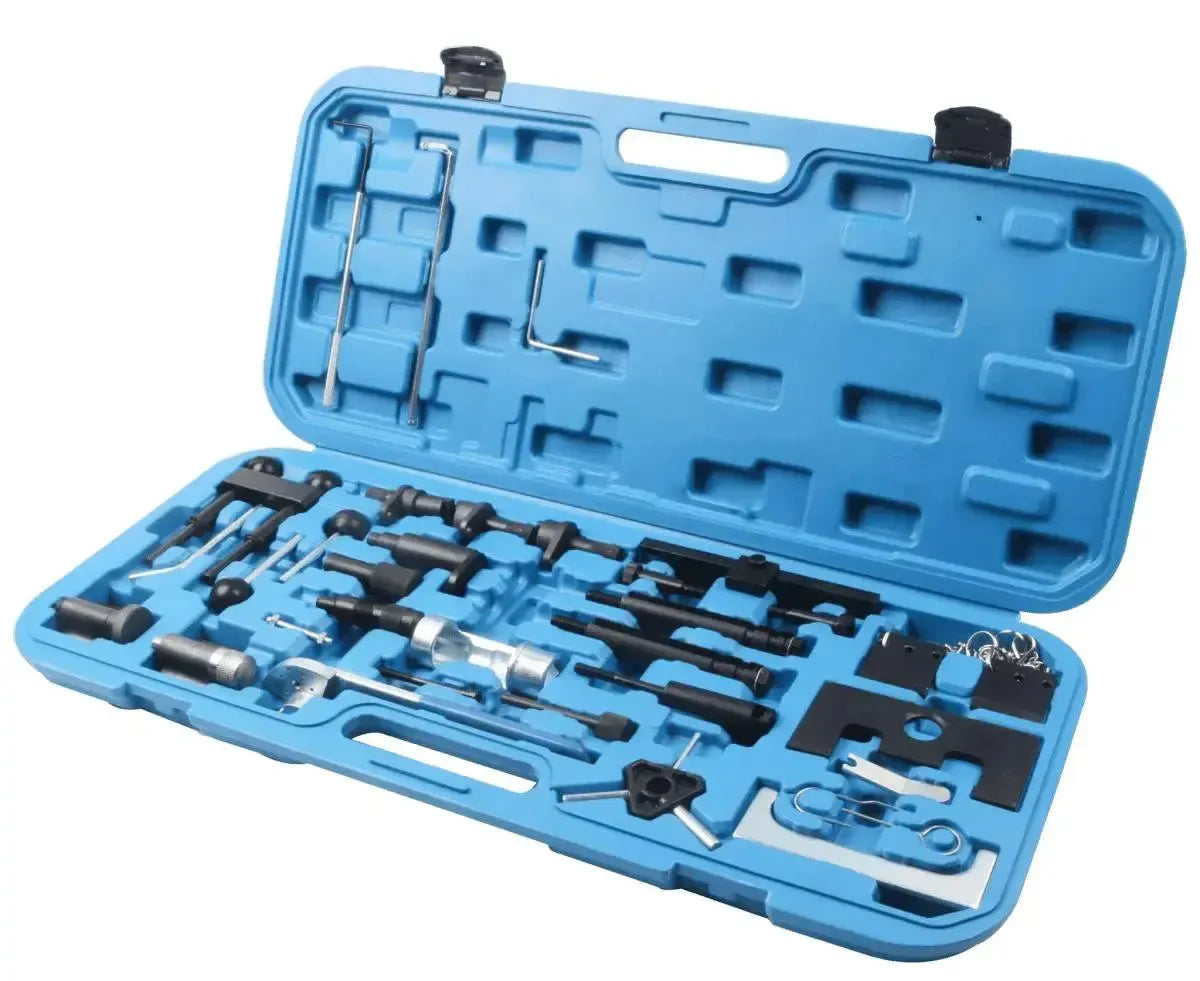

- 1x Storage case
Technical specifications:
| Specification | Description |
|---|---|
| Article number | VT01173 |
| Number of parts | 34 |
| Compatible vehicle brands | Audi, Ford, Seat, Skoda, Volkswagen |
| Compatible engine types | Petrol (FSI, TFSI, 16V) and Diesel (TDI, SDI, D, TDI PD) |
| Compatible engine codes (petrol) | ABF, ADR, AEB, AFK, AFY, AGN, AGU, AHW, AJH, AJL, AJQ, AKQ, AMK, ANB, APE, APP, APU, APX, APY, AQA, AQQ, AQX, ARG, ARH, ARX, ARY, ARZ, AUA, AUB, AUM, AUQ, AVC, AVJ, AWC, AWL, AWT, AWU, AWY, AXU, AXW, AXX, AYP, AZQ, BAG, BAM, BBY, BBZ, BCA, BFB, BFV, BGB, BHD, BKG, BKY, BLF, BLN, BLP, BLR, BLX, BLY, BMB, BME, BMD, BPG, BPY, BUD, BVP, BVR, BWA, BXW |
| Compatible engine codes (diesel) | 1Z, AAZ, AEY, AFF, AFN, AGP, AGR, AHB, AHF, AHG, AHH, AHU, AJM, AKU, AKW, ALE, ALH, AMF, ANU, ANY, AQM, ARL, ASV, ASY, ASZ, ATD, ATJ, ATL, AUY, AVB, AVF, AVG, AVQ, AWX, AXB, AXC, AXR, AYQ, AYZ, AZV, BDJ, BDK, BGW, BHC, BHW, BJB, BKD, BKE, BKP, BLB, BLS, BLT, BMA, BMM, BMN, BMP, BMR, BMS, BMT, BNA, BNM, BNV, BPW, BRC, BRD, BRE, BRF, BRM, BRR, BRS, BRT, BRU, BRV, BSS, BST, BSU, BSV, BSW, BTB, BUK, BUY, BUZ, BVA, BVE, BVF, BVG, BVH, BVK, BWC, BXE, BXF, BXJ |
