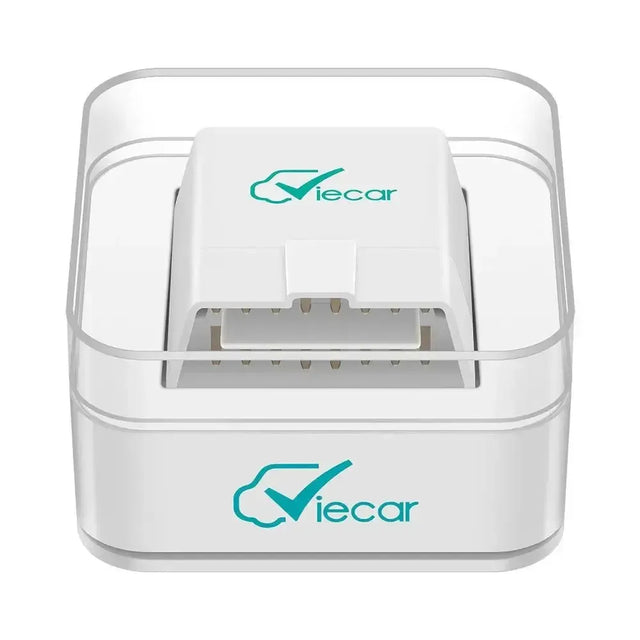

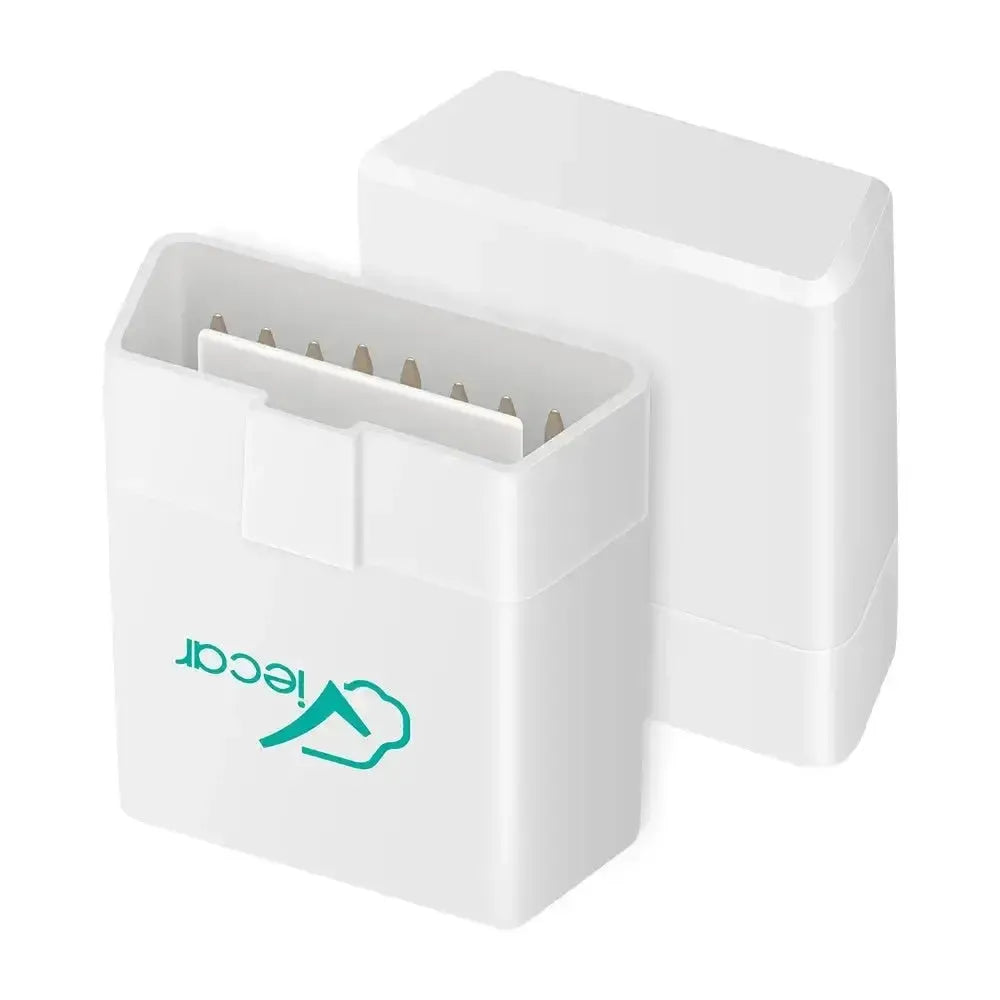

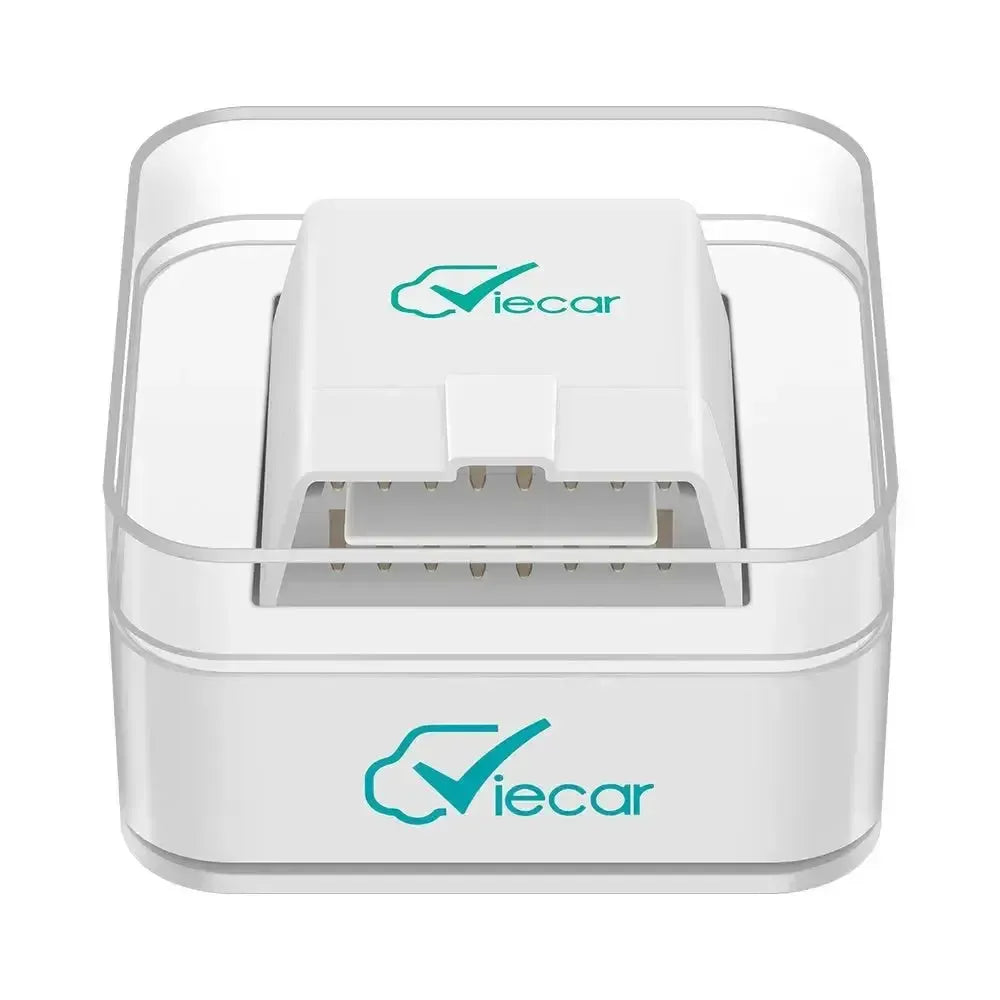

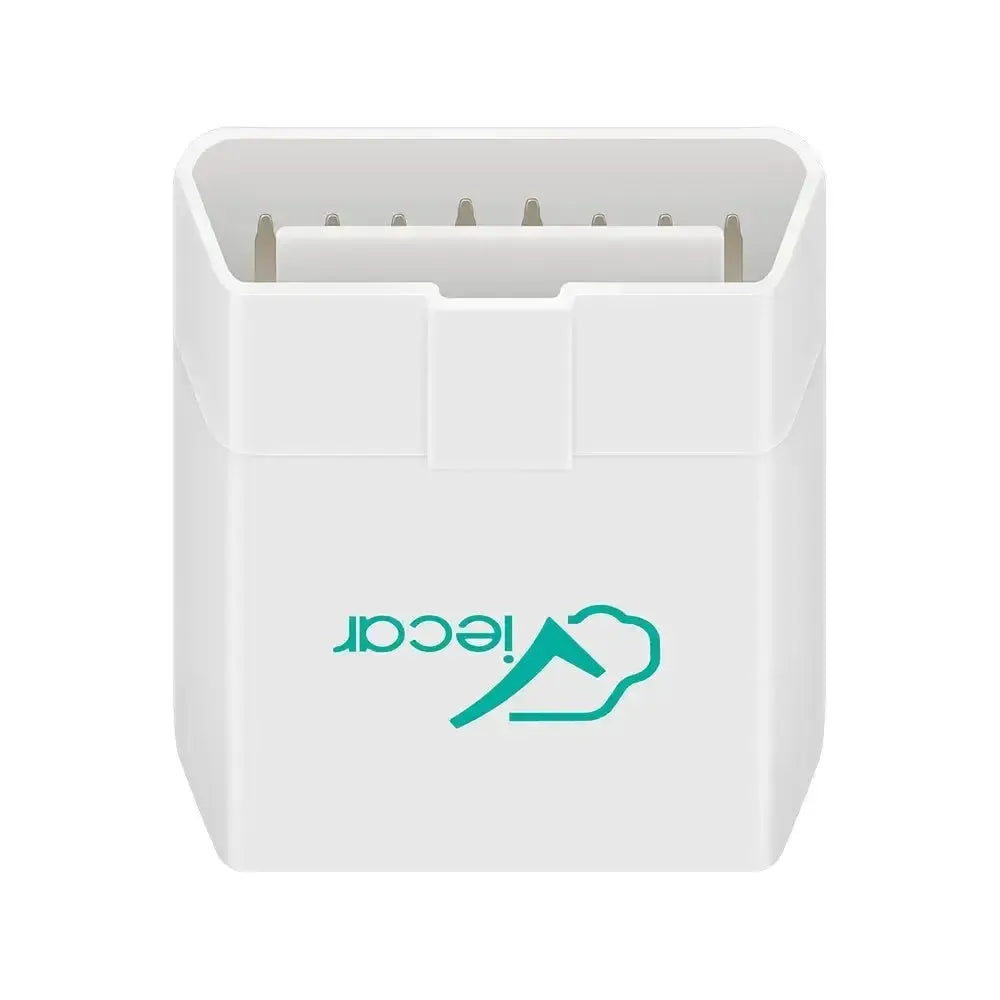

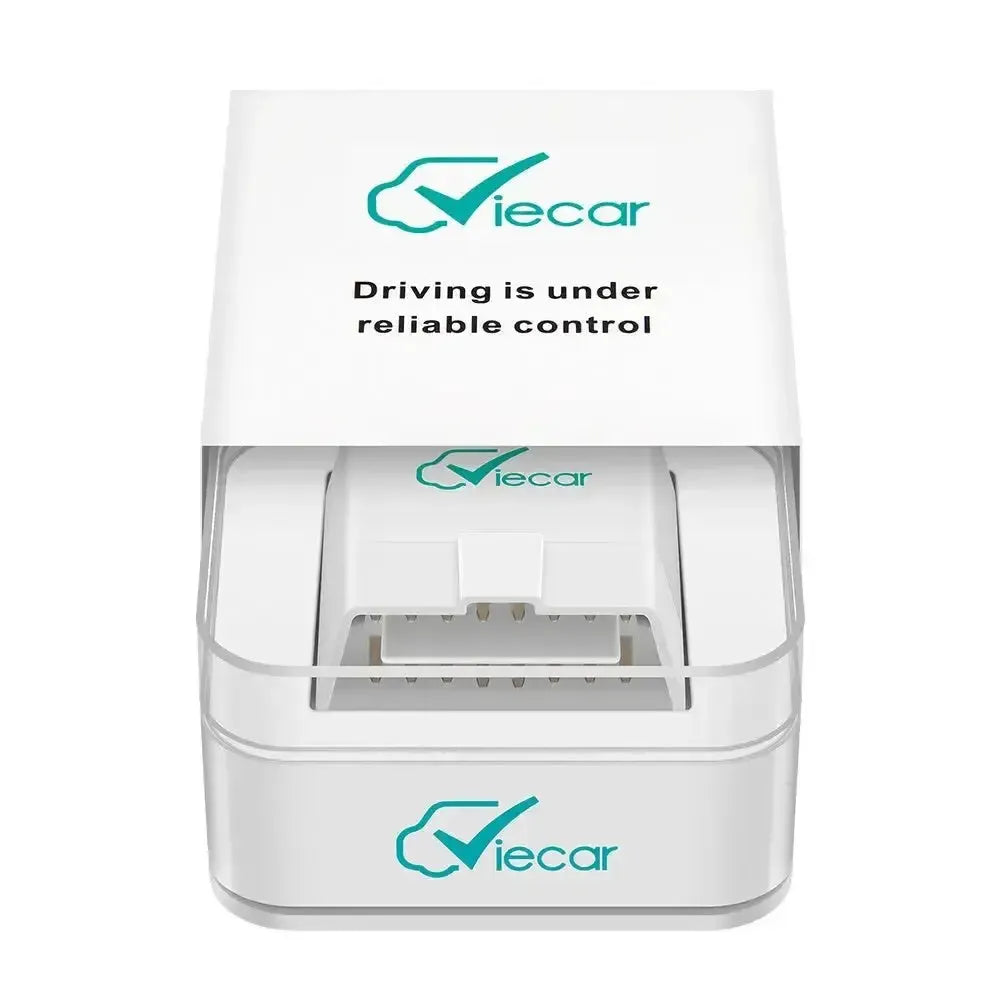

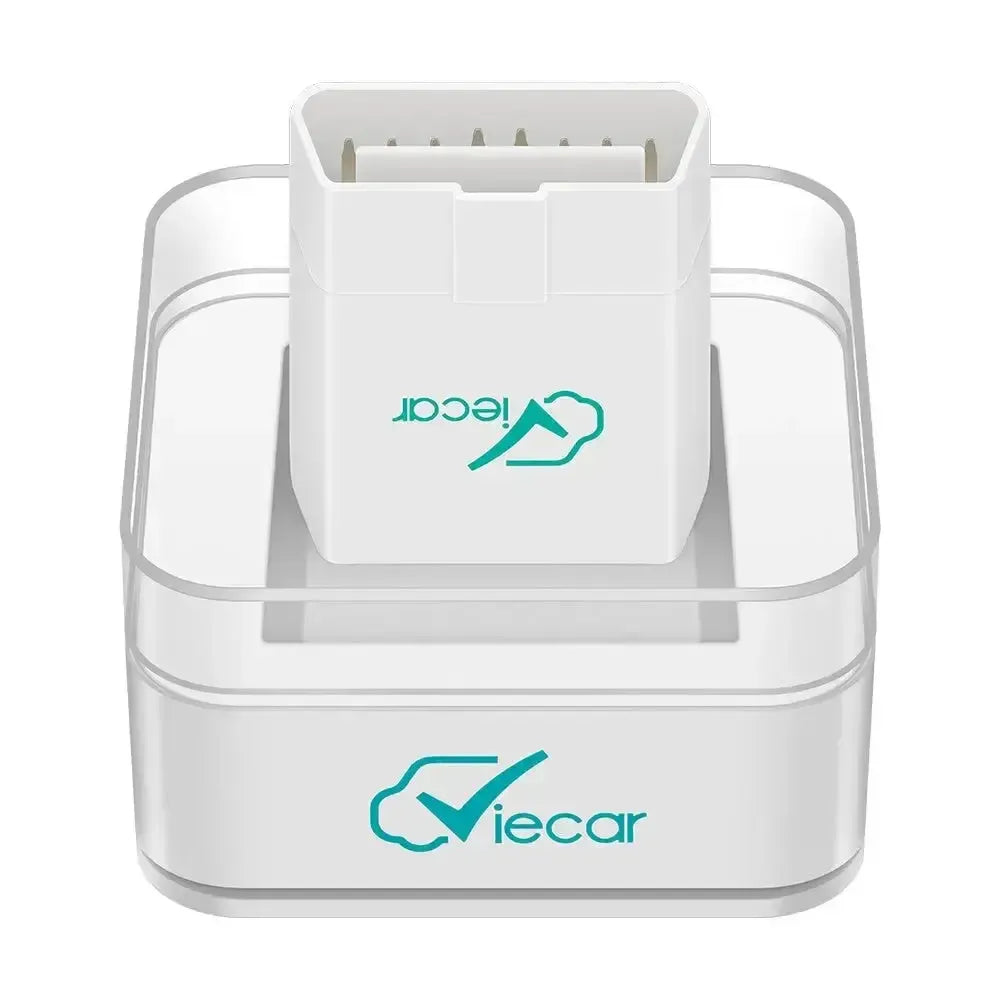

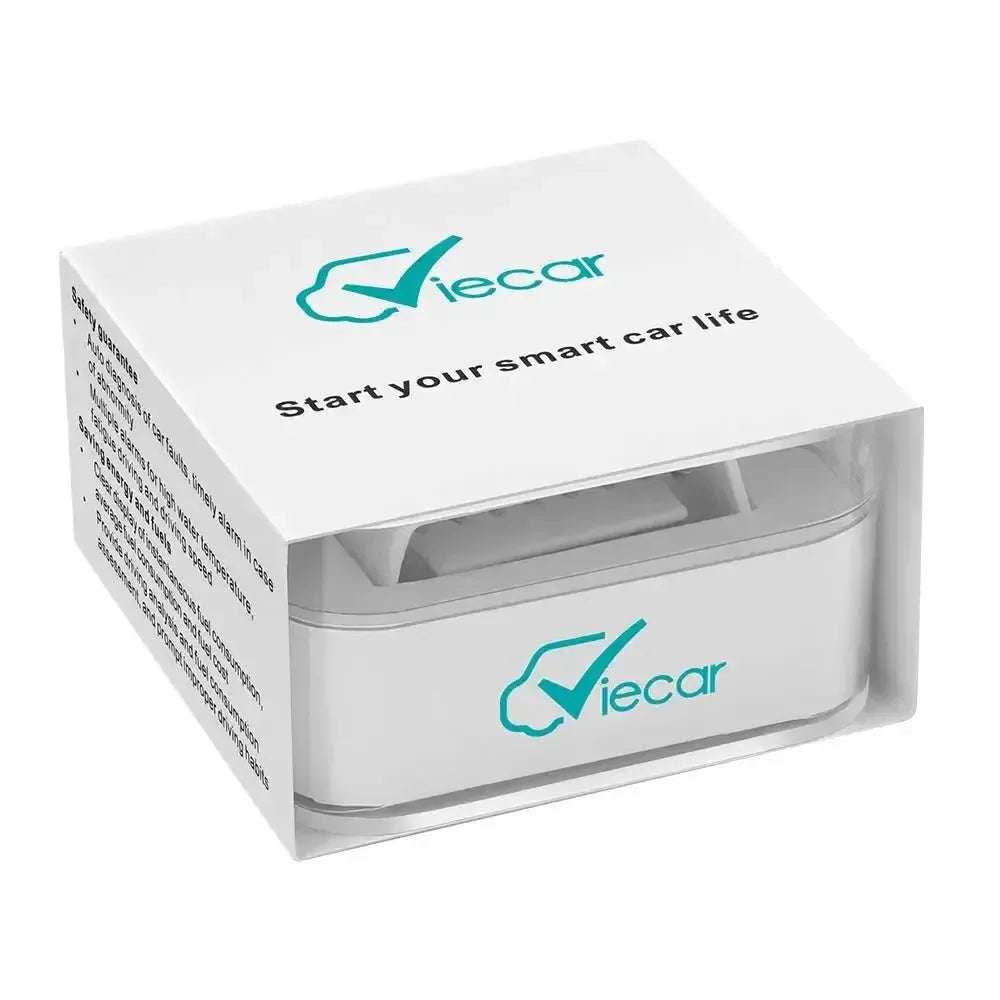

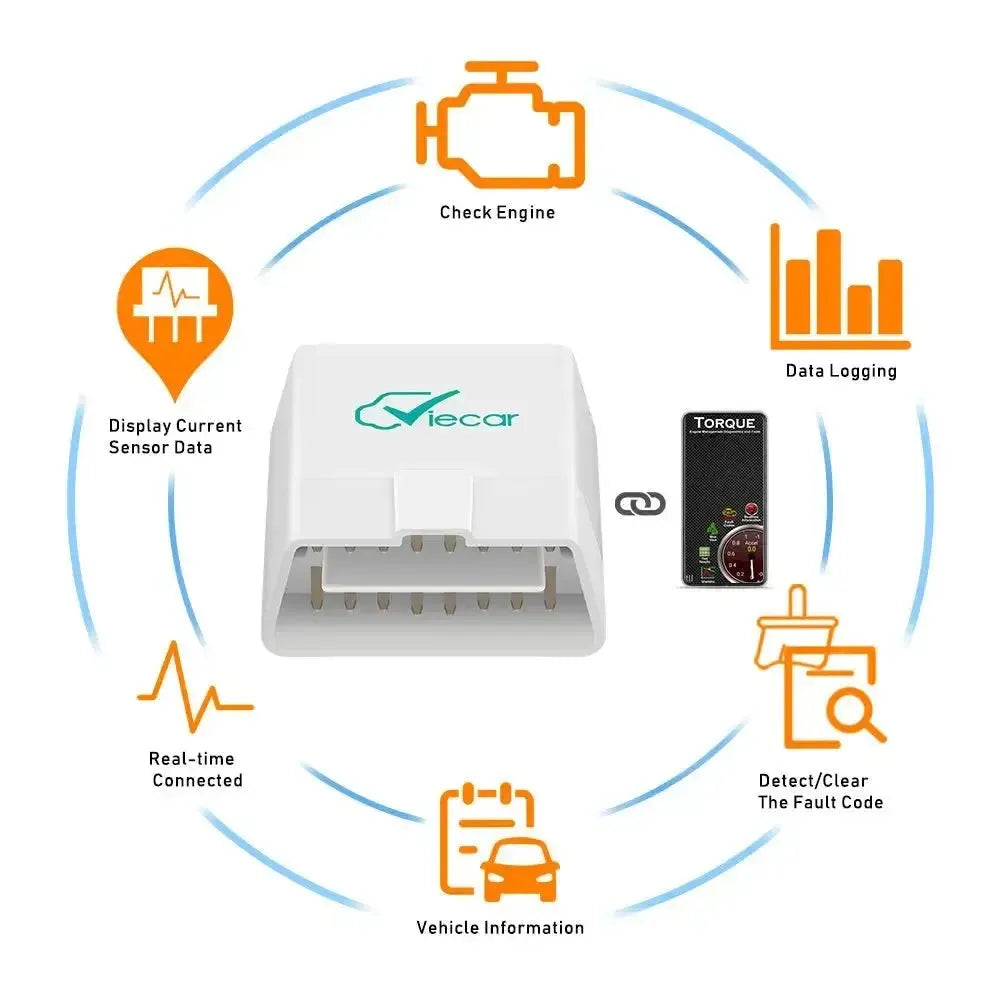

Viecar Mini OVC100 | ELM327 Interface (Bluetooth 4.0)

The Viecar Mini OVC100 is a compact ELM327 interface that communicates wirelessly via Bluetooth 4.0. This OBD2 diagnostic adapter is designed to connect to the OBD2 port of a Car, after which diagnostic data can be sent to a smartphone, tablet, or computer.

The device enables reading and clearing diagnostic trouble codes (DTCs), both generic and manufacturer-specific codes. It also provides access to live sensor data, Freeze Frame data, and the status of I/M Readiness monitors. The Bluetooth 4.0 connection ensures stable communication with low energy consumption.

Application and functionality:

The Viecar Mini OVC100 offers vehicle diagnostic and monitoring capabilities via a compatible application.

• Read and clear fault codes: Displays diagnostic trouble codes (DTCs) and allows clearing them, including turning off the related MIL (Malfunction Indicator Light).
• Live data display: View real-time sensor data, such as engine speed, speed, fuel pressure, and coolant temperature.
• Freeze Frame Data: Displays a snapshot of the vehicle's operating conditions at the time a fault code was stored.
• I/M Readiness Status: Check the status of emission-related systems to determine if the vehicle is ready for an emissions test.
• Retrieve vehicle information: Read vehicle information such as VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number).

Compatible vehicles and applications:

This ELM327 interface is compatible with most vehicles equipped with an OBD2 system, including:

• Vehicles produced in the US after 1996.
• Gasoline vehicles produced in Europe after 2001 (EOBD).
• Diesel vehicles produced in Europe after 2004 (EOBD).
• Vehicles produced in Asia after 2009 (EOBD/JOBD).

Compatible software and applications:

The Viecar Mini OVC100 works with various diagnostic apps that support the ELM327 protocol.

• Torque (Android): Popular app for reading fault codes, live data, and configuring dashboards.
• DashCommand (iOS/Android): Offers extensive diagnostic and performance meter functions.
• Car Scanner ELM OBD2 (iOS/Android/Windows): Versatile tool for diagnosis, monitoring, and adjustments.
• OBD Auto Doctor (Windows/macOS/Linux/Android/iOS): Professional diagnostic software with broad protocol support.
• Viecar (iOS/Android): Viecar's own app for diagnosis and monitoring.

Compatible operating systems:

The device is designed for use with various operating systems via Bluetooth 4.0 (BLE).

• Windows: Windows 8, Windows 10, Windows 11 (requires Bluetooth Low Energy support).
• Android: Android 4.3 and higher (requires Bluetooth 4.0).
• iOS: iOS 8.0 and higher (requires Bluetooth 4.0).

Supported protocols and systems:

The Viecar Mini OVC100 supports the standard OBD2 protocols used in modern vehicles.

• ISO 9141-2: Often used in many Asian and older European vehicles.
• ISO 14230-4 KWP (KWP2000): Often used in Asian and European vehicles.
• ISO 15765-4 CAN (CAN-BUS): The most common protocol in modern vehicles, used worldwide since 2008.
• SAE J1850 PWM: Mainly used by Ford vehicles.
• SAE J1850 VPW: Mainly used by General Motors vehicles.

Package Contents:

• 1x Viecar Mini OVC100 | ELM327-Interface (Bluetooth 4.0)

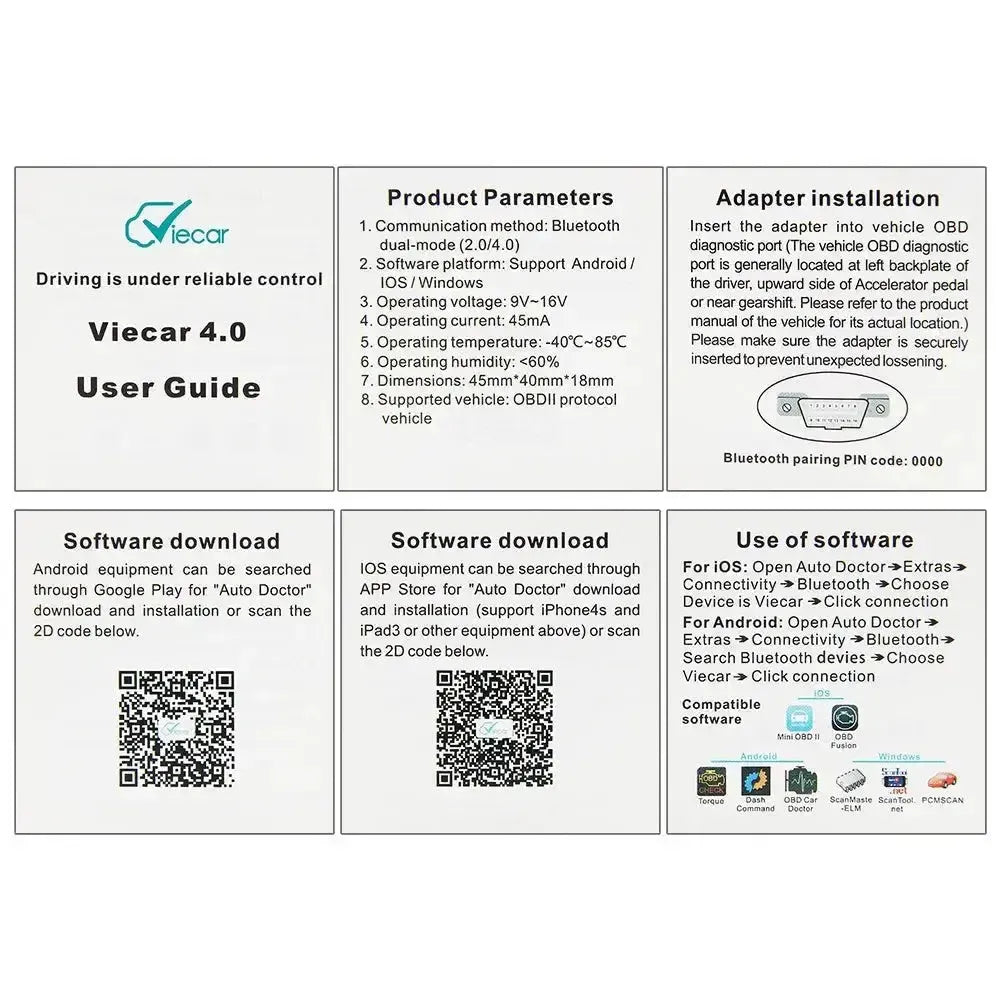

• Quick guide (if applicable)

Technical specifications:
