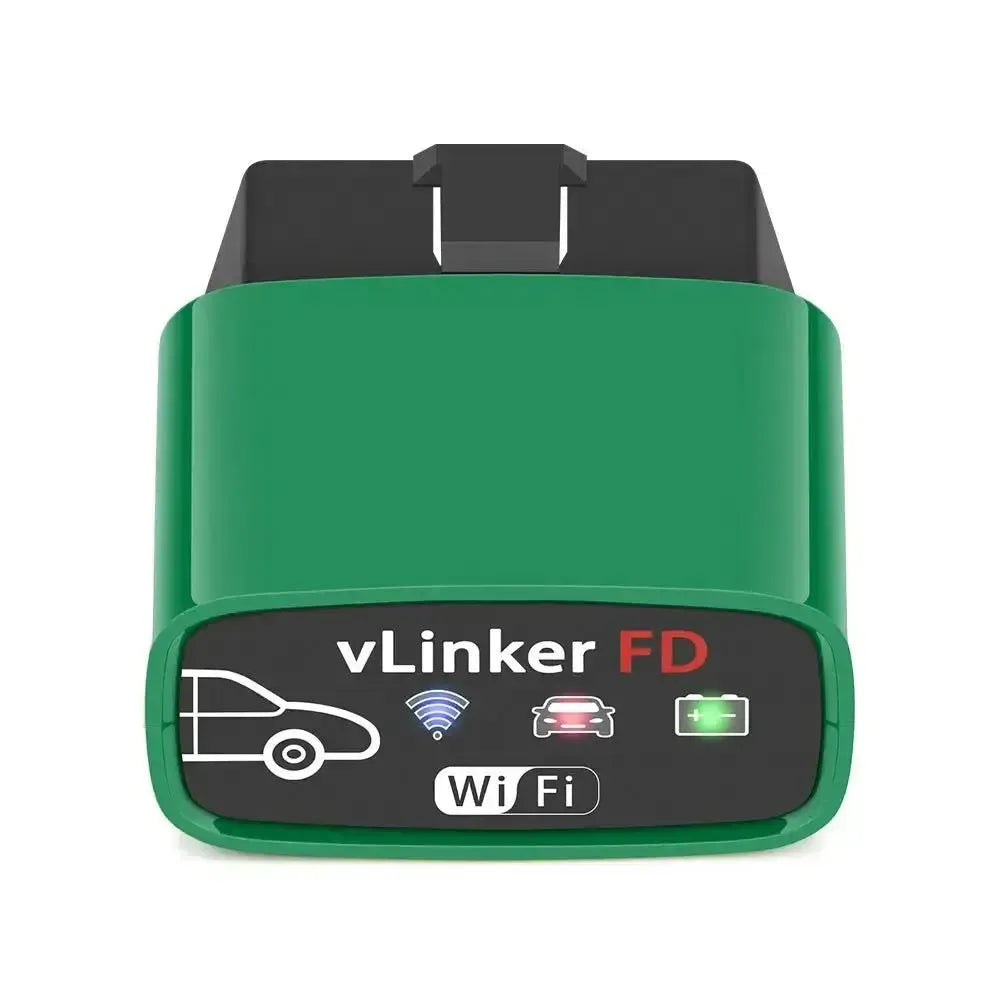

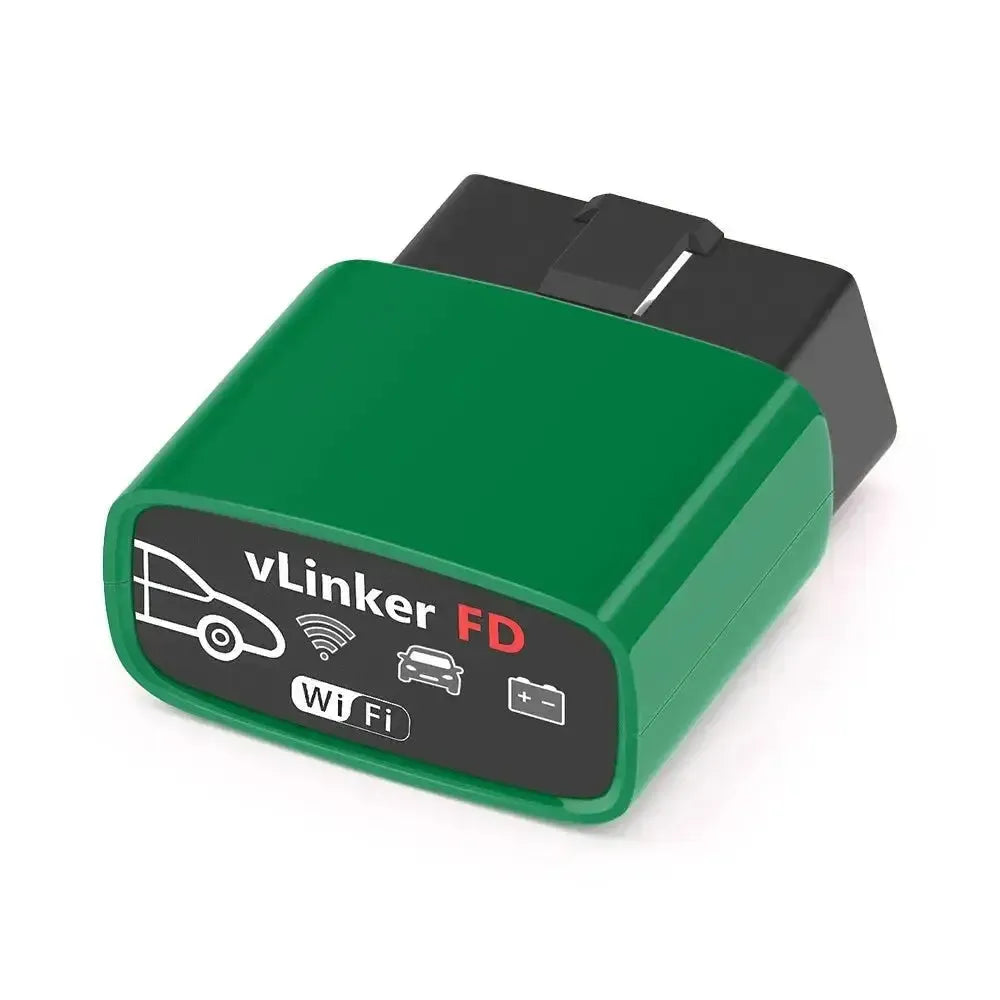

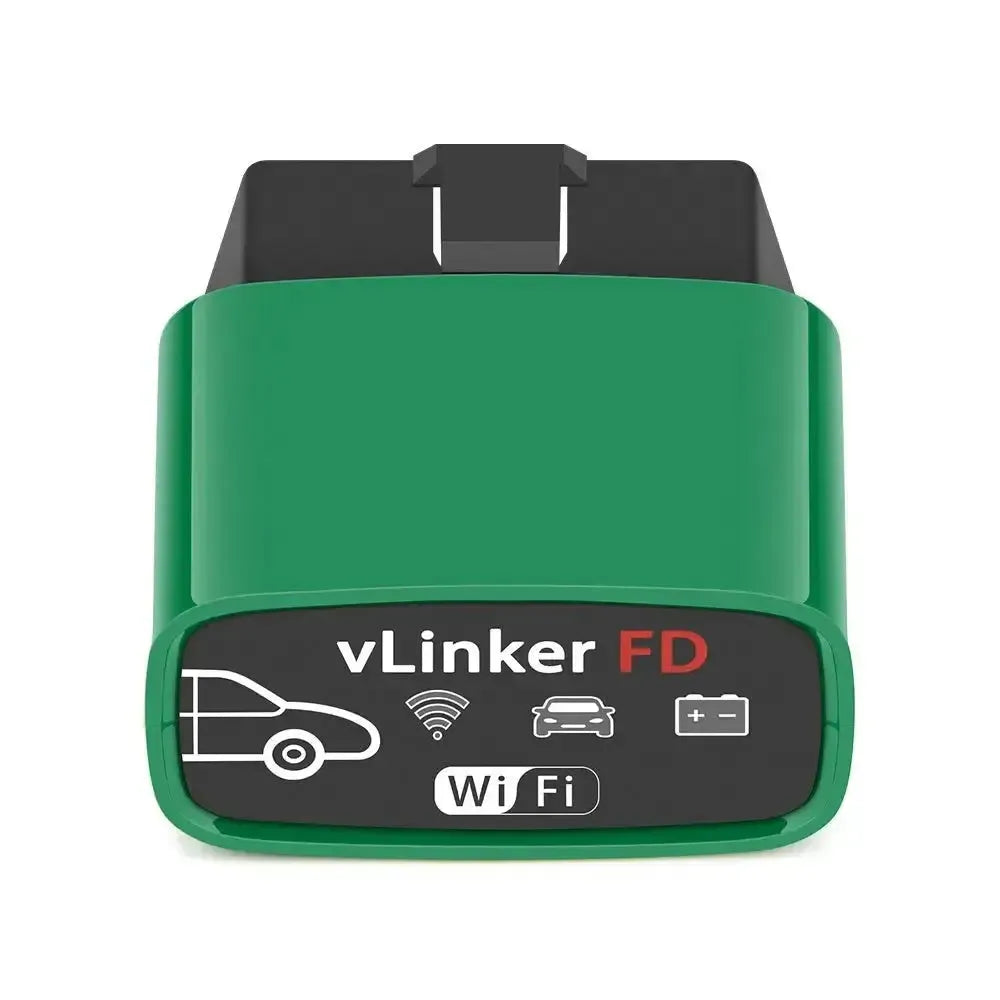

Vgate vLinker FD | ELM327 Interface (WiFi)

The Vgate vLinker FD is an ELM327 interface that enables wireless diagnosis and monitoring of vehicles via a WiFi connection. This device is designed to connect to the OBD-II port of your vehicle and communicates with compatible software on smartphones, tablets, or computers.

Characteristic of the vLinker FD is the support of both HS-CAN and MS-CAN networks, enabling broader vehicle coverage and access to specific manufacturer protocols. The device features an automatic sleep mode for energy saving and offers faster data transfer than many standard ELM327 adapters.

Application and functionality:

The Vgate vLinker FD is used for reading and diagnosing vehicle systems. The device provides access to the onboard computer for various functionalities.

• Reading and clearing fault codes: Accessing and interpreting diagnostic trouble codes (DTCs) to detect vehicle malfunctions.
• Live data stream: Real-time display of sensor data, such as engine speed, coolant temperature, fuel system status, and vehicle speed.
• Freeze Frame data: Recording data at the moment a fault code is logged, which helps in analyzing the malfunction.
• O2-sensors monitoring: Monitoring the performance of the oxygen sensors.
• I/M Readiness status: Check if all emission-related systems are ready for inspection.
• Module scan: Ability to read and diagnose specific modules, including MS-CAN modules.

Compatible vehicles and applications:

The Vgate vLinker FD is suitable for all vehicles that comply with the OBD-II standard. This includes most gasoline vehicles in Europe from 2001 and diesel vehicles in Europe from 2004.

• All American vehicles (gasoline) from 1996.
• All European vehicles (gasoline) from 2001.
• All European vehicles (diesel) from 2004.
• All Asian vehicles from 2008.
• Support for specific Ford, Mazda, and BMW protocols via MS-CAN and the appropriate software.

Compatible software and applications:

The Vgate vLinker FD works with various diagnostic and monitoring applications compatible with the ELM327 standard.

• Torque Pro (Android): Popular app for real-time data, fault codes, and performance monitoring.
• Car Scanner ELM OBD2 (Android, iOS): Includes broad functionality for diagnostics and live data.
• FORScan Lite (Android, iOS): Specifically for Ford, Mazda, and Lincoln vehicles, provides access to MS-CAN modules.
• BimmerCode (Android, iOS): For coding and customizing functions in BMW vehicles.
• OBD Fusion (Android, iOS): Comprehensive diagnostic app with customizable dashboards.
• DashCommand (Android, iOS): An advanced app for vehicle parameters and performance.

Compatible operating systems:

The Vgate vLinker FD can be used with the following operating systems via a WiFi connection:

• Windows: Windows 7, 8, 10, 11 (via Wi-Fi connection with PC).
• Android: Android 4.4 and newer.
• iOS: iOS 8.0 and newer.

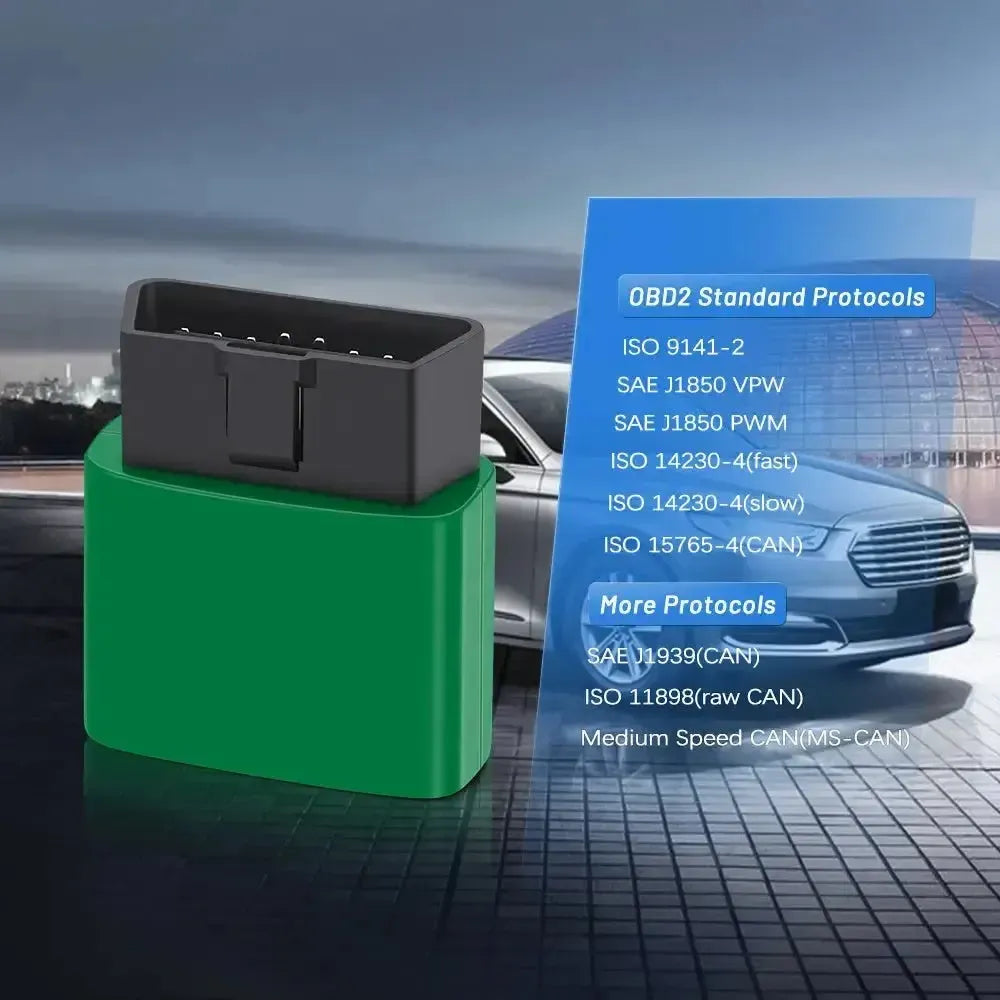

Supported protocols and systems:

The Vgate vLinker FD supports all standard OBD-II protocols, as well as extended manufacturer-specific protocols.

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 Kbaud)
• SAE J1939 (CAN)
• User1 CAN (11 bit ID, 125 Kbaud)
• User2 CAN (11 bit ID, 50 Kbaud)
• HS-CAN (High Speed CAN)
• MS-CAN (Medium Speed CAN)

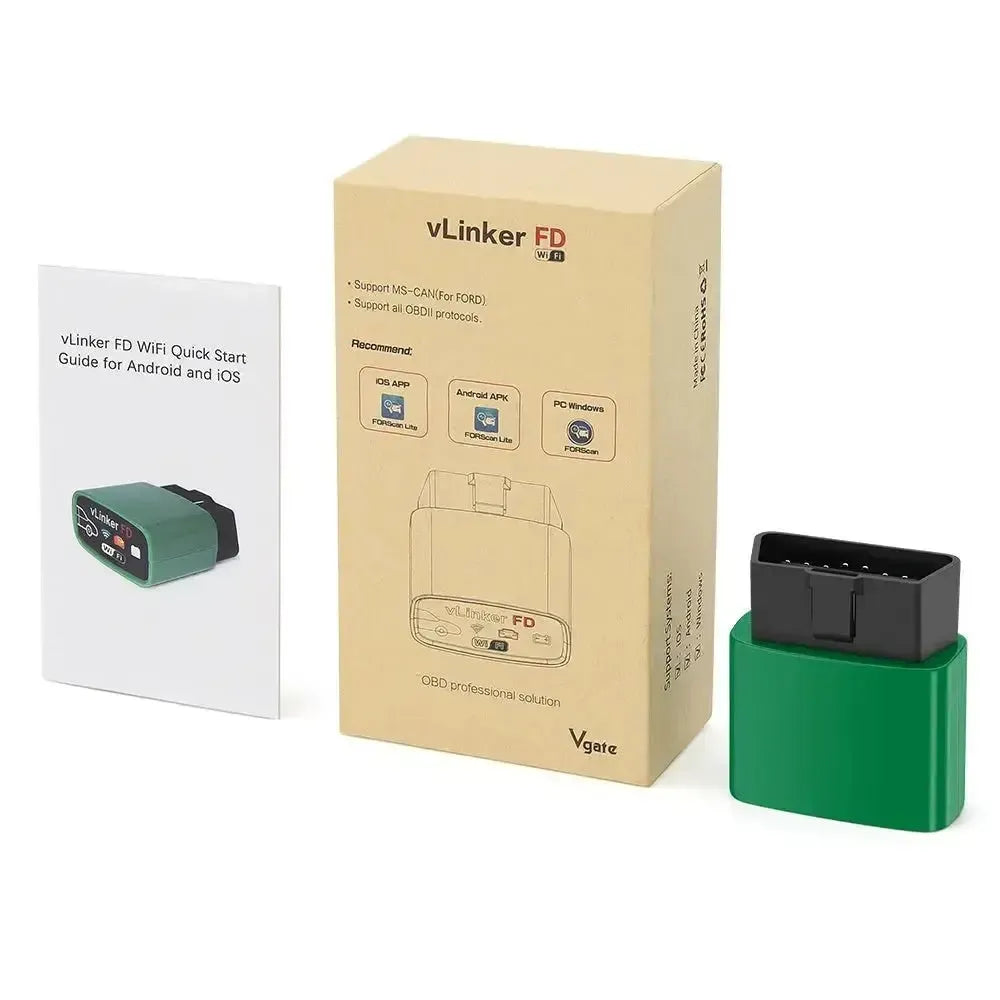

Package Contents:

• 1x Vgate vLinker FD | ELM327 interface (WiFi)
• 1x User manual (English)

Technical specifications:
