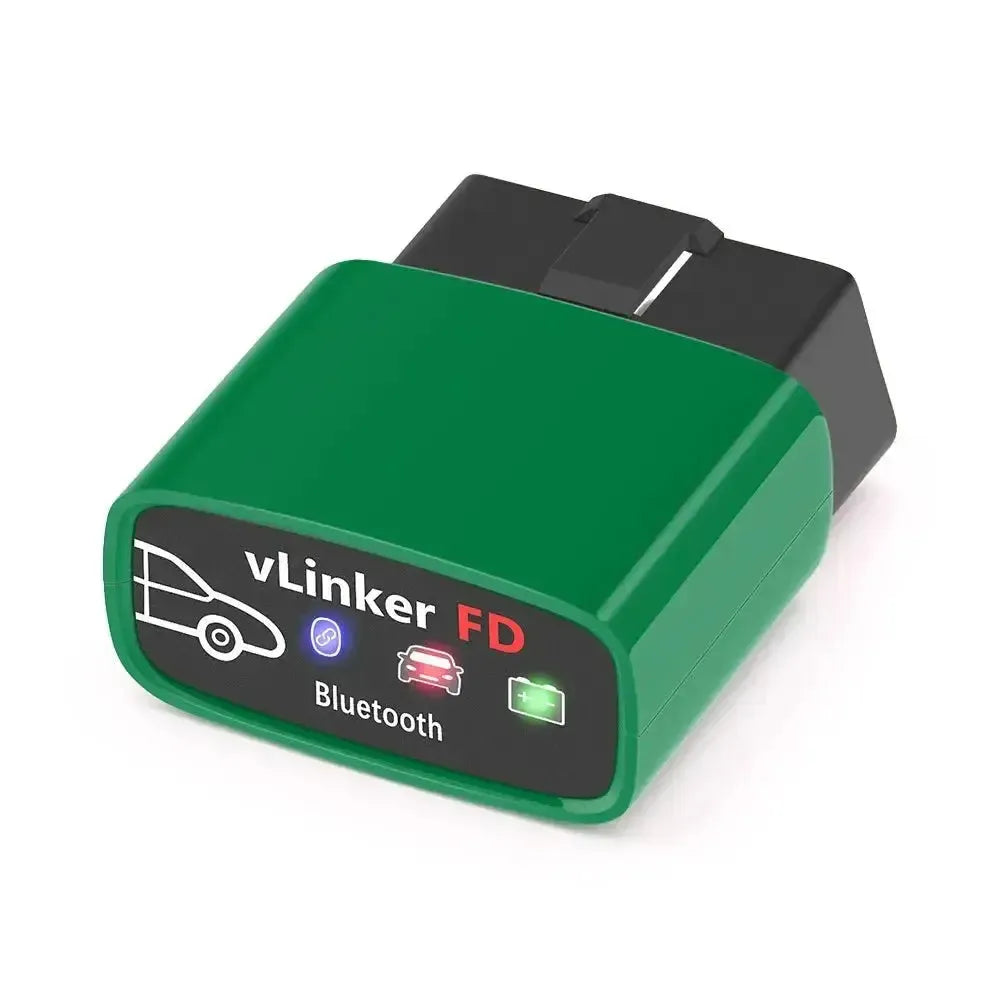

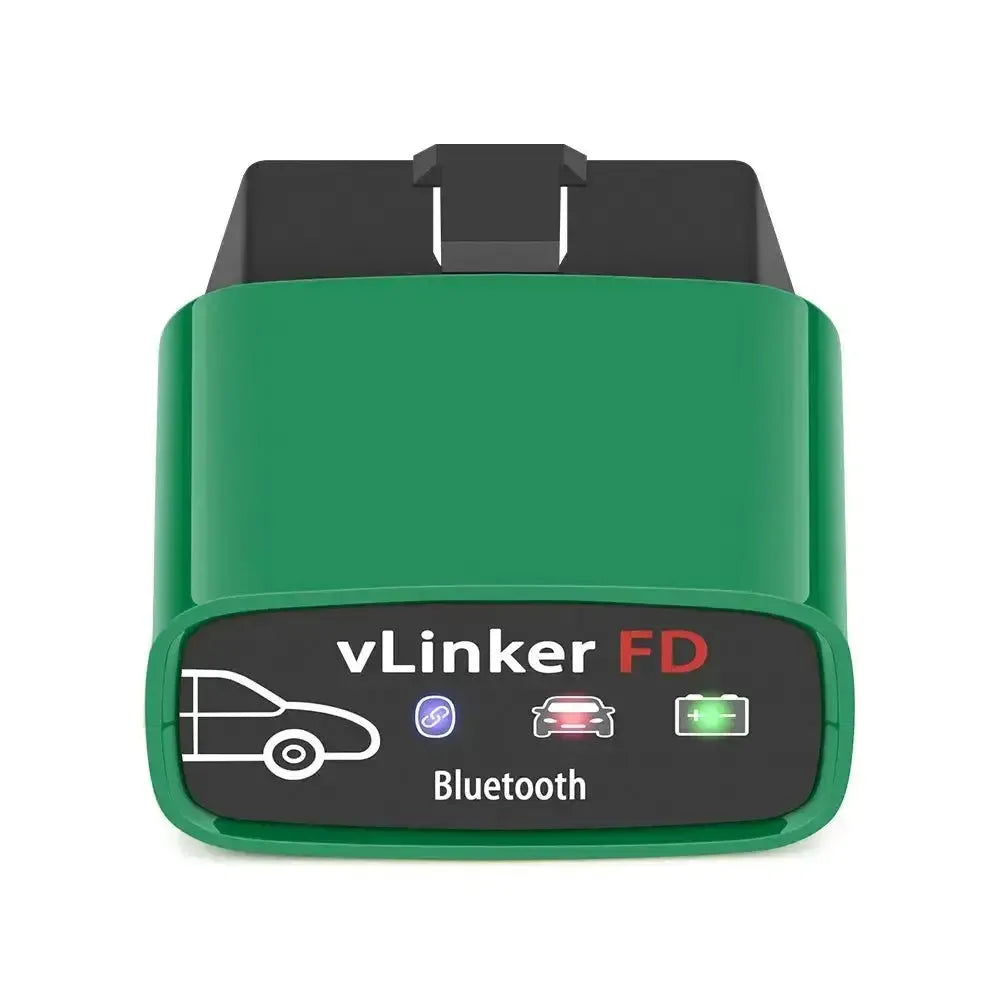

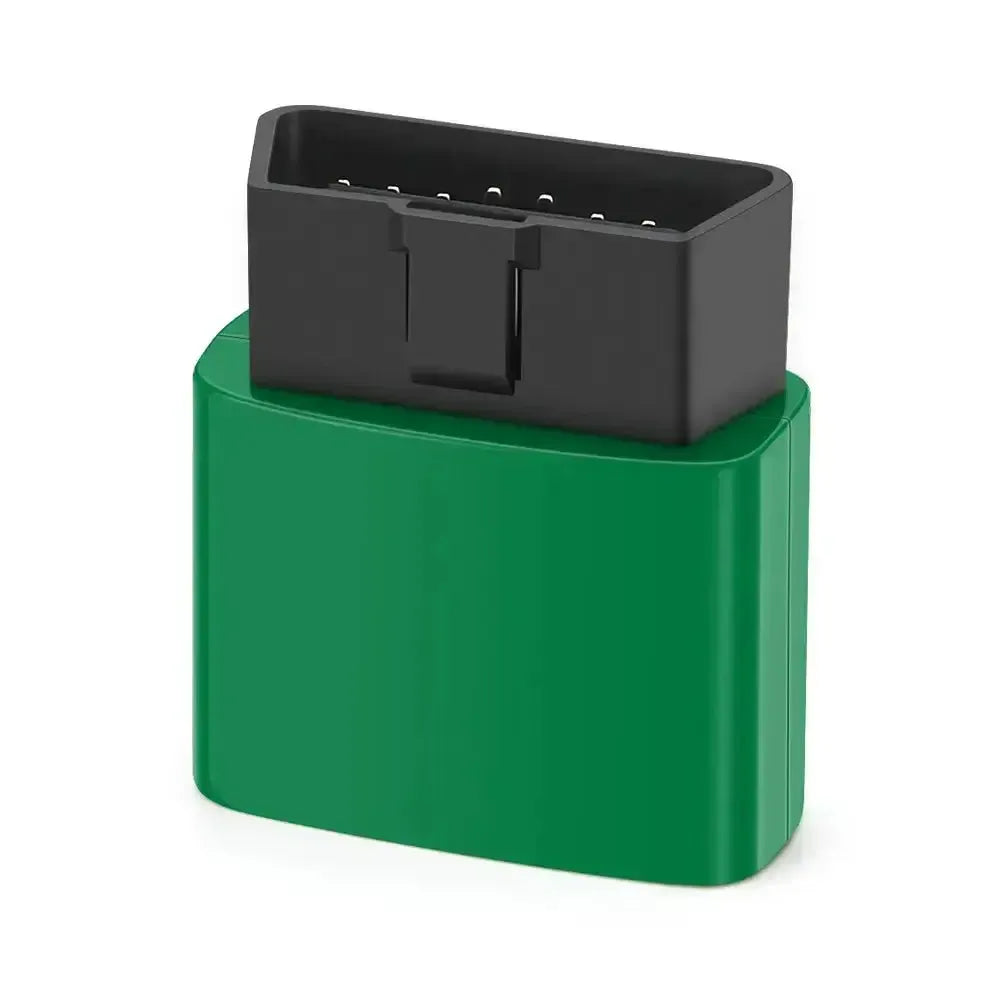

Vgate vLinker FD | ELM327 Interface (Bluetooth 3.0)

The Vgate vLinker FD is an advanced ELM327 interface that enables diagnostic communication with vehicles. This version uses a Bluetooth 3.0 connection for wireless communication. The device connects to the vehicle's OBD-II port, while the wireless connection is established with a compatible mobile device or computer.

This interface features specific functionality for automatic switching between MS-CAN and HS-CAN networks, improving compatibility with Ford and Mazda vehicles. The Vgate vLinker FD is designed for fast and stable data transmission, contributing to efficient diagnostic processes. The interface also includes a low power consumption mode, allowing it to remain in the vehicle for extended periods without significantly draining the battery.

Application and functionality:

The Vgate vLinker FD facilitates various diagnostic and monitoring tasks for vehicles equipped with an OBD-II system.

• Read and clear fault codes: Access to engine and transmission-related trouble codes (DTCs) to identify problems and reset the "Check Engine" light.
• Real-time data monitoring: Display of current sensor data such as engine speed, coolant temperature, vehicle speed, and fuel status.
• Freeze Frame data: Capturing vehicle parameters at the moment a fault code was recorded, which helps analyze the conditions.
• Battery voltage monitoring: Monitoring of the vehicle's battery voltage via the OBD-II port.
• Advanced protocol support: Automatic detection and support of specific vehicle protocols, including those for MS-CAN and HS-CAN networks.

Compatible vehicles and applications:

This interface is compatible with most vehicles equipped with an OBD-II port, including models that use specific CAN networks.

• General OBD-II compatibility: Suitable for most gasoline vehicles from model year 2001 and diesel vehicles from model year 2004 (EU standards), as well as most American vehicles from model year 1996.
• Enhanced Ford/Mazda compatibility: Thanks to support for MS-CAN and HS-CAN, this adapter is especially suitable for advanced diagnostics and modifications on Ford and Mazda vehicles with compatible software.

Compatible software and applications:

The Vgate vLinker FD works with various diagnostic software and apps for different platforms.

• FORScan (Windows/Android): Recommended for extensive diagnostics, coding, and customization of Ford and Mazda vehicles.
• Torque (Android): Popular app for reading fault codes, real-time data, and performance monitoring.
• Car Scanner ELM OBD2 (Android): Versatile app for vehicle diagnostics, data logging, and performance analysis.
• OBD Fusion (Android): Offers extensive diagnostics, dashboard display, and sensor data logging.
• DashCommand (Android): For detailed performance data and vehicle diagnostics.

Compatible operating systems:

The Vgate vLinker FD (Bluetooth 3.0) is compatible with the following operating systems:

• Windows: Windows 7, 8, 8.1, 10, 11 (with built-in or external Bluetooth adapter).
• Android: Android 4.3 and higher.

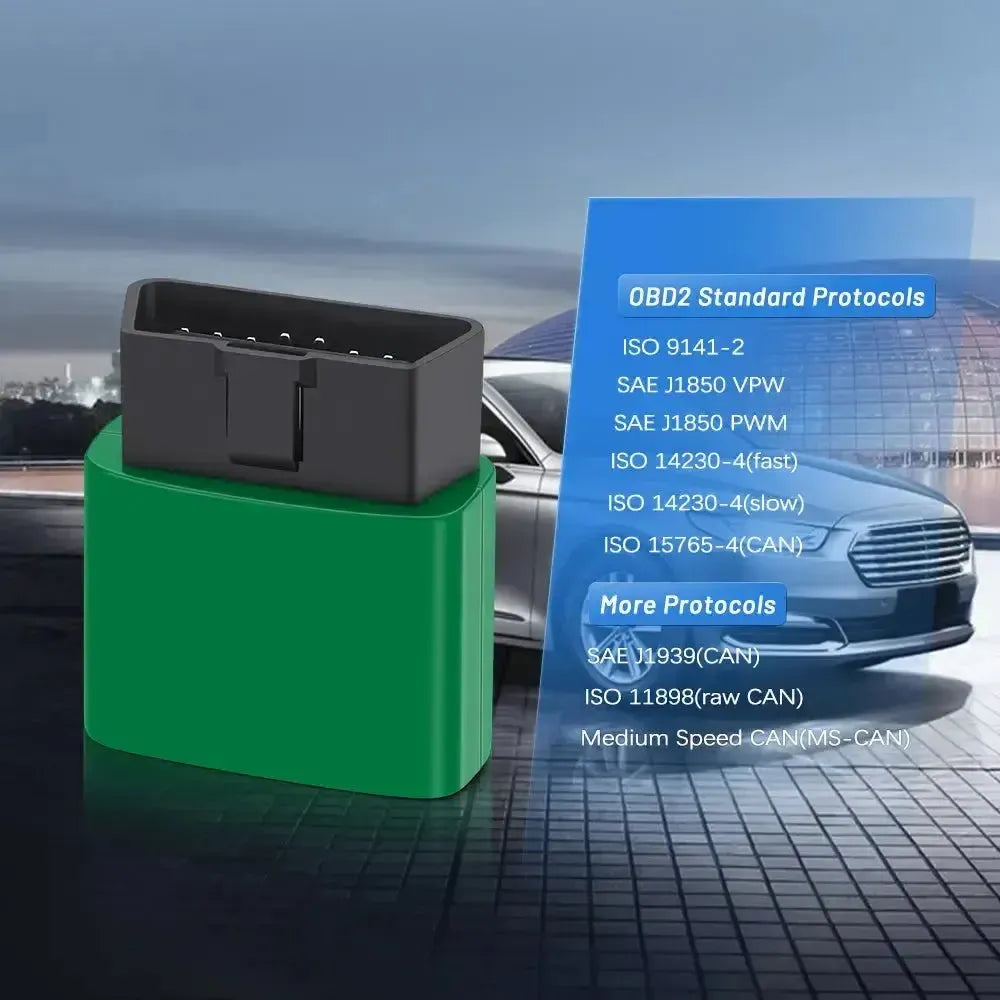

Supported protocols and systems:

The adapter supports all standard OBD-II protocols, as well as specific CAN networks.

• SAE J1850 PWM: Protocol used by Ford vehicles.
• SAE J1850 VPW: Protocol used by General Motors vehicles.
• ISO 9141-2: Widely used protocol, among others by European and Asian brands.
• ISO 14230-4 KWP2000: Extended version of ISO 9141-2.
• ISO 15765-4 CAN: The most modern and widely used protocol in vehicles.
• MS-CAN (Medium Speed CAN): Specific CAN network for comfort and body systems, mostly used by Ford and Mazda.
• HS-CAN (High Speed CAN): Standard CAN network for engine management and critical systems.

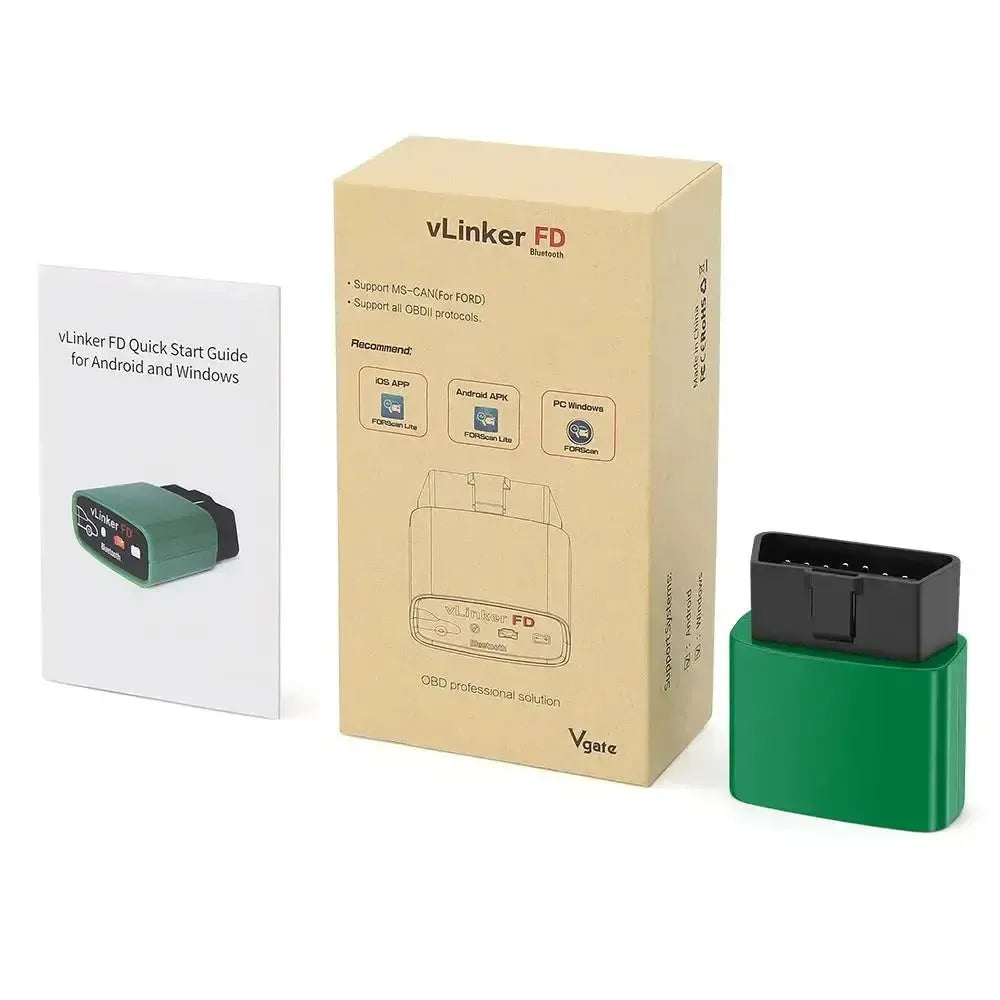

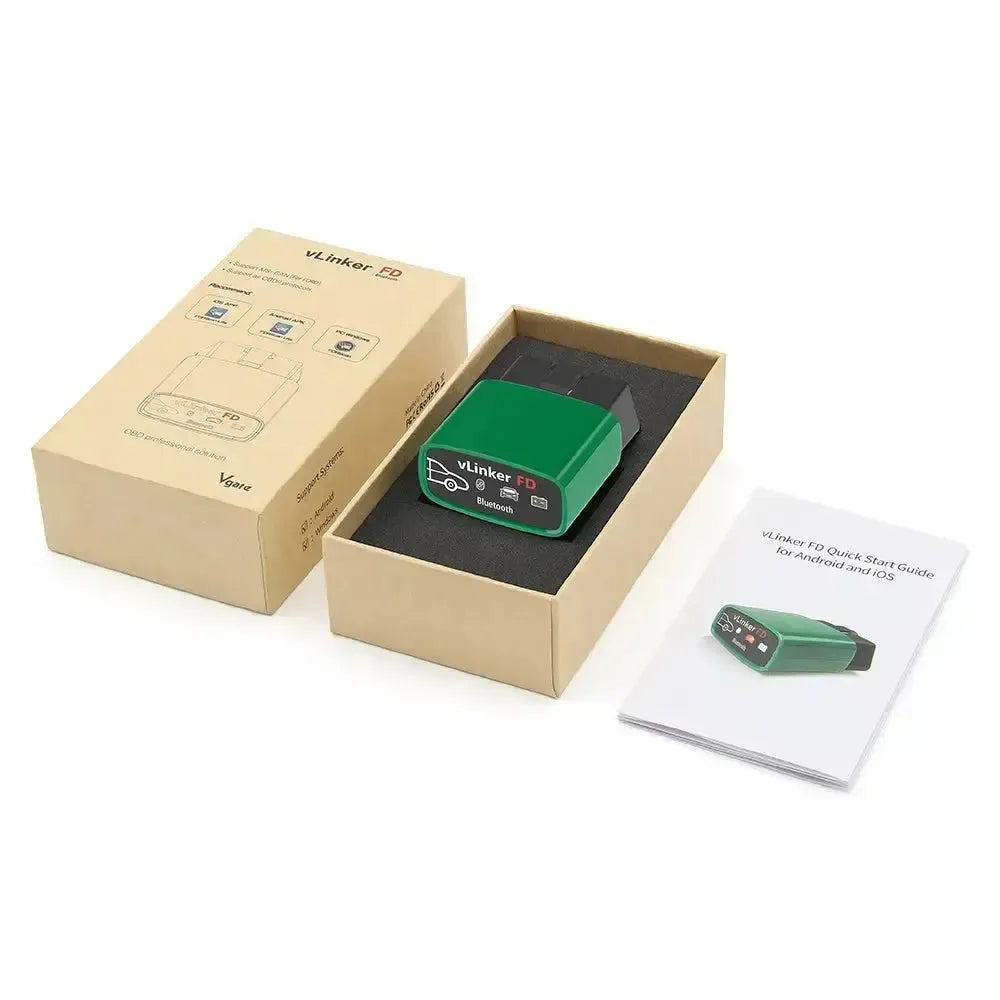

Package Contents:

• 1x Vgate vLinker FD ELM327 Interface (Bluetooth 3.0)
• Manual
