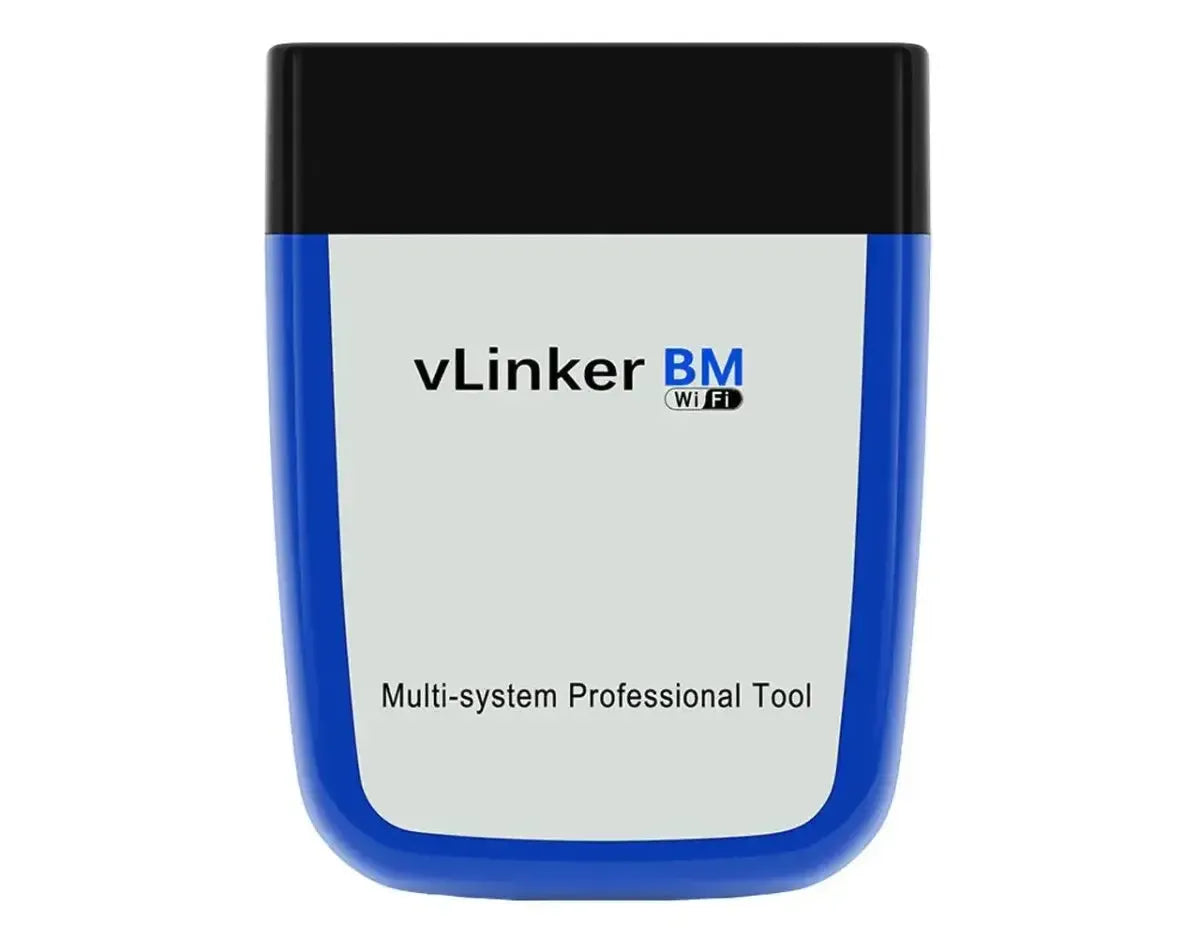

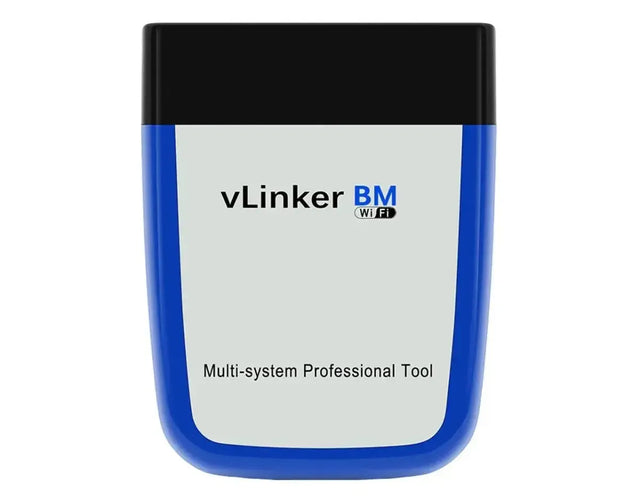

Vgate VLinker BM | ELM327 Interface (WiFi)

The Vgate VLinker BM is an advanced ELM327 interface, specifically designed for vehicle diagnostics and communication. This model stands out due to its stable WiFi connectivity, enabling a reliable wireless connection with diagnostic software. The adapter features a standard OBD-II (16-pin) connector on the vehicle side, compatible with most vehicles that comply with the OBD-II standard.

This VLinker BM version offers enhanced functionality compared to regular ELM327 adapters, including support for extended AT commands and proprietary protocols, increasing compatibility and diagnostic depth. The adapter features an automatic sleep mode to save the vehicle battery and a quick wake function for immediate use. The integrated Microchip PIC18F25K80 chipset ensures fast and stable data transfer.

Application and functionality:

The Vgate VLinker BM acts as a bridge between a vehicle's OBD-II port and a smartphone, tablet, or PC, allowing various vehicle data to be read and managed.

• Read and clear fault codes: Access to engine trouble codes (DTCs) and the ability to clear them, including the MIL (Check Engine Light).
• Live data monitoring: Real-time display of engine sensor data such as RPM, speed, fuel pressure, coolant temperature, and O2 sensor values.
• Freeze Frame data: Records the vehicle's condition at the moment a fault code was stored.
• I/M Readiness: Checks the status of emission-related systems to determine if the vehicle is ready for an emissions test.
• Battery monitoring: Some applications offer the ability to monitor the vehicle battery voltage.
• Enhanced vehicle compatibility: The 'BM' designation indicates optimized support for specific BMW protocols, enabling deeper diagnostics and coding with compatible applications.

Compatible vehicles and applications:

The Vgate VLinker BM is compatible with most vehicles equipped with an OBD-II port, including passenger cars and light commercial vehicles.

• Gasoline vehicles produced in Europe, Asia, and the US from 2001 onwards (EOBD).
• Diesel vehicles produced in Europe, Asia, and the US from 2004 onwards (EOBD).
• Some hybrid and electric vehicles (specific compatibility depends on model).
• Specific enhanced compatibility for BMW models (F/G/I-series) via supported apps.

Compatible software and applications:

The Vgate VLinker BM works with a wide range of diagnostic apps that support the ELM327 standard and WiFi connectivity.

• BimmerCode (iOS/Android): For coding functions in BMW F/G/I-series.
• BimmerLink (iOS/Android): For deep diagnostics, live data, and clearing fault codes in BMW F/G/I-series.
• Torque Pro (Android): General OBD-II diagnostics, live data, performance monitoring.
• Car Scanner ELM OBD2 (iOS/Android/Windows): Extensive diagnostics, live data, fault codes.
• DashCommand (iOS/Android): Advanced performance monitoring and vehicle data.
• OBDFusion (iOS/Android): Configurable dashboards, diagnostic scans, extensive PID support.

Compatible operating systems:

This adapter can connect to various operating systems via WiFi.

• Windows: Windows 7, 8, 10, 11 (via compatible software).
• Android: Version 4.0 and higher.
• iOS: Version 9.0 and higher.

Supported protocols and systems:

The Vgate VLinker BM supports all standard OBD-II protocols, supplemented with specific Vgate protocols for enhanced compatibility.

• ISO 15765-4 (CAN): All CAN protocols (11bit ID, 29bit ID, 250Kbaud, 500Kbaud).
• ISO 14230-4 (KWP2000): Fast Init, 5 baud Init.
• ISO 9141-2.
• SAE J1850 VPW.
• SAE J1850 PWM.
• Proprietary Vgate protocols: For advanced features and better communication with specific vehicles, including BMW.

Package Contents:

• 1x Vgate VLinker BM | ELM327 Interface (WiFi)
• User manual (digital or printed)

Technical specifications:
