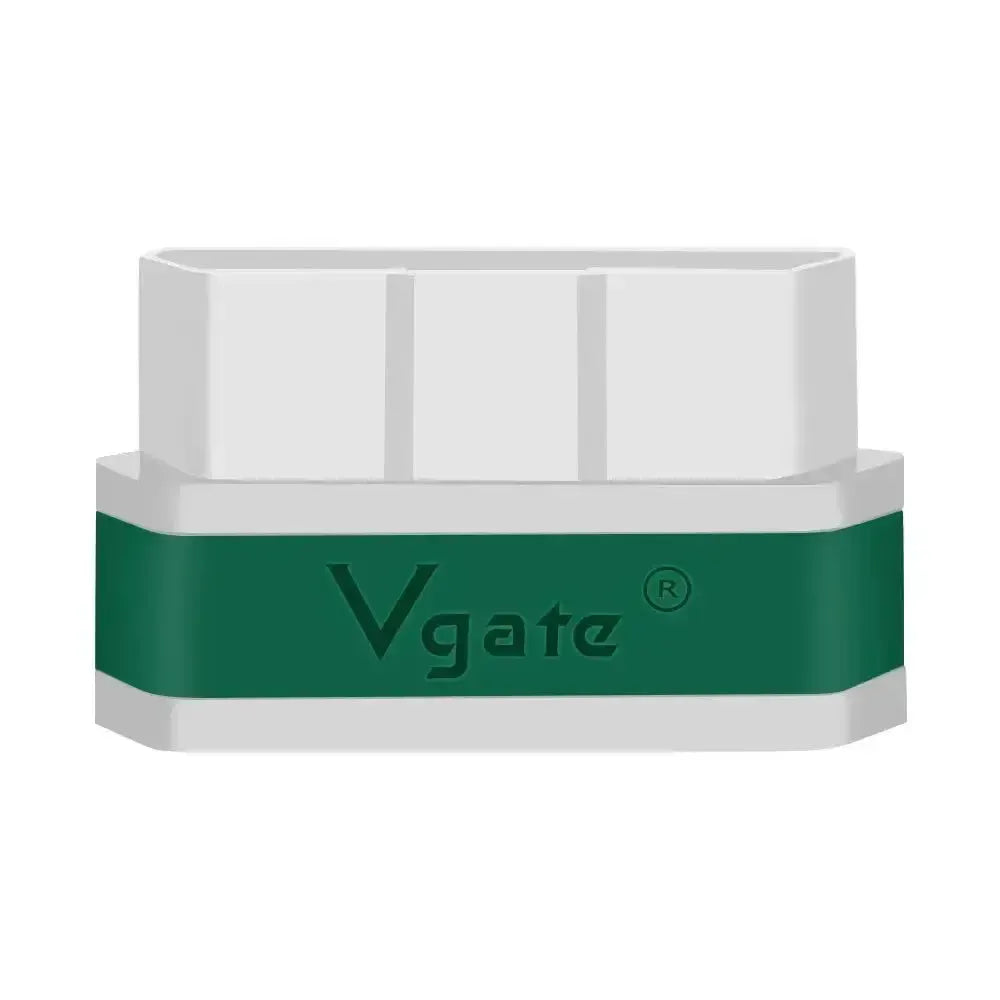

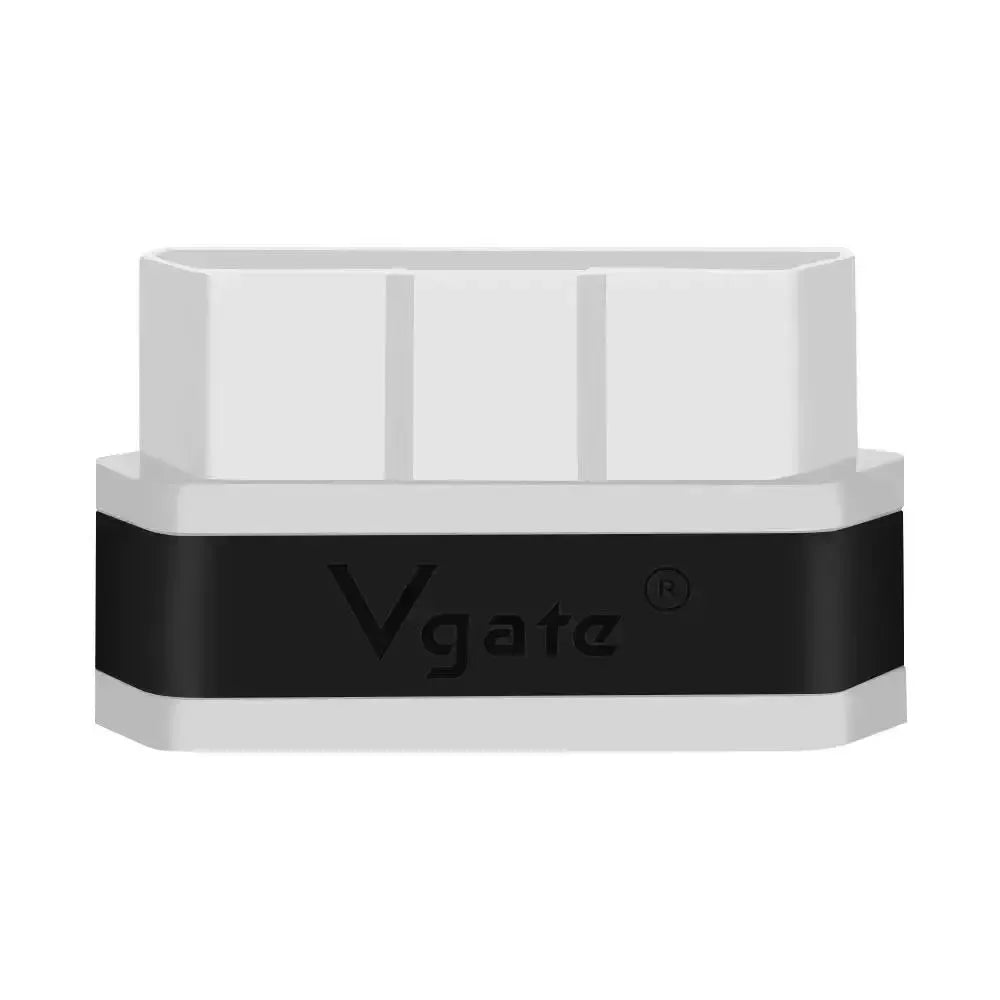

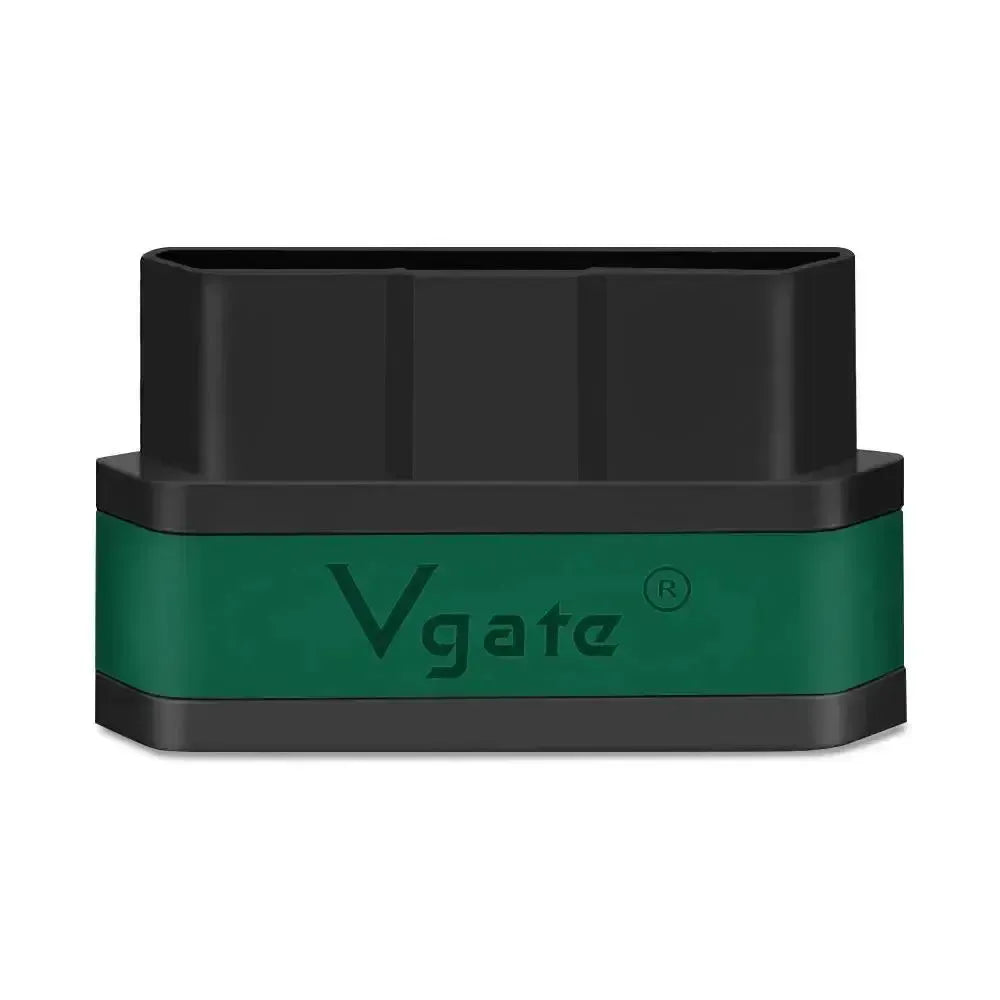

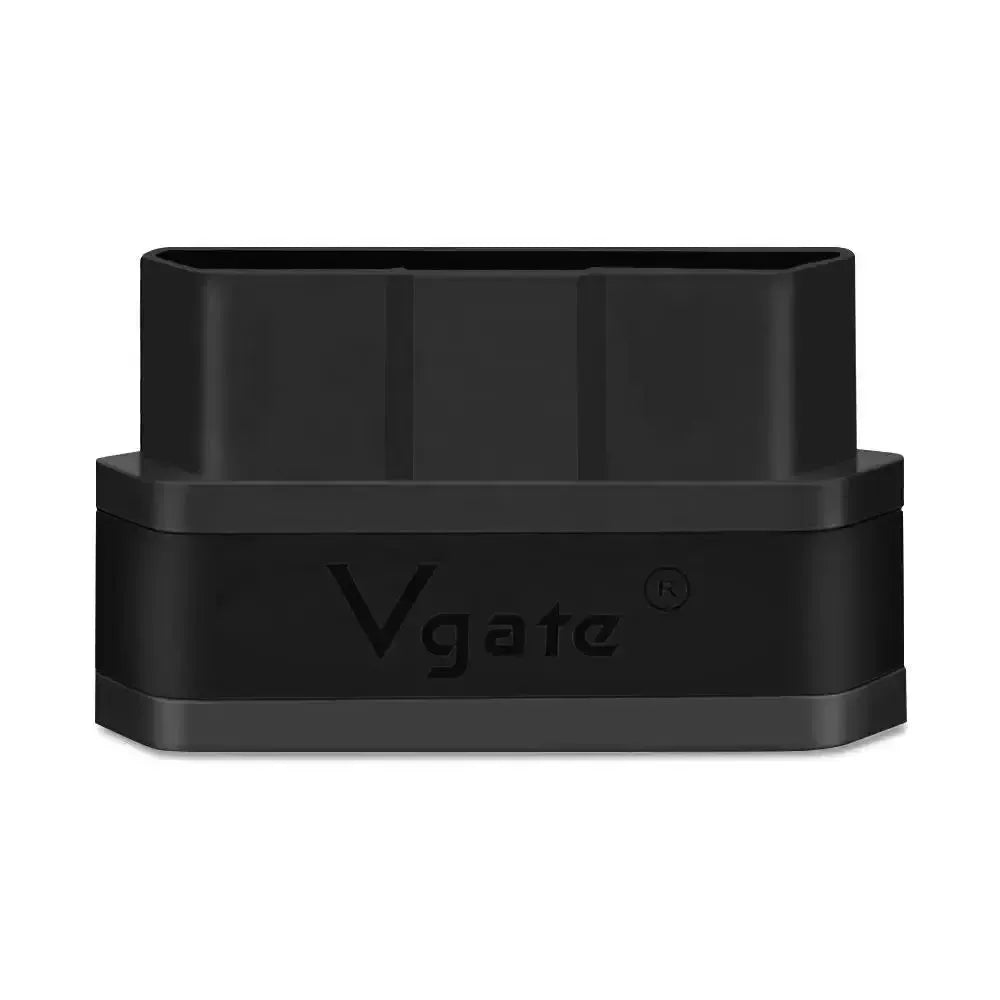

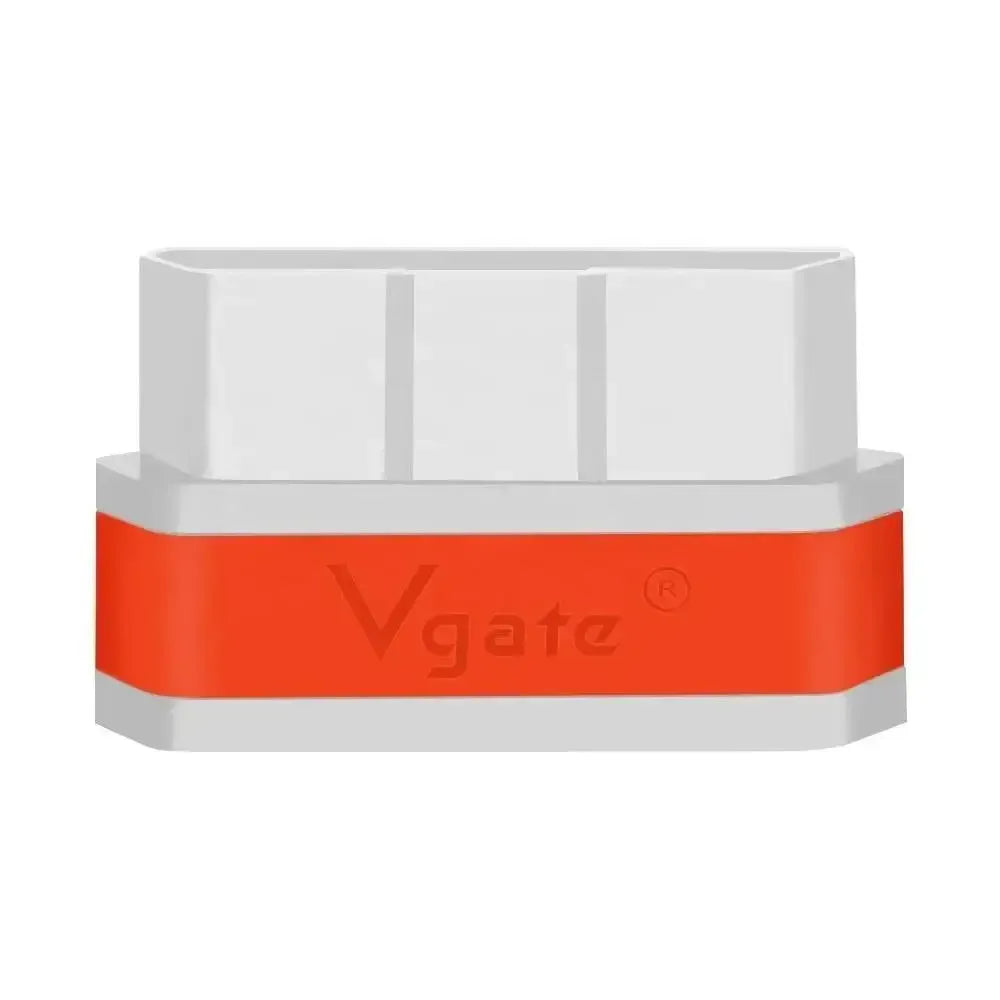

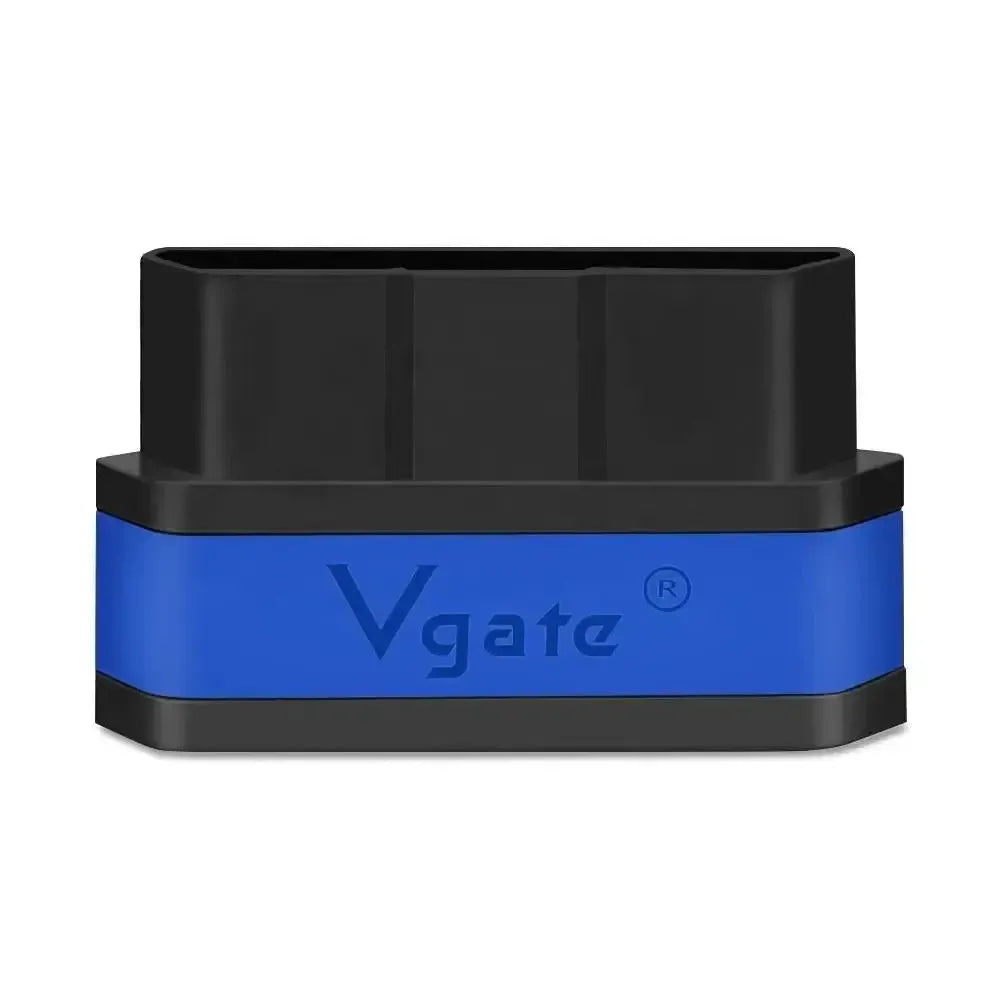

Vgate iCar 2 | ELM327 Interface (WiFi)

The Vgate iCar 2 ELM327 Interface is a compact and user-friendly diagnostic tool for vehicles. This device connects to your vehicle's OBD2 port and communicates wirelessly via WiFi with your smartphone, tablet, or laptop. It is designed to provide access to onboard diagnostic data, enabling reading various vehicle parameters and identifying potential issues.

This ELM327 adapter offers functionality for reading and clearing diagnostic trouble codes (DTCs), including generic and manufacturer-specific codes. Additionally, the Vgate iCar 2 can display real-time sensor data such as engine speed, speed, fuel consumption, and coolant temperature. The built-in intelligent sleep mode feature ensures low power consumption when the adapter is inactive, protecting the vehicle battery.

Application and functionality:

The Vgate iCar 2 ELM327 Interface is used for performing various diagnostic tasks and monitoring vehicle performance via a compatible app.

• Read and clear fault codes: Displays the meaning of both generic (P0, P2, P3, U0) and manufacturer-specific (P1, P3, U1) fault codes and allows disabling the Malfunction Indicator Lamp (MIL).
• Live sensor data: Access to real-time parameters such as engine speed (RPM), vehicle speed, coolant temperature, intake pressure, fuel system status, oxygen sensor values, and fuel consumption.
• Freeze Frame Data: Captures a snapshot of important sensor data at the moment a fault code is recorded, aiding diagnosis.
• O2 Sensor Test Results: Checks the operation of the oxygen sensors for emission control.
• EVAP System Test: Tests the integrity of the fuel evaporation system.
• I/M Readiness Status: Checks if all emission-related systems are ready for an emissions test.

Compatible vehicles and applications:

This device is compatible with most vehicles equipped with an OBD2/EOBD port, which is the standard for modern vehicles.

• All American vehicles from model year 1996.
• All European gasoline vehicles from model year 2001.
• All European diesel vehicles from model year 2004.
• Many Asian vehicles from model year 2000.

Compatible software and applications:

The Vgate iCar 2 WiFi interface works with a wide range of diagnostic apps compatible with ELM327 hardware and WiFi connectivity.

• Torque Pro/Lite (Android): One of the most popular apps for vehicle diagnostics, performance monitoring, and data logging.
• Car Scanner ELM OBD2 (iOS/Android): A versatile and user-friendly app providing comprehensive diagnostic and monitoring functions.
• OBD Fusion (iOS/Android): Offers extensive diagnostic data, graphs, and logging capabilities, suitable for detailed analysis.
• DashCommand (iOS): A popular app that visualizes performance data, fault codes, and vehicle information.

Compatible operating systems:

The Vgate iCar 2 WiFi interface is suitable for the following operating systems, mainly via specific apps:

• Android: Versions 4.0 and higher.
• iOS: iOS 7.0 and higher.
• Windows: Suitable for Windows-based software that supports WiFi ELM327 connectivity (if PC has WiFi functionality).

Supported protocols and systems:

This interface supports the standard OBD2 communication protocols required for diagnostics in most modern vehicles.

• SAE J1850 PWM: Mainly used by Ford vehicles.
• SAE J1850 VPW: Mainly used by General Motors vehicles.
• ISO 9141-2: Often used in older Asian and European vehicles.
• ISO 14230-4 KWP (KWP2000): A widely used protocol in various vehicle brands.
• ISO 15765-4 CAN (Controller Area Network): The most common and advanced protocol in modern vehicles, including all variants (11-bit, 29-bit, 250k Baud, 500k Baud).

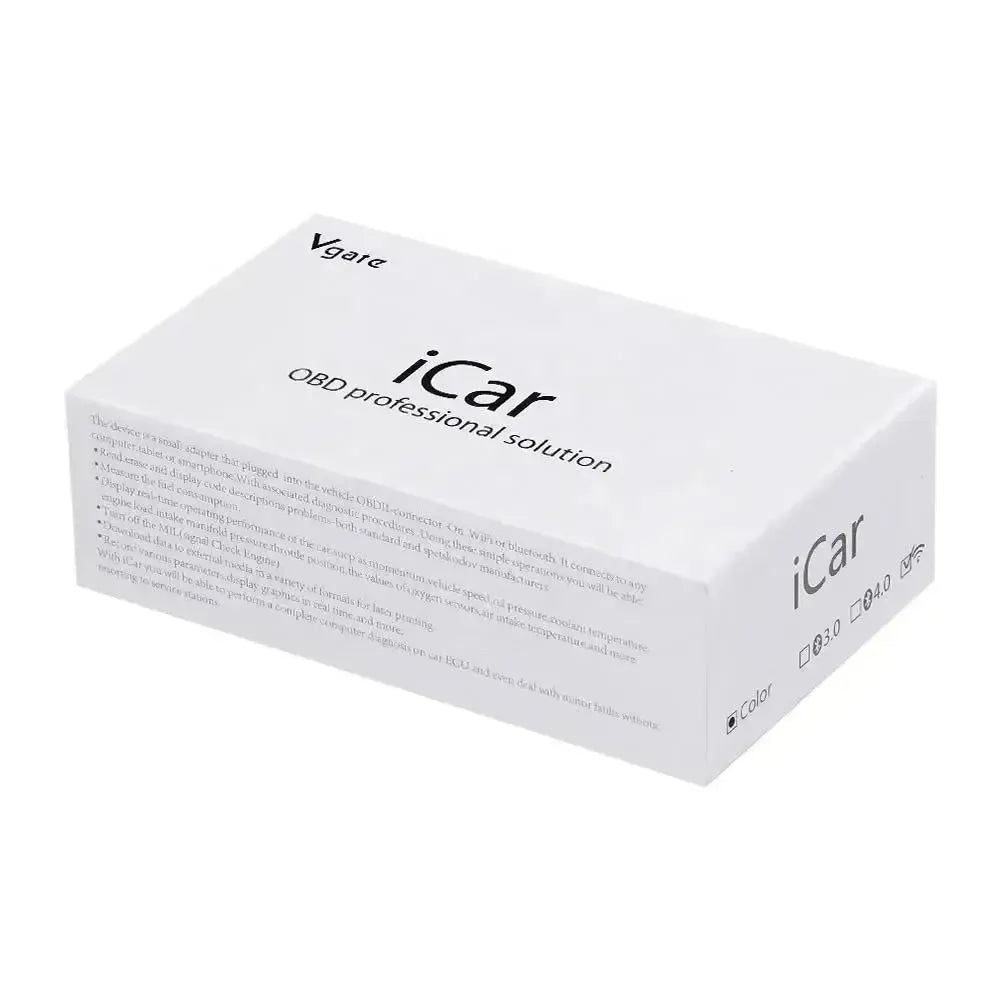

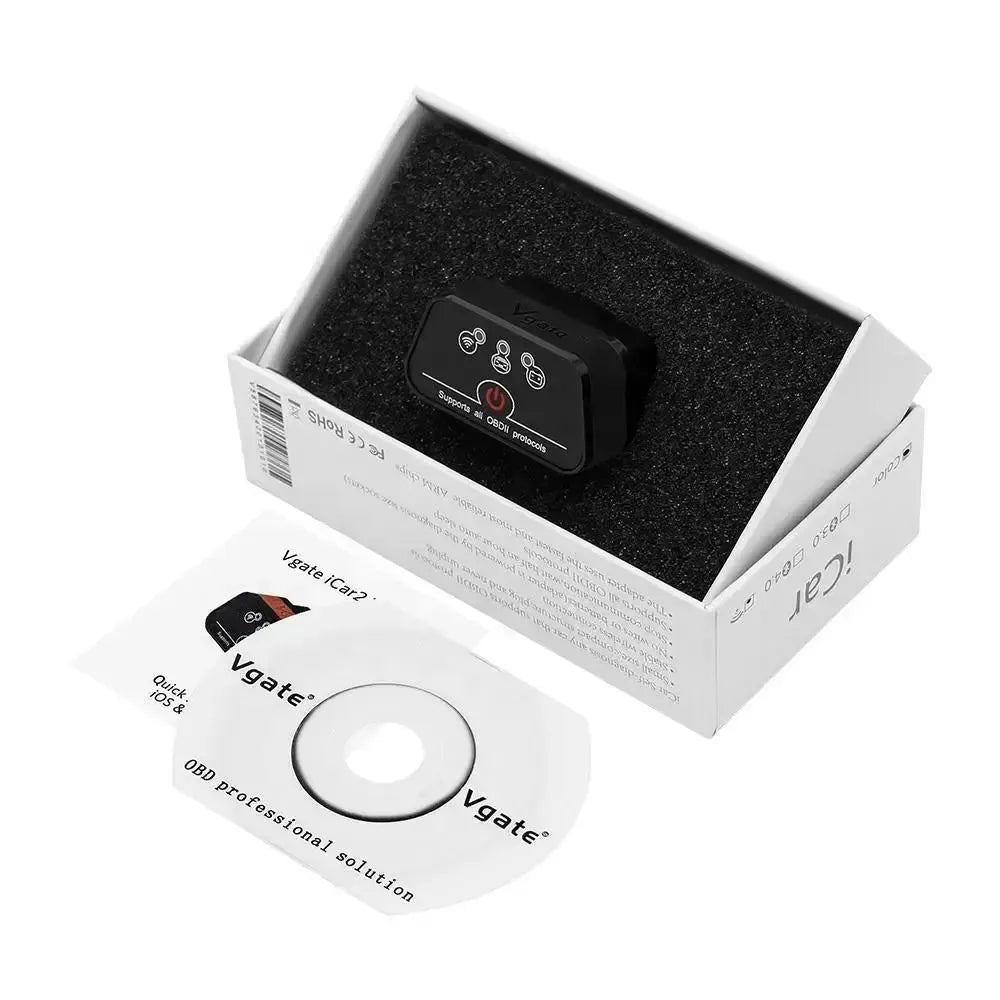

Package Contents:

• 1x Vgate iCar 2 ELM327 Interface (WiFi)
• 1x User manual (English)

Technical specifications:
