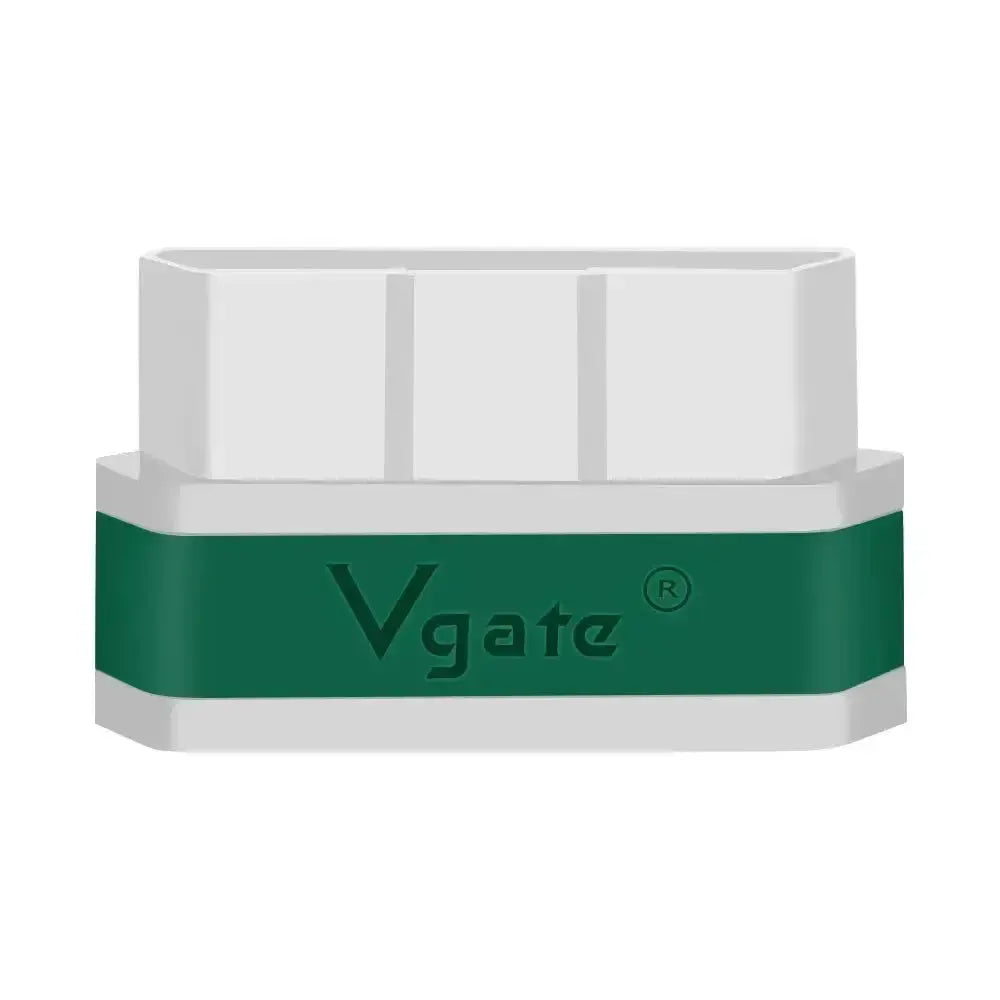

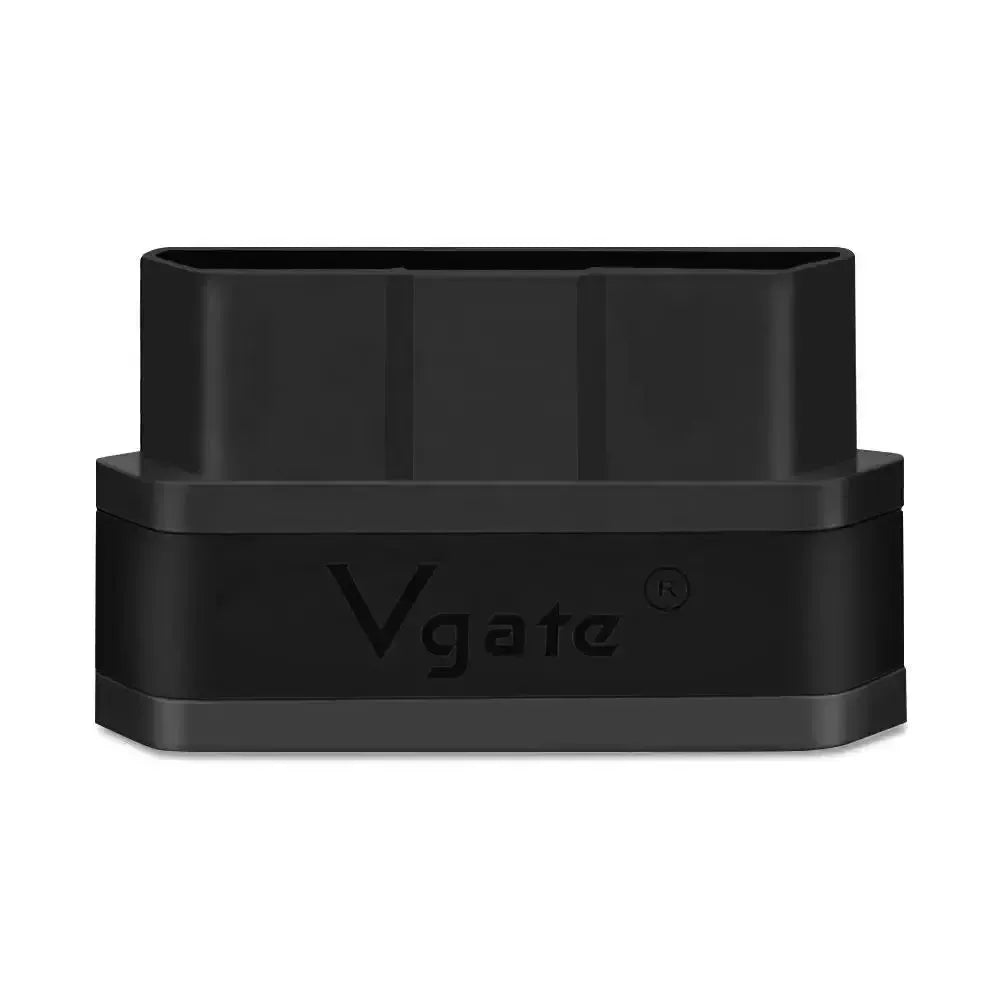

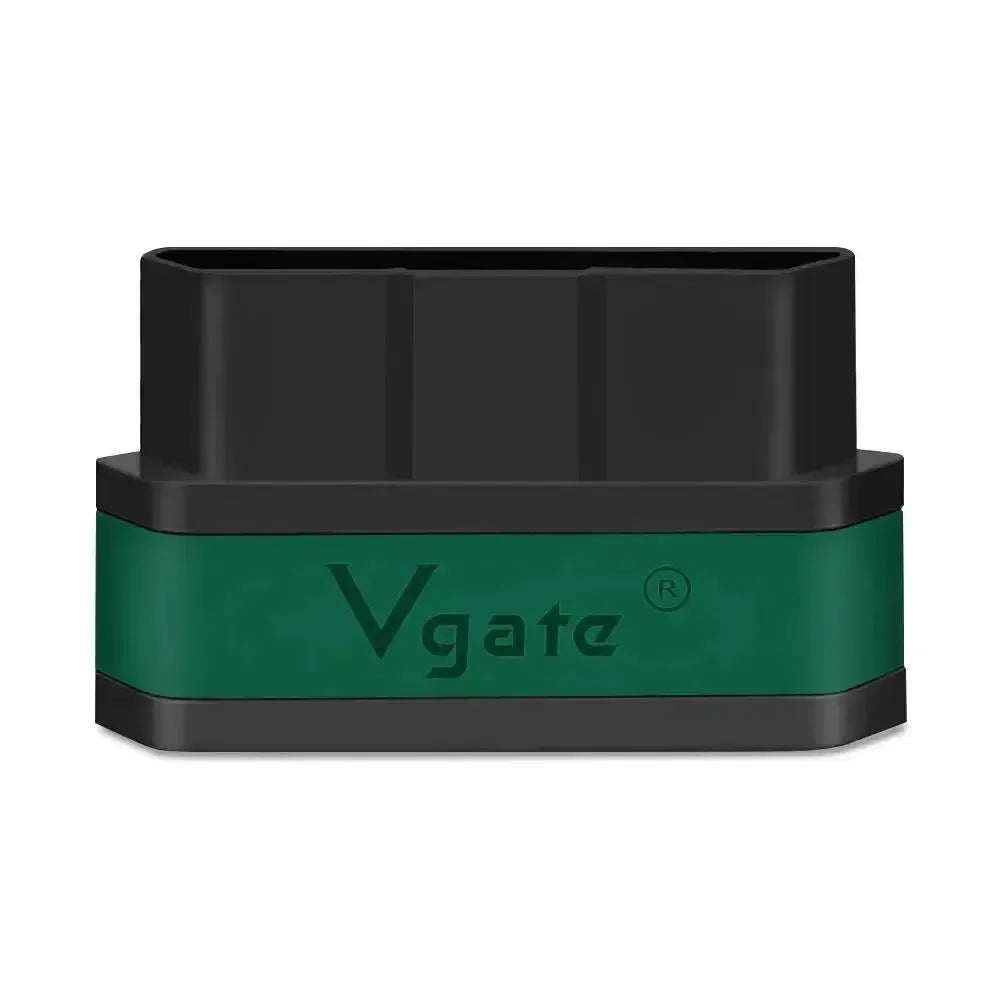

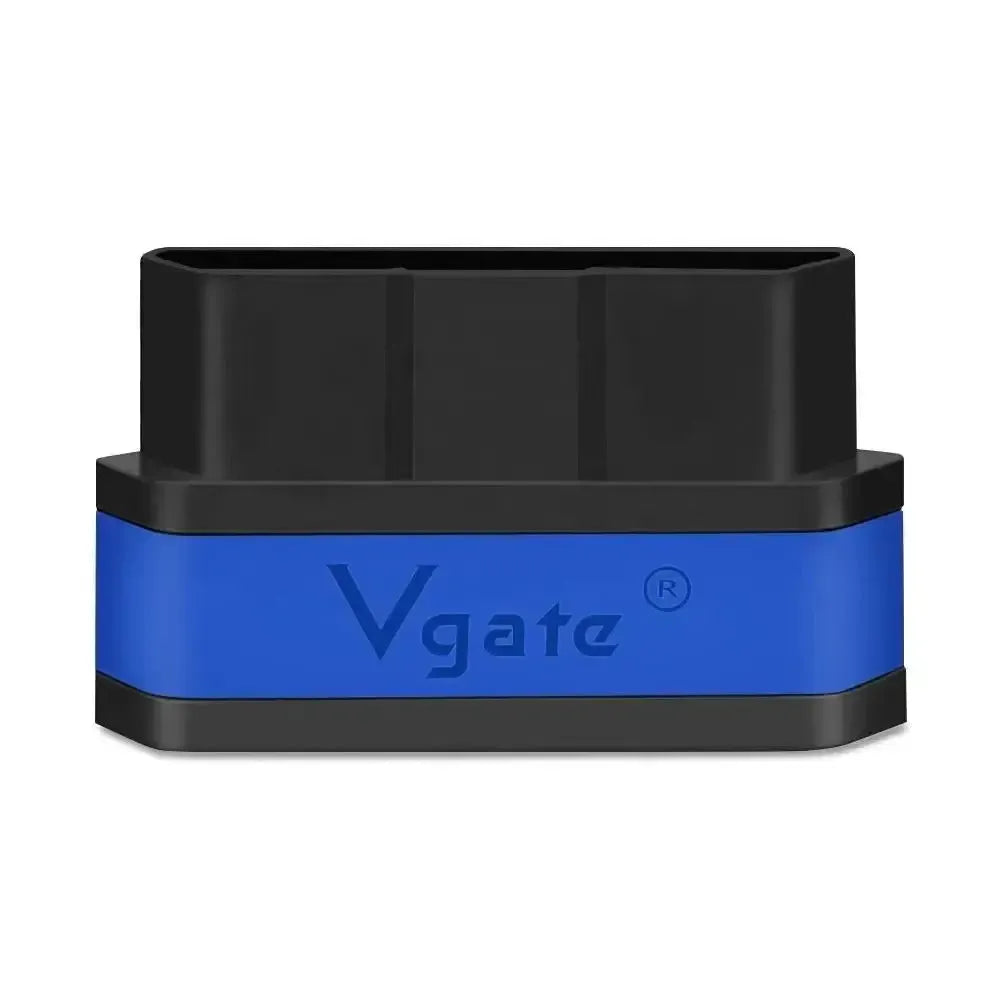

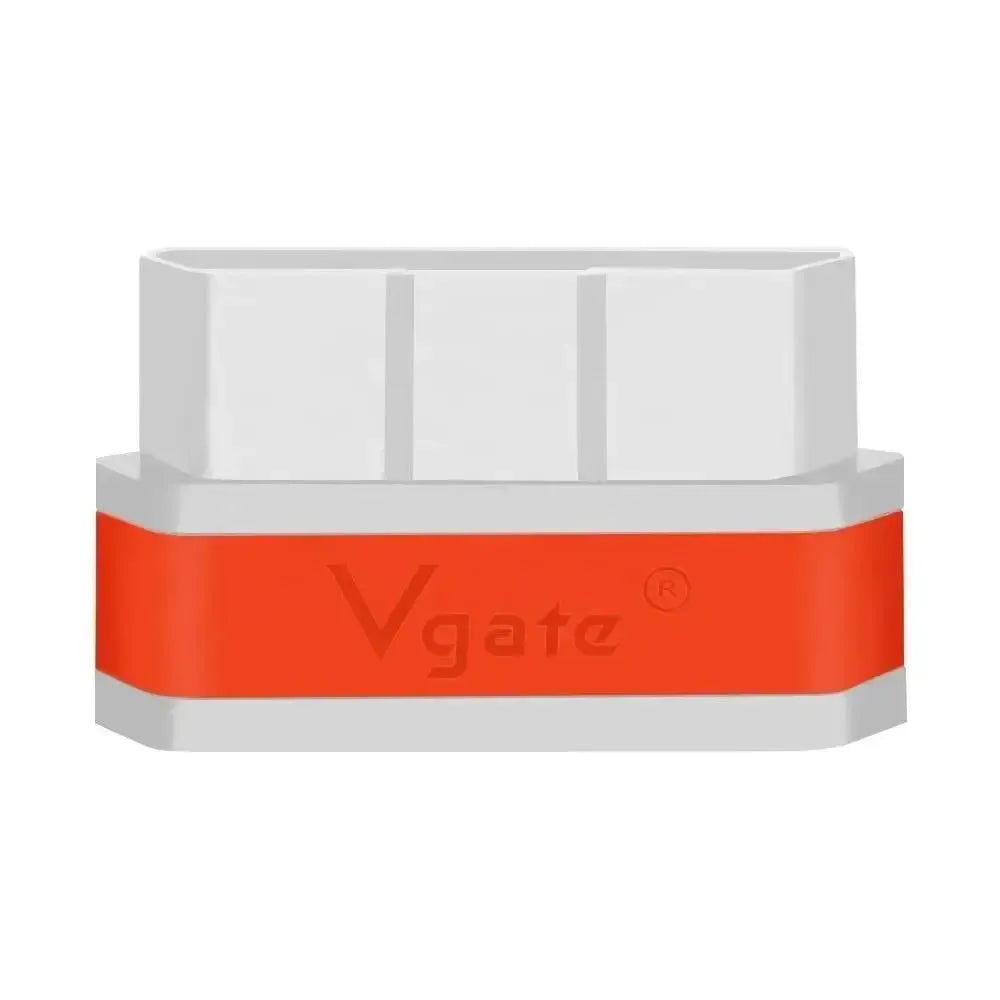

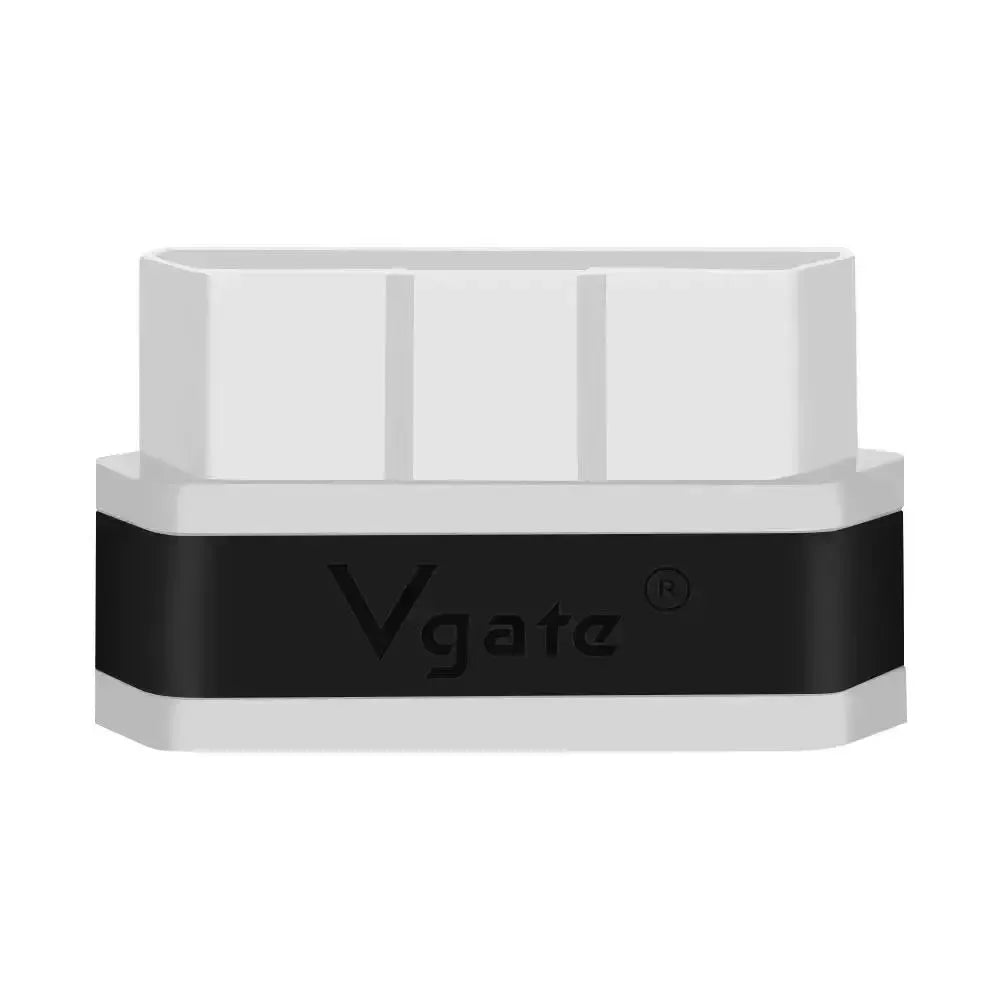

Vgate iCar 2 | ELM327 Interface (Bluetooth 3.0)

The Vgate Car 2 is a compact ELM327 interface that communicates wirelessly via Bluetooth 3.0. This adapter is designed to connect to a vehicle's OBD2 port, allowing diagnostic data to be read via compatible software on a smartphone, tablet, or computer. The device is compact in size and features a stable wireless connection for reliable data transfer.

This interface features functionalities such as reading fault codes, displaying live sensor data, and checking the vehicle's emission status. The Vgate Car 2 supports common OBD2 protocols, including CAN, ISO9141, KWP2000, VPW, and PWM. The adapter is equipped with a power-saving mode, where power supply is automatically turned off when not active, to preserve the vehicle's battery.

Application and functionality:

The Vgate Car 2 enables diagnosing and monitoring a vehicle's electronic systems via a Bluetooth connection.

• Read and clear fault codes: Access generic and manufacturer-specific diagnostic trouble codes (DTCs) with the ability to clear them.
• Display live data: Real-time reading of various sensor data, such as engine speed, speed, fuel pressure, coolant temperature, and oxygen sensor values.
• Freeze Frame data: Save a snapshot of vehicle parameters at the moment a fault code was recorded.
• I/M Readiness status: Check the status of the vehicle's emission-related monitors.
• O2 Sensor Test: Monitor and check the performance of the oxygen sensors.
• Read vehicle information: Retrieve vehicle information such as Vehicle Identification Number (VIN), Calibration ID (CID), and Calibration Verification Number (CVN).

Compatible vehicles and applications:

This ELM327 interface is compatible with most OBD2/EOBD-compatible vehicles.

• Gasoline vehicles: All vehicles produced after 2001 (European and Asian).
• Diesel vehicles: All vehicles produced after 2004 (European and Asian).
• American vehicles: All vehicles produced after 1996.

Compatible software and applications:

The Vgate iCar 2 works with various common OBD2 applications that support Bluetooth communication.

• Torque (Android): A widely used app for real-time data, fault codes, and performance monitoring.
• DashCommand (Android): Offers extensive diagnostic capabilities and customizable gauges.
• OBD Auto Doctor (Android/Windows): A user-friendly tool for diagnostics and data analysis.
• Car Scanner ELM OBD2 (Android/Windows): A versatile application for comprehensive diagnostics and live data.

Compatible operating systems:

The Vgate iCar 2 (Bluetooth 3.0) is compatible with the following operating systems:

• Android: Versions 4.3 and higher.
• Windows: Versions 7, 8, 10, and 11 (requires built-in or external Bluetooth adapter).

Supported protocols and systems:

The adapter supports the standard OBD2 communication protocols.

• ISO 9141-2: Used in some European and Asian vehicles.
• ISO 14230-4 (KWP2000): Often used in vehicles from the mid '90s to early 2000s.
• ISO 15765-4 (CAN): The most common protocol for vehicles produced after 2008.
• SAE J1850 PWM: Specifically used by Ford vehicles.
• SAE J1850 VPW: Specifically used by General Motors vehicles.

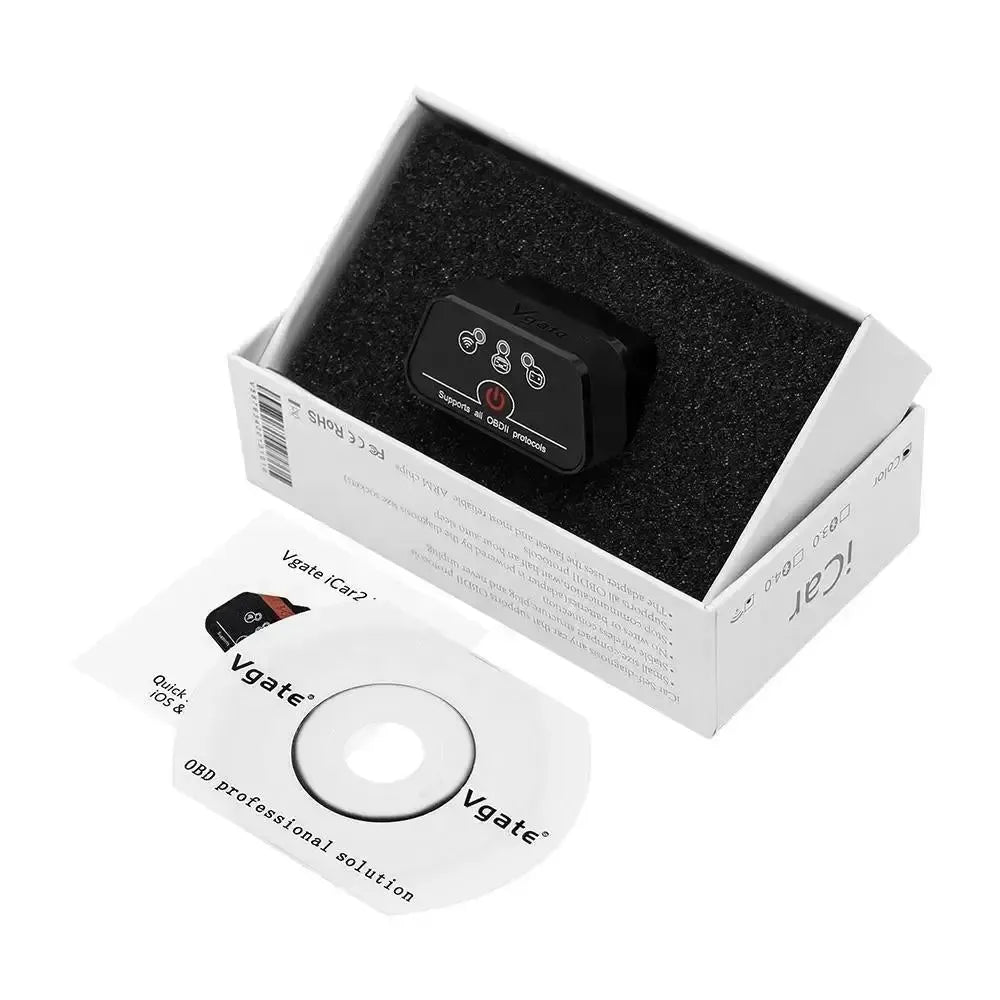

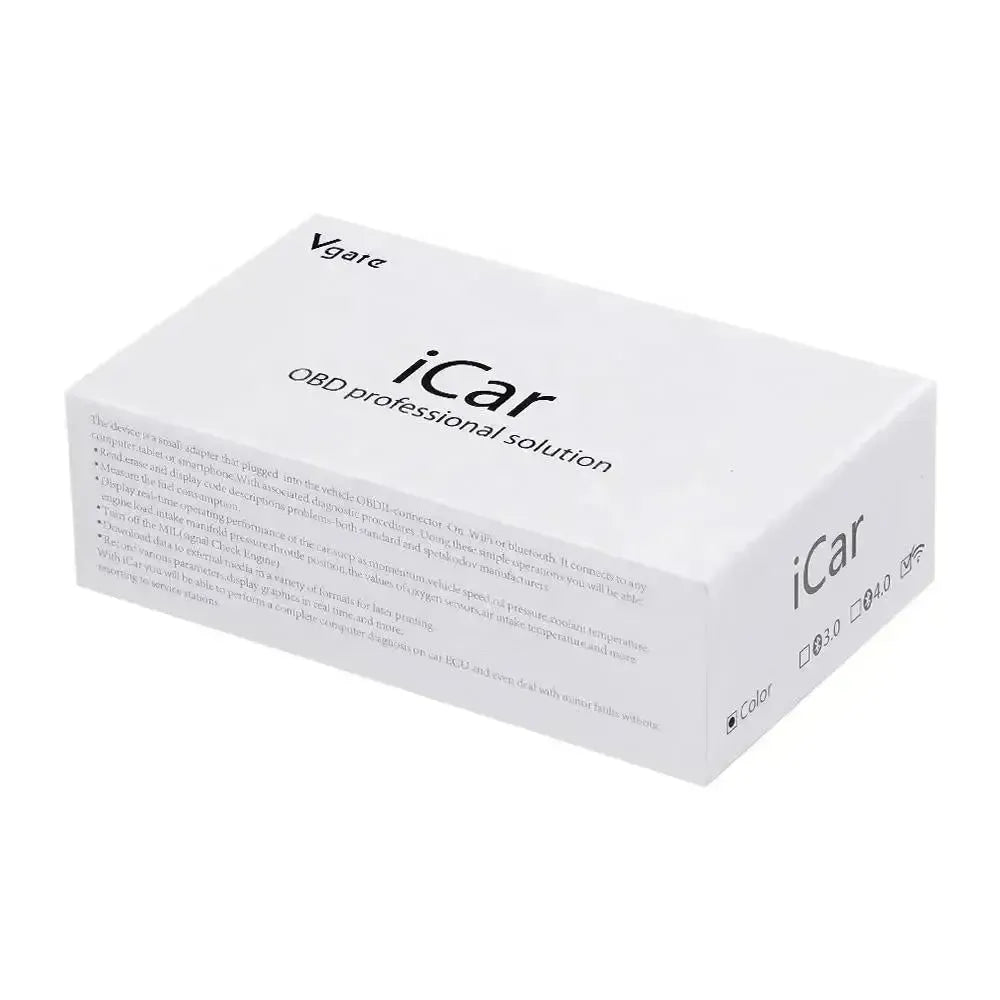

Package Contents:

• 1x Vgate iCar 2 ELM327 Interface (Bluetooth 3.0)
• 1x User Manual

Technical specifications:
