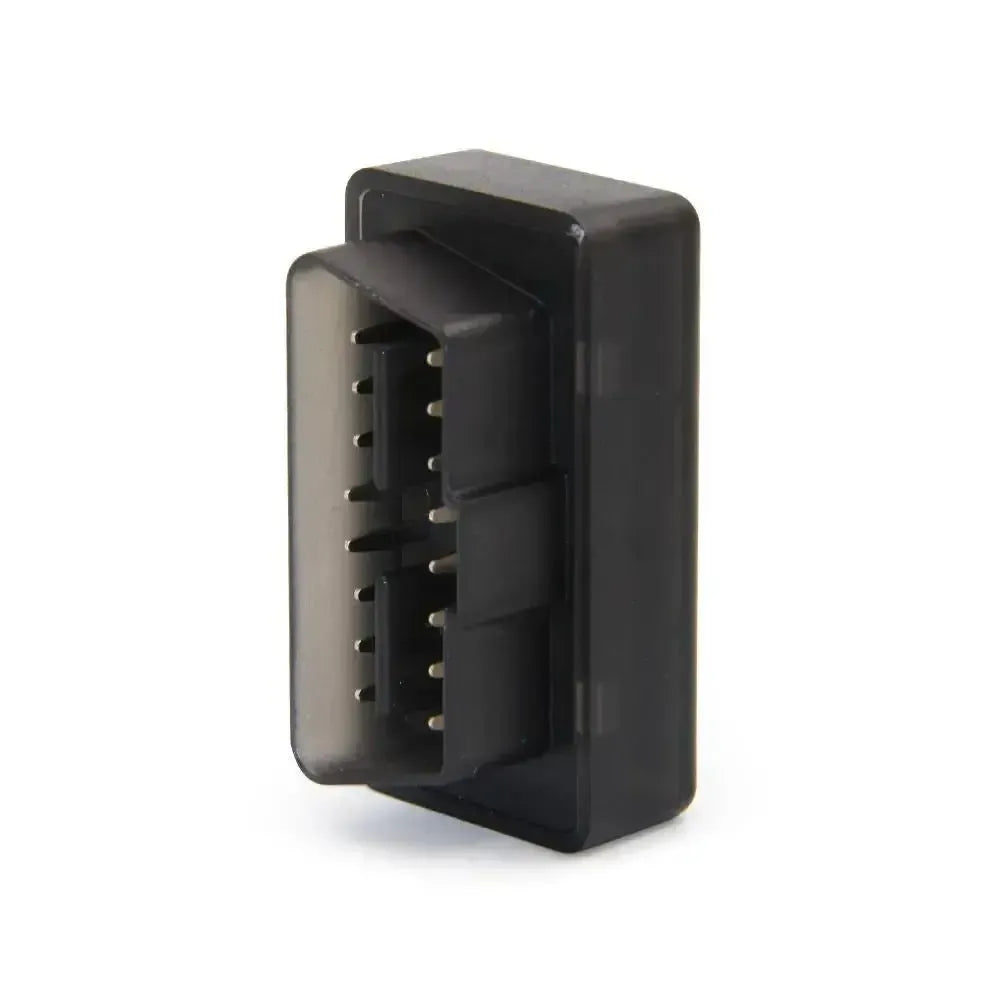

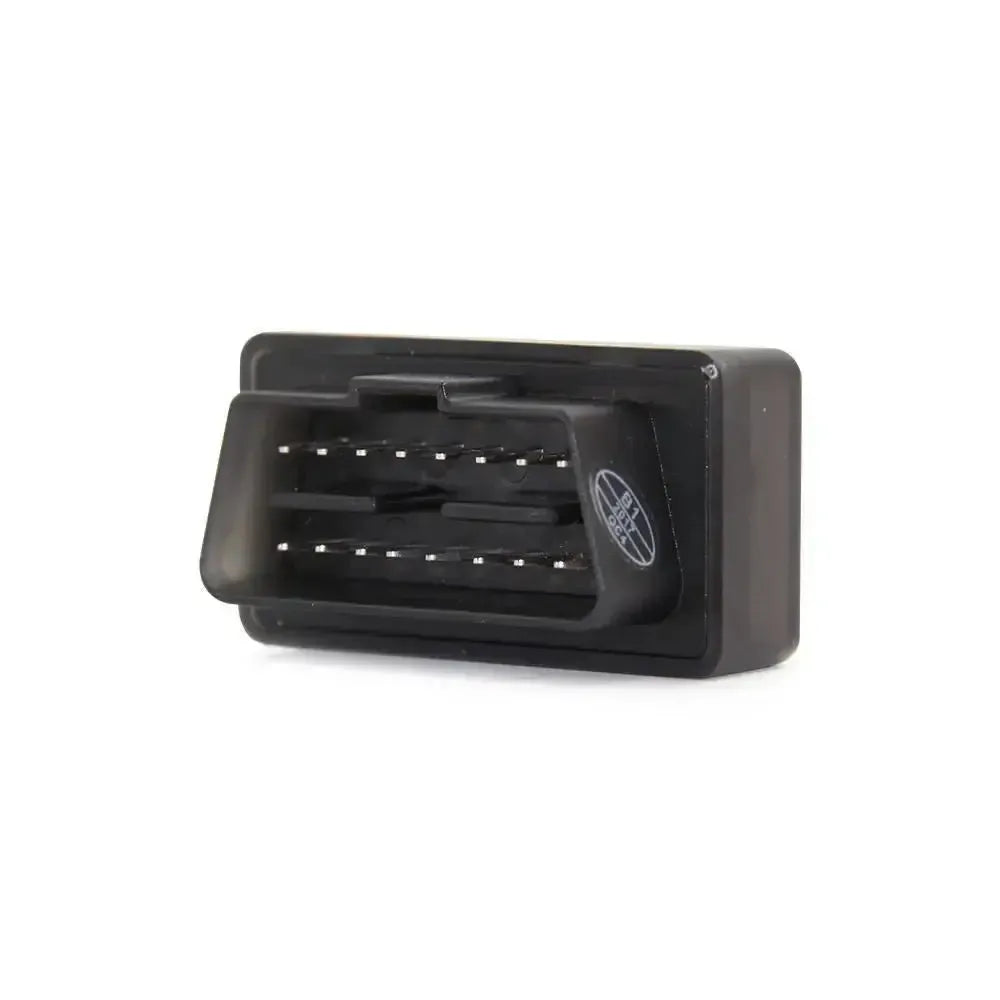

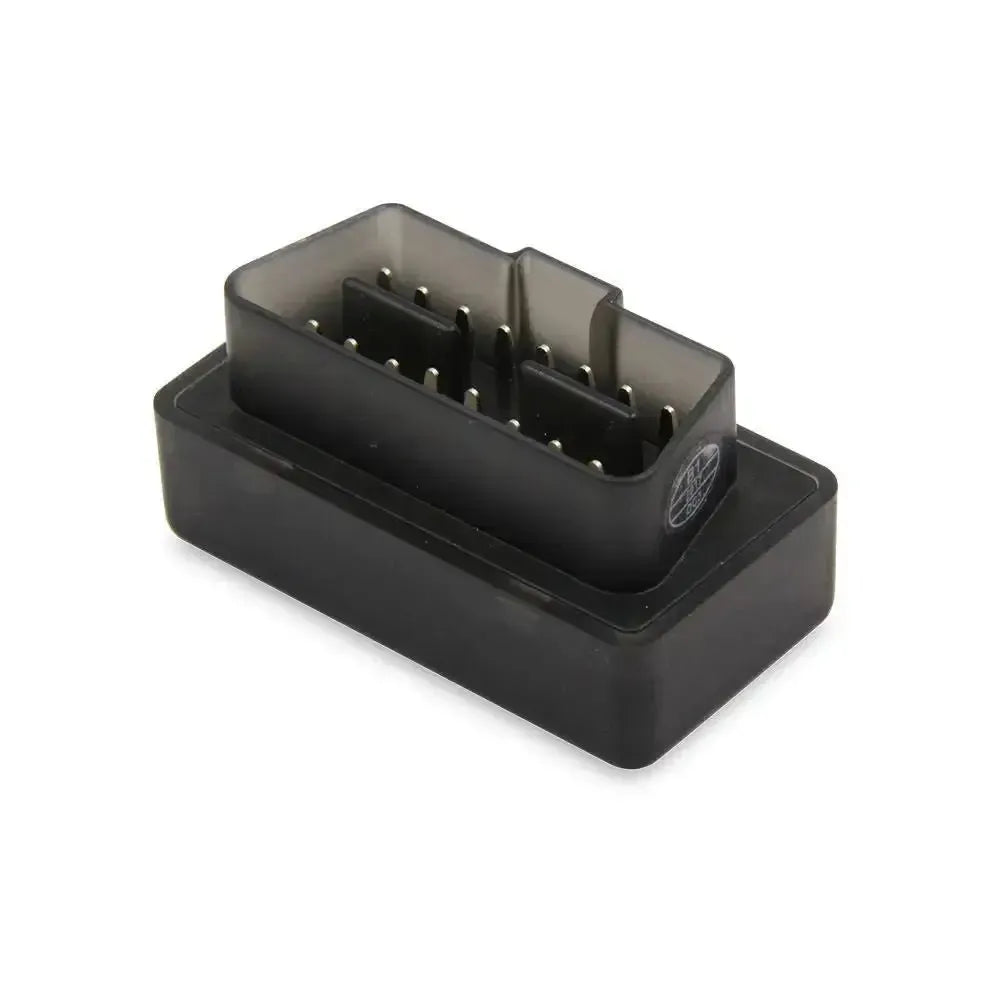

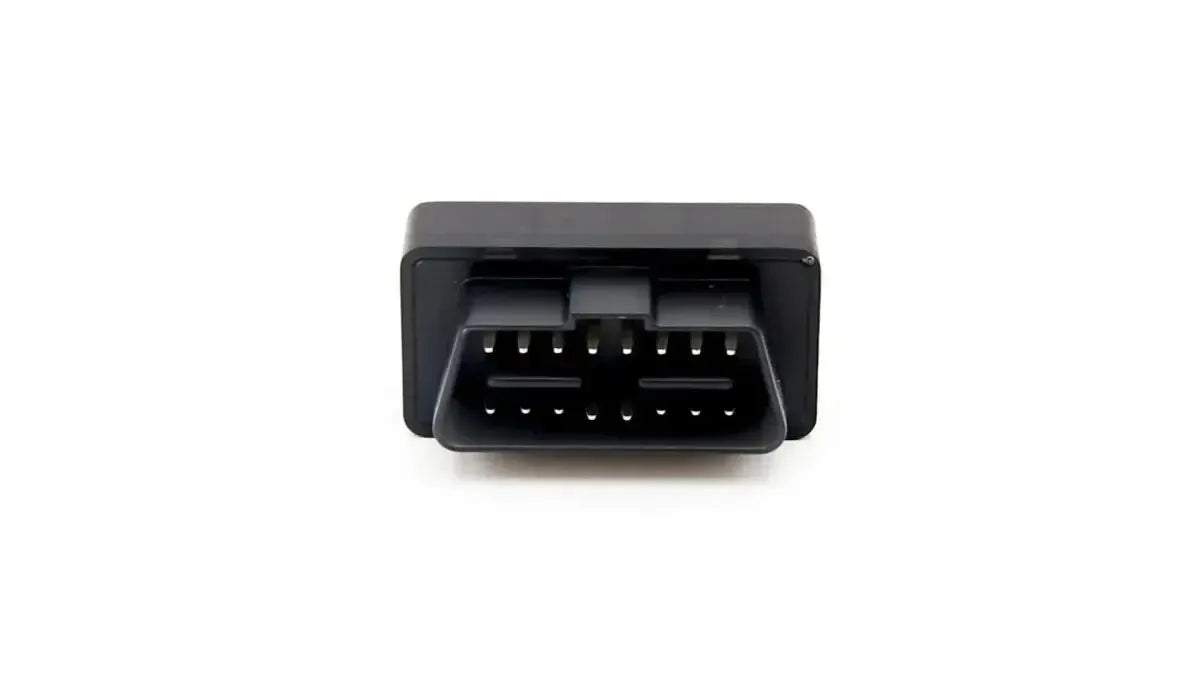

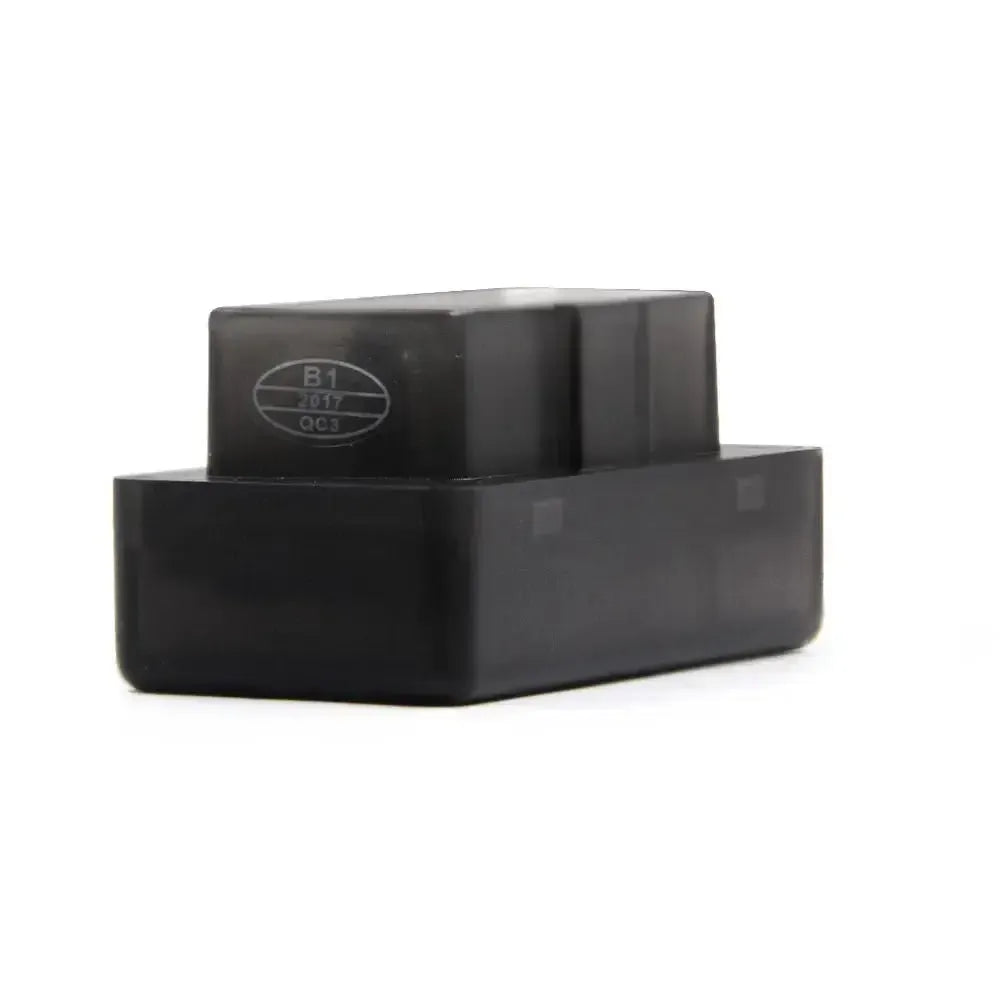

Universal Mini II | ELM327 Interface (WiFi)

The Universal Mini II ELM327 interface is a compact diagnostic tool that communicates wirelessly via WiFi. This device is designed to establish a connection with the OBD2 port of vehicles and allows users to read vehicle information.

This ELM327 interface provides access to various vehicle parameters, such as engine fault codes, real-time sensor data, and other diagnostic information. It enables reading and clearing fault codes and offers insight into vehicle performance via compatible software applications on a smartphone, tablet, or laptop.

Application and functionality:

This ELM327 interface is intended for performing various diagnostic tasks.

• Read and clear fault codes: Identifies and removes diagnostic trouble codes (DTCs) stored by the vehicle's onboard computer. This includes generic and manufacturer-specific codes.
• Real-time data monitoring: Displays live data from various sensors and systems, such as engine speed, coolant temperature, fuel system status, and vehicle speed.
• View Freeze Frame data: Displays a snapshot of the vehicle's operating conditions at the time an emission-related fault code was stored.

Compatible vehicles and applications:

The ELM327 interface is compatible with most vehicles that comply with the OBD2 standard.

• Gasoline vehicles: Manufactured from 2001 (Europe) and 1996 (USA).
• Diesel vehicles: Manufactured from 2004 (Europe) and 1996 (USA).
• Light commercial vehicles: Compatible with vehicles that comply with EOBD/OBD2 standards.

Compatible software and applications:

The functionality of this interface is extended by using various software applications.

• Torque (Android): A popular application for vehicle diagnostics, real-time data, and performance monitoring.
• DashCommand (iOS / Android): Provides extensive diagnostic features, customizable dashboards, and performance analysis.
• Car Scanner (iOS / Android / Windows): Supports a wide range of vehicle protocols and offers detailed diagnostics, including specific parameters for certain car brands.
• OBD Fusion (iOS / Android): A comprehensive tool for monitoring vehicle data, reading and clearing fault codes.

Compatible operating systems:

The WiFi functionality makes the interface broadly compatible with various platforms.

• Windows: Windows 7, 8, 10, 11 (requires compatible software with WiFi support).
• Android: Versions 4.1 and higher.
• iOS: Versions 8.0 and higher.

Supported protocols and systems:

This interface supports the standard OBD2 protocols for universal compatibility.

• ISO9141-2: Widely used in Asian and older European vehicles.
• ISO14230-4 (KWP2000): Common in European and Asian vehicles.
• SAE J1850 PWM: Widely used by Ford vehicles.
• SAE J1850 VPW: Widely used by General Motors vehicles.
• ISO15765-4 (CAN): The most common protocol in modern vehicles (from 2008).

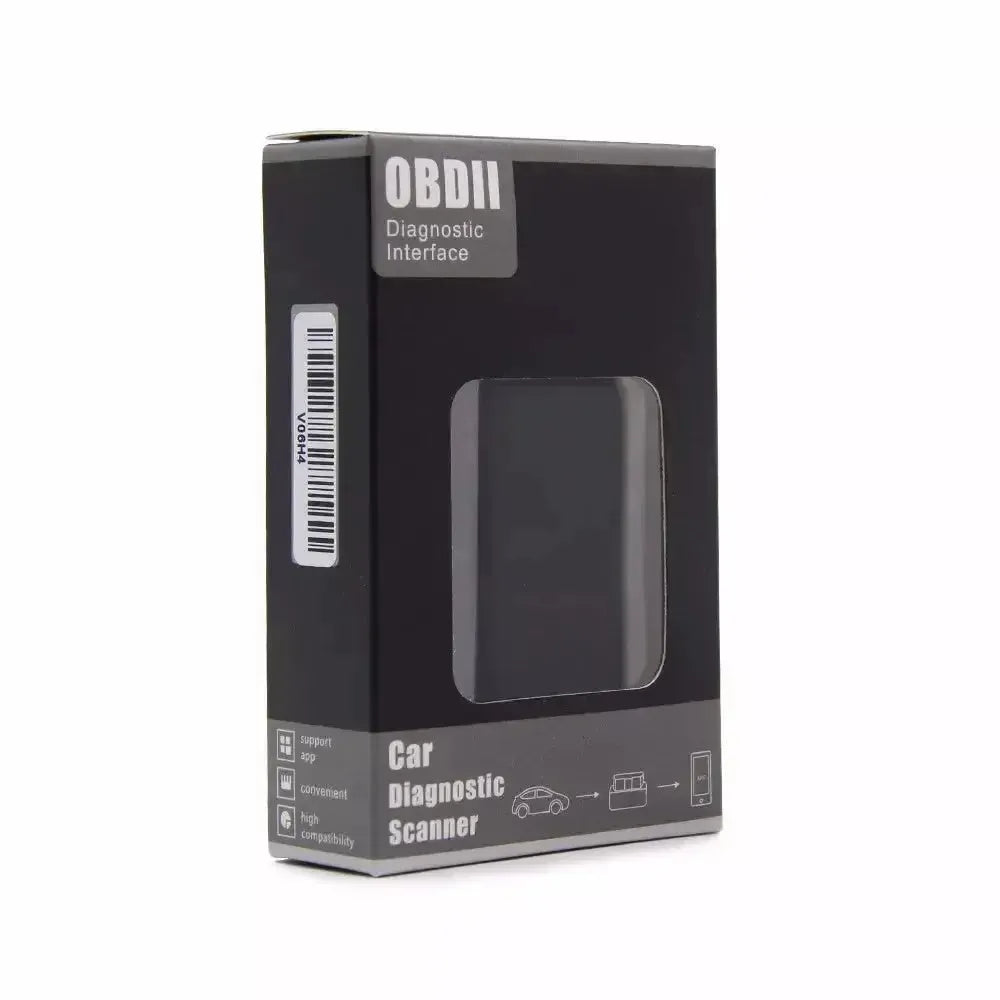

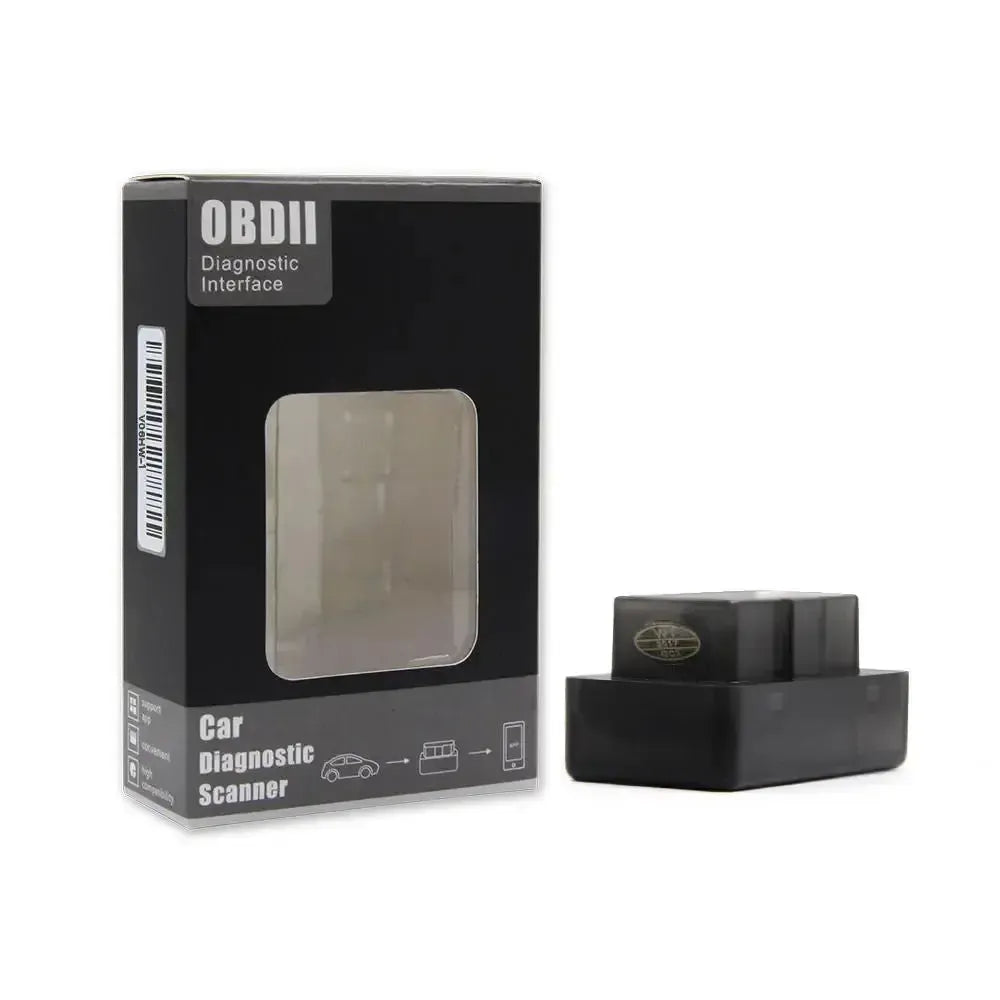

Package Contents:

• 1x Universal Mini II ELM327 Interface (WiFi)

Technical specifications:
