16-pins OBD2 Port (Female) with 16 Open End Cables (30 cm) | Accessories

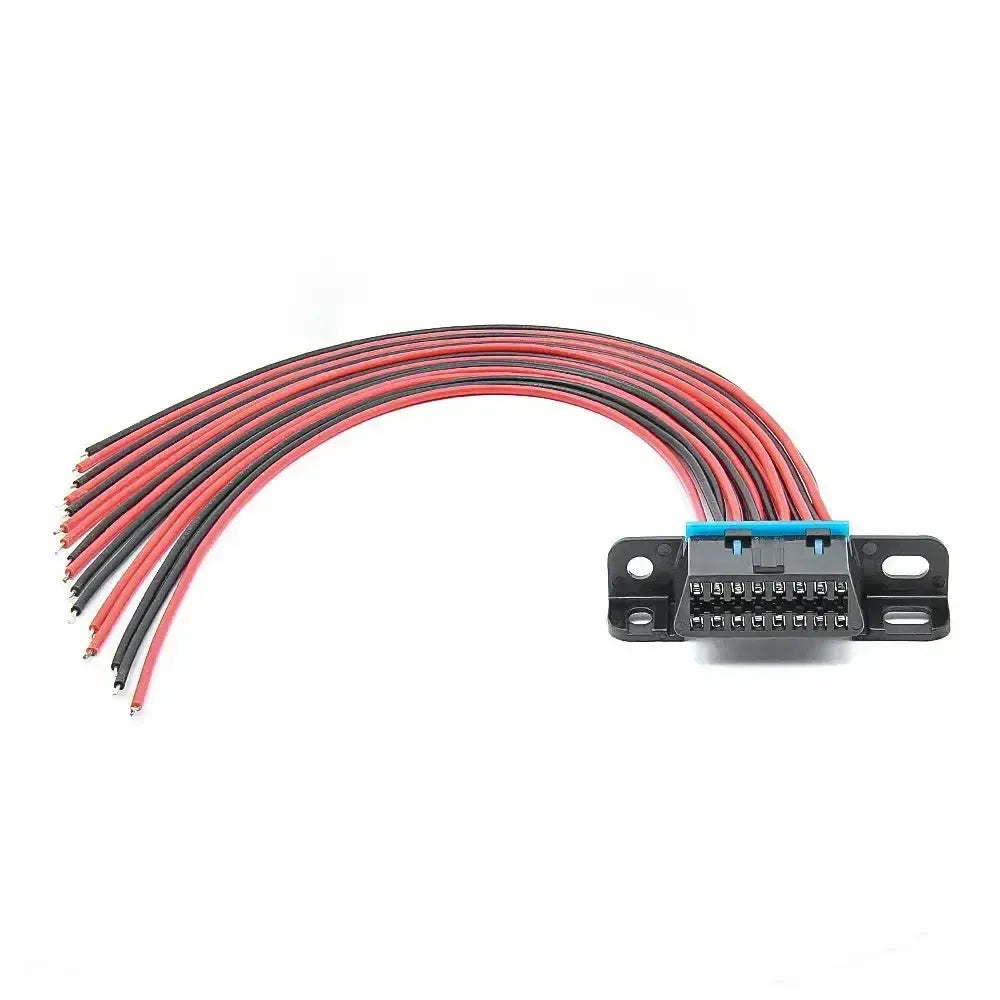

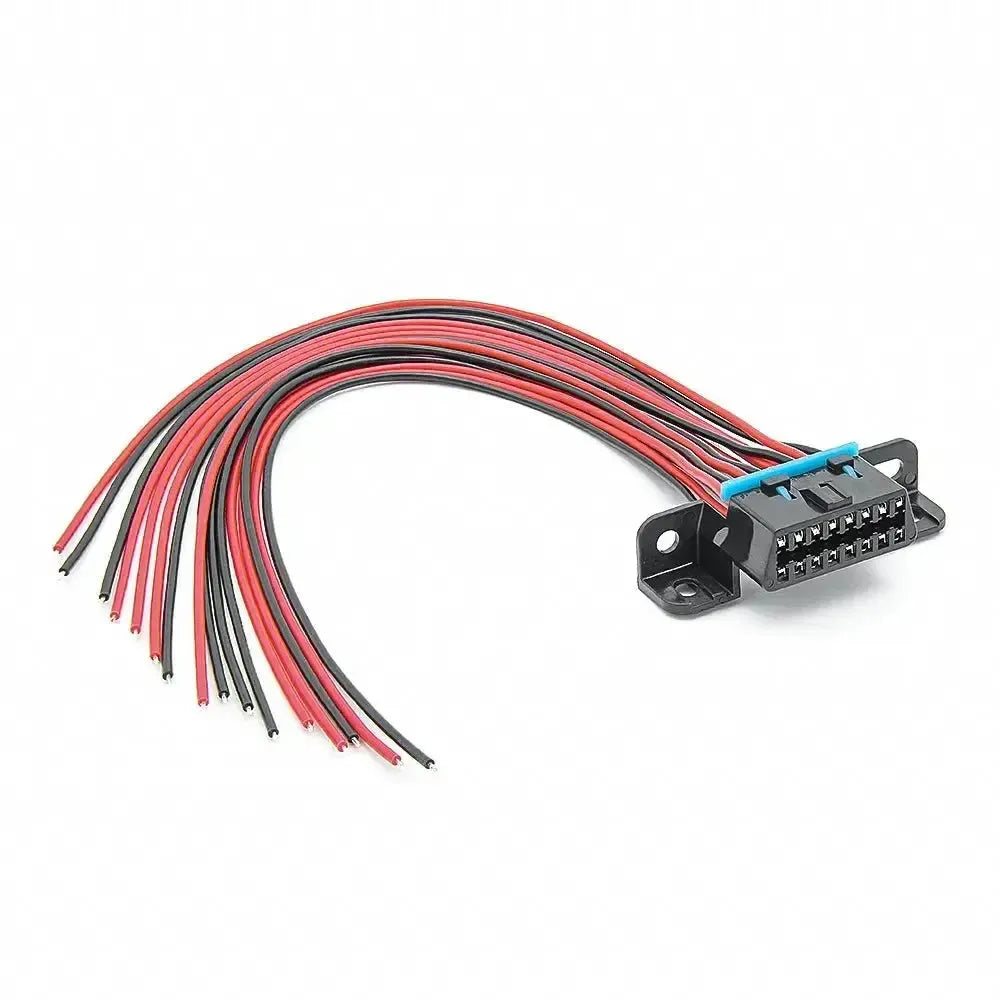

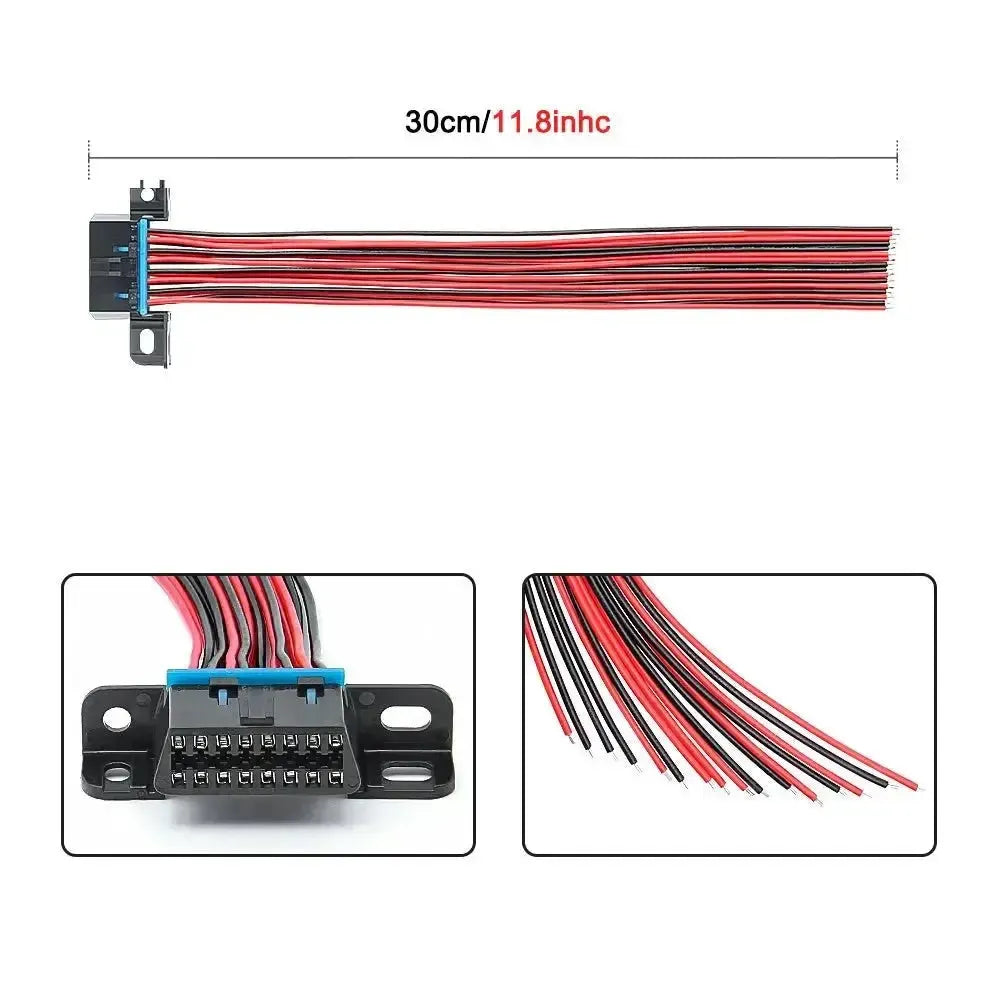

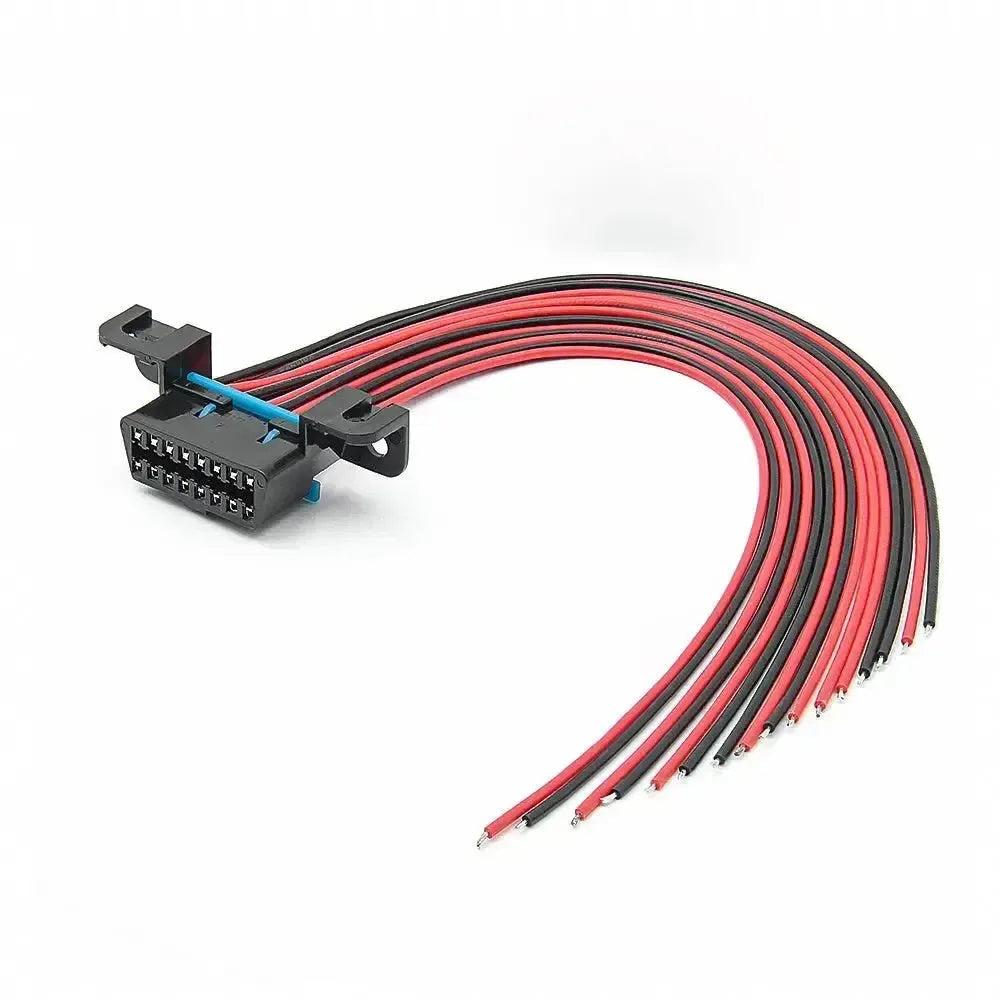

The OBD2 port is a female 16-pin connector equipped with 16 open end cables approximately 30 cm long. This accessory is designed for creating custom wiring solutions, performing repairs on existing OBD2 connections, or for use in test and development environments.

The connector is equipped with mounting holes, allowing for a fixed installation in a vehicle or on a test bench. The open end cables provide the flexibility to make connections to specific pins for diagnosis, monitoring, or programming of vehicle systems. The wiring uses red and black wires for a clear installation.

Application and functionality:

This OBD2 connector with open end cables is intended for technicians and developers who need to create a custom connection to a vehicle network.

• Custom wiring: Enables installing an OBD2 port in vehicles not originally equipped with one or for specific projects.
• Repair and replacement: Suitable for replacing a damaged or defective OBD2 diagnostic port in a vehicle.
• Test setups: Ideal for use on a test bench to test, flash, or program ECUs and other modules outside the vehicle.
• Do-it-yourself projects: Provides a basis for developing your own diagnostic tools, dataloggers, or other OBD2-related hardware.

Compatible vehicles and Applications:

This OBD2 port is a universal component and is not specifically tied to a particular brand or model. Compatibility is determined by the technical requirements of the project for which the connector is used. The connector follows the J1962 standard layout for 16-pin OBD2 ports, making it physically compatible with all standard male OBD2 plugs.

Important: The correct pinout and wiring depend on the specific Application and vehicle protocol (e.g., CAN, K-Line). Check the technical documentation of your project or vehicle before connecting the wiring.

Package Contents:

• 1x 16-pin OBD2 Port (Female) with 16 Open End Cables (30 cm)

Technical specifications:
