Topdon UltraDiag | Diagnostic Tool | Car

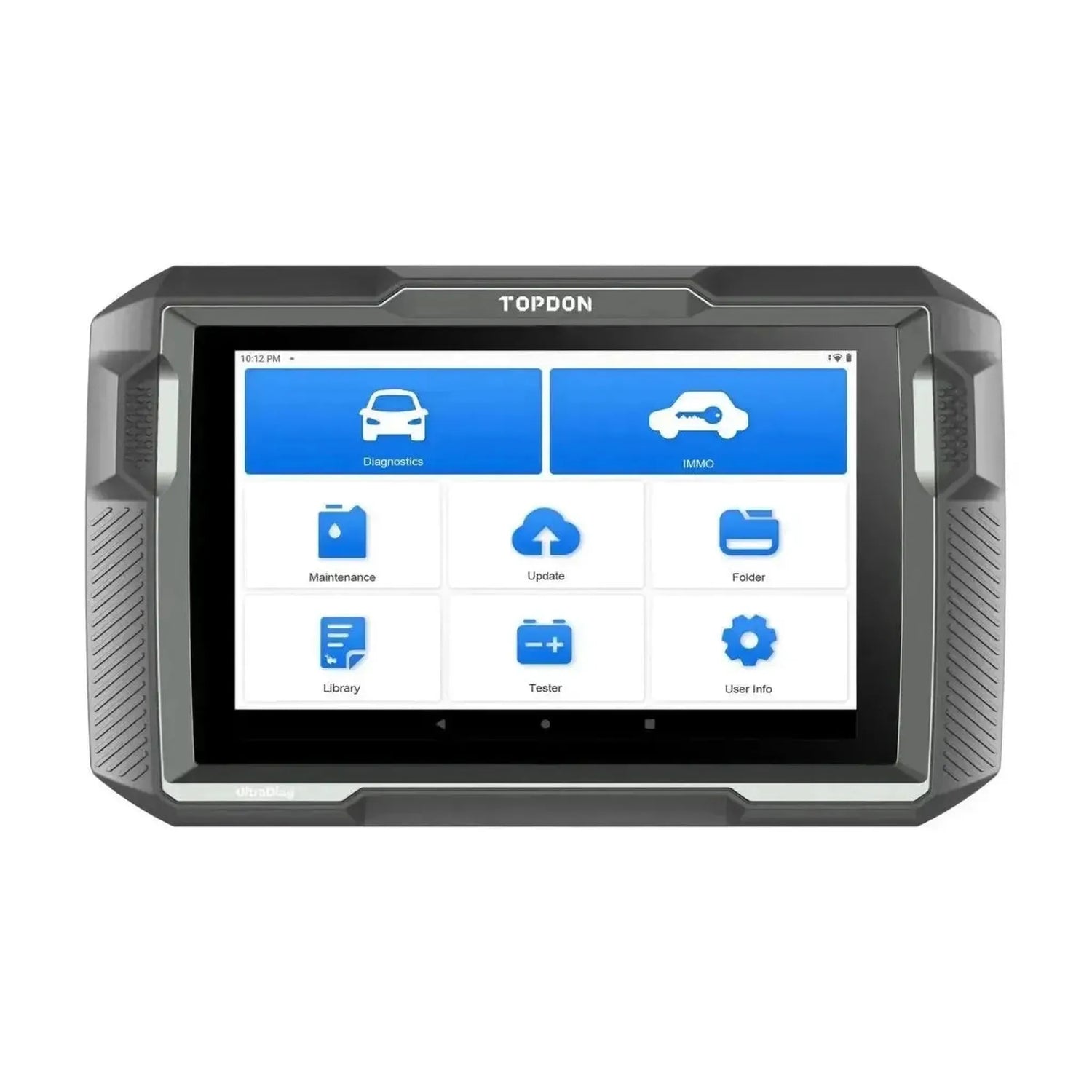

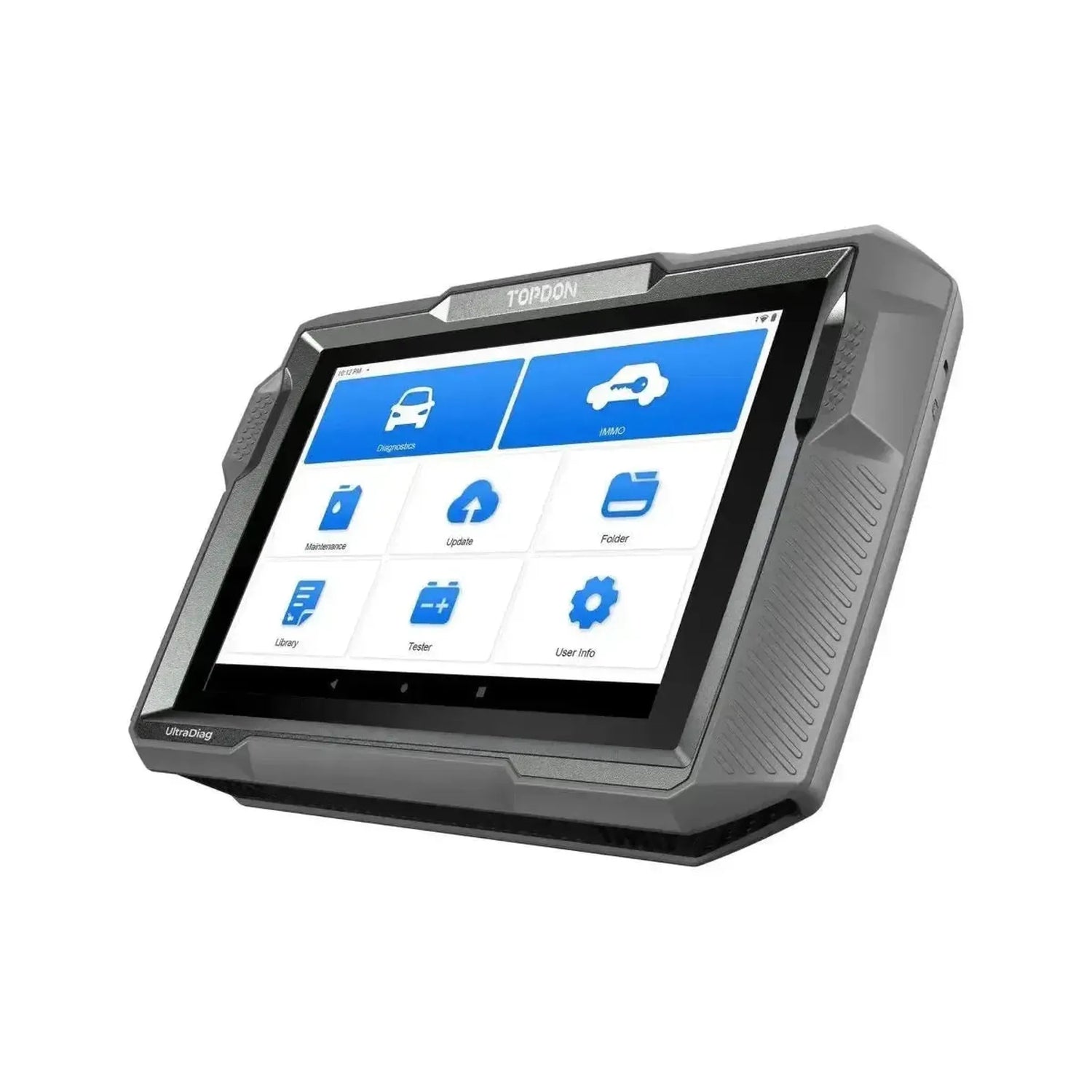

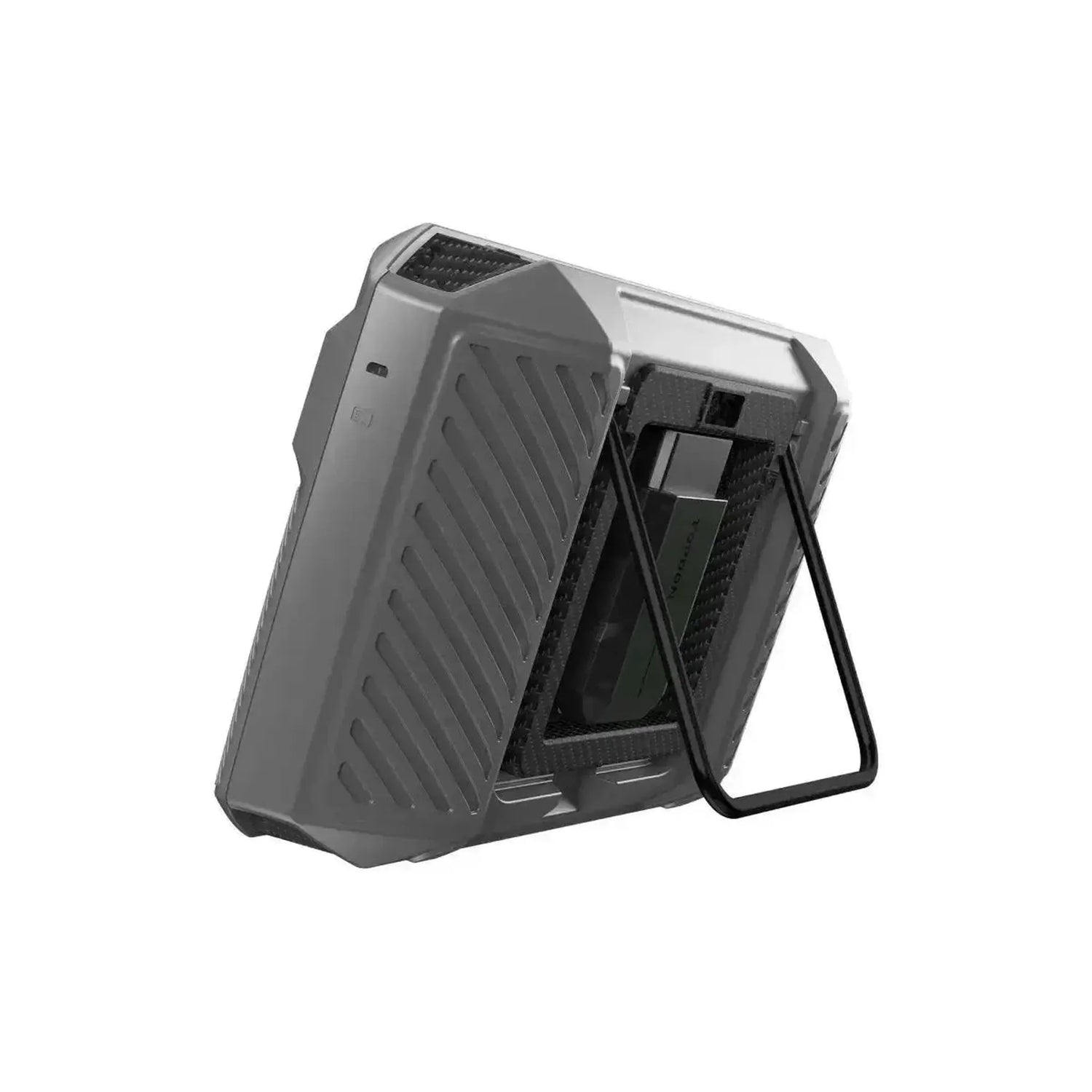

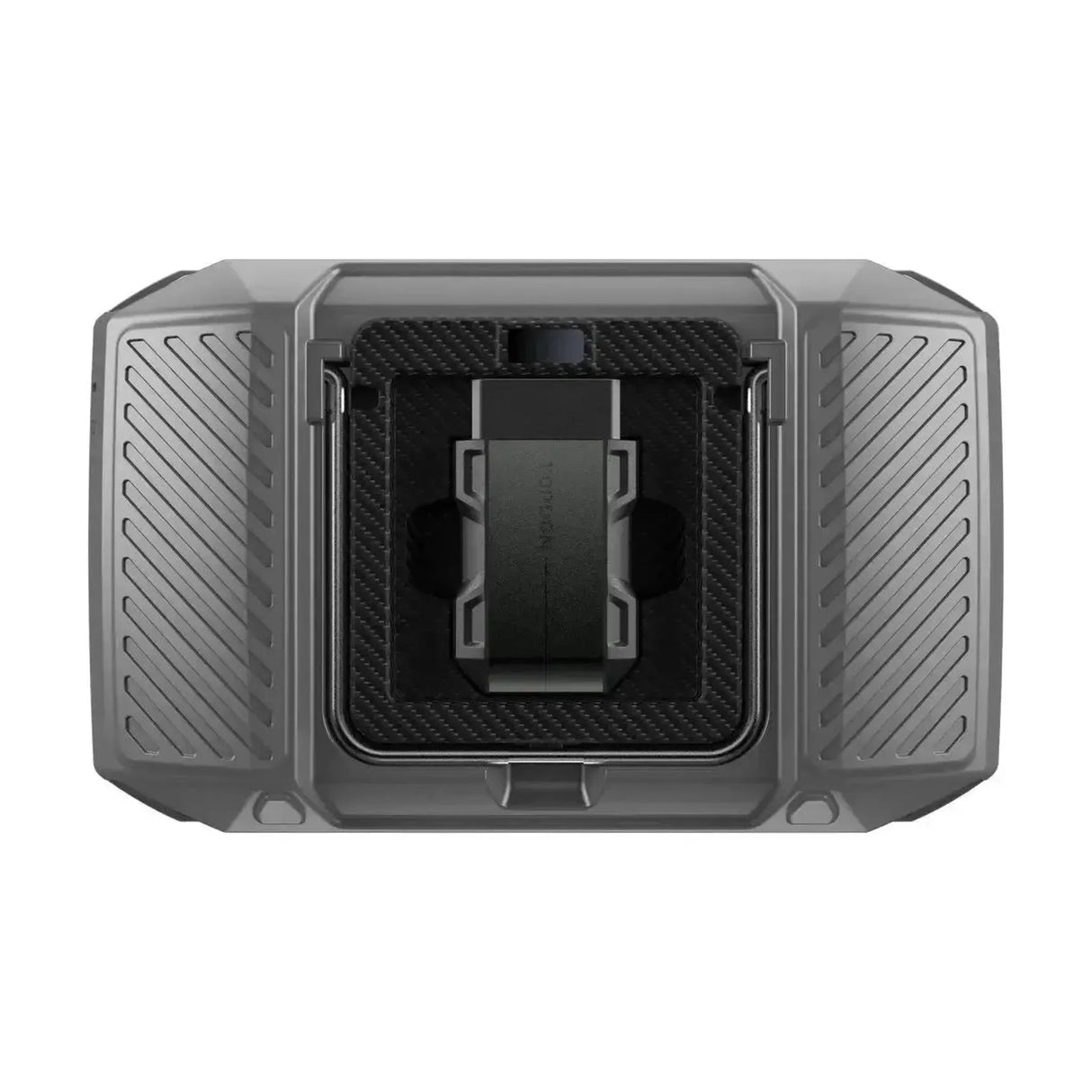

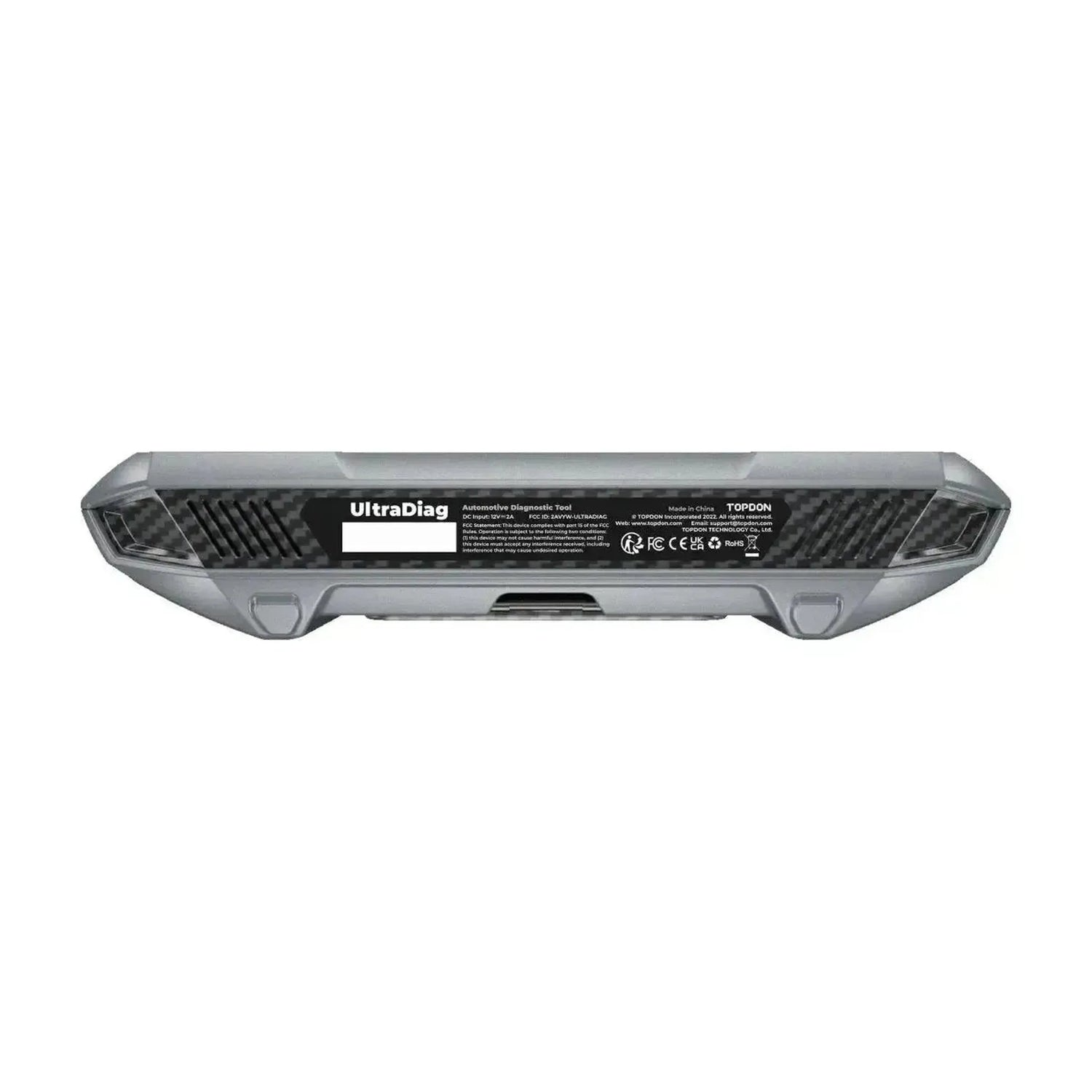

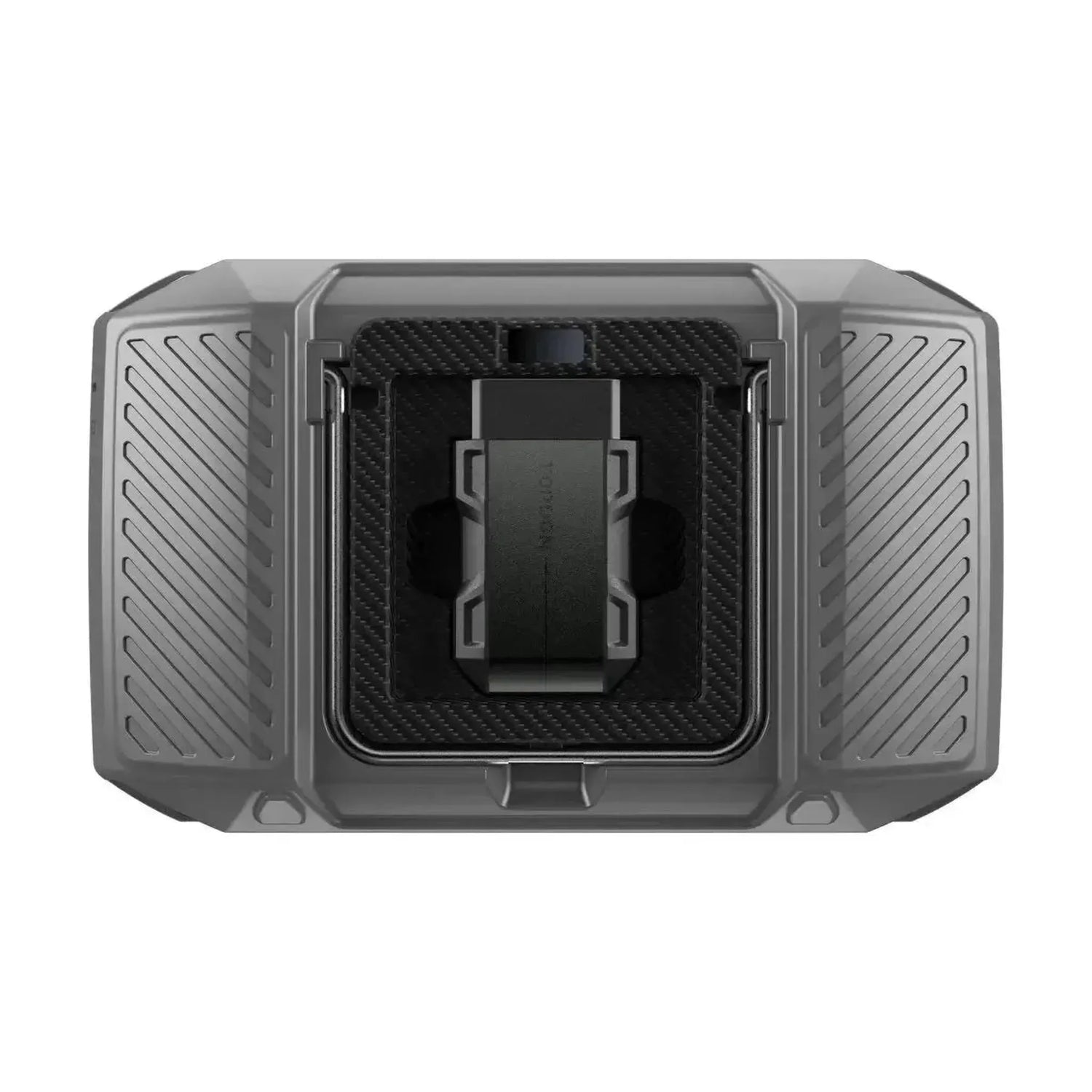

The Topdon UltraDiag is a reader device that offers a full system diagnosis for more than 100 vehicle brands. The device is equipped with a 8-inch touchscreen, runs on Android 11.0, and connects via Bluetooth 5.0. Key functionalities include reading and clearing fault codes, performing service and maintenance functions, and programming keys. The license includes 2 years of software updates.

Additionally, the Topdon UltraDiag features bidirectional control for controlling components, ECU coding, and an integrated repair library with a DTC Repair Guide. Functionality can be further expanded with optional modules, such as a Battery tester, oscilloscope, or videoscope. The system also supports access to secure gateways, such as FCA SGW and Renault SGW, via separately available licenses.

---

Diagnostic functions:

The Topdon UltraDiag performs a full system diagnosis by scanning all electronic control units present in a vehicle. The device supports various diagnostic protocols for broad vehicle coverage.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from all available systems, including engine, transmission, ABS, airbag, and body.
• Live data: Displays real-time data from sensors and components in various views, such as text and graphs, for detailed analysis.
• Actuator control (Bidirectional control): Directly controls individual components and actuators to test functionality, such as activating fuel pumps, injectors, or cooling fans.

---

Key and EEPROM functions:

This device offers functions for the management and programming of vehicle keys and immobilizers. The availability of these functions may vary depending on the vehicle make and model.

Key functions:

• Learn keys: Programming new or replacement keys into the vehicle's immobilizer system.
• Erase keys: Deactivating lost or stolen keys from the vehicle's memory.
• All keys lost: Programming a new key when no working keys are available.

---

Service and maintenance functions:

This device supports more than 25 service and maintenance functions. Available functions may vary by vehicle brand, model, and year of manufacture.

Engine and drivetrain:

• Reset oil: Resetting the service message after an oil change.
• Learn throttle body: Learning the basic settings of the throttle body after replacement or cleaning.
• Code injector: Entering the correction codes for new injectors into the engine control unit.
• Learn transmission: Learning the shift points of the automatic transmission for smooth transitions.
• Test cylinder balance: Analyzing the performance of individual cylinders to diagnose power loss.
• Reset start/stop system: Resetting or configuring the automatic start/stop system.
• Bleed coolant: Activating the water pump to bleed the cooling system after maintenance.
• Reset air/fuel ratio: Resetting the adaptive values for the air-fuel ratio.
• Learn variable geometry turbo (VGT): Calibrating the actuator of the variable geometry turbo.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Forcing the regeneration of the diesel particulate filter to clear blockages.
• EGR adaptation: Learning the values of the exhaust gas recirculation valve after cleaning or replacement.
• Reset AdBlue system (SCR): Resetting the AdBlue system after refilling or repair.
• Reset NOx sensor: Reset the values of the NOx sensor after replacement.

Brakes:

• Initialize electronic parking brake (EPB): Release and initialize the electronic parking brake for maintenance on the brake pads.
• Bleed ABS: Automatically bleed the brake system after replacing components of the anti-lock braking system.

Steering and suspension:

• Initialize steering angle sensor (SAS): Calibrate the steering angle sensor after alignment or replacement of steering components.
• Calibrate air suspension: Adjust and calibrate the ride height of the air suspension.
• Reset adaptive front lighting system (AFS): Calibrate the adaptive front lighting system.

Safety systems:

• Reset airbag module: Reset the airbag module after replacing components.
• Reset tire pressure monitoring system (TPMS): Relearn TPMS sensors and reset warning lights.

Body and electronics:

• Register Battery management system (BMS): Register a new Battery in the vehicle system.
• Initialize sunroof: Reset the basic settings of the sunroof after a power interruption or repair.
• Calibrate windows: Calibrate the end positions of the electric windows.
• Calibrate seats: Teach the seat positions or memory functions.
• Correct odometer reading (ODO): Adjust the odometer reading on the instrument panel after replacement.
• Adjust tire size: Configure the correct tire size in the vehicle system.
• Change language: Change the display language of the vehicle system.
• Enable and disable transport mode: Activate or deactivate the transport mode, which limits certain functions.

---

Special features and capabilities:

The Topdon UltraDiag offers advanced functions for coding, reporting, and technical support.

Coding and programming:

• ECU coding: Adjust vehicle settings by modifying the software code in the electronic control units (ECUs).

Cloud and reporting features:

• Generate diagnostic reports: Create detailed reports of the diagnostic session, which can be saved, printed, or shared.

Documentation and diagrams:

• DTC Repair Guide: Provides step-by-step troubleshooting guides and possible causes for specific fault codes.
• Repair Library: An integrated database with technical information, service bulletins, and repair manuals.

Other special features:

• AutoVIN: Automatic identification of the vehicle identification number (VIN) for a quick start of the diagnosis.

---

Optional expansion modules:

The functionality of the Topdon UltraDiag can be expanded with various optional hardware and software modules. These expansions are specifically developed by Topdon and are sold separately.

Hardware modules and accessories:

• BTMobile Pros: A Battery tester for performing various Battery tests, such as start and charge tests.

Software modules and licenses:

• FCA Secure Gateway (SGW) license: Offers authorized access to the secure diagnostic systems of Fiat, Chrysler, Alfa Romeo, and Jeep vehicles.
• Renault Secure Gateway (SGW) license: Provides authorized access to the secure diagnostic systems of Renault and Dacia vehicles.

---

Supported vehicle brands:

The Topdon UltraDiag supports a wide range of European, Asian, American, and Chinese vehicle brands.

• European: Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DS, Fiat, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, Volkswagen.
• Asian: Acura, Daewoo, Daihatsu, Force, Genesis, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Renault Samsung, Scion, SsangYong, Subaru, Suzuki, Tata, Toyota.
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, GMC, Holden, Jeep, Lincoln.
• Chinese: Aeolus, BAIC, Baichuansu, Brilliance, BYD, Chery, Denza, DFFG, DFFX, Emgrand, Englon, Exeed, Geely, Gleagle, Great Wall, Hafei, Jetour, Karry, Maple, Maxus, MG, Rely, Riich, Roewe, Senova, Sokon, SWM, Venucia, Weiwang.

---

Package Contents:

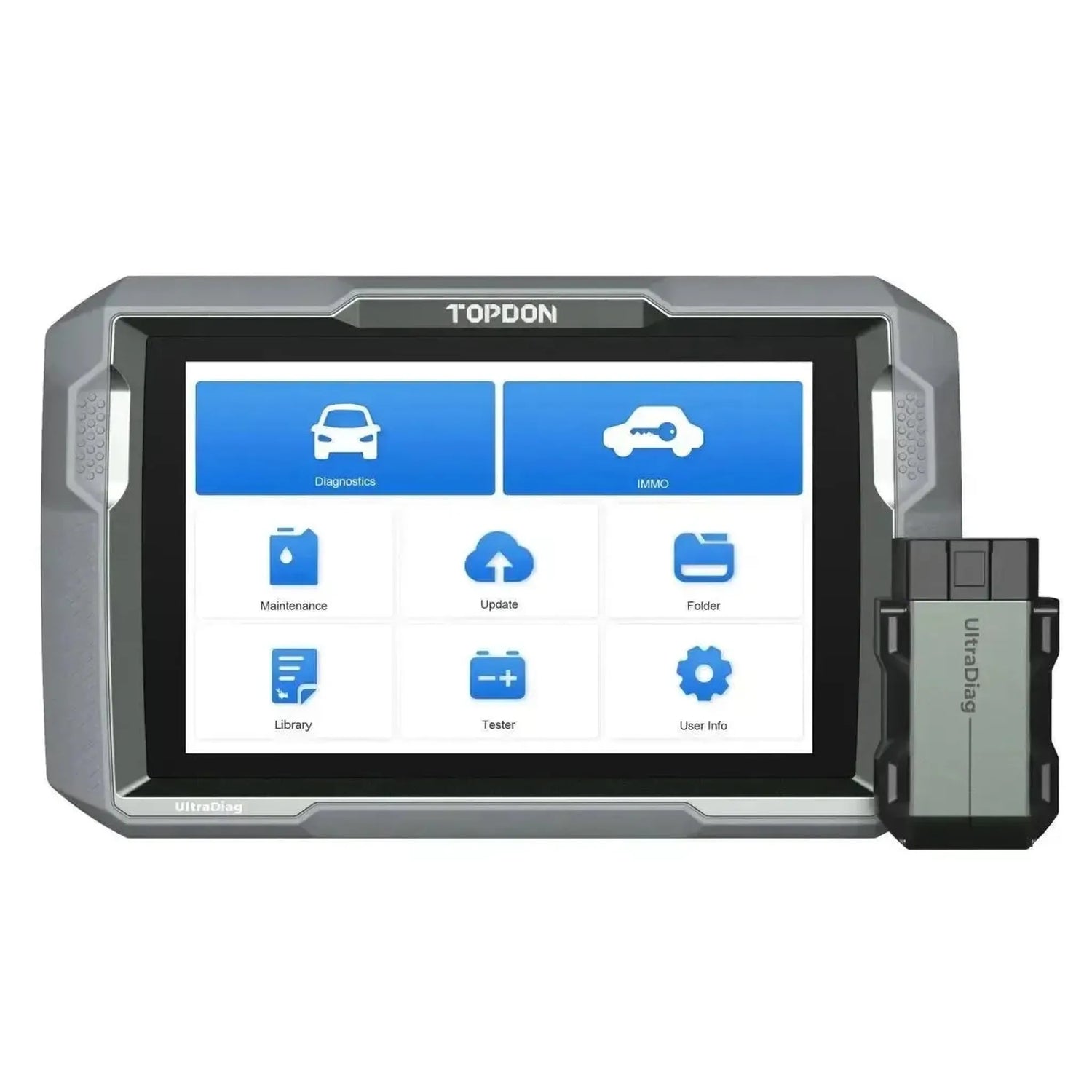

• 1x Topdon UltraDiag reader device
• 1x MDCI VCI
• 1x OBD2 extension cable
• 1x USB cable (Type-C)
• 1x Power adapter
• 1x User manual
• 1x Quick start guide
• 1x Storage case
• 1x Package box

---

License information:

• Includes 2 years of updates: A 24-month update license is included with purchase.

After the license period expires, the device will continue to operate based on the last installed software version. Access to new software updates and certain online features will no longer be available without a new license.

---

Technical specifications:

Specification	Description
Product Brand	Topdon
Product Model	UltraDiag
Operating System	Android 11.0
Screen Size	8 inch
Screen Resolution	1280x800 pixels
Processor	4-core, 2.0 GHz
RAM Memory	4 GB
Storage Memory	64 GB

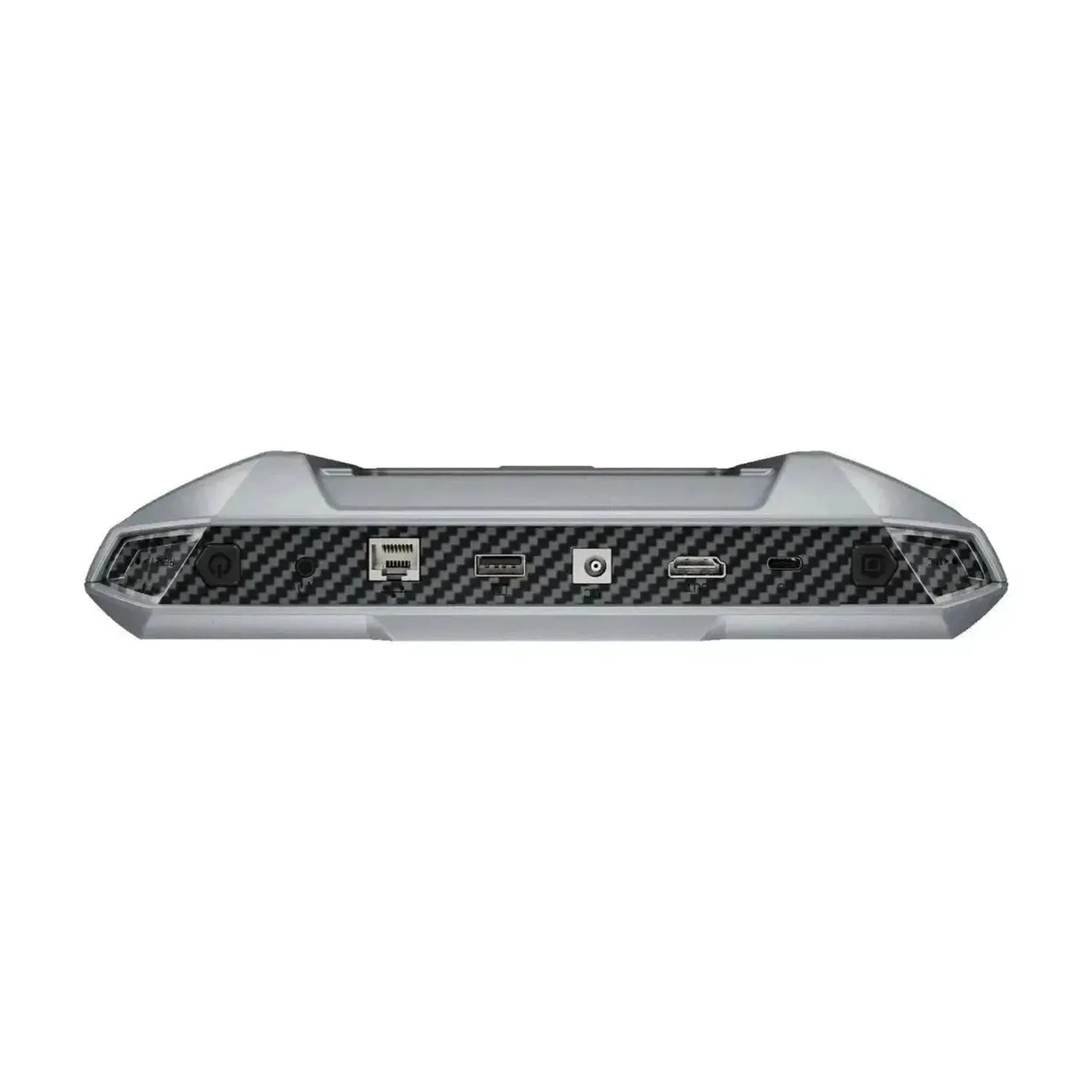

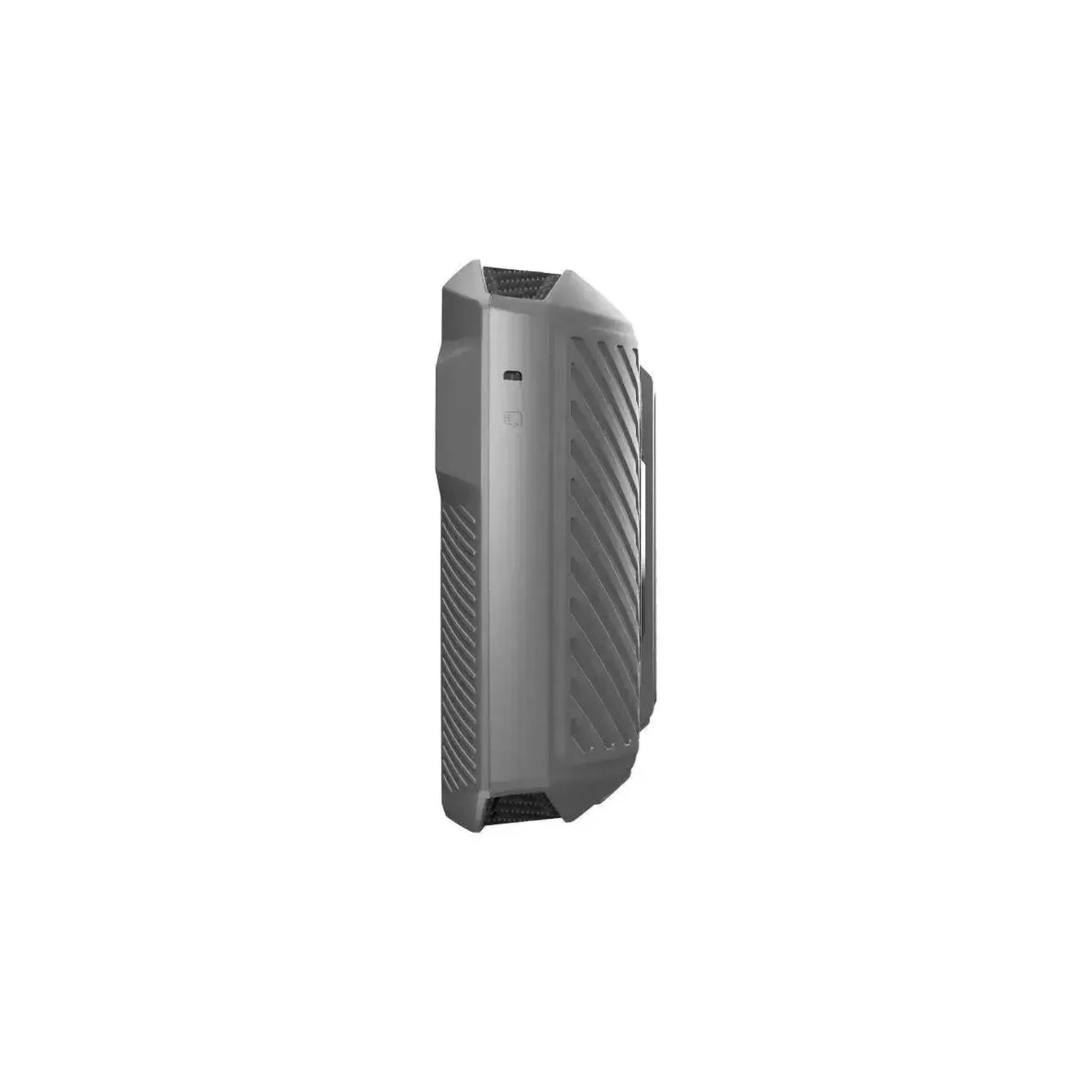

Connectivity	Bluetooth 5.0, Wi-Fi, USB Type-A, USB Type-C, RJ45
Camera	8 Megapixels (rear)
Battery	10,000 mAh
