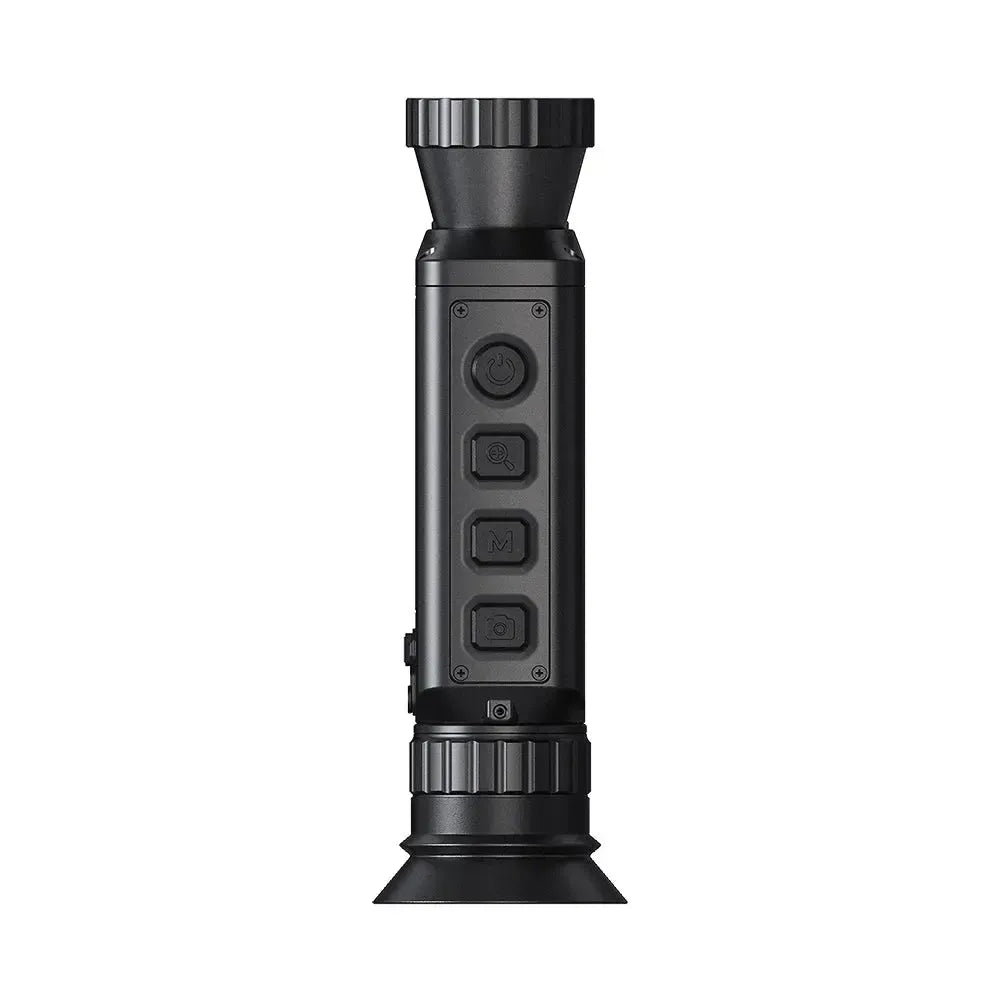

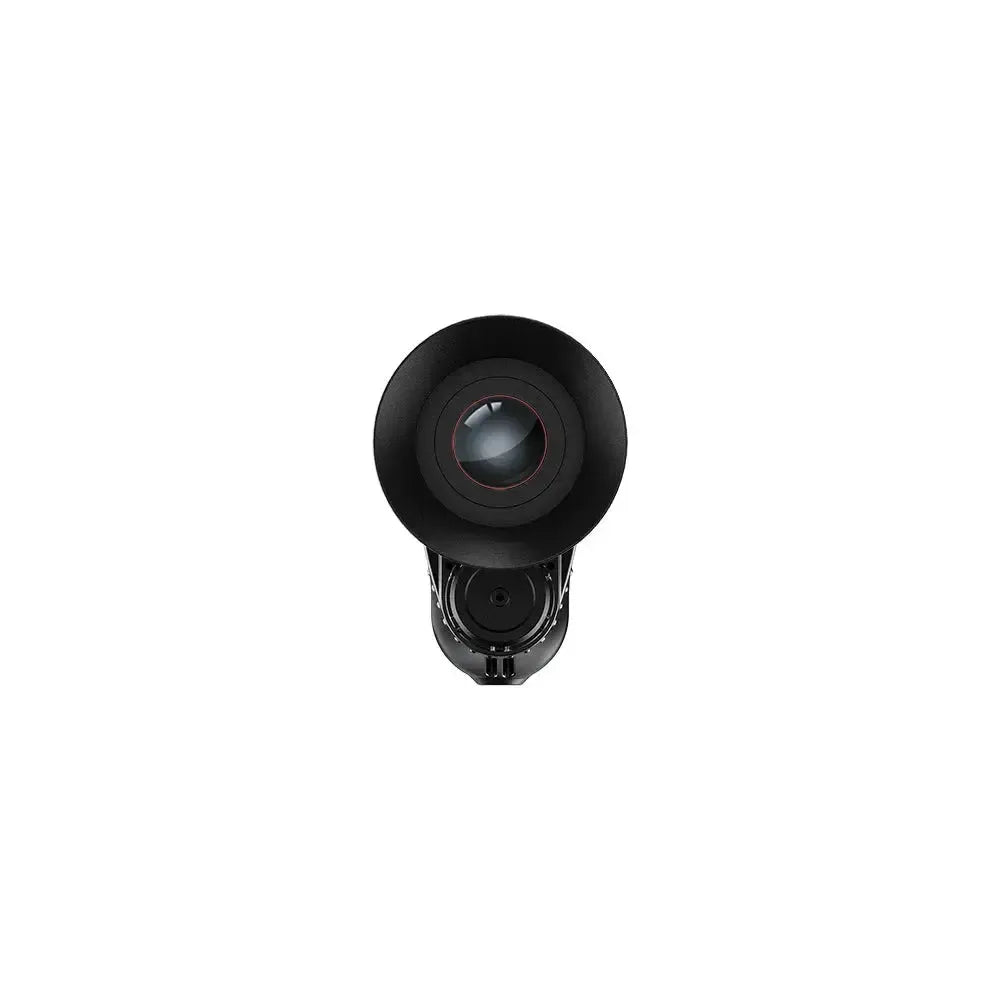

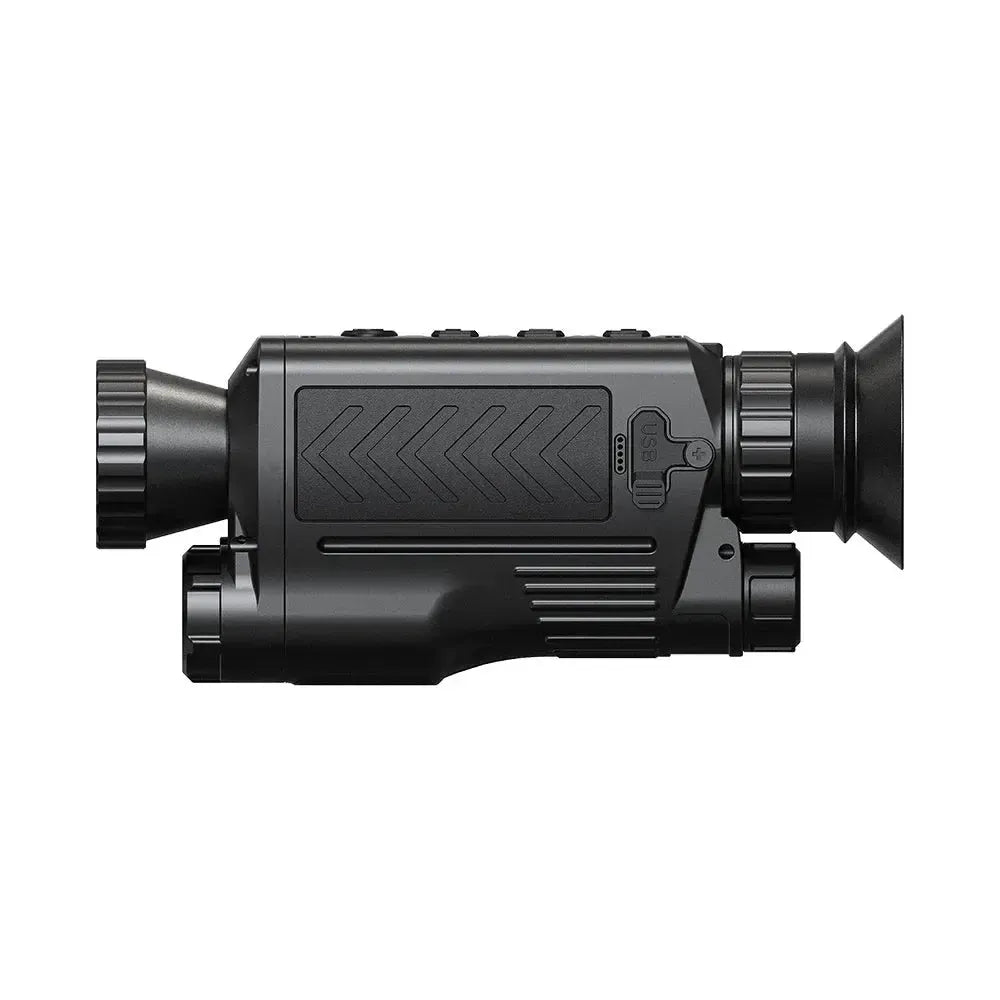

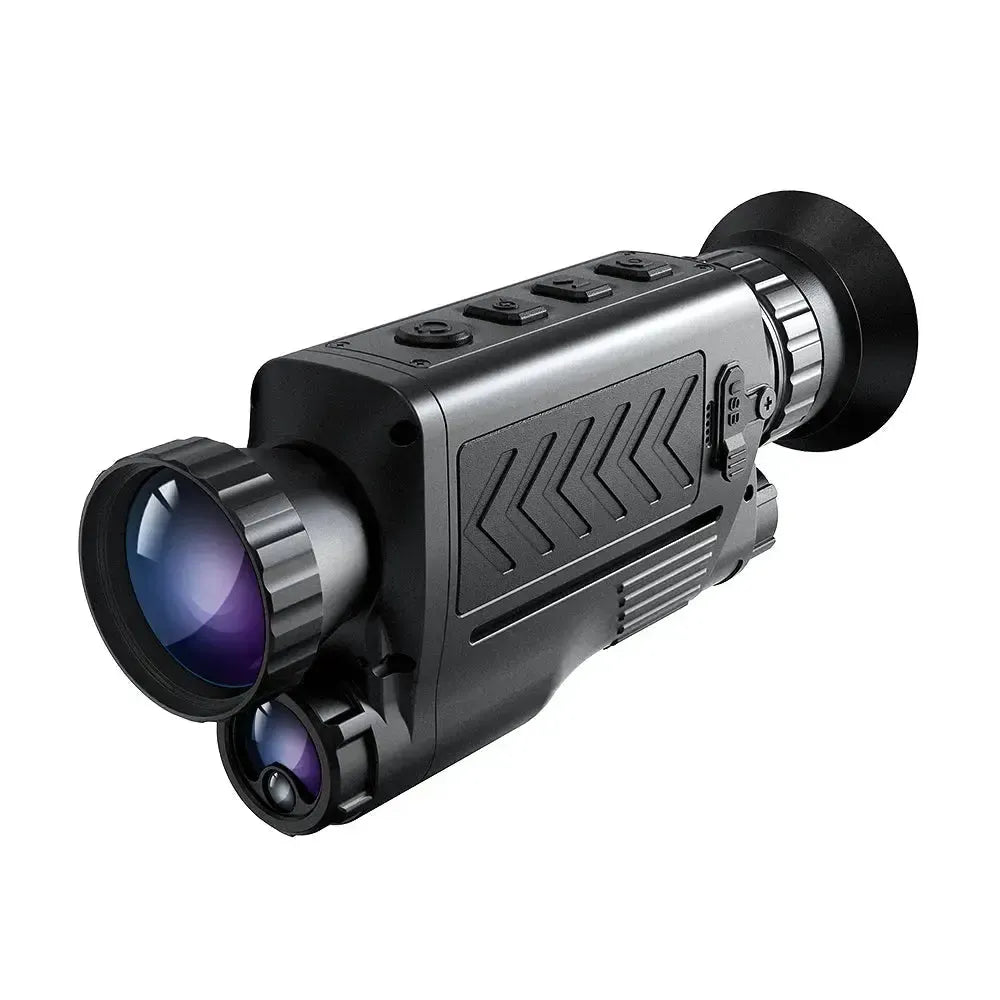

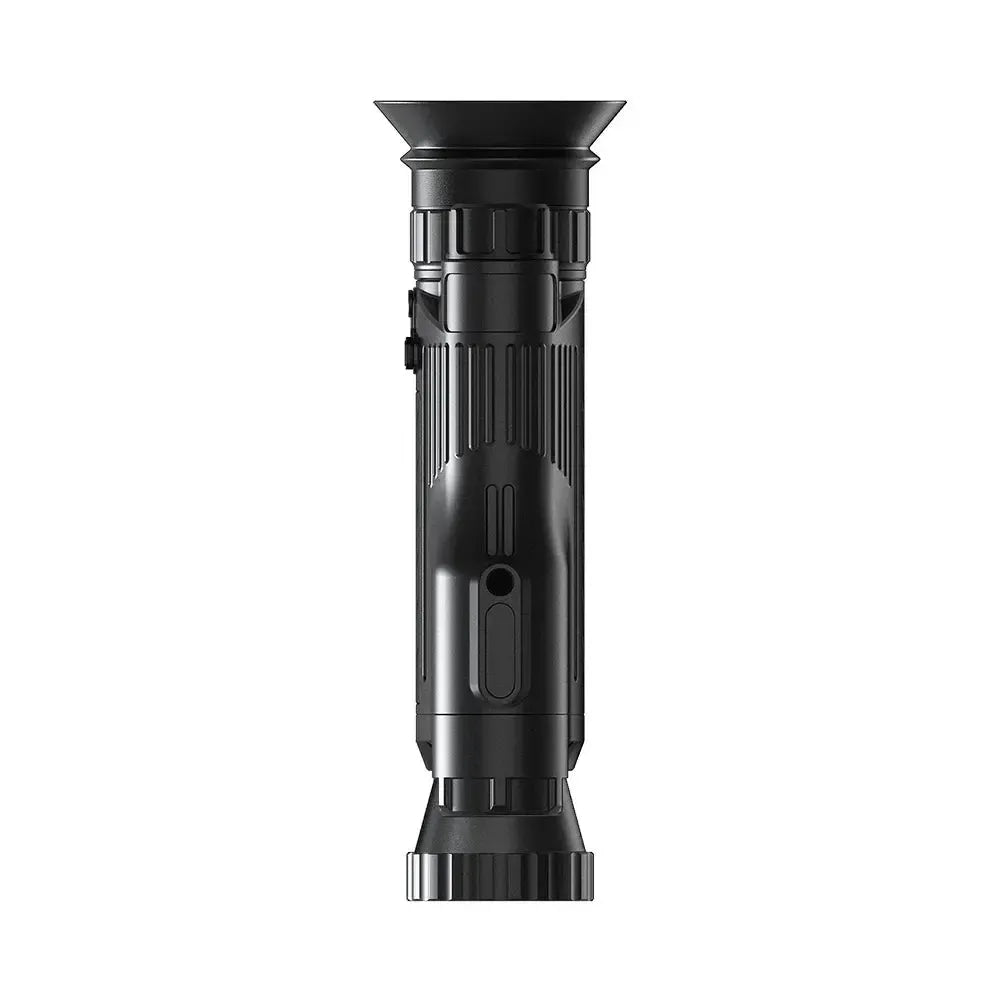

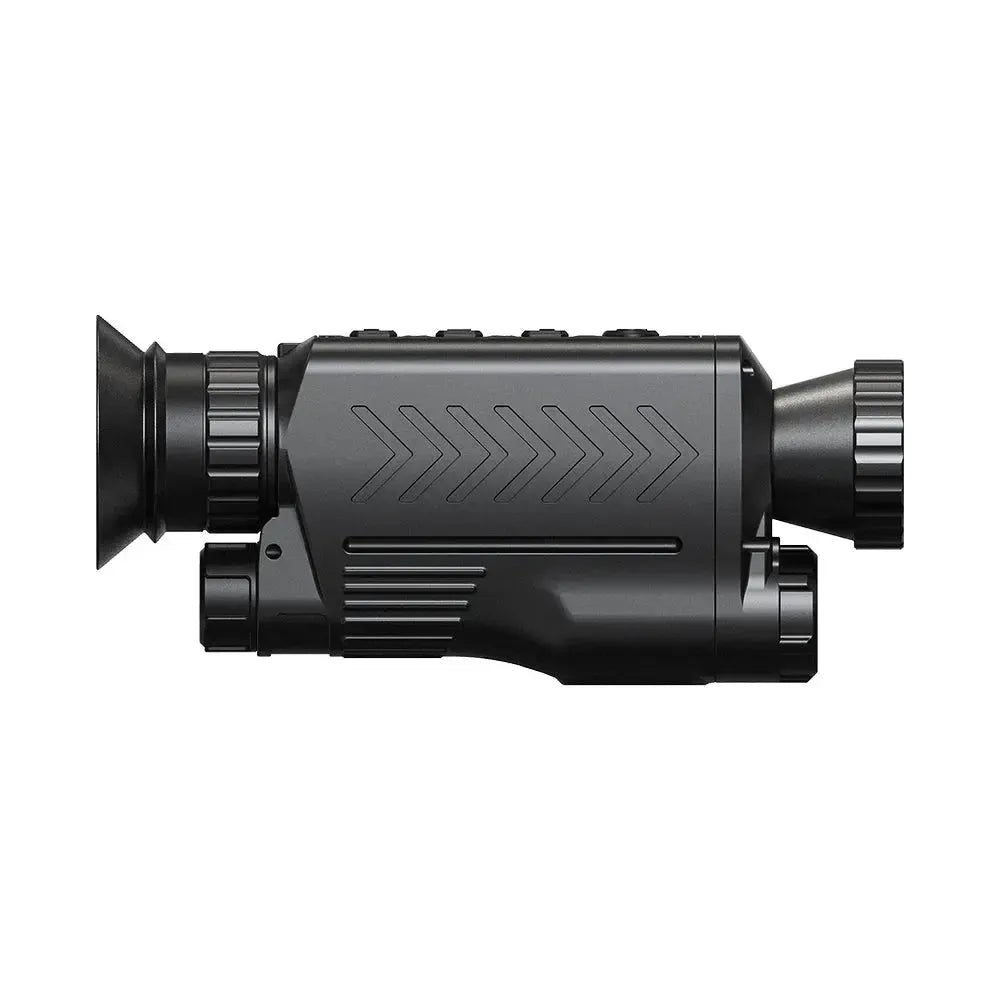

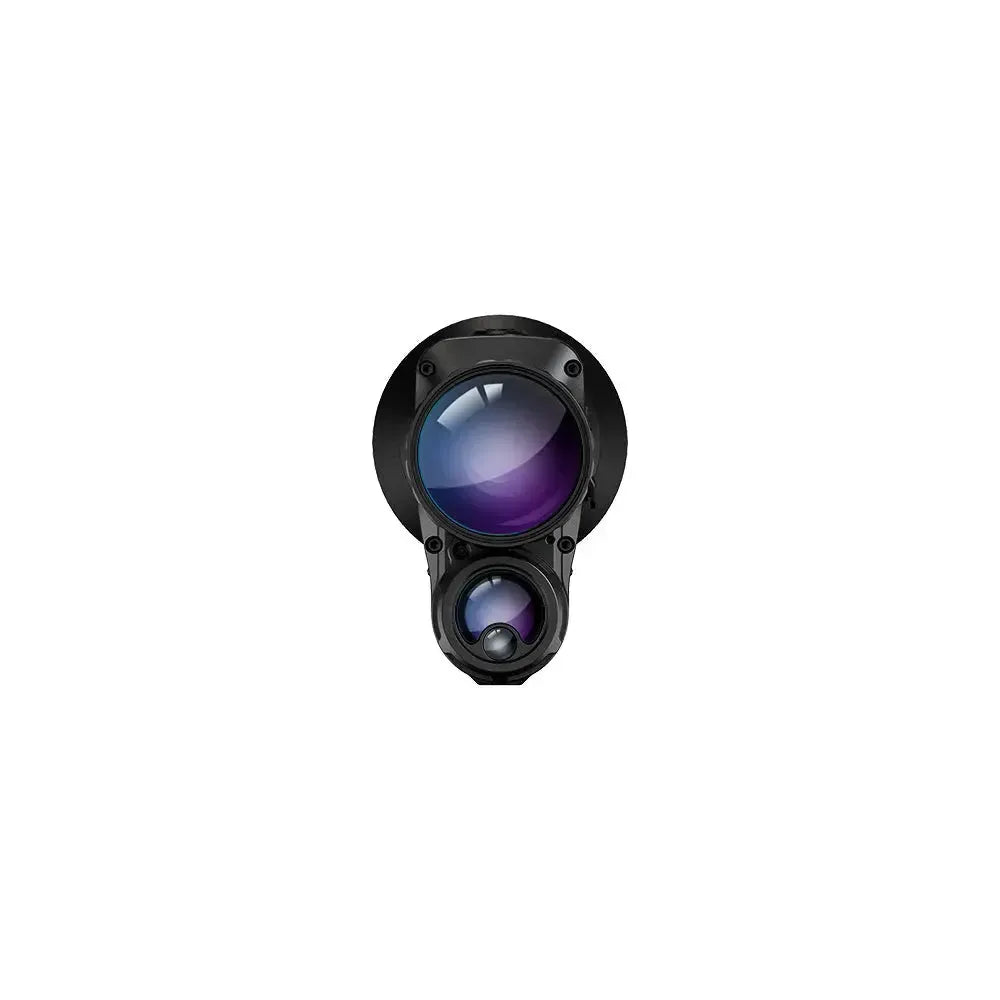

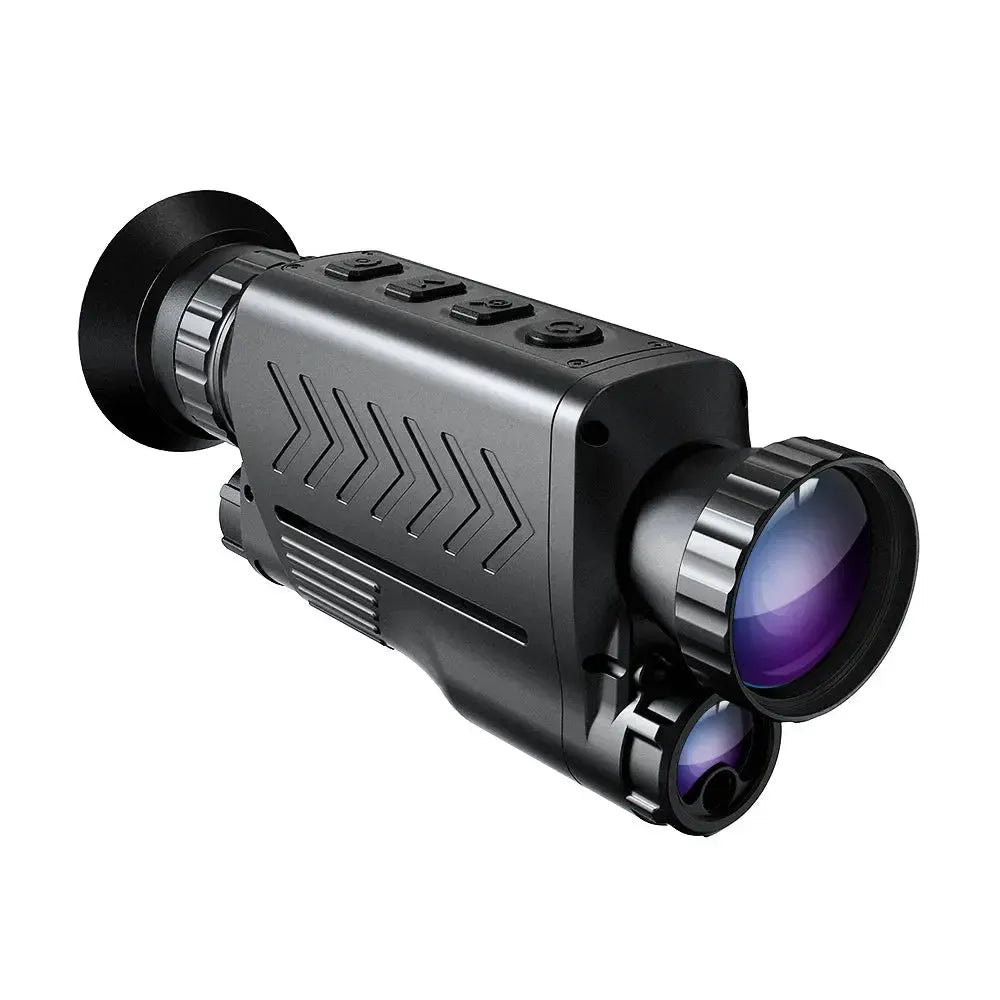

Topdon TS005 Thermal Imaging Camera

The Topdon TS005 is a robust and versatile handheld thermal imaging camera, developed for professionals who need a reliable and accurate thermal inspection tool. The camera can be used for various applications, such as inspecting HVAC installations, detecting insulation problems in buildings, analyzing electrical faults, and checking mechanical components. Thanks to the ergonomic design and the intuitive operation via a 3.5-inch touchscreen combined with physical buttons, the TS005 is simple and efficient to use. The integrated thermal imaging sensor and visual camera make it possible to detect anomalies not only thermally but also to precisely locate them visually.

Technically, the TS005 delivers performance that meets the demands of professional use. The infrared resolution of 256 x 192 pixels and the high thermal sensitivity (NETD < 50 mK) provide sharp, detailed images in which even minimal temperature differences are clearly visible. With a temperature range of -20 °C to +550 °C, the camera is suitable for measurements under various conditions. The image frequency of 25 Hz allows for smooth real-time viewing – an important advantage when scanning larger surfaces or moving parts. The internal battery offers a usage time of up to 5 hours, while images and videos are securely stored on the built-in 32 GB memory.

Features:

• High resolution thermal image: The infrared sensor with a resolution of 256 x 192 pixels delivers clear and detailed thermal images, ideal for precise analysis.
• Dual Camera Mode: The combination of a thermal sensor and a 2 MP visual camera provides an additional visual reference during inspections.
• Wide Temperature Range: Suitable for measuring temperatures between -20 °C and +550 °C, usable in various applications.
• Accurate Detection: Thanks to a thermal sensitivity (NETD) of less than 50 mK, even small temperature differences are clearly visible.
• Smooth Image Display: The 25 Hz frame rate ensures real-time, smooth display without delay.
• Data Storage: Images and videos are automatically saved on the built-in 32 GB eMMC memory.
• Long Battery Life: Up to 5 hours of continuous use on a full charge, suitable for longer inspection sessions.
• Fast Startup Time: The camera is ready for use within 5 seconds, ideal for immediate deployment on site.
• Point, Line, and Area Analysis: Accurately measure temperatures at specific points (min/max/center), lines, or selected areas on the screen.
• PC Analysis via USB: Images can be transferred via USB-C to a PC for extensive analysis and reporting.

Additional features and special capabilities:

• Color Palettes: Choose from 7 color schemes, including White Hot, Black Hot, and Rainbow, for optimal display in any situation.
• Picture-in-Picture & Fusion Mode: Thermal images can be combined with visual images for better orientation and context.
• Adjustable Emissivity: Adjust the emissivity value from 0.01 to 1.00, depending on the material surface being inspected.
• Automatic Temperature Tracking: The camera automatically tracks the hottest and coldest points in the field of view.
• Temperature Alarm: Set threshold values for temperature; when exceeded, a visual alarm is automatically displayed.
• LED Work Light: Built-in LED lamp for better visibility in poorly lit or dark environments.
• IP54 and Drop Resistance: The housing is dust and splash proof (IP54) and resistant to drops from up to 2 meters high.

Package contents:

• Topdon TS005 Thermal Imaging Camera
• USB-A to USB-C Cable
• Power adapter
• Carrying Case
• Screen Protector
• Quick Start Guide
