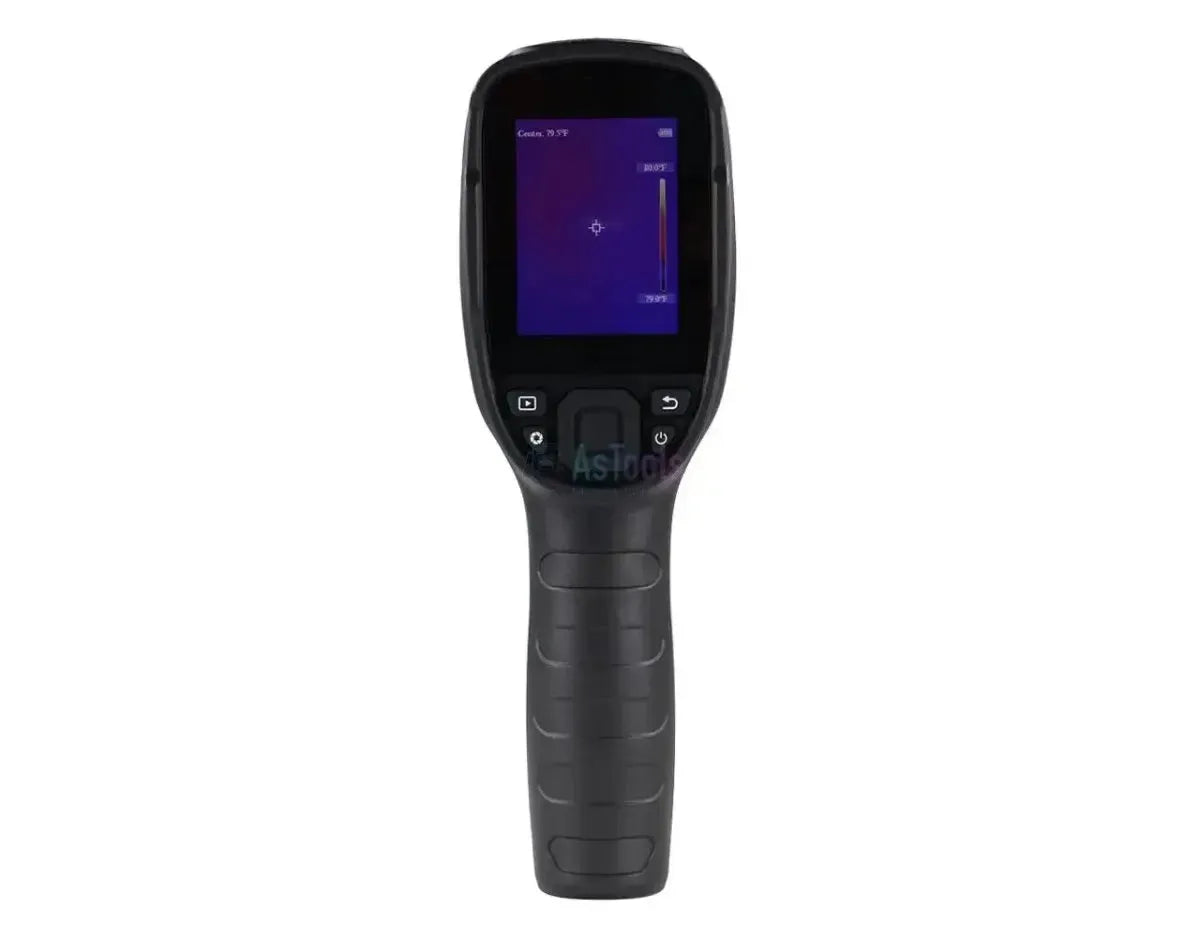

Topdon TCView TC004 Lite Thermal Imaging Camera
The Topdon TCView TC004 Lite is a compact and rugged thermal imaging camera, designed for professionals in electrical engineering, HVAC, automotive, and building inspection. With a thermal resolution of 160×120 pixels and a temperature range of -20 °C to 550 °C, this camera provides reliable performance for detecting temperature differences in various applications.
Thanks to the ergonomic design, the 2.8-inch color screen, and intuitive operation, the TC004 Lite is easy to use. The camera offers multiple color palettes, digital zoom, and adjustable emissivity, allowing users to perform accurate measurements under various conditions.
Features:
- Thermal imaging: Delivers thermal images with a resolution of 160×120 pixels for visualizing temperature differences.
- Temperature range: Measures temperatures from -20 °C to 550 °C with an accuracy of ±2 °C or ±2%.
- Digital zoom: Supports 1x, 2x, and 4x digital zoom for detailed inspections.
- Color palettes: Features five color palettes, including White Hot, Black Hot, Iron, Rainbow, and Red Hot, for optimal visual interpretation.
- Measurement modes: Supports central point measurement, hot-spot and cold-spot detection for targeted temperature measurements.
-
Automatic shutdown: Adjustable automatic shutdown time (5, 10, 20 minutes or off) to save energy.
Special features:
- Compact and lightweight design: Weighing 520 grams, the TC004 Lite is easy to carry and handle in various work environments.
- Long battery life: The built-in 2900 mAh battery offers up to 15 hours of use, suitable for extended inspections.
- Rugged housing: IP54 rated and drop resistant up to 2 meters, making the camera suitable for use in demanding environments.
-
Adjustable emissivity: Adjust the emissivity value (0.01–1.00) for accurate measurements on different materials.

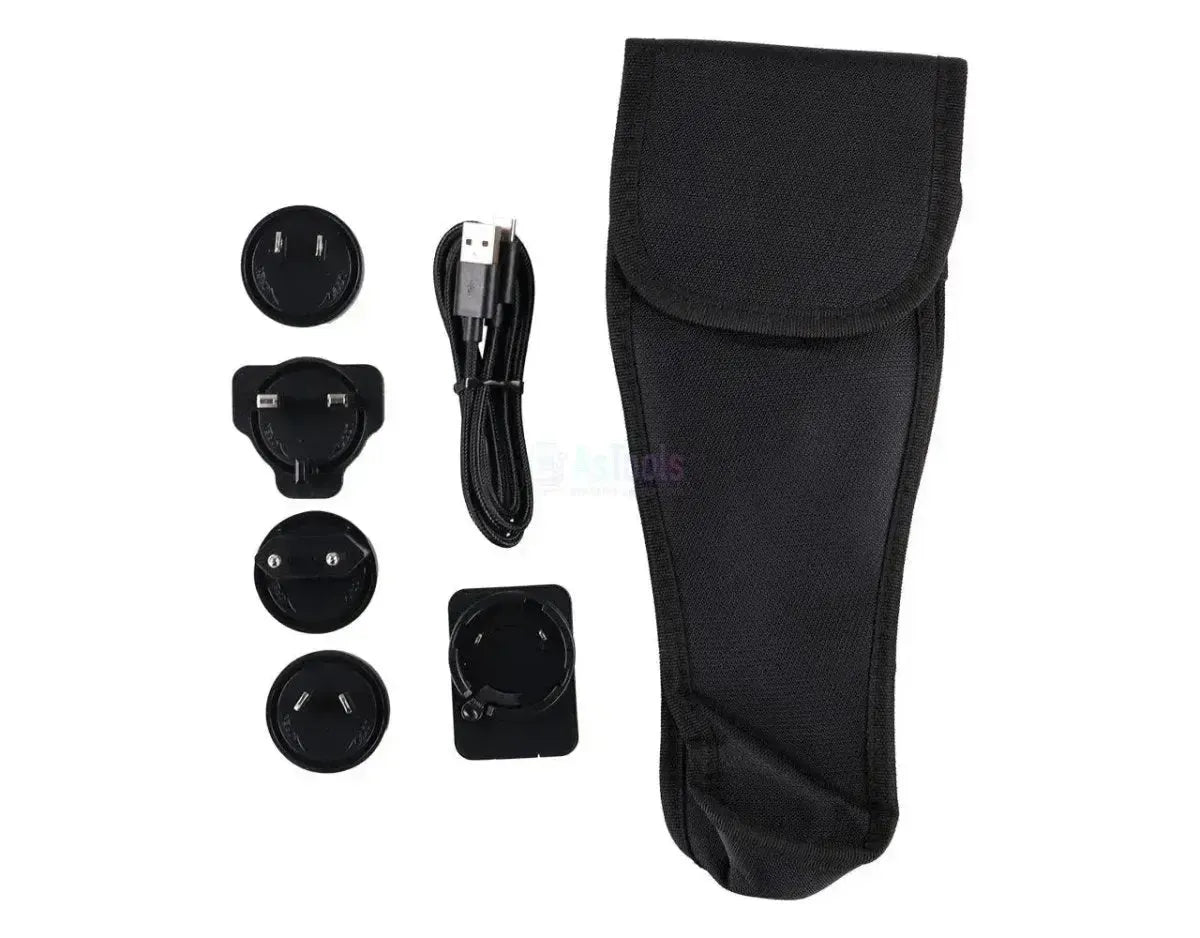

Package contents:
- Topdon TCView TC004 Thermal Imaging Camera
- USB-A - USB-C adapter cable
- Charging plug
- Manual
- Carrying case
Technical specifications
| Specification | Value |
|---|---|
| Thermal resolution | 160 × 120 pixels |
| Image frequency | 25 Hz |
| Temperature range | -20 °C to +550 °C |
| Accuracy | ±2 °C or ±2% |
| Emissivity | Adjustable (0.01 – 1.00) |
| Digital zoom | 1x / 2x / 4x |
| Color palettes | 5 (White Hot, Black Hot, Iron, Rainbow, Red Hot) |
| Measurement modes | Center spot, hot spot, cold spot |
| Display | 2.8" color screen (320×240 pixels) |
| Battery capacity | 2900 mAh |
| Operating time | Up to 15 hours |
| Charging time | About 4 hours |
| Storage | 512 MB internal memory |
| Image storage | Photos only (no video recording) |
| Protection class | IP54 |
| Drop resistance | Up to 2 meters |
| Weight | 520 grams |
| Dimensions | 280 × 165 × 120 mm |
| Operating temperature | -10 °C to +50 °C |
