Topdon TCView TC003 Thermal Imaging Camera

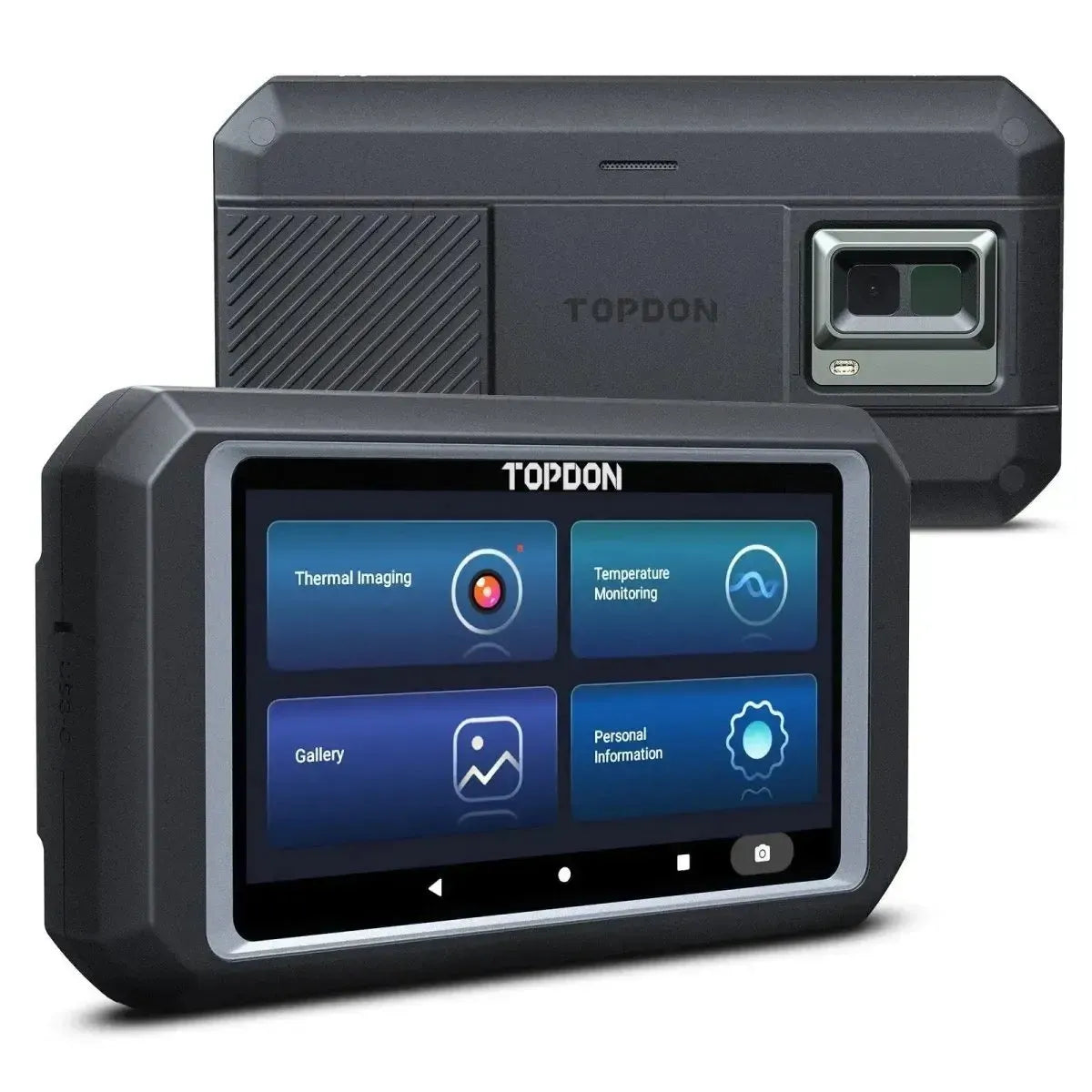

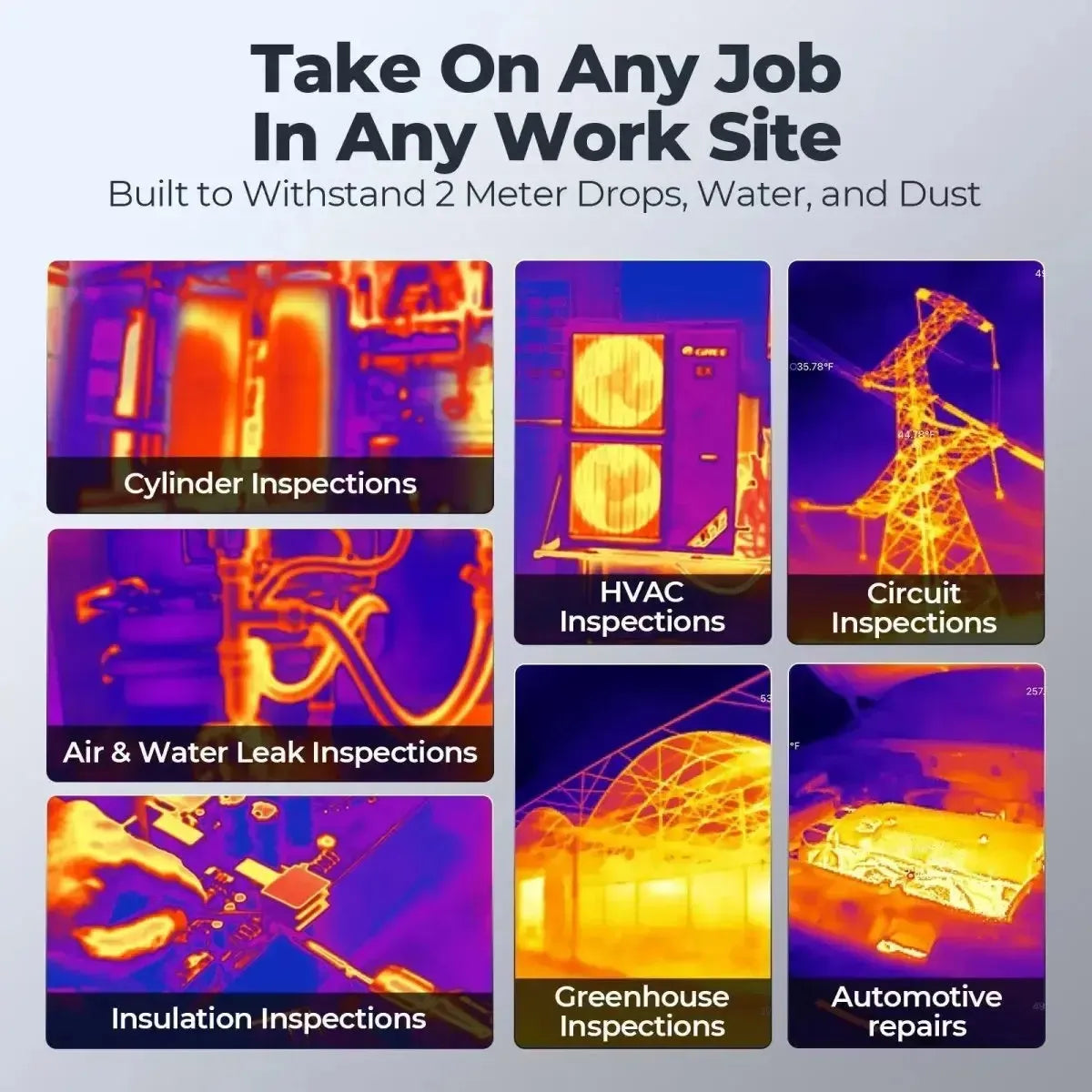

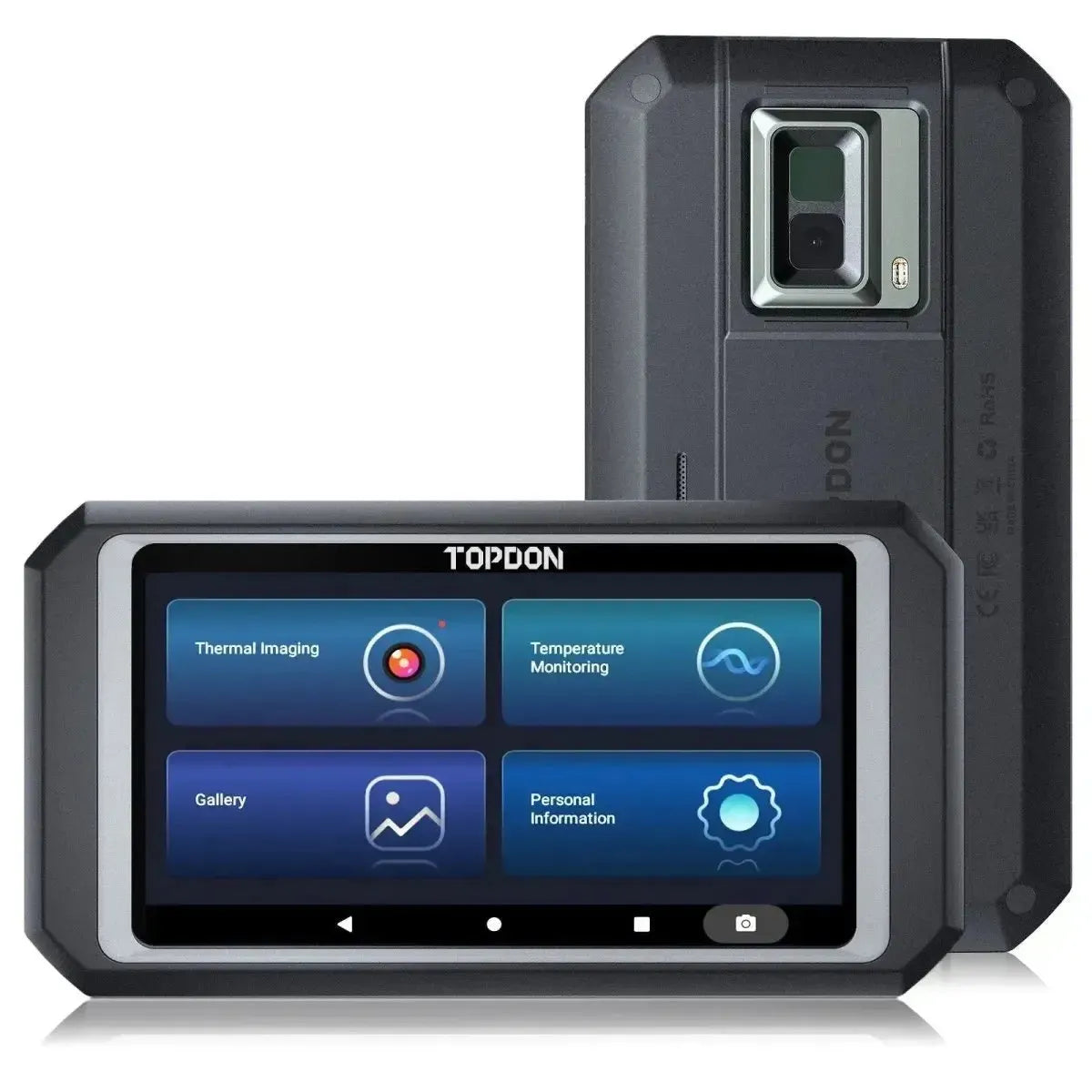

The Topdon TCView TC003 is an advanced thermal imaging camera with an integrated 5-inch touchscreen and a thermal resolution of 256×192 pixels. Designed for professionals in automotive, HVAC, and industrial sectors, the TC003 offers accurate temperature measurements and high-quality thermal images. Thanks to the dual cameras (infrared and visible light) and various imaging modes, this camera is ideal for detecting overheating, heat loss, and other thermal anomalies.
With a temperature range of -20 °C to 550 °C and a sensitivity of <40 mK, the TC003 detects even the smallest temperature differences. The built-in features, such as temperature trend charts and comprehensive analysis software, enable detailed inspections and effective documentation of findings.
Features:
- Thermal imaging: Delivers sharp thermal images with a resolution of 256×192 pixels for accurate temperature detection.
- Dual cameras: Combines infrared and visible light images for enhanced image recognition and analysis.
- Temperature range: Measures temperatures from -20 °C to 550 °C with an accuracy of ±2 °C or ±2%.
- Image modes: Supports four image modes: visible light, thermal, thermal fusion, and contour fusion for various inspection needs.
- Temperature measurements: Offers point, line, and area measurements with the ability to analyze multiple areas simultaneously.
-
Color palettes: Features 11 color palettes, including Iron, Rainbow, and White-hot, for optimal visual interpretation.
Special features:
- Temperature trend charts: Records temperature changes over time in chart form for in-depth analysis.
- Advanced analysis: Perform secondary analyses on stored images to obtain temperature data per pixel.
- Adjustable emissivity: Adjust the emissivity value (0.01–1.00) for accurate measurements on different materials.
- Robust design: Resistant to drops up to 1.5 meters and has an IP54 rating for dust and splash water resistance.
- Connectivity: Supports Wi-Fi and Bluetooth for easy data transfer and remote control.
-
Compatibility: Works with Windows systems via the TCView software for extensive analysis and reporting.

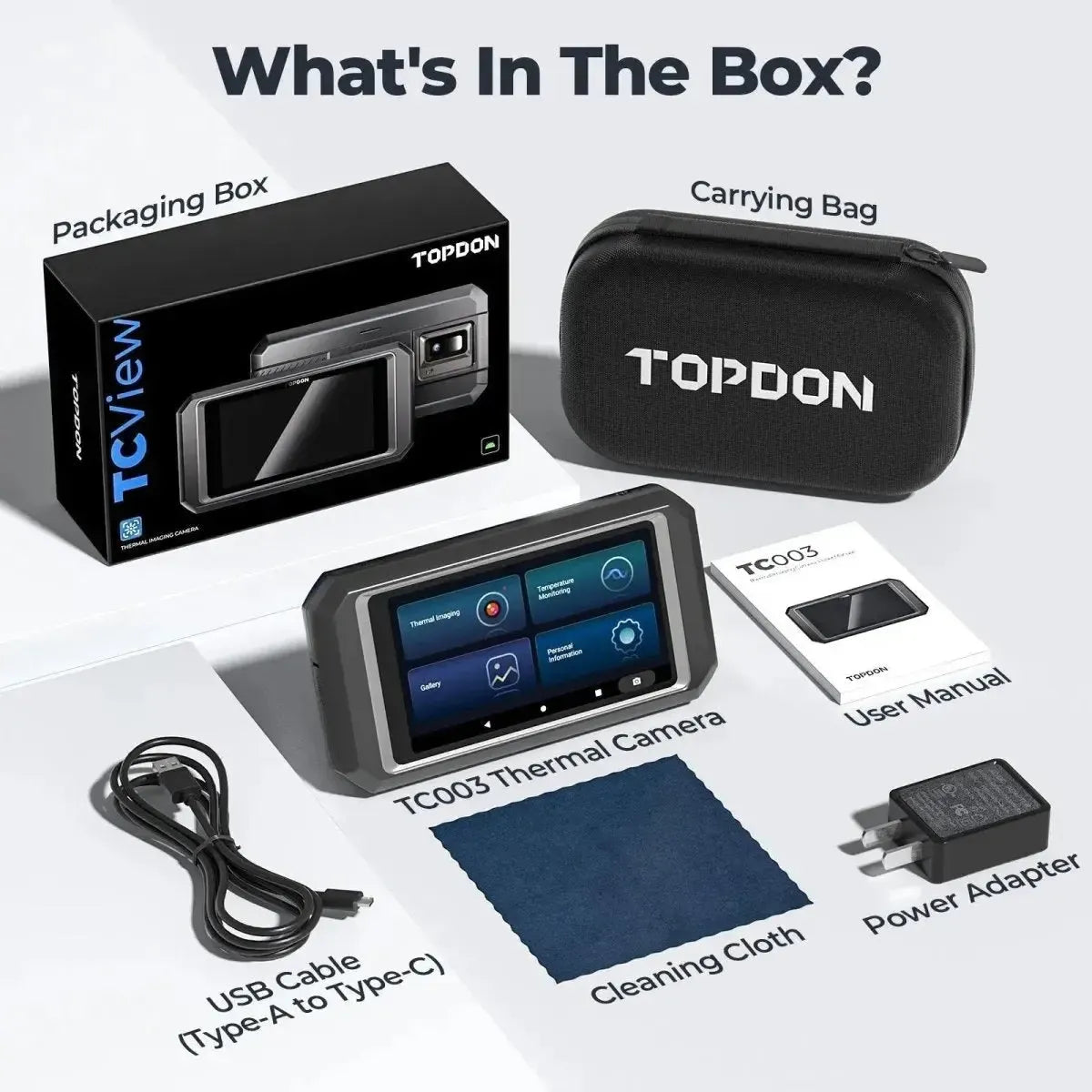

Package contents:
- Topdon TCView TC003 Thermal Imaging Camera
- USB-A - USB-C Adapter Cable
- Power Adapter
- Manual
- Storage bag
- Cleaning cloth
Technical specifications
| Specification | Value |
|---|---|

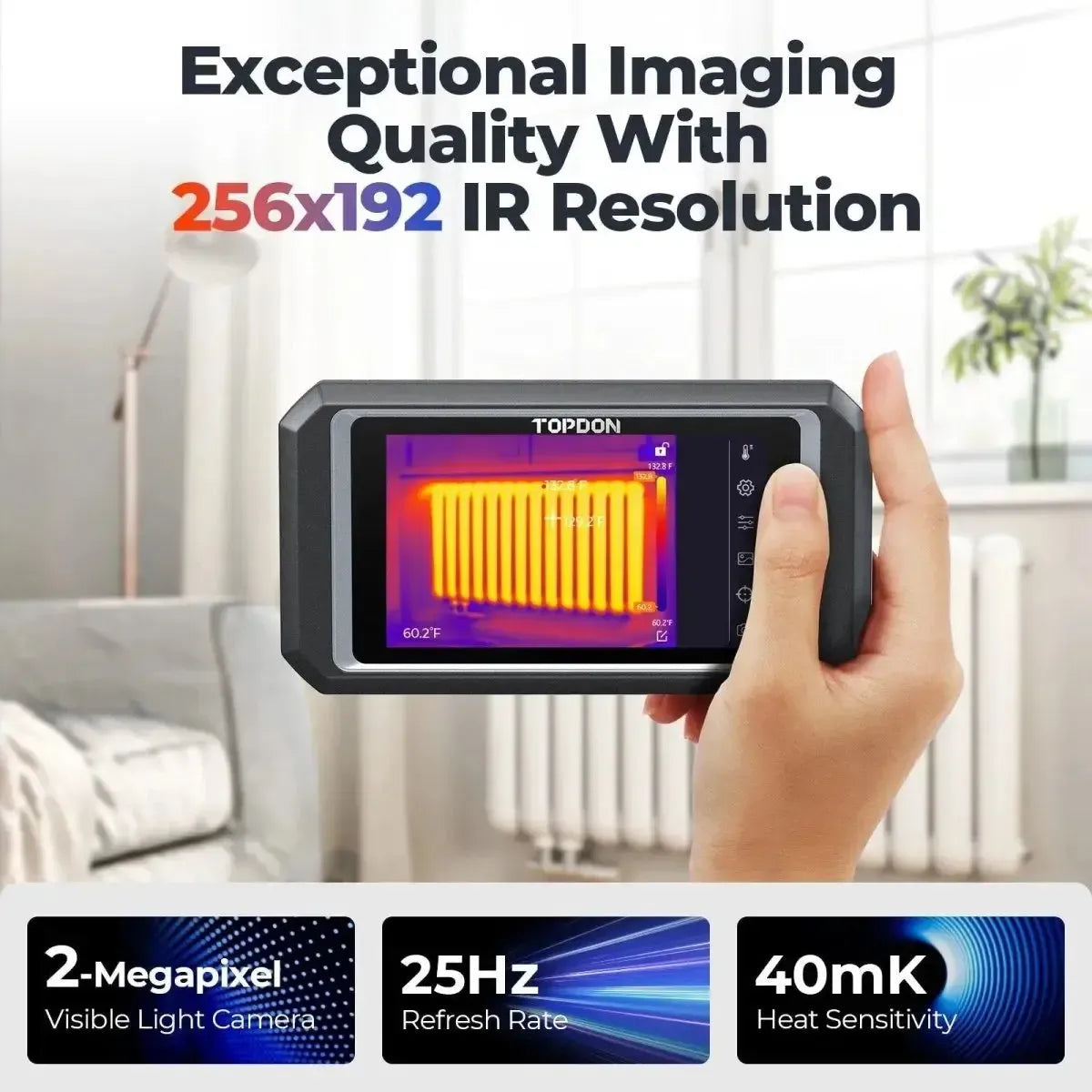

| Thermal Resolution | 256 × 192 pixels |
| Temperature range | -20 °C to +550 °C |
| Accuracy | ±2 °C or ±2% |
| Temperature sensitivity (NETD) | <40 mK |
| Image Frequency | 25 Hz |
| Image modes | Visible light, thermal, thermal fusion, contour fusion |
| Color palettes | 11 (including Iron, Rainbow, White-hot) |

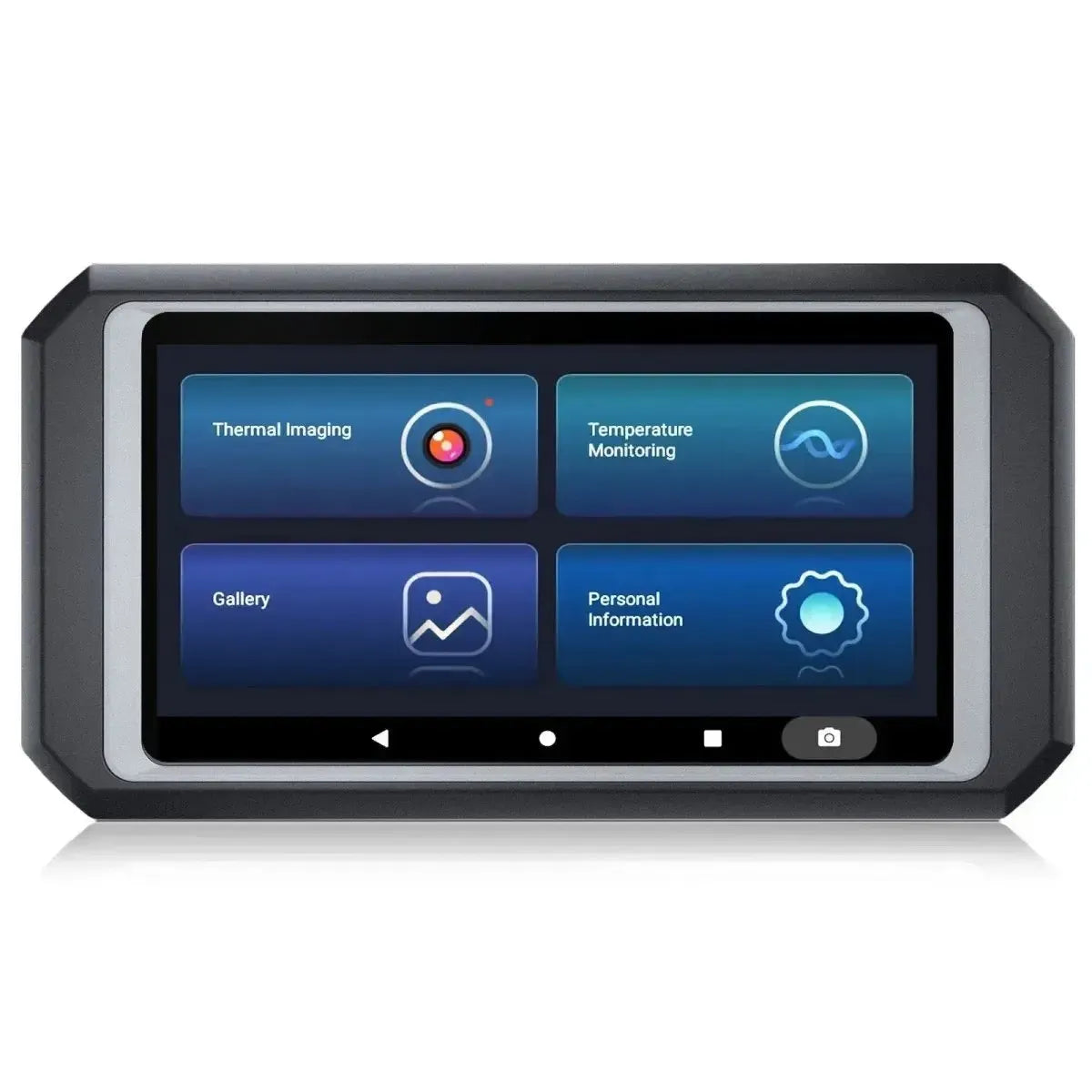

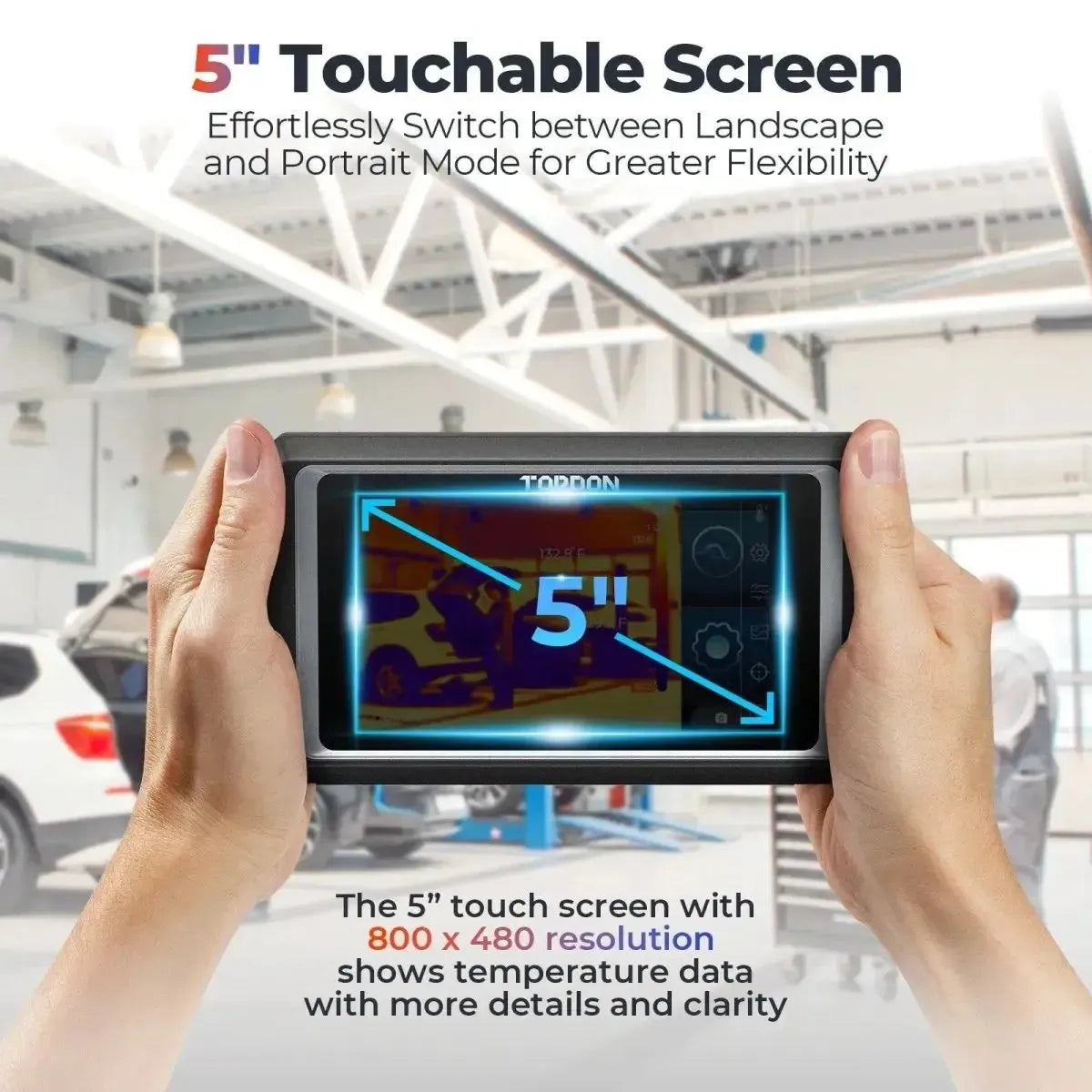

| Display | 5" touchscreen, 800×480 pixels |
| Storage | 32 GB internal memory |
| RAM | 2 GB |
| Battery capacity | 5000 mAh (up to 4 hours of use) |
| Connectivity | Wi-Fi, Bluetooth, USB-C |
| Operating system | Android 11.0 |
| Dimensions | 178 × 96 × 20 mm |
| Weight | 900 grams |
| Protection class | IP54 |
| Drop resistance | Up to 1.5 meters |
| Emissivity | Adjustable (0.01 – 1.00) |
| Compatibility | Windows (via TCView software) |
