Topdon TCView TC002 | Thermal Imaging Camera

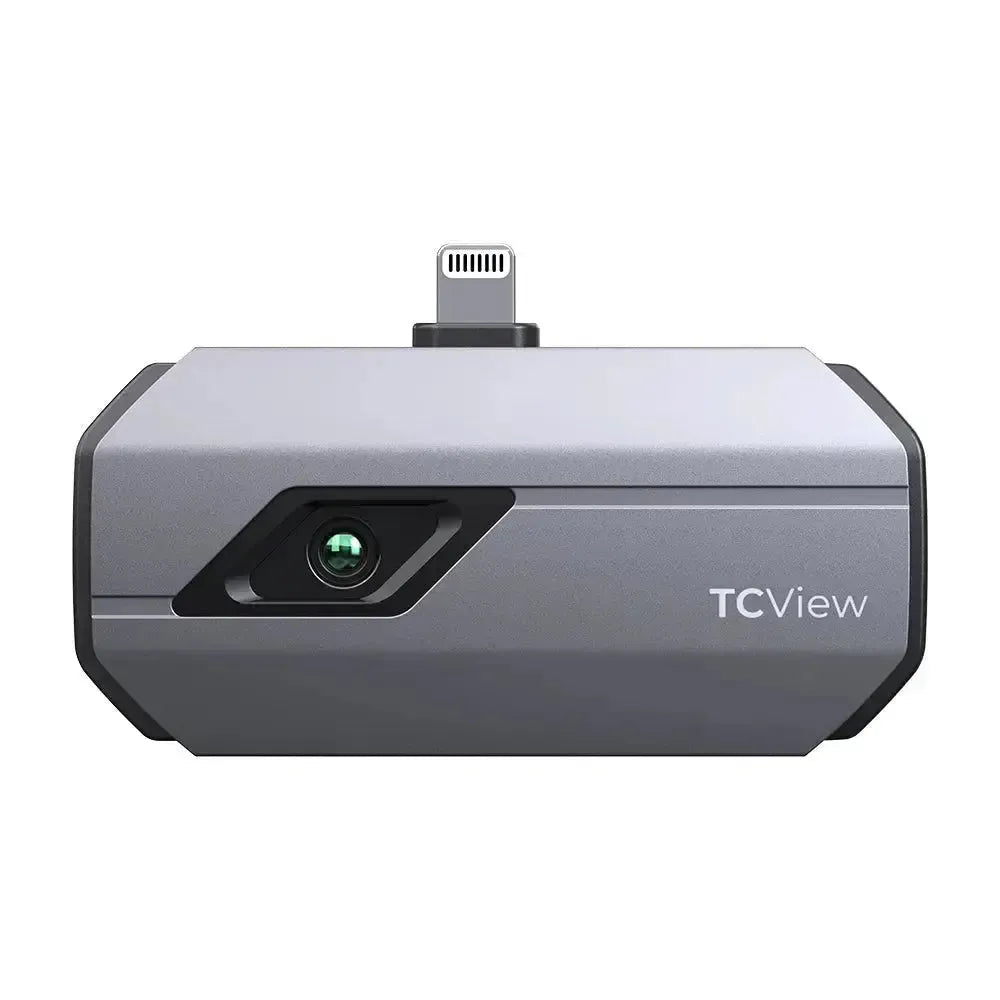

The Topdon TCView TC002 is a compact thermal imaging camera specially designed to transform an iPhone or iPad into a thermal analysis instrument. This device offers a high infrared resolution of 256x192 pixels, capturing detailed thermal images. The camera has a wide temperature measurement range from -20°C to 550°C, making it suitable for a variety of applications, from inspecting circuit boards to checking HVAC systems.

In addition to capturing thermal images, the TC002 offers advanced analysis features via the accompanying app. Users can monitor temperature changes with a waveform graph and export the collected data to an Excel file for further analysis. The camera supports setting temperature limits with visual and auditory alerts. Images can be enhanced by adjusting sharpness and contrast and can be manipulated with features such as rotation and a picture-in-picture mode. All images and videos are stored directly on the connected iOS device.

Application and functionality:

The TC002 is developed for performing detailed thermal inspections and analyses. The camera is powered directly by the connected device and is ready for use immediately after installing the app.

• Temperature analysis: Measure temperatures in three ways: a specific point (Point), the highest and lowest temperature within a line (Line), and the highest and lowest temperature within a selected surface (Surface).
• Customizable alerts: Set an upper and lower temperature limit. When these limits are exceeded, the system provides a visual and auditory alert.
• Image optimization: Adjust the sharpness and contrast of the thermal images for a clearer and sharper picture.
• Color palettes: Choose from various color palettes to visualize temperature differences in the most effective way.
• Reporting: Generate professional reports directly from the app, complete with data, watermarks, and environmental parameters.

Measurement capabilities and applications:

The camera offers various features for accurate measurements and is deployable in different professional and do-it-yourself scenarios.

• Waveform graph: Monitor temperature changes over a certain period and visualize this data in a graph to identify trends and deviations.
• Applications: Suitable for detecting heat leaks in buildings, checking the condition of HVAC systems, inspecting electrical circuits, and diagnosing mechanical problems.

Storage and connectivity:

The TC002 uses the infrastructure of the connected iOS device for managing data and the connection.

• Storage: Captured photos and videos are stored directly in the memory of the connected iPhone or iPad. Measurement data can be exported in Excel format.
• Connectivity: The camera connects directly to a compatible iOS device via the integrated Lightning connector.

Compatible software and platforms:

The operation of the thermal imaging camera requires the associated Topdon application.

• iOS: The TC002 is compatible with iPhone and iPad and operates via the Topdon app, which is available in the App Store.

Package Contents:

• 1x Topdon TC002 thermal imaging camera
• 1x Carrying case
• 1x Multifunctional adapter cable
• 1x Cleaning cloth
• 1x Manual
• 1x Package Contents box

Technical specifications:
