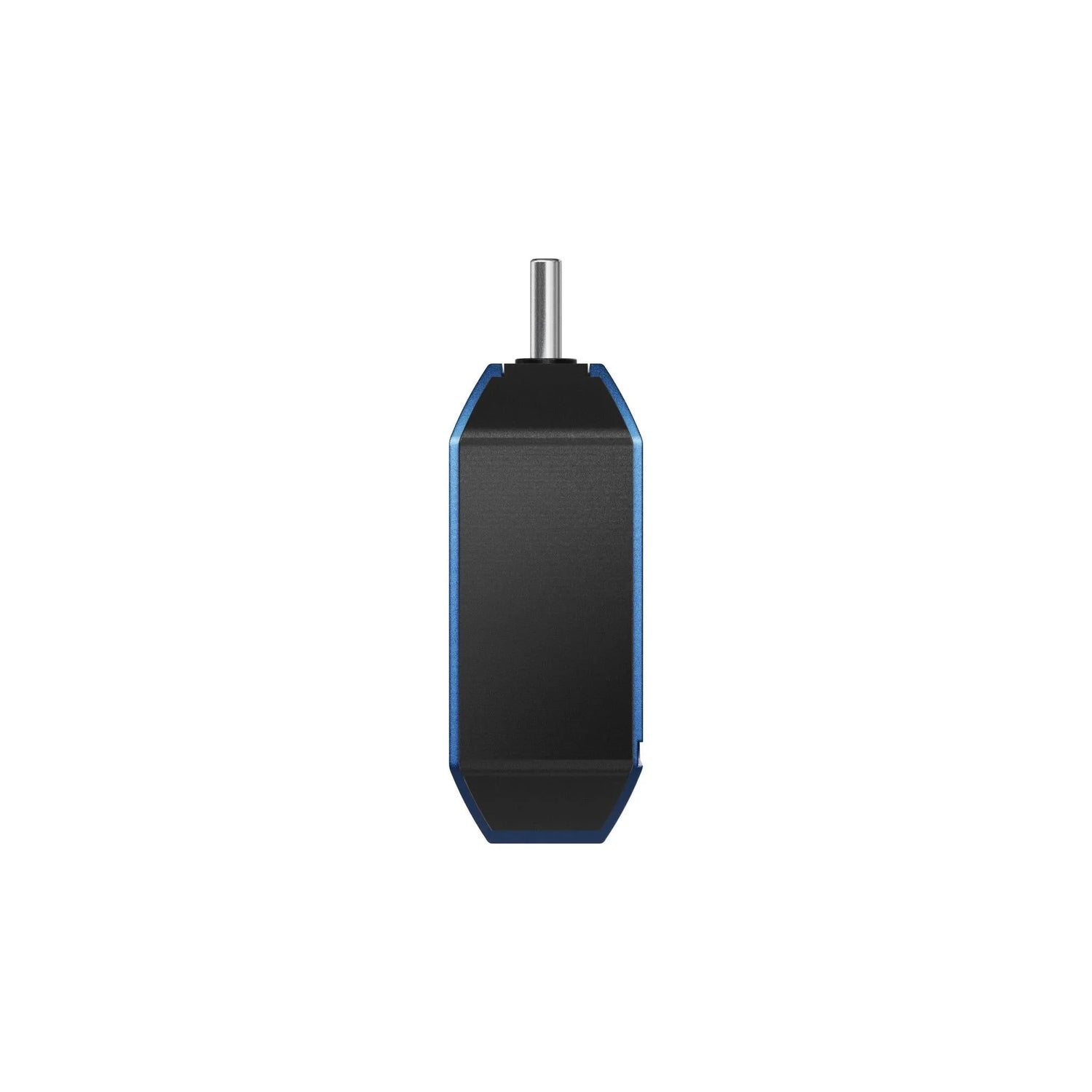

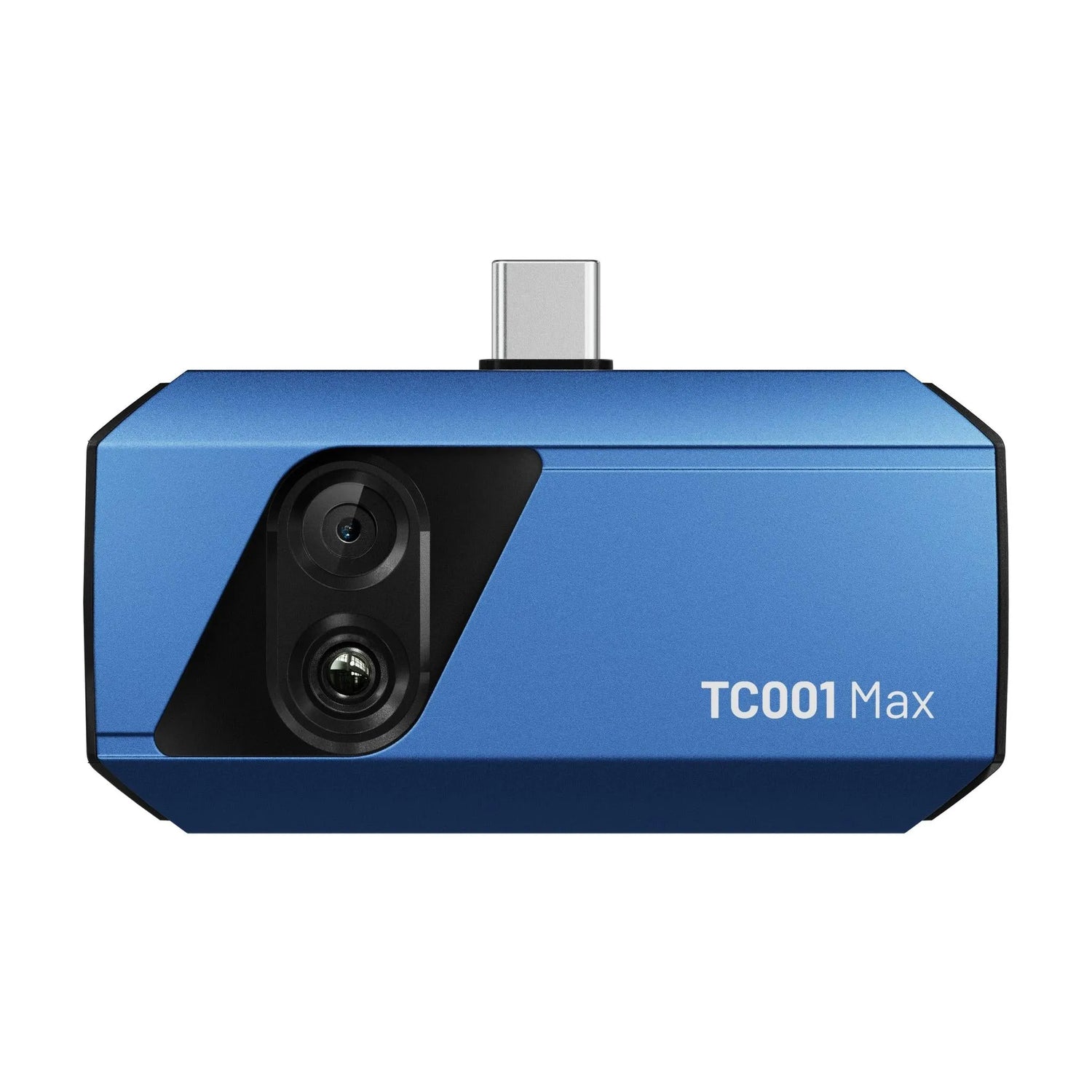

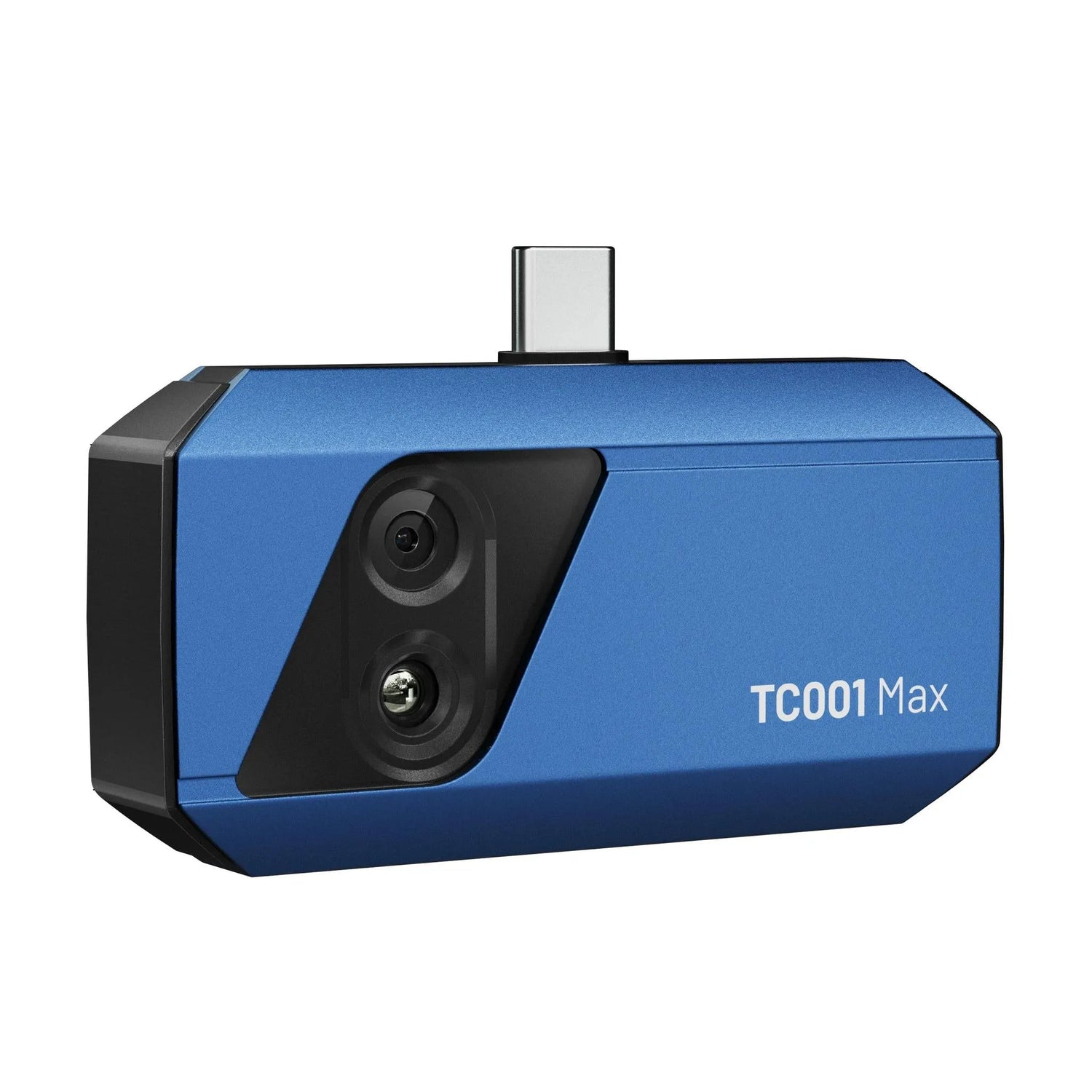

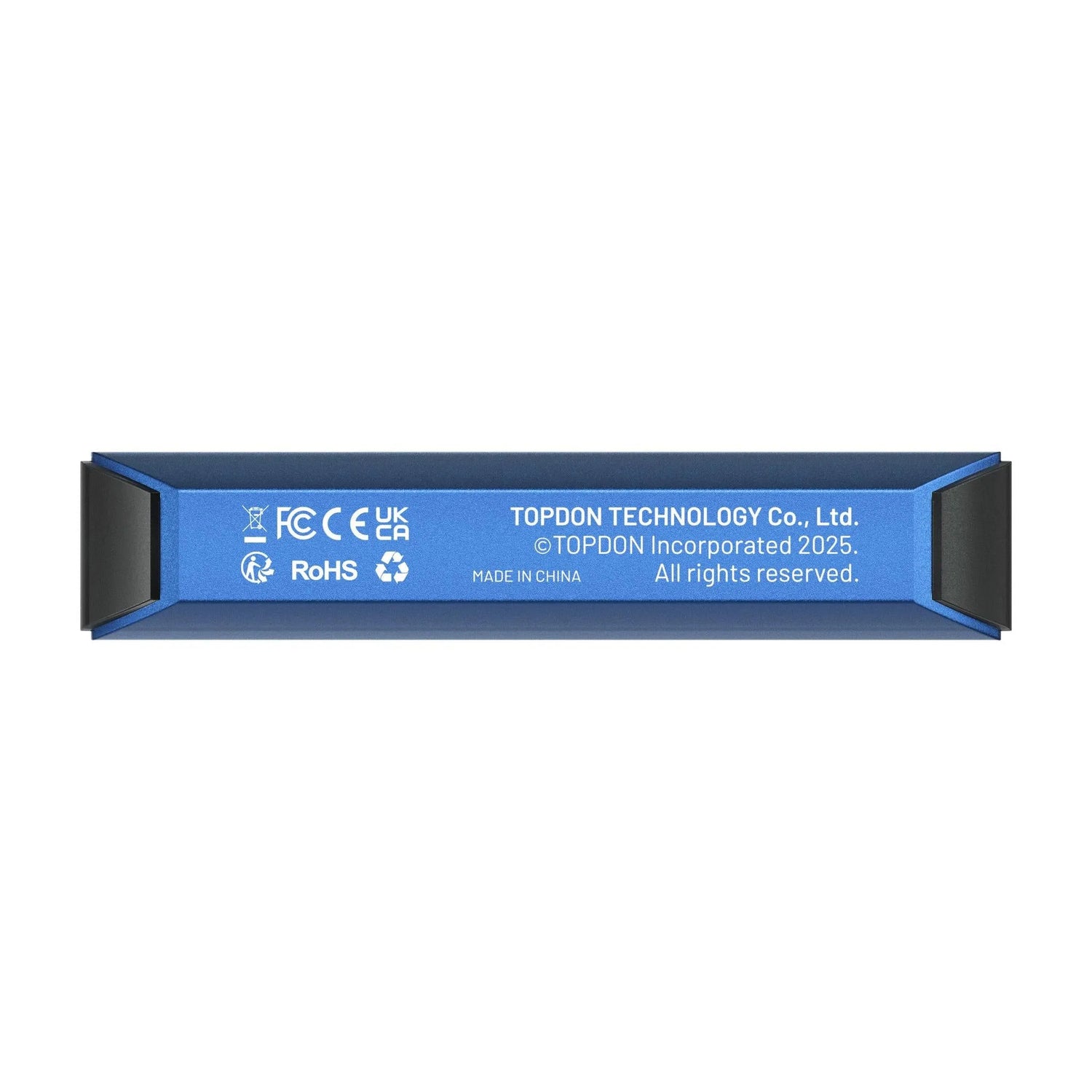

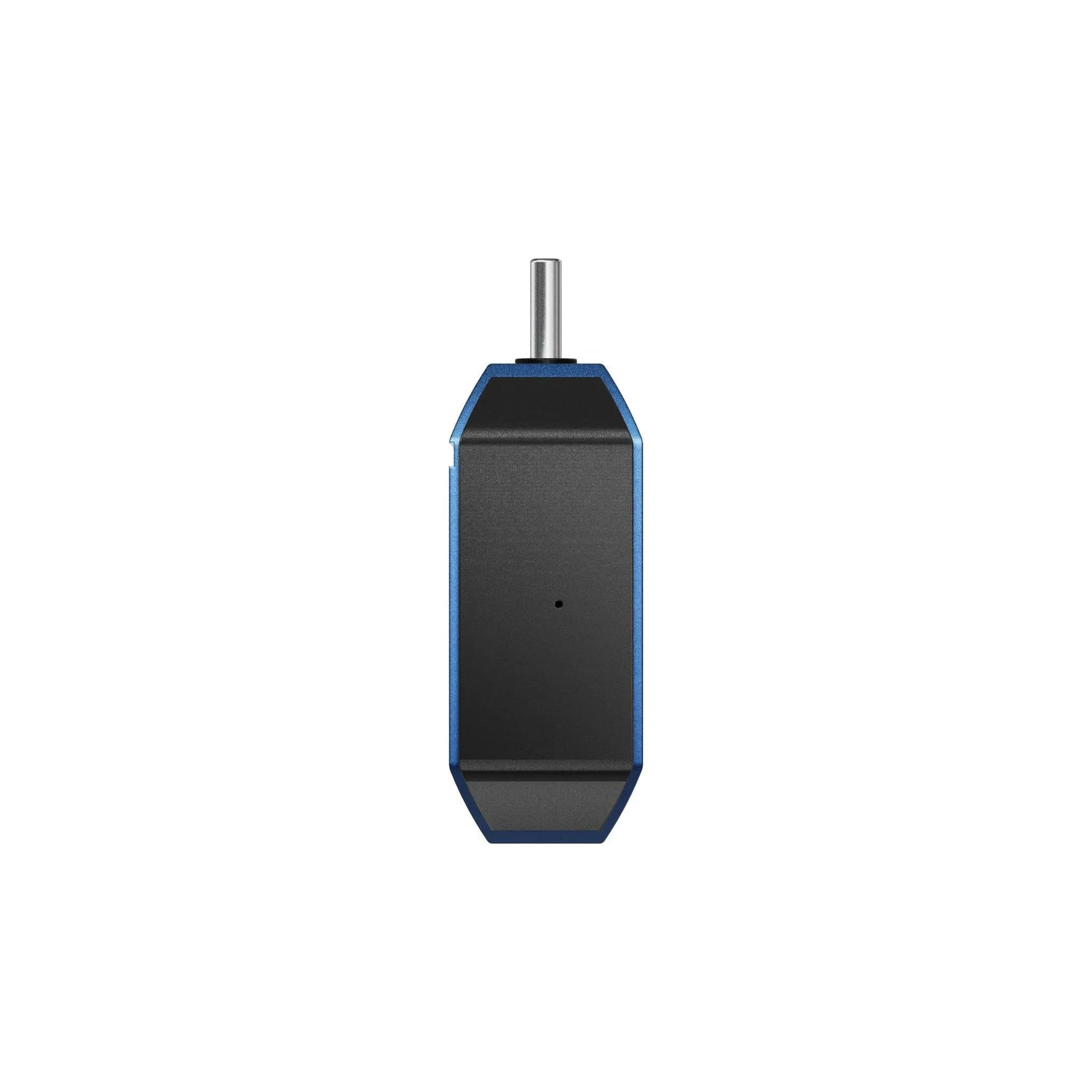

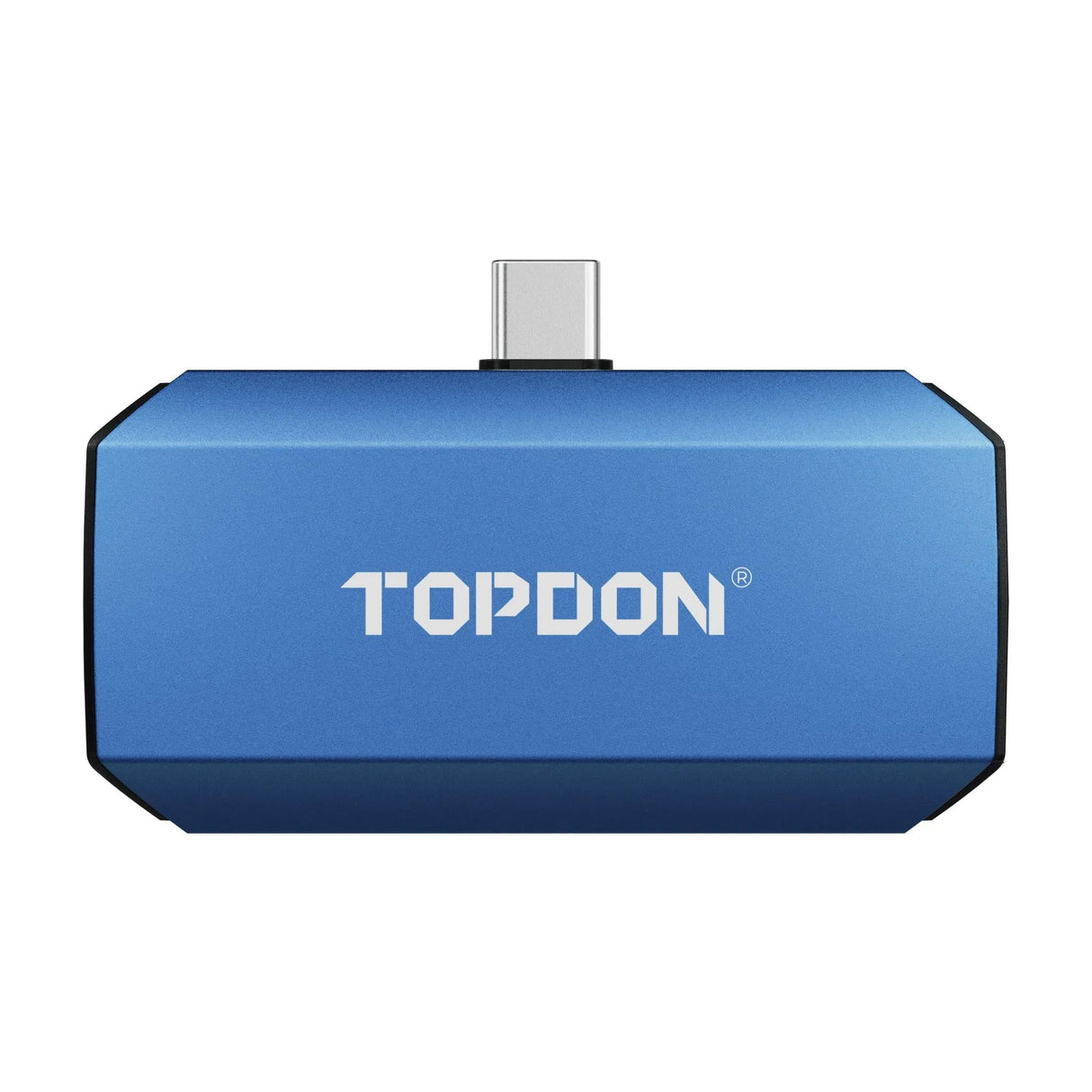

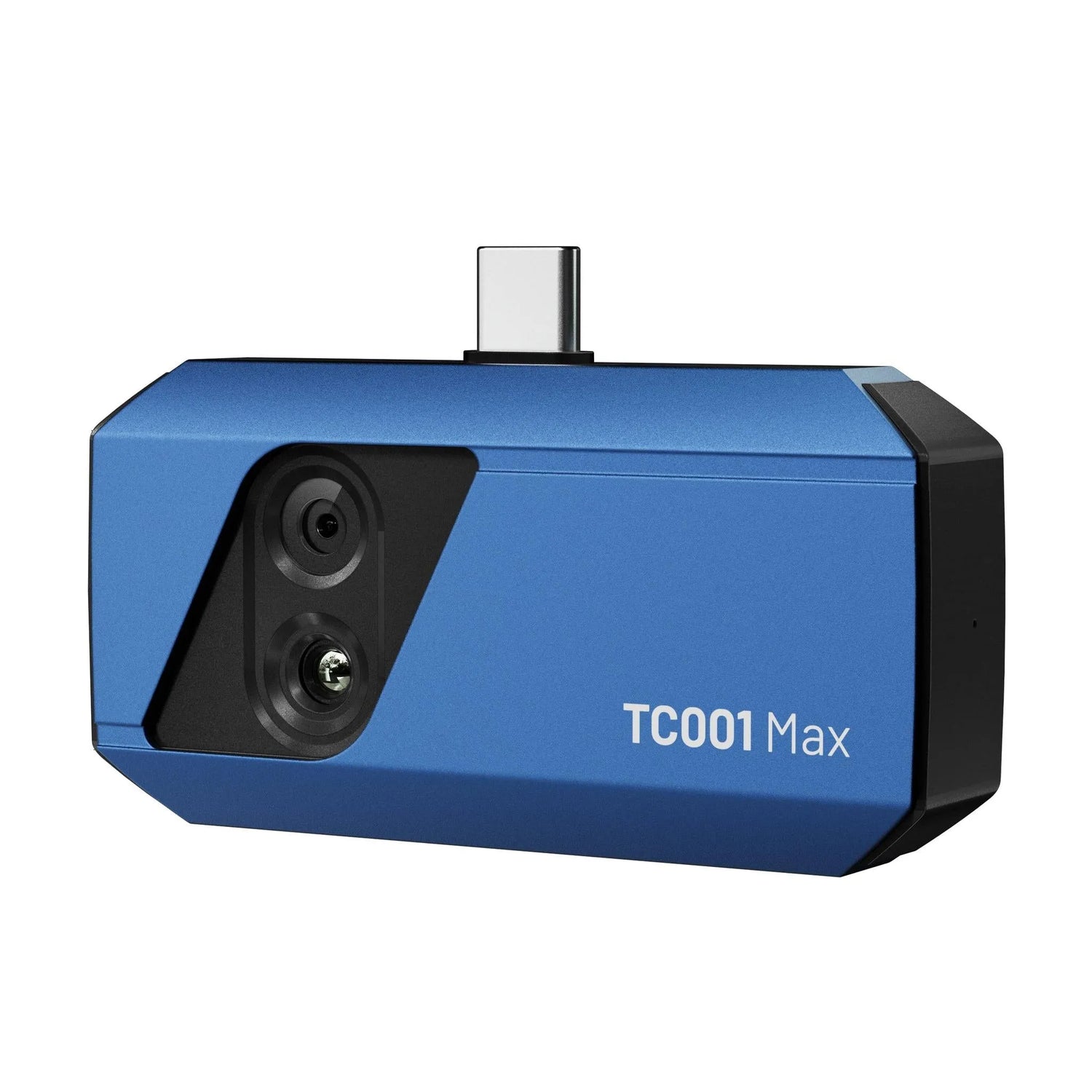

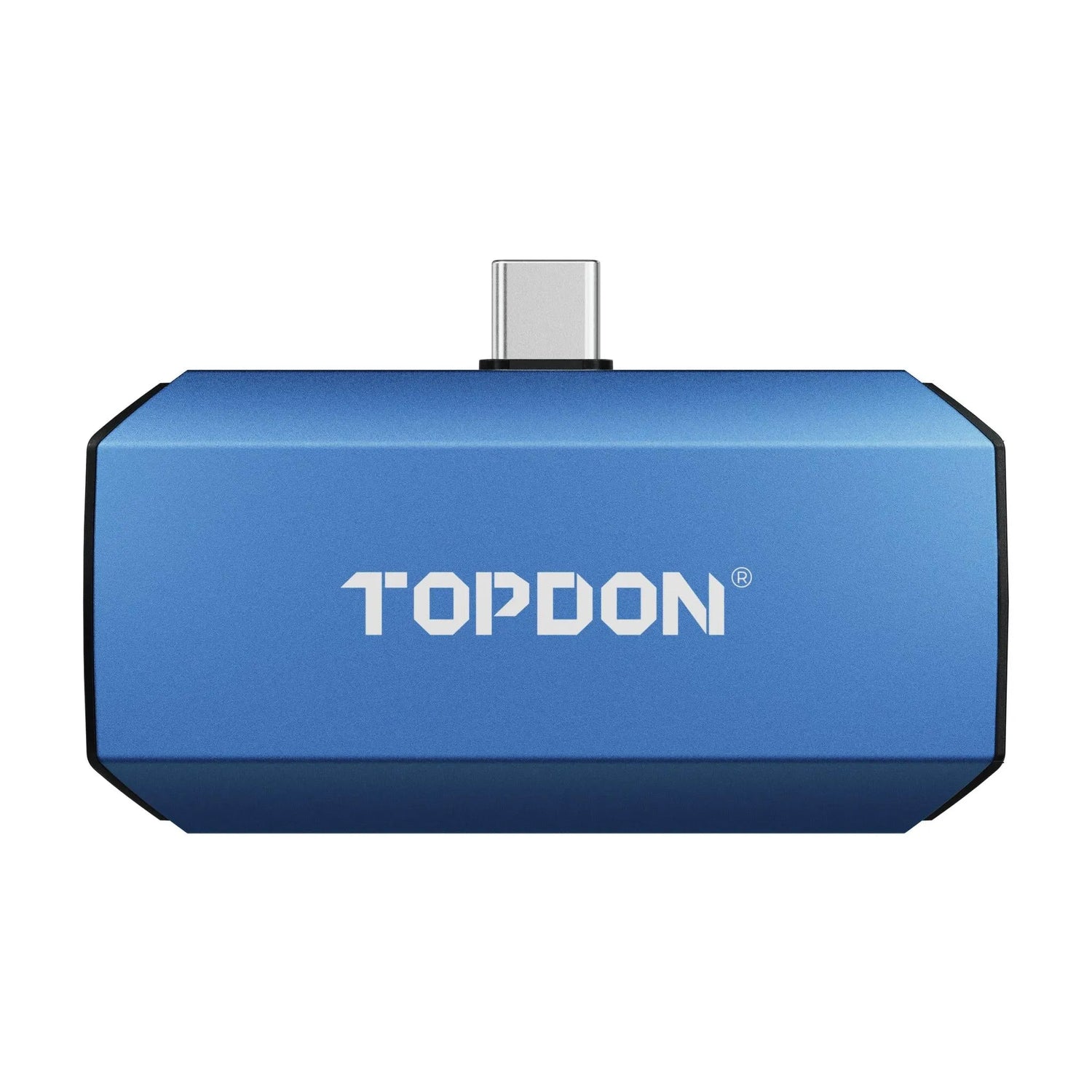

The Topdon TC001 Max is a thermal imaging camera for your smartphone. You plug it into the USB-C port, or into a Lightning port using the supplied adapter, and view the thermal image in the TopInfrared app. It works with iOS, Android and Windows and draws its power from the connected device.
The sensor measures 256 × 192 pixels, with TISR image enhancement up to 512 × 384, an NETD of 40 mK and 25 frames per second. A 1.5 MP visual camera overlays outlines on the thermal image, so you can see what is where. It measures temperatures from −20 to 550 °C with an accuracy of ±2 °C or ±2%.
PROS
POINTS TO NOTE
Applications and functions
The TC001 Max turns your phone into a measuring instrument for temperature differences. Deviations that you cannot see with the naked eye become visible.
Workshop applications
- Engine and exhaust: A cylinder that is not contributing or a blocked catalytic converter.
- Brakes and bearings: A seized brake calliper or a hot wheel bearing.
- Electrical system: Fuses or connections that heat up due to parasitic drain or contact resistance.
- Air conditioning and heating: Outlet temperature, evaporator and heater matrix.
Measuring and analysing
- Measuring functions: Spot, line and area, with highest and lowest temperature.
- Alarm: High and low temperature alarm.
- Palettes: Ten colour palettes.
- Reports: Export images and reports from the app.
How to use it
- Install the app: Install the TopInfrared app on your phone.
- Connect: Plug the camera into the USB-C port or use the Lightning adapter.
- Aim: Point the camera; the app opens the thermal image.
- Capture: Take a photo or video and save it or share it as a report.
Special functions and capabilities
The TC001 Max gets more out of a small sensor with image enhancement and a second camera.
- TISR image enhancement: From 256 × 192 to 512 × 384 for sharper detail.
- Image fusion: Thermal image and visual image combined in one.
- Analysis in the app: Analyse images afterwards and share them as a report.
- TopView on PC: Also usable on a Windows computer.
Package contents
- 1x Topdon TC001 Max thermal imaging camera
- 1x USB-A to USB-C cable
- 1x USB-C to USB-C adapter
- 1x USB-C to Lightning adapter
- 1x Microfibre cloth
- 1x User manual
- 1x Carrying case
Technical specifications
General
- The manufacturer of the thermal imaging camera.Brand
- Topdon
- A standalone handheld camera, a camera that connects to your phone, or a monocular for viewing at distance. This determines how and where you use it.Type of camera
- Smartphone camera
- The number of pixels in the thermal sensor. More pixels mean sharper detail of small hot spots.Thermal image resolution
- 256 x 192 pixels
- The smallest temperature difference the camera can detect. A lower figure means finer differences are visible.Thermal sensitivity (NETD)
- 40 mK
- The number of images the camera produces per second. A higher rate gives smoother images when moving.Frame rate
- 25 Hz
- The focal length of the lens. A longer focal length lets you view further away, but with a narrower image.Focal length
- 3.2 mm
- Whether the lens has a fixed focus or can be adjusted manually.Focusing
- Fixed focus
- The resolution of the additional camera for normal images. This helps you see exactly where a hot spot is located.Visual camera
- 1.5 MP
- How many colour displays you can choose, such as iron red or white hot. This lets you pick what works best.Number of colour palettes
- 10 palettes
Measurement and functions
- The lowest and highest temperature the camera can measure. Important for hot components such as exhausts.Temperature range
- -20 to 550 °C
- How much the measured temperature may deviate from the actual temperature.Accuracy
- ±2 °C or ±2%
- The camera warns you when a temperature exceeds or falls below a set limit.Temperature alarm
- Yes
- You can create a report from your measurements, for example to show a customer.Report creation
- Yes
- Software on your computer lets you review images later and analyse temperatures.PC analysis software
- Yes
Connectivity
- The devices the camera can connect to or be used with via the app.Compatible with
- iOS
- Android
- Windows
Dimensions and weight
- The length, width and height of the camera.Dimensions
- 71 x 42 x 14 mm
- How heavy the camera is. A lighter camera remains comfortable to hold over time.Weight
- 33 g
Other specifications
- Type
- Smartphone thermal imaging camera
- Infrared resolution
- 256 × 192, TISR 512 × 384
- Connection
- USB-C, with Lightning adapter
- App
- TopInfrared (mobile), TopView (PC)
- Power supply
- Via the connected device
