Topdon Phoenix Plus 2 | Diagnostic Tool | Car

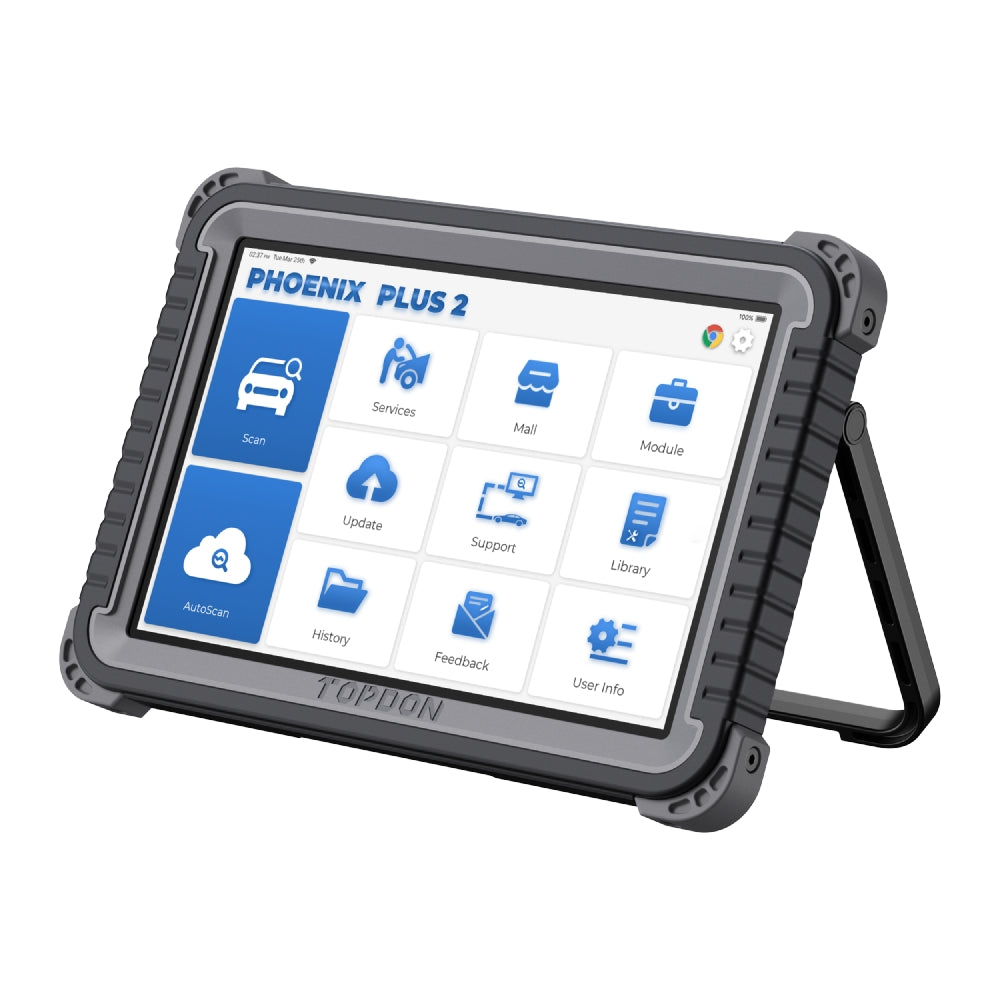

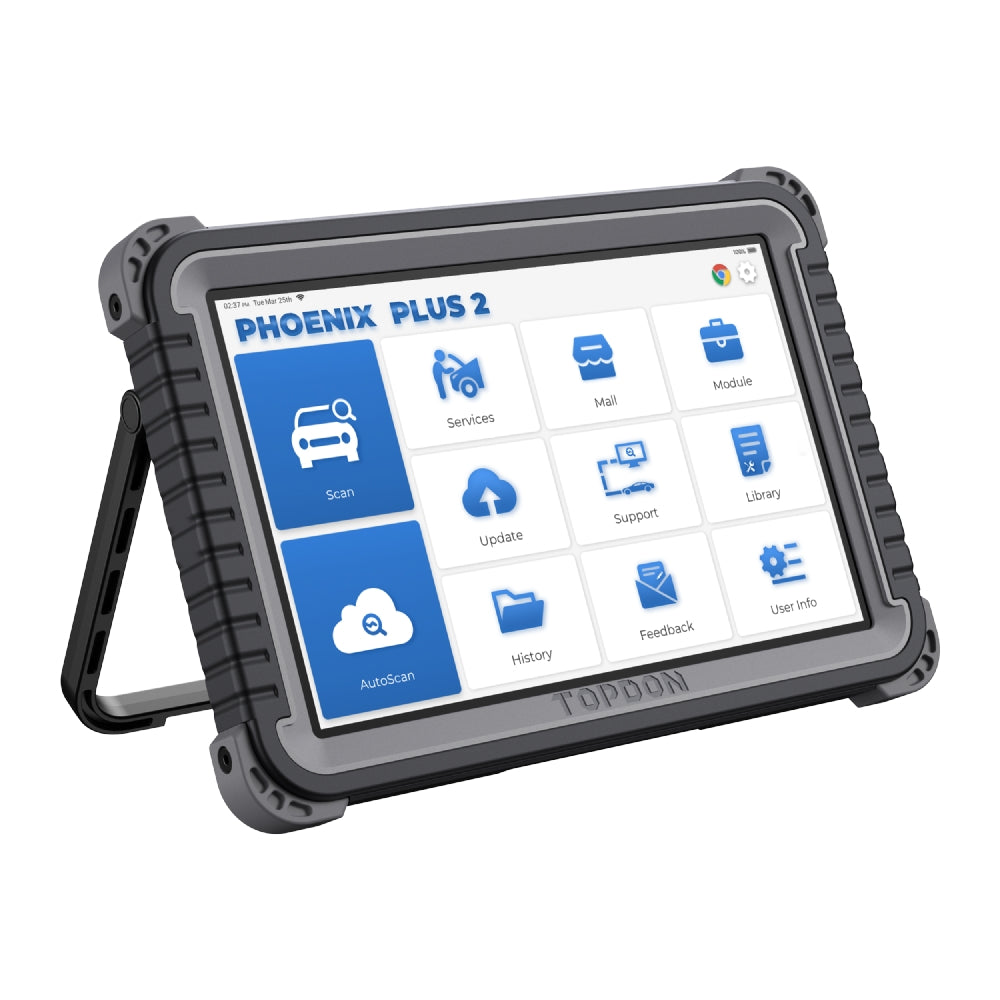

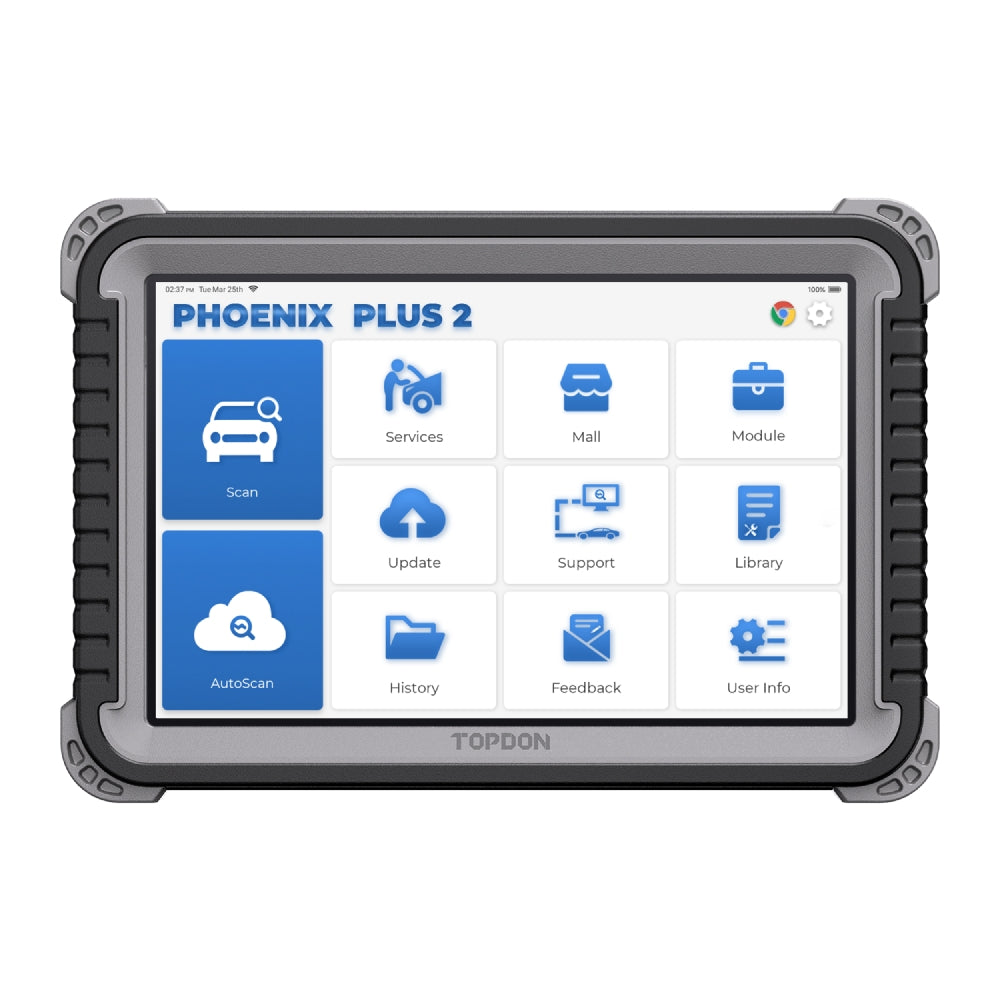

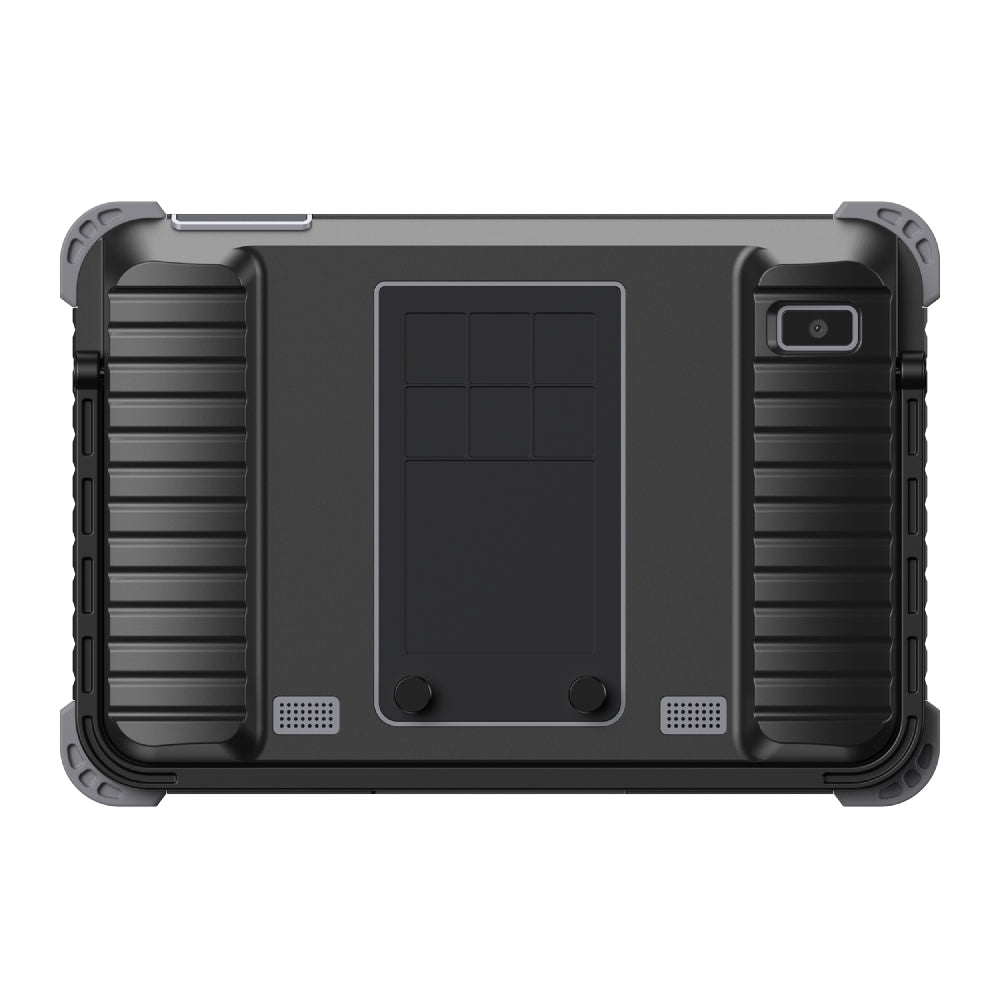

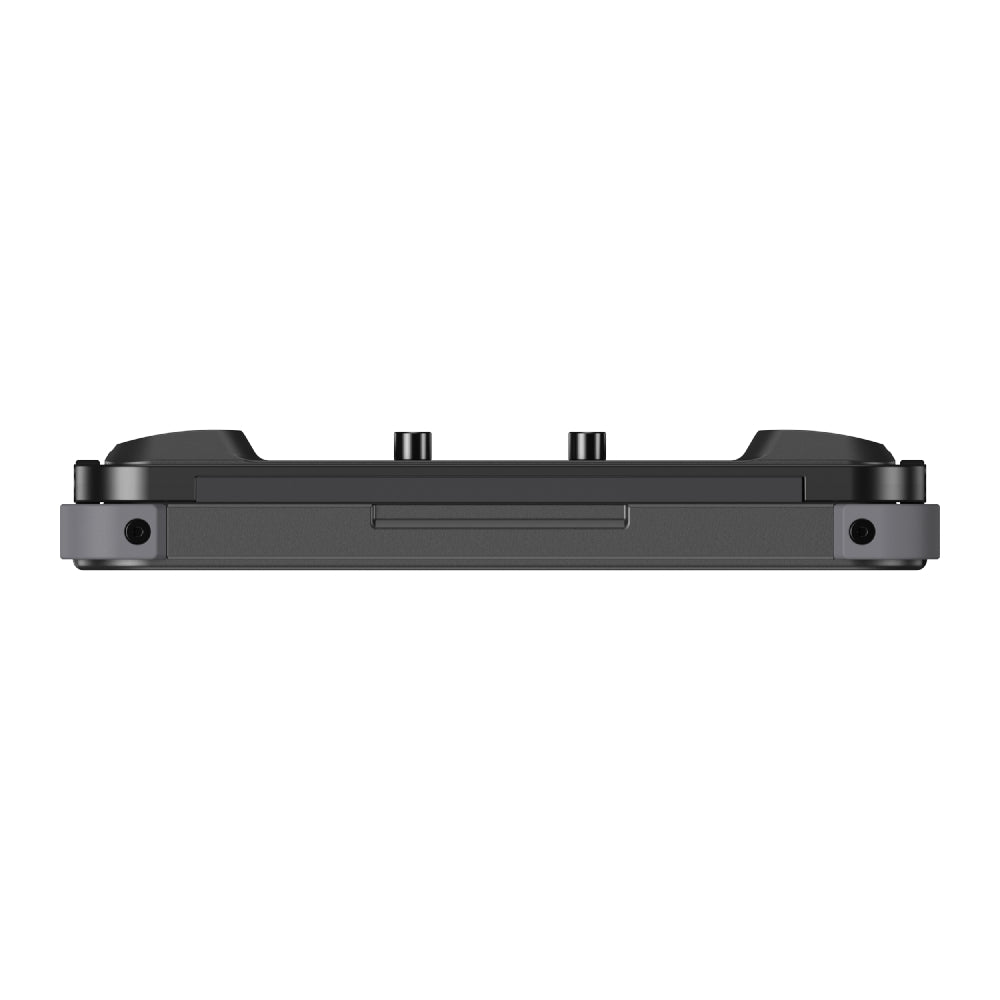

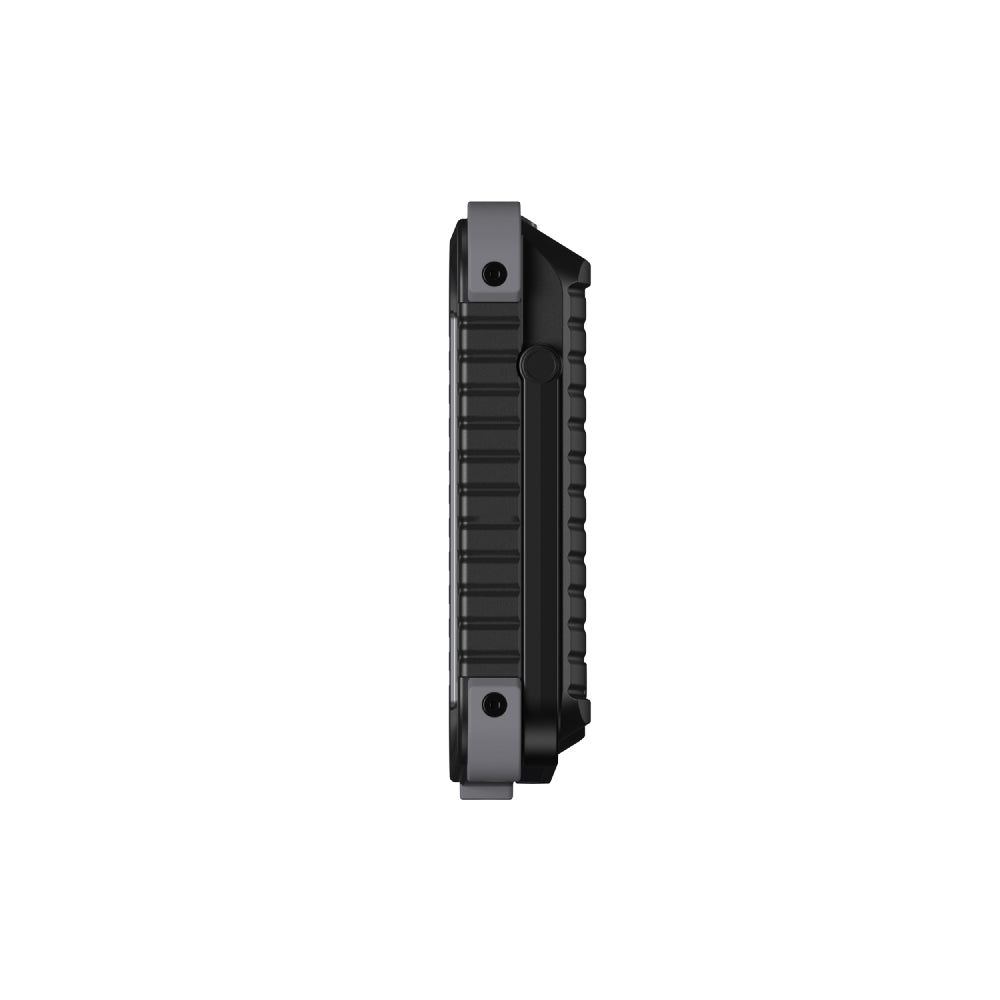

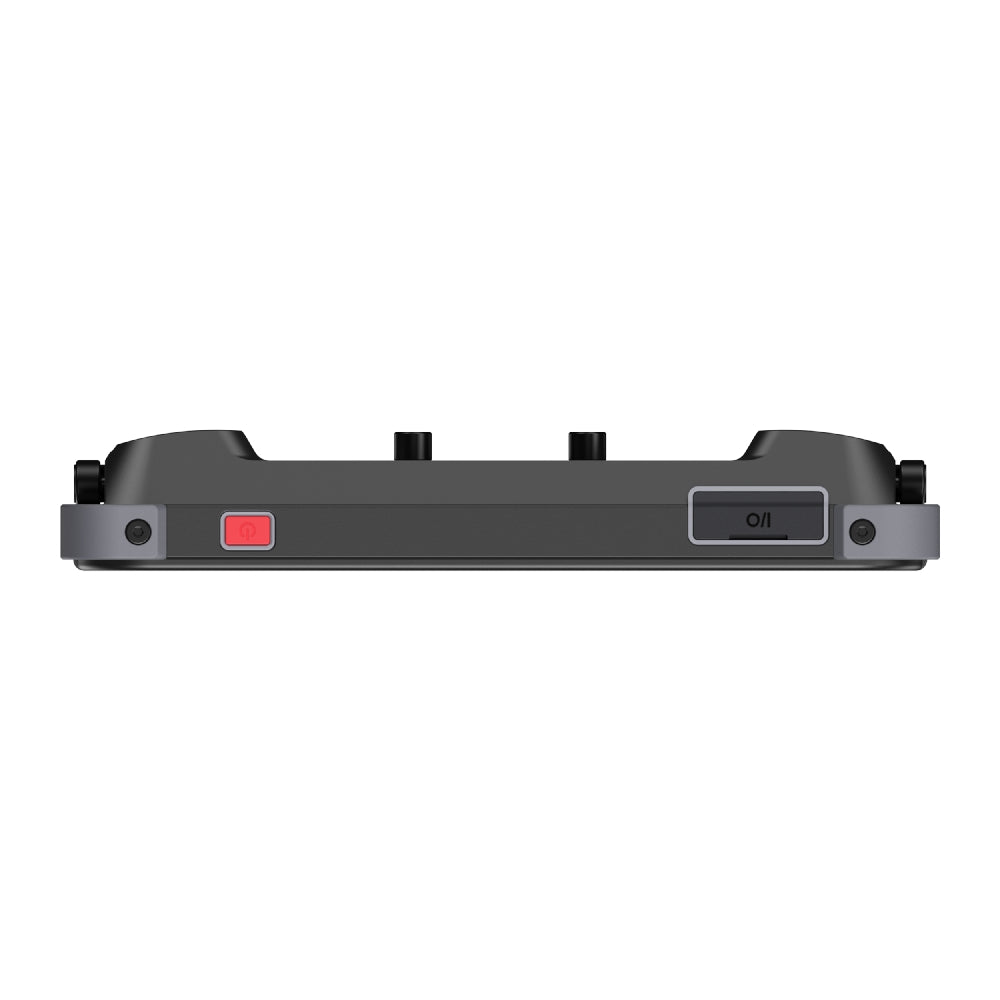

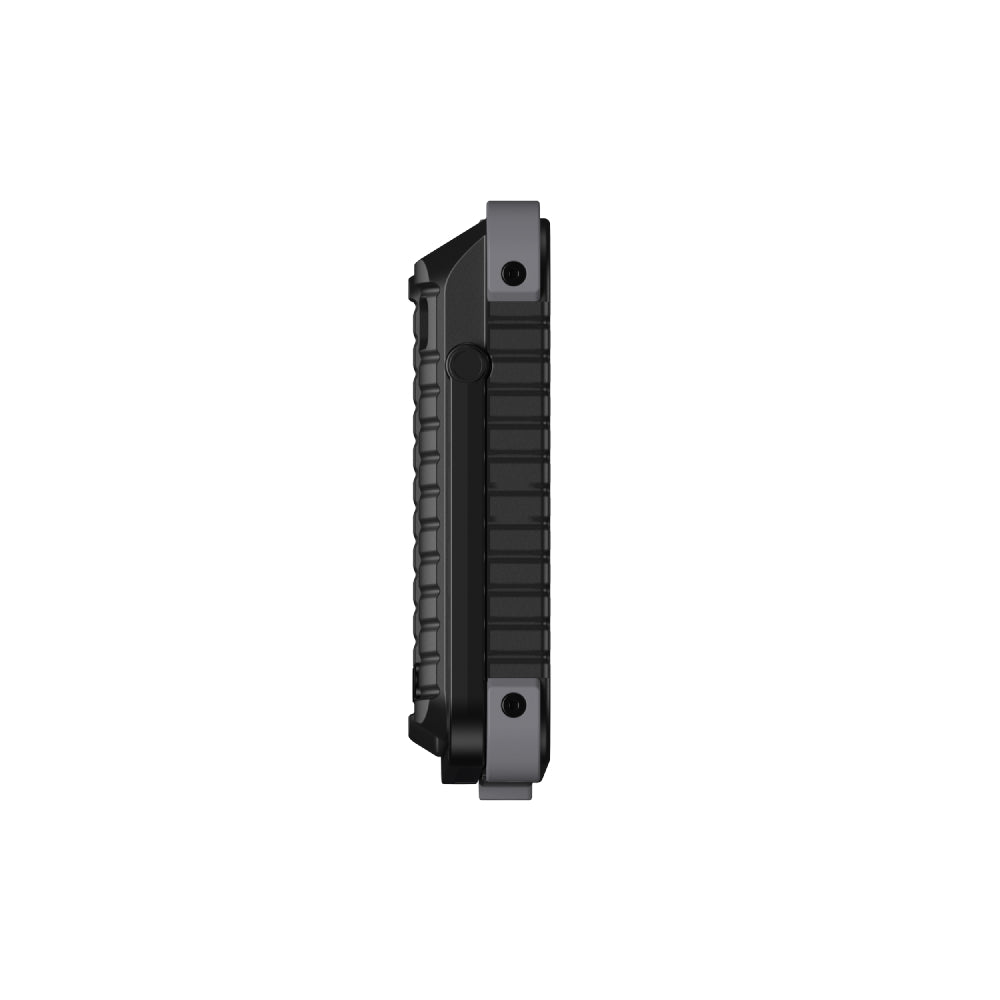

The Topdon Phoenix Plus 2 is a professional scanner, designed for performing advanced vehicle diagnostics. The system is based on the Android 10.0 operating system and features a 10.1-inch LCD screen, a 2.0 GHz 4-core processor, 4 GB RAM, and 64 GB internal storage. The wireless MDCI Pro VCI supports the protocols CAN-FD and DoIP. Key functionalities include ECU coding, actuator testing, and topology module mapping. A software license for 2 years of free updates is included with purchase.

The functionality of the Phoenix Plus 2 can be expanded with various optional modules, such as a ADAS calibration system, the T-Ninja Box for key programming, and a 4-channel oscilloscope. The device provides access to the secure gateways of FCA and Renault via separately available licenses. The topology module mapping gives a visual overview of the communication status between the different control units in the vehicle. The 12600 mAh Battery ensures long usage time.

---

Diagnostic functions:

The Topdon Phoenix Plus 2 offers extensive diagnostic capabilities for all present vehicle systems.

• Read and clear fault codes: Reading and clearing diagnostic trouble codes (DTCs) from all available control units, such as engine, transmission, ABS, airbags, and body electronics.
• Live data: Displaying real-time data streams from sensors and components. Data can be shown in various formats, including text, graphs, and analog gauges, for detailed analysis.
• Actuator control (Bi-directional check): Directly controlling vehicle components and actuators, such as relays, injectors, and fans, to test functionality without using the controls in the Car.

---

Service and maintenance functions:

This device supports more than 35 service and maintenance functions. Available functions may vary by Car brand, model, and year of manufacture.

Engine and drivetrain:

• Oil service reset: Resetting the service interval indicator after an oil change.
• Throttle body learning: Initializing the throttle body actuators to default values after replacement or cleaning.
• Injector coding: Entering new injector codes into the control unit after replacing injectors.
• Crankshaft sensor learning: Teaching the tolerances of the crankshaft position sensor for accurate engine control.
• Transmission learning: Performing adaptive learning processes for the automatic transmission after maintenance or repair.
• Air/fuel ratio reset: Resetting the correction values for the air-fuel ratio.
• EGR valve learning: Teaching the positions of the exhaust gas recirculation valve (EGR).
• Cylinder balance test: Monitoring power output per cylinder to identify issues.
• Start/stop system deactivate/reset: Adjusting or resetting the settings of the start/stop system.
• High-voltage Battery diagnostics: Checking and analyzing the status and performance of the high-voltage Battery.
• Clutch learning: Teaching the engagement point of the clutch for automated transmissions.
• Turbo learning: Teaching a new turbo actuator after replacement.

Brakes:

• Brakes reset (EPB): Service functions for the electronic parking brake, such as opening and closing the brake calipers for maintenance.
• ABS bleeding: Automatic bleeding of the ABS brake system to remove air from the components.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Forced start of the regeneration process to remove soot buildup in the DPF.
• Gasoline particulate filter regeneration (GPF): Forced start of the regeneration process for the gasoline particulate filter.
• AdBlue reset: Resetting the urea system after refilling AdBlue.
• NOx sensor reset: Resetting the learned values of the NOx sensor after replacement.

Steering and suspension:

• Steering angle sensor initialization (SAS): Calibrating the steering angle sensor after alignment or replacement of steering components.
• Air suspension calibration: Calibrating the level sensors of the air suspension.

Safety systems:

• Reset airbag: Resetting the airbag module and clearing crash data after a repair.
• Reset immobilizer: Functions for learning keys and resetting the immobilizer.
• Reset tire pressure monitoring system (TPMS): Resetting the TPMS after sensor or tire replacement.
• Initialize intelligent cruise control: Calibrating the radar system for adaptive cruise control.
• Calibrate seat occupancy sensor: Calibrating the sensor that detects whether a seat is occupied.

Car body and electronics:

• Register Battery (BMS): Registering a new Battery in the battery management system (BMS) for a correct charging process.
• Initialize sunroof: Resetting the basic settings and limits of the sunroof.
• Calibrate window control: Initializing the automatic up and down function of the electric windows.
• Set adaptive headlights: Calibrating and setting the adaptive headlight system (AFS).
• Initialize rain/light sensor: Initializing the rain and light sensor after windshield replacement.
• Enable/disable transport mode: Activating or deactivating the transport mode that limits certain functions.
• Check mileage: Reading the mileage from various modules to verify consistency.
• Change language: Adjusting the language settings in the instrument panel or infotainment system.

Other functions:

• Initialize air conditioning system: Initializing the actuators and sensors of the air conditioning system.
• Bleed cooling system: Activating the electric coolant pump to bleed the cooling system.
• Adjust tire size: Adjusting the tire size in the control unit for correct speed display.

---

Special features and capabilities:

The device features advanced functions for coding, programming, and vehicle analysis.

Codings and programming:

• ECU coding: Adjusting vehicle parameters and configurations in the control units. This includes activating hidden functions, customizing vehicle settings, and pairing new components to the vehicle.

Other special features:

• Support for CAN-FD and DoIP: Compatibility with modern communication protocols such as CAN-FD and Diagnostics over Internet Protocol (DoIP), enabling diagnosis of newer vehicles.
• Topology module mapping: Visual display of the vehicle's network structure, including the communication status between all control units. This helps quickly identify communication errors.
• Wireless diagnosis: Communication between the tablet and the vehicle takes place via a wireless VCI (Vehicle Communication Interface) with Bluetooth, providing freedom of movement during the diagnostic process.

---

Optional expansion modules:

The functionality of the Topdon Phoenix Plus 2 can be expanded with various optional hardware modules and software licenses. These expansions are specifically developed for compatibility with this diagnostic tool.

Hardware modules and accessories:

• ADAS calibration system: For calibrating Advanced Driver Assistance Systems.
• BTMobile ProS Battery tester: For performing comprehensive tests of the Battery, starter motor, and charging system.
• Phoenix Scope: A 4-channel oscilloscope for analyzing electrical signals and diagnosing circuit problems.
• T-Ninja Box: A module for programming keys and performing functions related to the immobilizer system.
• TC001 thermal imaging camera: For detecting temperature-related issues in vehicle components through infrared images.

Software modules and licenses:

• FCA Secure Gateway (SGW) license: Grants authorized access to the secure gateway module of vehicles within the Fiat Chrysler Automobiles group.
• Renault Secure Gateway (SGW) license: Grants authorized access to the secure gateway module of Renault vehicles.

---

Supported vehicle brands:

The Topdon Phoenix Plus 2 offers extensive coverage for a wide range of vehicle brands. Support includes vehicles from Europe, Asia, America, and China, making it a versatile diagnostic tool for various Car models.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, DR, Ferrari, Fiat, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, Mini, Opel, PAZ, Peugeot, Porsche, Renault, Rolls Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volkswagen, Volvo, ZAZ.
• Asian: Acura, Ashok Leyland, Daewoo, Daihatsu, FUSO, HINO, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Saipa, Samsung, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast.
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Holden, Jeep, Lincoln, Tesla.
• Chinese: BAIC, Brilliance, BYD, Changan, Changhe, Chery, Cowin, Dongfeng, Exeed, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, Jetour, Jindong, JMC, Joylong, Karry, Leap, Lifan, Luxgen, Maxus, MG, MVM, Polarsun, Qoros, Riich, Roewe, SGM, SGMW, Shineray, Soueast, SWM, Trumpchi, Zotye, ZX Car.

---

Package Contents:

• 1x Topdon Phoenix Plus 2 reader device

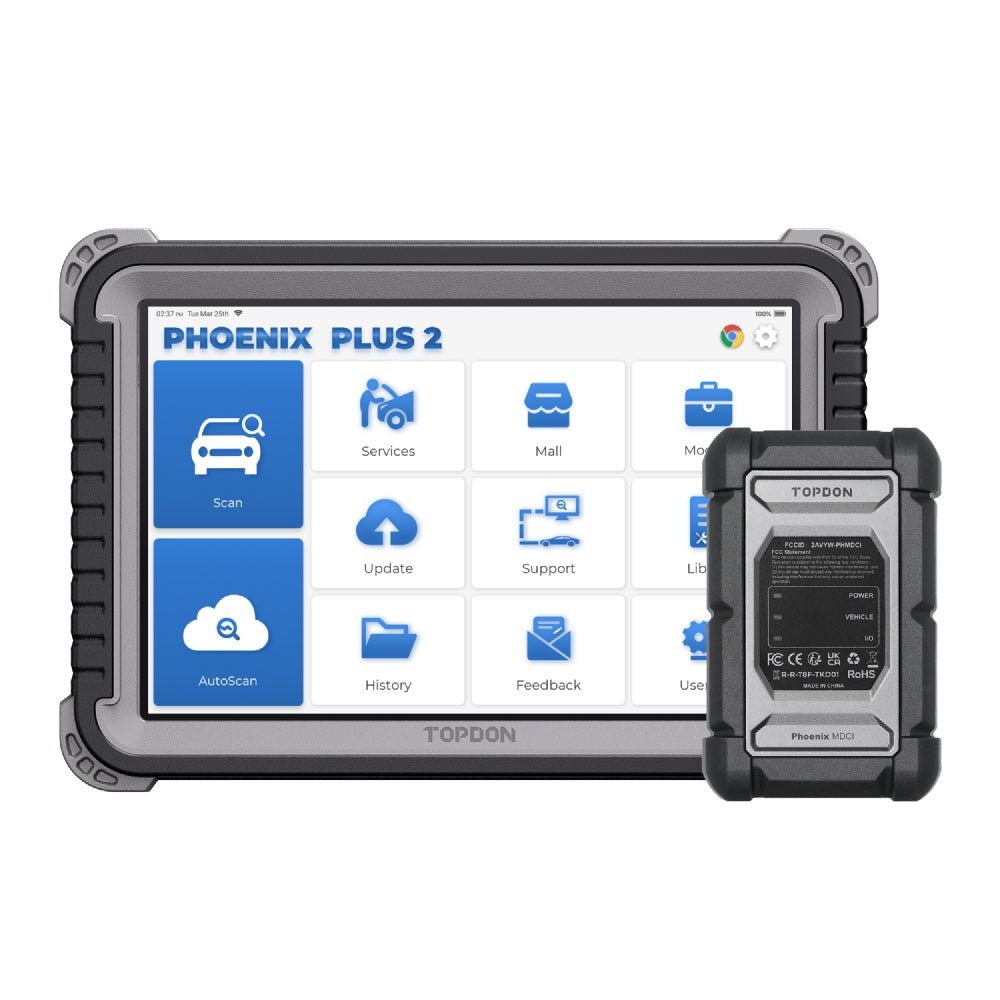

• 1x Phoenix MDCI Pro VCI (diagnostic interface)
• 1x OBD2 extension cable
• 1x Battery clamp cable
• 1x Cigarette lighter cable
• 1x Power adapter
• 1x USB-C to USB-A cable
• 1x Set of non-16-pin adapters
• 1x Manual
• 1x Storage case

---

License information:

• Including 2 years of updates: A software license for 24 months is included with purchase.

After the license period ends, the device will continue to operate on the last installed software version. Access to software updates and online features requires a new license.

---

Technical specifications:

Specification	Description
Product Brand	Topdon
Product Model	Phoenix Plus 2
Operating System	Android 10.0
Screen Size	10.1 inch
Screen Resolution	1280 x 800 pixels
Processor	4-Core, 2.0 GHz
RAM Memory	4 GB
Storage Memory	64 GB
Connectivity	Wi-Fi, Bluetooth
Battery	12600 mAh / 3.8V
