Topdon Phoenix Lite 3 | Diagnostic Tool | Car

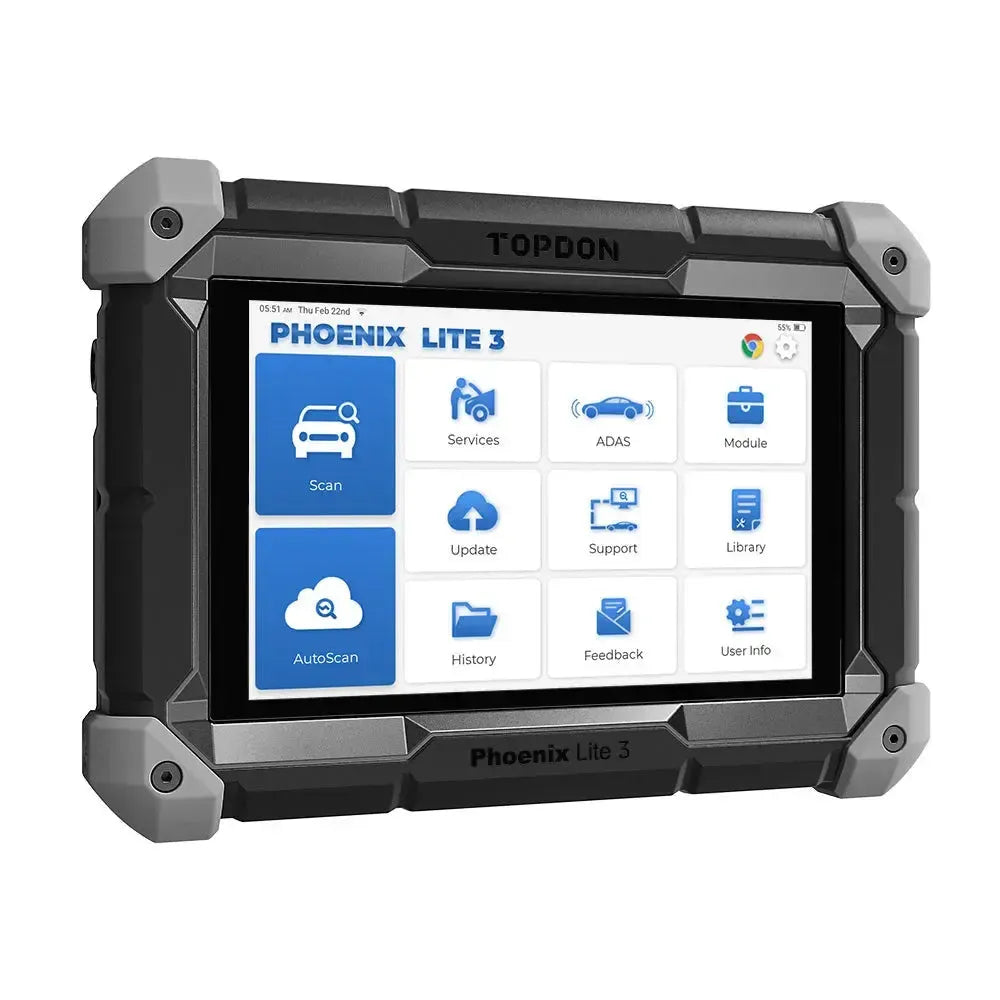

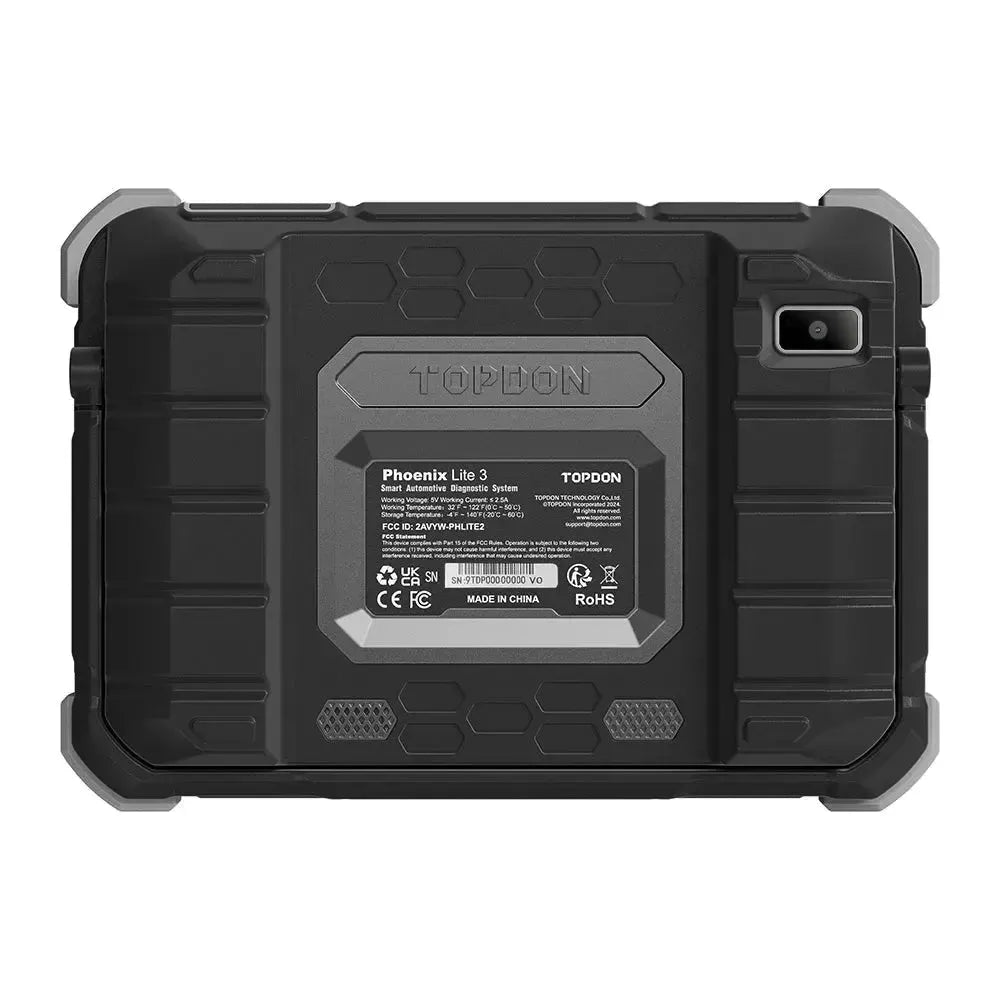

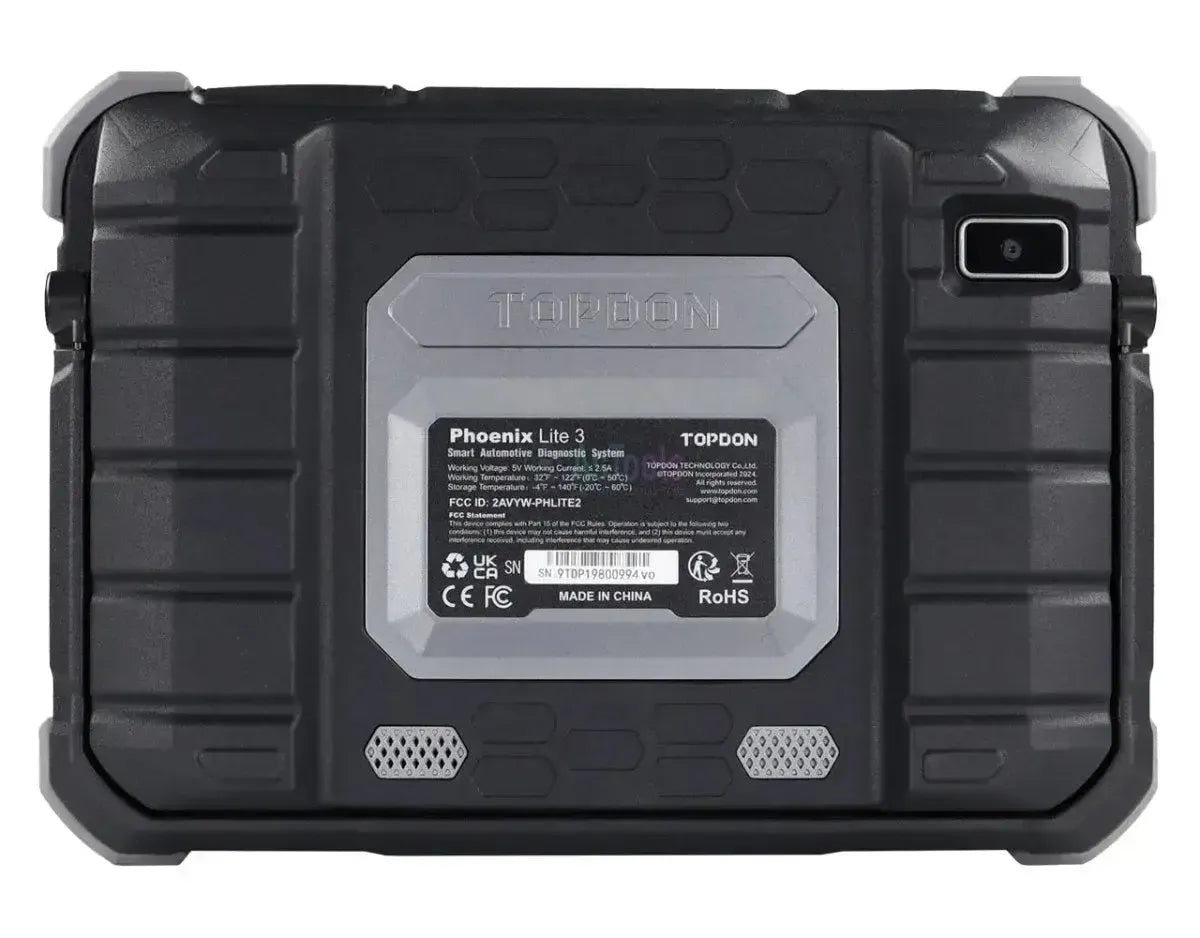

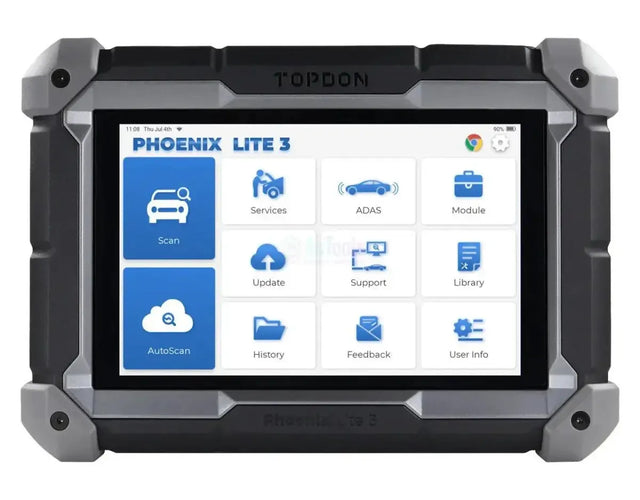

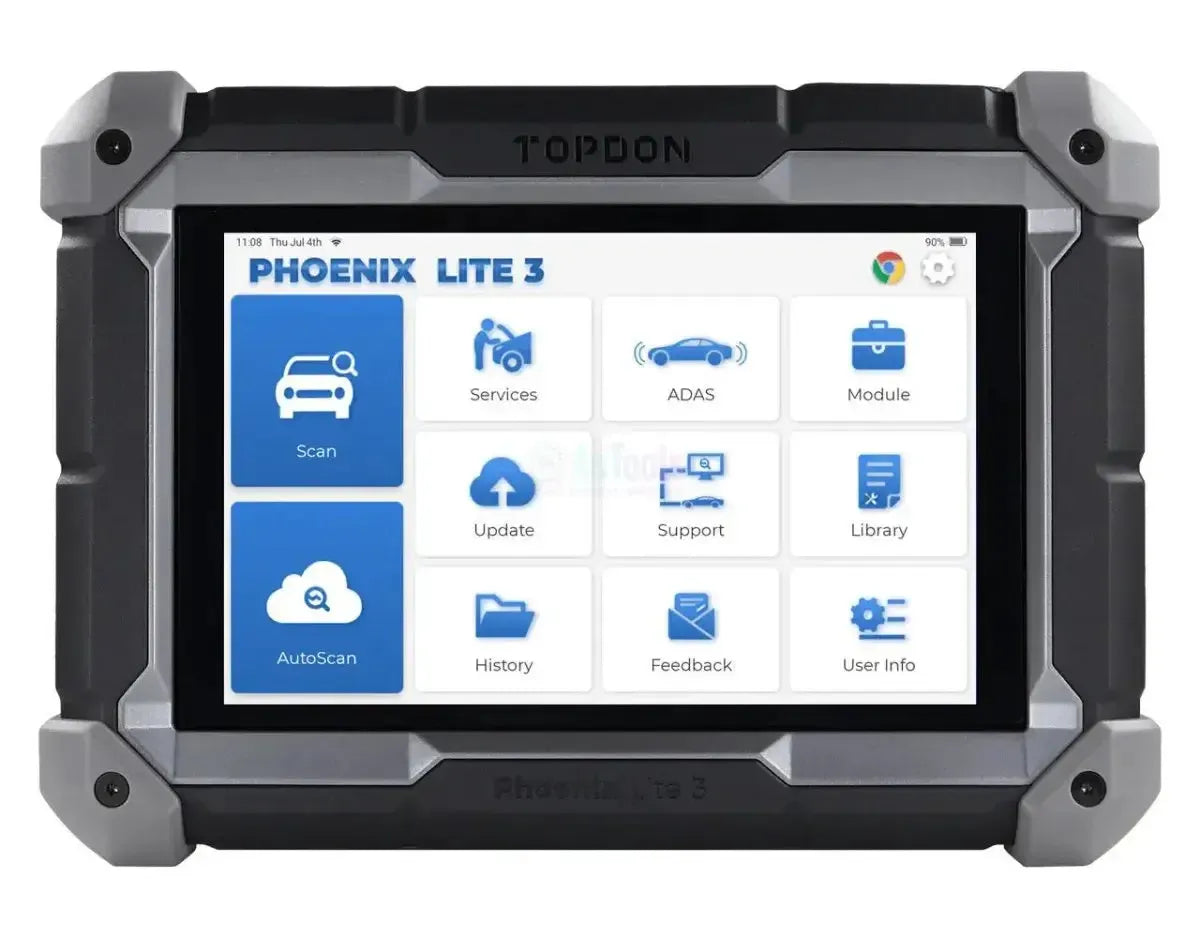

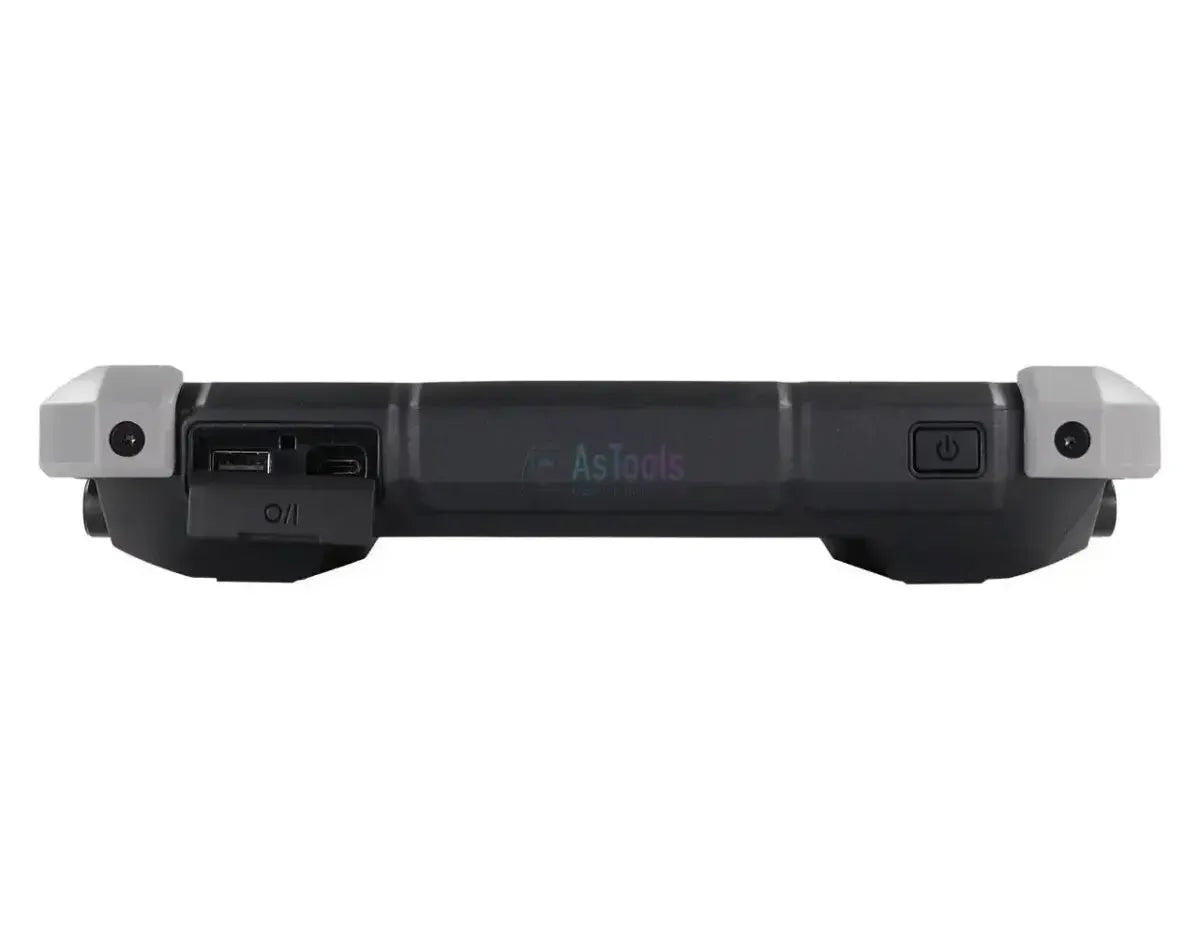

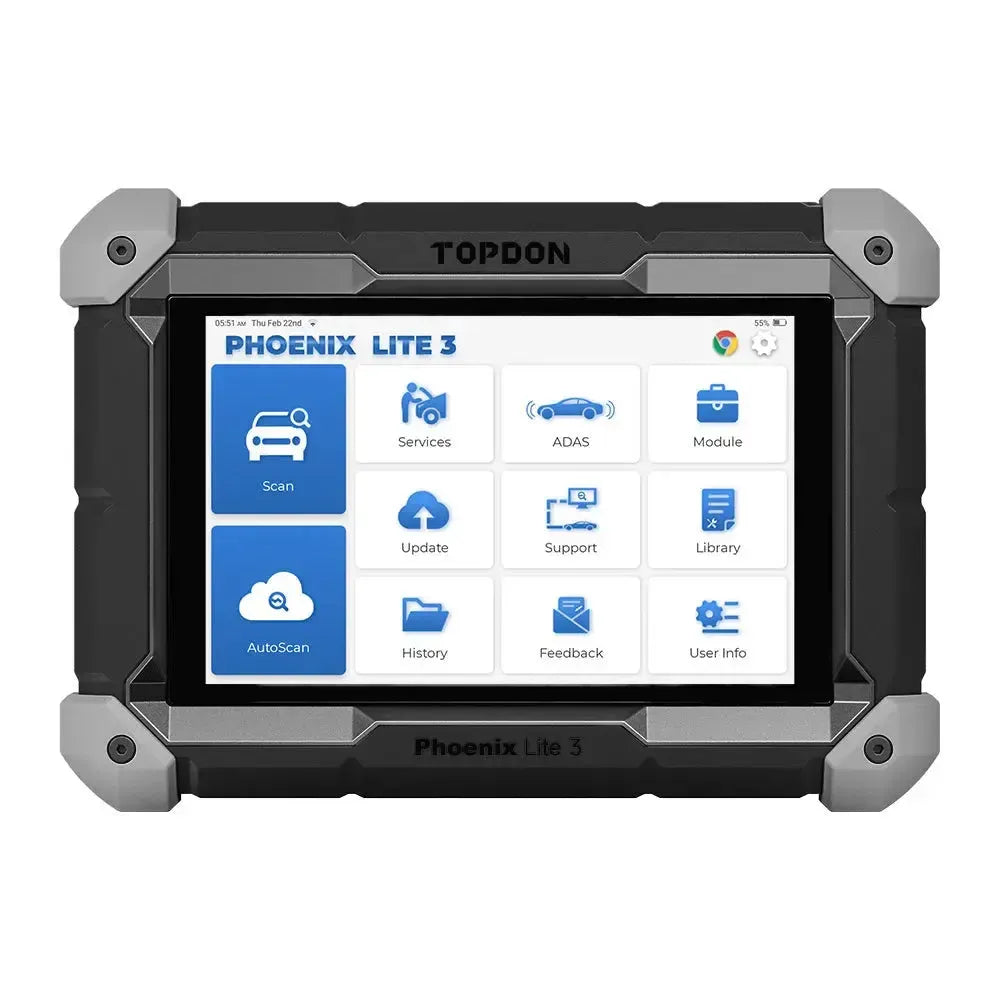

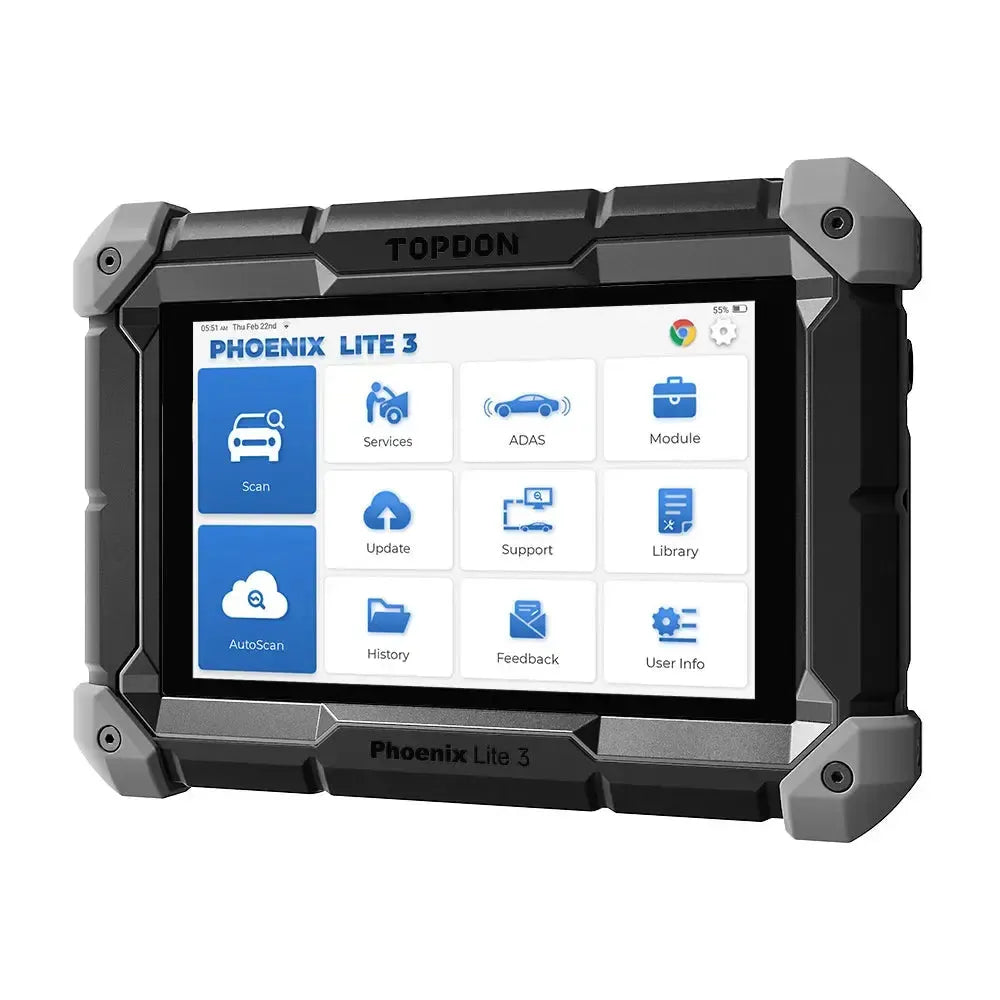

The Topdon Phoenix Lite 3 is a diagnostic tool in tablet format, designed for performing vehicle diagnostics. This system supports a wide range of vehicle brands and features a wireless VCI for diagnosis via Bluetooth. The main functionalities include OE-level system diagnosis, actuator testing, and ECU coding. A software license with 2 years of updates is included with purchase.

The Phoenix Lite 3 stands out with features such as Precise Topology Mapping, which provides a visual overview of the communication structure between control units. The device supports the CAN-FD protocol and offers access to the secure FCA Secure Gateway. The functionality can be further expanded with optional modules, such as a Battery tester, oscilloscope, and a thermal imaging camera.

---

Diagnostic functions:

The Phoenix Lite 3 offers extensive diagnostic capabilities for all existing vehicle systems.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from all available control units, such as engine, transmission, ABS, and airbags.
• Live data functions: Displays real-time data from sensors and components in text and graph form for detailed analysis.
• Actuator control (Bi-directional control): Directly controls vehicle components and systems to test functionality without driving the vehicle.
• Precise Topology Mapping: Generates a visual representation of the network topology, showing the communication structure and status of all control units in the vehicle.

---

Service and maintenance functions:

This diagnostic device supports more than 35 service and maintenance functions. Available functions may vary by brand, model, and year.

Engine and drivetrain:

• Oil service reset: Resets the service indicator for engine oil and maintenance intervals.
• Learn throttle valve: Initializes the throttle valve actuators to default values after replacement or cleaning.
• Code injectors: Programs new injector codes into the ECU after injector replacement.
• Adjust transmission: Reset the adaptive learning values of the automatic transmission.
• Learn crankshaft sensor: Learns the tolerances of the crankshaft sensor to optimize engine performance.
• Adjust clutch: Performs an initialization of the clutch after replacement.
• Adjust turbo: Reset the turbo settings after service or replacement.
• Reset air-fuel ratio: Adjusts the air-fuel ratio for optimal combustion.

Exhaust systems:

• Diesel Particulate Filter regeneration (DPF): Start a forced regeneration to remove blockages in the diesel particulate filter.
• Adjust EGR system: Reset the learning values of the Exhaust Gas Recirculation (EGR) system.
• AdBlue System Reset: Resets the AdBlue system after refilling the fluid or repairing components.
• NOx Sensor Reset: Resets the stored values of the NOx sensor after replacement.

Brakes:

• ABS System Bleeding: Performs a procedure to remove air from the ABS brake system.
• Electronic Parking Brake (EPB) Service: Used for opening and closing the brake calipers during maintenance of the electronic parking brake.

Steering and suspension:

• Steering Angle Sensor Initialization (SAS): Calibrates the steering angle sensor after replacement or vehicle alignment.
• Air Suspension Calibration: Adjusts the ride height and calibrates the sensors of the air suspension system.

Safety systems:

• Airbag Module Reset: Resets the crash data in the airbag module after an accident or repair.
• Immobilizer Programming: Programs new keys or deactivates lost keys in the immobilizer system.
• Tire Pressure Monitoring System (TPMS) Reset: Reprograms TPMS sensors and resets warning lights after tire or sensor replacement.

Body and electronics:

• Battery Registration: Registers a new battery in the vehicle management system to optimize the charging cycle.
• ECU Coding: Adjusts the configuration of electronic control units (ECUs) after replacement or to activate functions.
• Adaptive Headlights Setting (AFS): Calibrates the adaptive headlight system.
• Sunroof Initialization: Resets the basic settings of the sunroof or panoramic roof.
• Windows Calibration: Adjusts the automatic up and down function of the electric windows.
• Rain and Light Sensor Initialization: Calibrates the sensors for the automatic windshield wipers and lighting.
• Seat Occupancy Sensor Calibration: Performs a calibration of the sensor that detects whether a seat is occupied.
• Reset footwell module (FRM): Resets and programs the footwell module, which controls lighting and other body functions.
• Calibrate gateway module: Performs a calibration of the central gateway module.

Other functions:

• Bleed cooling system: Activates the water pump to electronically bleed the cooling system.
• Deactivate/activate start/stop system: Changes the settings of the automatic start/stop system.
• Enable/disable transport mode: Activates or deactivates the transport mode, which limits certain vehicle functions.
• Change system language: Changes the display language of the instrument panel or infotainment system.
• Reset tire settings: Resets the settings related to tire size or type.
• Adjust mileage: Corrects the displayed mileage on the instrument panel, for example after replacement.

---

Special features and capabilities:

The Phoenix Lite 3 offers advanced functions for coding, reporting, and support of modern vehicle protocols.

Coding and programming:

• ECU coding: Allows adjustment of vehicle configurations, activation of hidden features, or configuration of components after replacement by changing the code in the control unit.

Cloud and reporting functions:

• Generate diagnostic reports: Creates detailed reports of the performed diagnostics, which can be saved, printed, or shared.

Other special features:

• CAN-FD protocol support: Compatible with the CAN-FD protocol, enabling communication with newer vehicles, including General Motors models.
• FCA Secure Gateway access: Provides the ability to connect to the secure gateway of Fiat Chrysler Automobiles (FCA) vehicles for performing diagnostics and service functions.

---

Optional expansion modules:

The functionality of the Topdon Phoenix Lite 3 can be expanded with various optional hardware modules and software licenses. These expansions are specifically designed for compatibility with this diagnostic system.

Hardware modules and accessories:

• ADAS calibration tool: Enables calibration of Advanced Driver-Assistance Systems.
• BTMobile ProS battery tester: For performing battery tests and analyzing the status of the charging and starting system.
• Oscilloscope: Provides the ability to measure and visualize electrical signals for advanced diagnostics.
• T-Ninja Box: A programming device for reading, copying, and writing key data.
• TC001 thermal imaging camera: A thermal camera for detecting temperature differences in components.

Software modules and licenses:

• FCA Secure Gateway (SGW) license: Grants authorized access to the secure vehicle systems of Fiat, Chrysler, Alfa Romeo, and Jeep.
• Renault Secure Gateway (SGW) license: Provides access to the secure electronic systems of Renault and Dacia vehicles.

---

Supported vehicle brands:

The Topdon Phoenix Lite 3 is a diagnostic tool compatible with a wide range of vehicle brands. This device supports an extensive list of European, Asian, American, and Chinese car brands.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, DR, Ferrari, Fiat, Ford, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mclaren, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, Vauxhall, VAZ, Volkswagen, Volvo.
• Asian: Acura, Ashok Leyland, Daewoo, Daihatsu, Force, FUSO, HINO, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Saipa, Samsung, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast.
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, Holden, Jeep, Lincoln.
• Chinese: BAIC, Brilliance, BYD, Changan, Changhe, Changhe Suzuki, Chery, Cowin, Dongfeng, Exeed, FAW, Foton, Geely, Gonow, Great Wall Motor, Haima, JAC, Jetour, Jinlong, JMC, Joylong, Karry, Leap, Luxgen, Maxus, MG, Qoros, Riich, Roewe, SGM, SGMW, Shineray, Soueast, SWM, Trumpchi, Zotye, ZX Car.

---

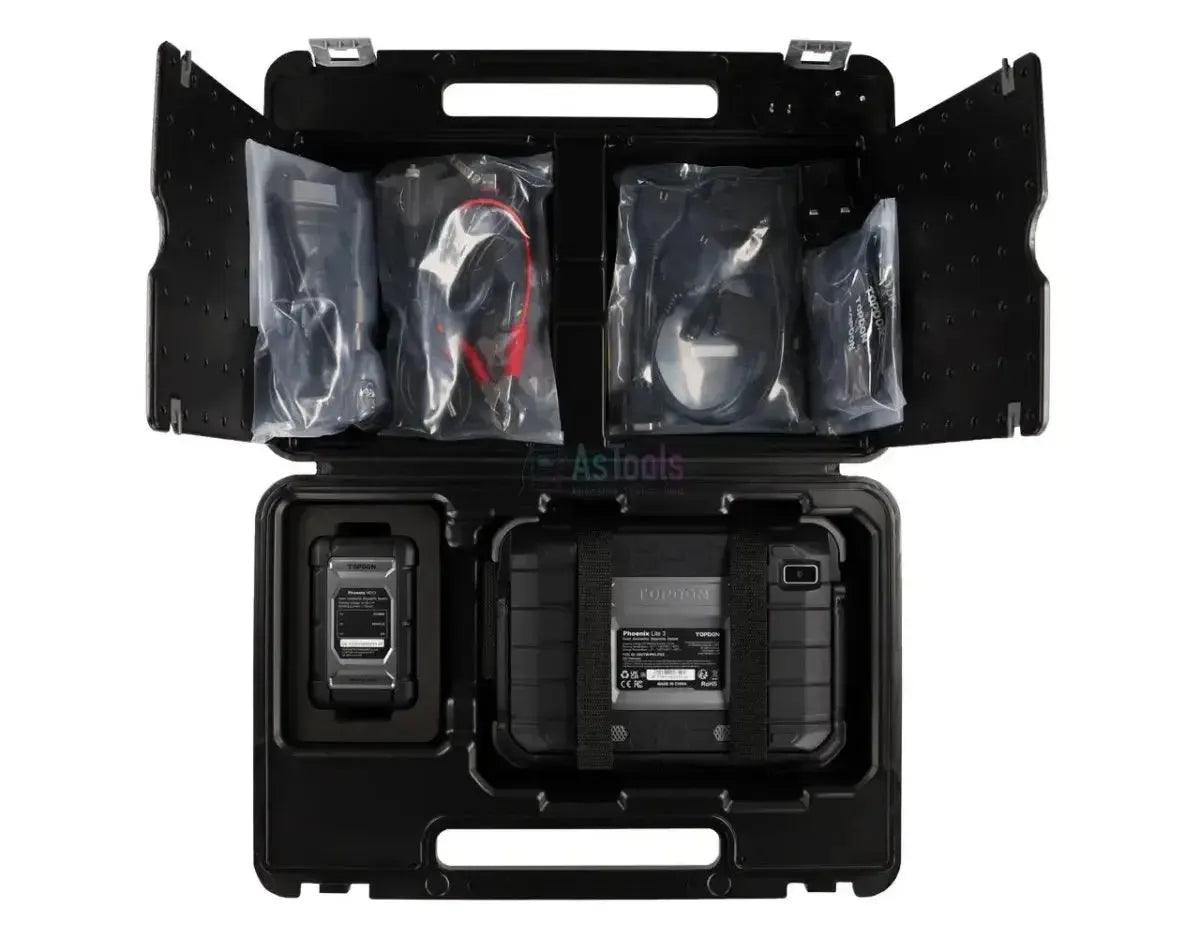

Package Contents:

• 1x Topdon Phoenix Lite 3 Car diagnostic tool
• 1x Phoenix MDCI (VCI)
• 1x Battery clamps/cable set
• 1x OBD I Adapter BOX Transfer Line
• 1x OBDII Adapter Cable
• 1x Cigarette lighter Cable
• 1x Type-C to USB cable
• 1x Power Adapter
• 1x B-20 (BMW) Adapter
• 1x BZ-38 (Mercedes-Benz) Adapter
• 1x CR-6 (Chrysler) Adapter
• 1x FT-3 (Fiat) Adapter
• 1x G/V-12 (GM/VAZ) Adapter
• 1x HA-3 (Honda) Adapter
• 1x M/H-12+16 (Mitsubishi/Hyundai) Adapter
• 1x NN-14+16 (Nissan) Adapter
• 1x TA-17 (Toyota) Adapter
• 1x TA-22 (Toyota) Adapter
• 1x User manual
• 1x Package Contents list

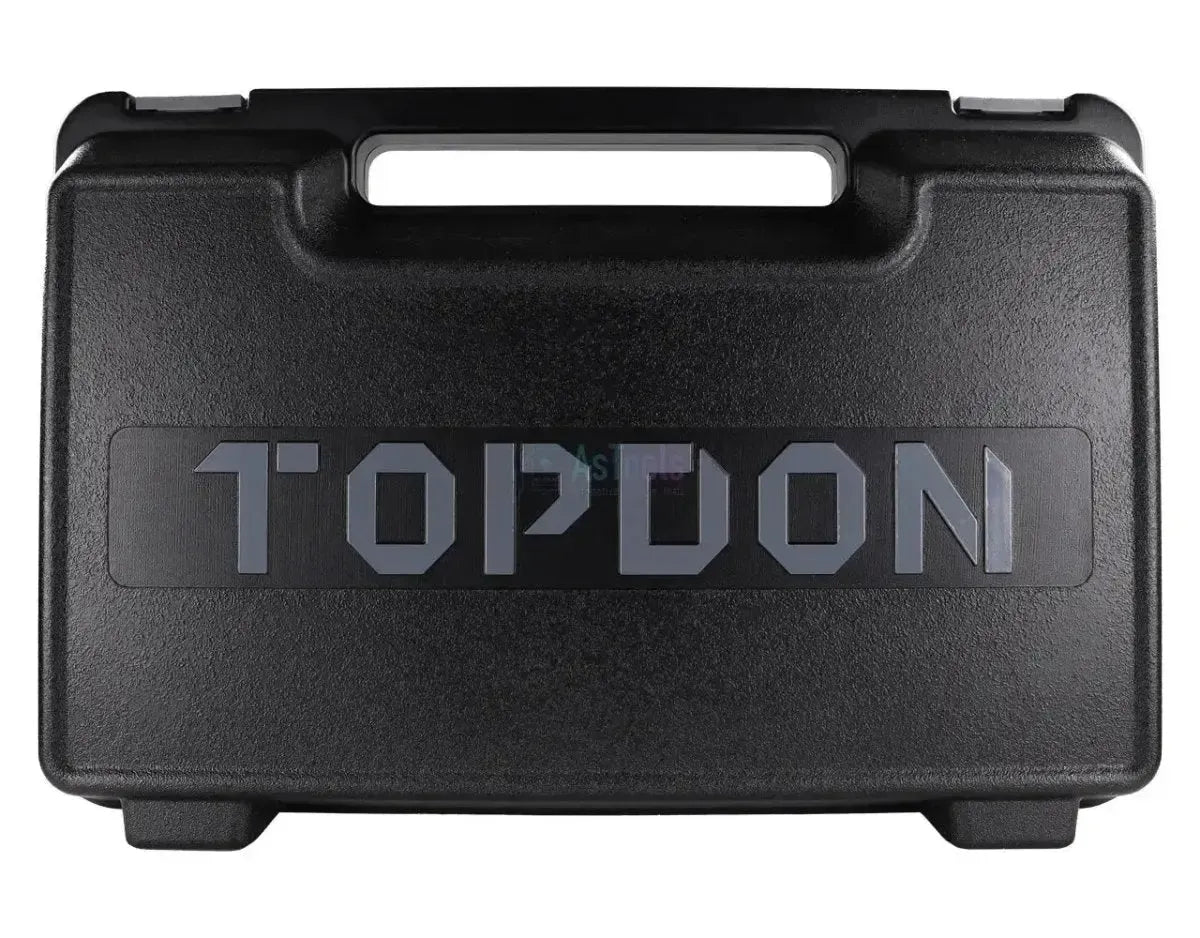

• 1x Storage case

---

License information:

• Includes 2 years of updates: A 24-month update license is included with the purchase.

After the license expires, the reader device will continue to operate based on the last installed software version. Access to online features and receiving new software updates will be discontinued.

---

Technical Specifications:

Specification	Description
Topdon	Topdon
Product Model	Phoenix Lite 3
Operating System	Android 10.0
Screen Size	8-inch LCD
Screen Resolution	1280 x 800
Processor	4-Core, 2.0 GHz
RAM Memory	2 GB
Storage Memory	64 GB
Connectivity	Bluetooth, Wi-Fi
Battery	12600 mAh / 3.8V
