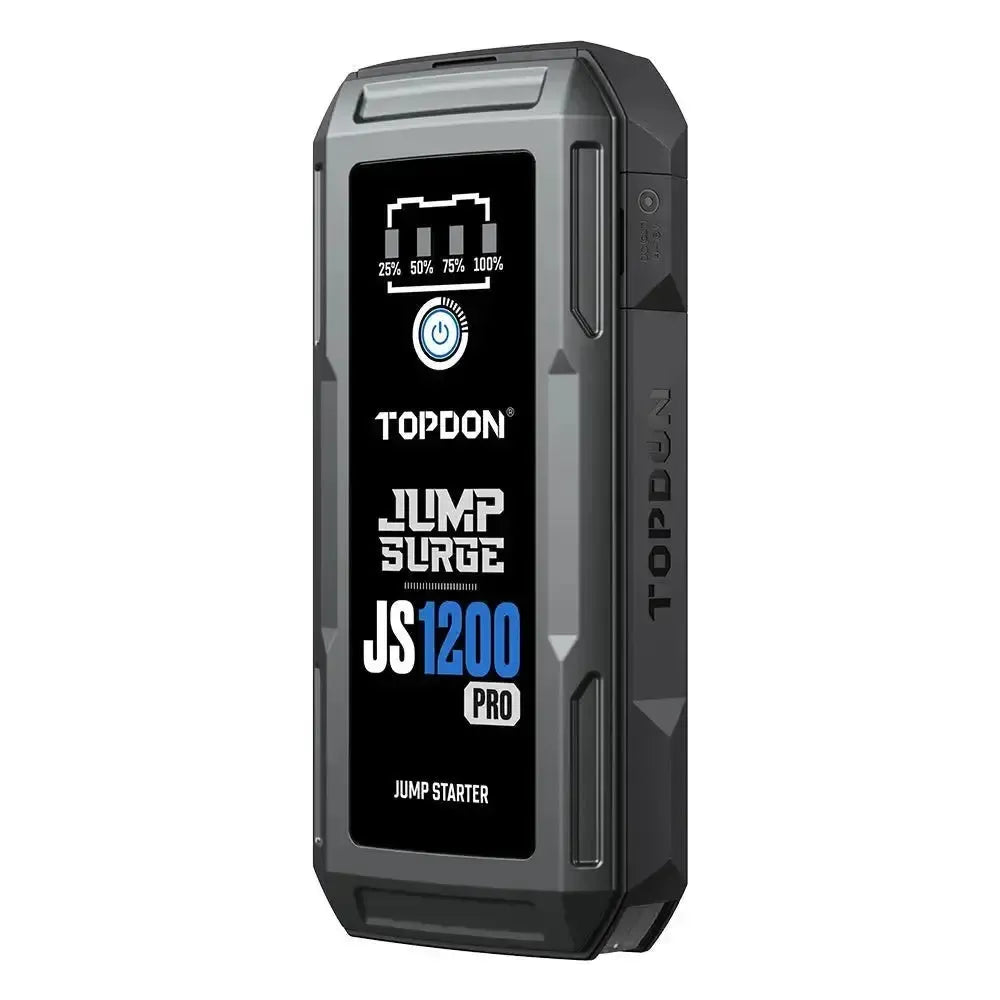

Topdon JumpSurge JS1200 Pro | Jump Starter

The Topdon JumpSurge JS1200 Pro is a jump starter with a peak current of 1800A. This starting aid is designed to start 12V vehicles with dead batteries. The internal battery has a capacity of 10000mAh (37Wh), which is sufficient for starting gasoline engines up to 6.5 liters and diesel engines up to 4.0 liters. On a full charge, the device can perform up to 25 starting attempts.

In addition to the starting function, the JumpSurge JS1200 Pro also serves as a power bank for charging electronic devices via a Type-C PD18W port and a USB-A port. The device is equipped with a "Boost Mode" for starting vehicles with a deeply discharged or completely dead battery. A built-in LED lamp of 300 lumens provides lighting with three modes: continuous light, SOS, and strobe.

Application and functionality:

The Topdon JumpSurge JS1200 Pro offers multiple functionalities for starting vehicles and charging devices.

• Jumpstarter: Provides a peak current of 1800A to start 12V lead-acid batteries in vehicles such as cars, motorcycles, boats, and campers.
• Boost mode: A special function to start vehicles whose battery has no detectable voltage (0V). This mode supplies power for 30 seconds to force a starting attempt.
• Power bank: Equipped with a Type-C and USB-A output for charging smartphones, tablets, and other USB devices. The Type-C port supports PD18W for fast charging.
• LED lighting: An integrated 300-lumen LED lamp with three different light modes for use in the dark or in emergency situations.

Safety features:

The device is equipped with multiple safety systems to prevent damage to the user, the vehicle, and the jump starter itself.

• Short circuit protection: Prevents damage if the battery clamps touch each other.
• Reverse polarity protection: Protects against damage caused by incorrect connection of the clamps to the battery terminals.
• Overcurrent protection: Stops the power supply if the current becomes too high.
• Overtemperature protection: Turns off the device if the internal temperature becomes too high during use.
• Reverse charging protection: Prevents current from flowing back from the vehicle battery to the jump starter.
• Over-discharge protection: Protects the internal battery from excessive discharge.
• IP64 rating: The housing provides protection against dust and splashing water.

Package Contents:

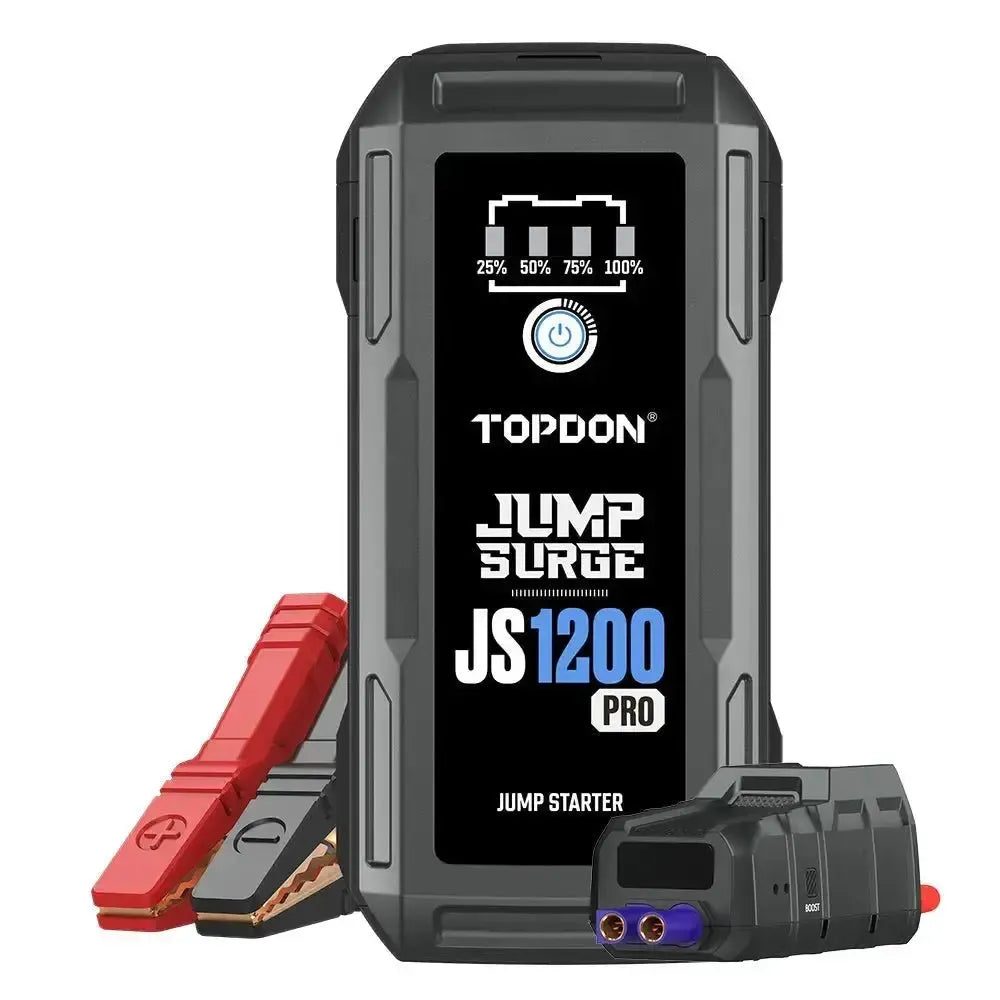

• 1x Topdon JumpSurge JS1200 Pro
• 1x Battery clamps
• 1x Type-C to USB-A cable
• 1x Storage bag
• 1x Manual

Technical specifications:
