Topdon BT600 Plus | Battery Tester

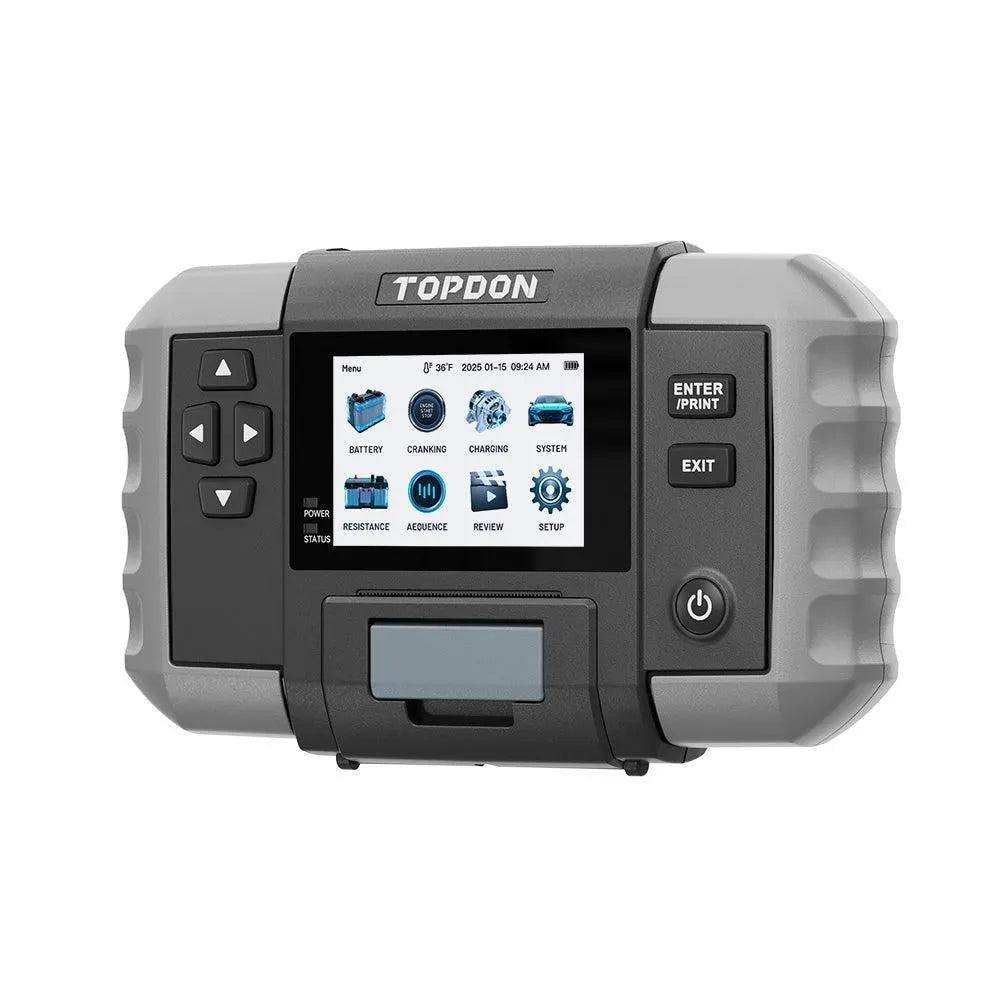

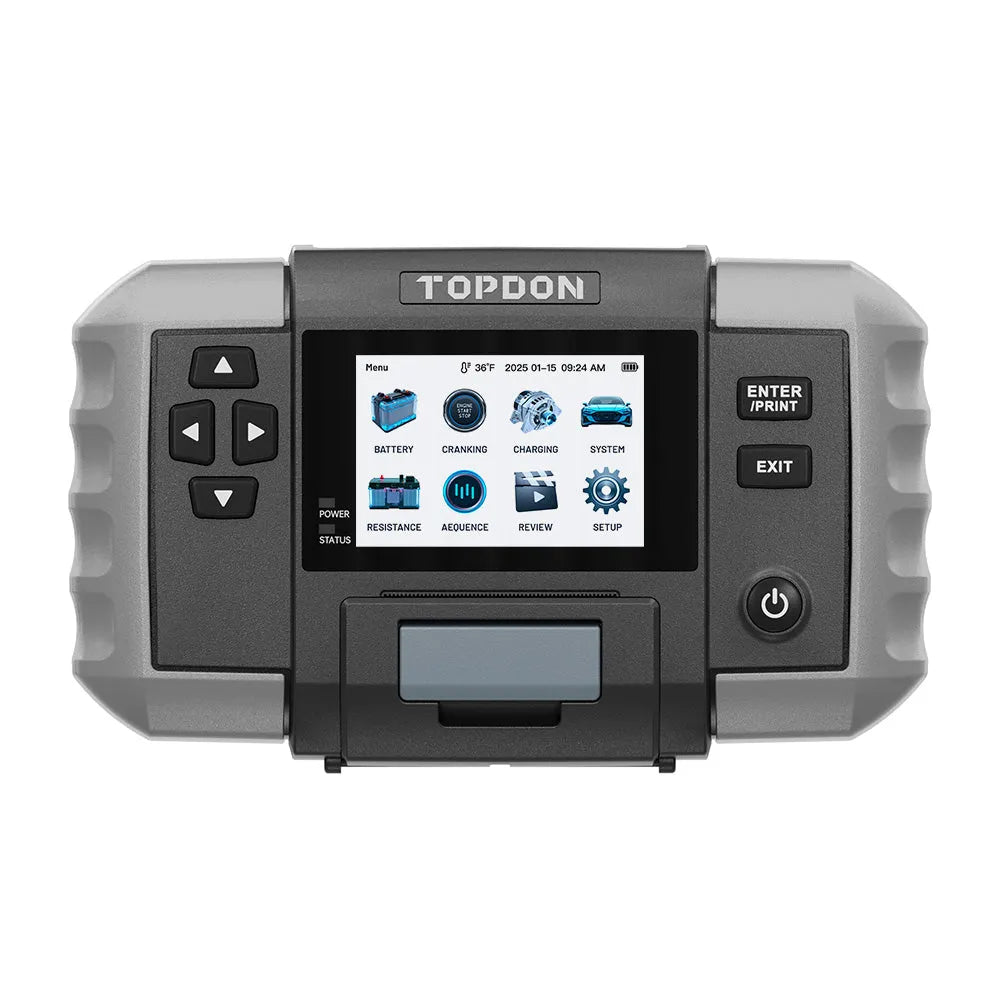

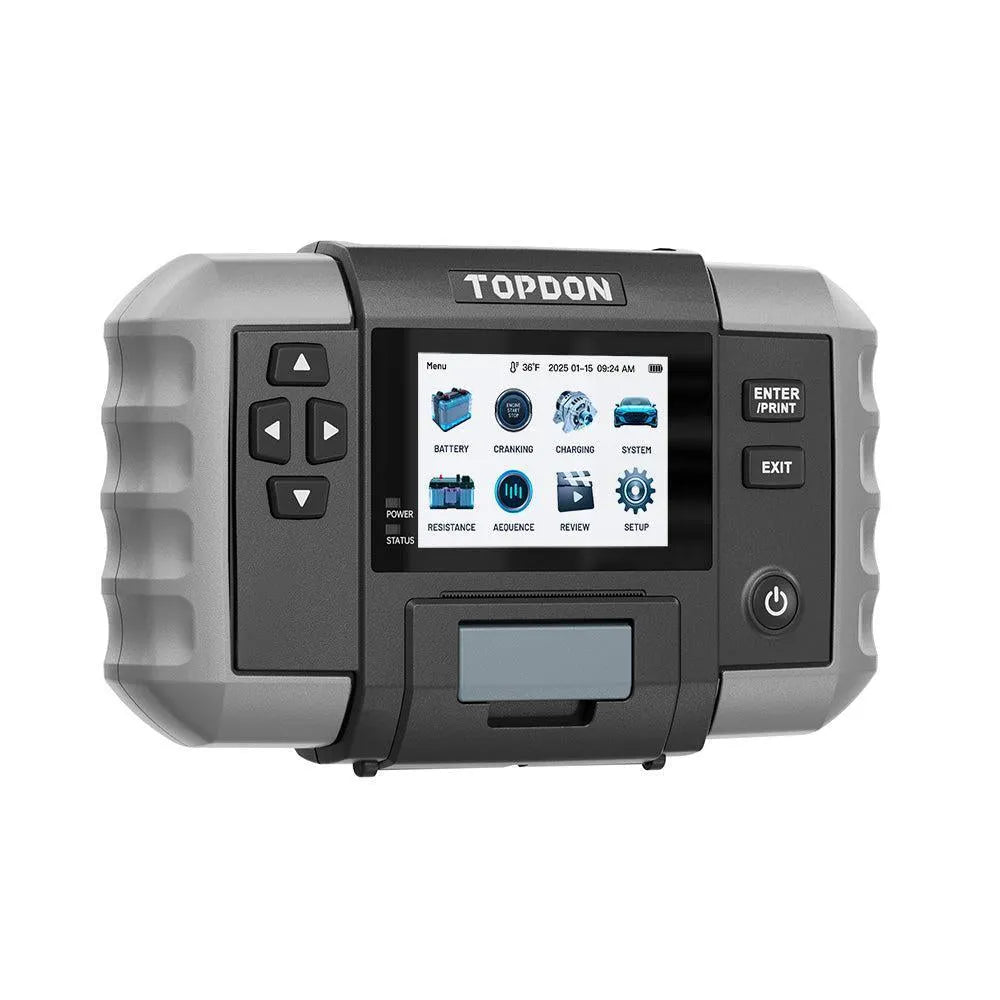

The Topdon BT600 Plus is a battery tester suitable for analyzing 6V, 12V, and 24V lead-acid batteries. This device features a 3.5-inch color screen for displaying measurement results and has a test range of 100 to 2000 CCA. The tester has an internal, rechargeable 5200 mAh battery, allowing it to operate without a direct power connection. Results can be printed directly with the built-in thermal printer.

In addition to standard battery tests, the BT600 Plus also performs a start and charging system test for 12V and 24V systems. The tester is equipped with features such as a ripple test and a resistance measurement. For testing large quantities of batteries, a sequential test mode is available, allowing up to 500 batteries to be processed in 10 groups. The tester can internally store up to 10 test reports and is protected against reverse polarity.

Application and functionality:

The BT600 Plus offers various test functions for a complete analysis of the battery and related systems:

• Battery test: Analyzes the state of charge (SoC), state of health (SoH), and internal resistance of 6V, 12V, and 24V batteries.
• Start test: Evaluates the performance of the starting circuit on 12V and 24V systems by measuring start voltage and time.
• Charge test: Checks the operation of the charging system (alternator) on 12V and 24V vehicles.
• Ripple voltage test: Detects fluctuations in the charging system that may indicate alternator problems.
• Sequential test: Simplifies testing multiple batteries in batches, suitable for high-volume workshops.
• Resistance measurement: Measures the internal resistance of the battery to determine its condition.

Supported battery types:

The tester is compatible with a wide range of lead-acid batteries:

• AGM (Absorbent Glass Mat): Includes standard AGM and AGM Spiral batteries.
• EFB (Enhanced Flooded Battery): Used in vehicles with start-stop systems.
• GEL: Gel batteries with a solid electrolyte.
• Wet cell (Flooded): Standard maintenance-free and non-maintenance-free lead-acid batteries.
• VRLA (Valve Regulated Lead Acid): A general category for maintenance-free batteries such as AGM and GEL.

Supported battery standards:

Measurements can be performed according to the following international standards:

• BCI: Battery Council International
• CA: Cranking Amps
• CCA: Cold Cranking Amps
• DIN: Deutsches Institut für Normung
• EN: European Norm
• GB: Chinese National Standard
• IEC: International Electrotechnical Commission
• JIS: Japanese Industrial Standard
• MCA: Marine Cranking Amps
• SAE: Society of Automotive Engineers

Vehicle compatibility:

With support for 6V, 12V, and 24V systems, the BT600 Plus is suitable for various vehicle categories:

• Passenger cars: For all 12V battery systems.
• Motorcycles: For 6V and 12V batteries.
• Trucks and heavy equipment: For 24V battery systems in commercial and industrial vehicles.
• Boats and campers: Suitable for testing start and deep-cycle batteries in 12V and 24V systems.

Package Contents:

• 1x Topdon BT600 Plus battery tester
• 1x Battery test cable with clamps
• 1x USB-A to USB-C cable
• 1x 6-in-1 wall charger
• 3x Roll of thermal paper
• 1x Manual
• 1x Quick start guide
• 1x Storage bag

Technical specifications:
