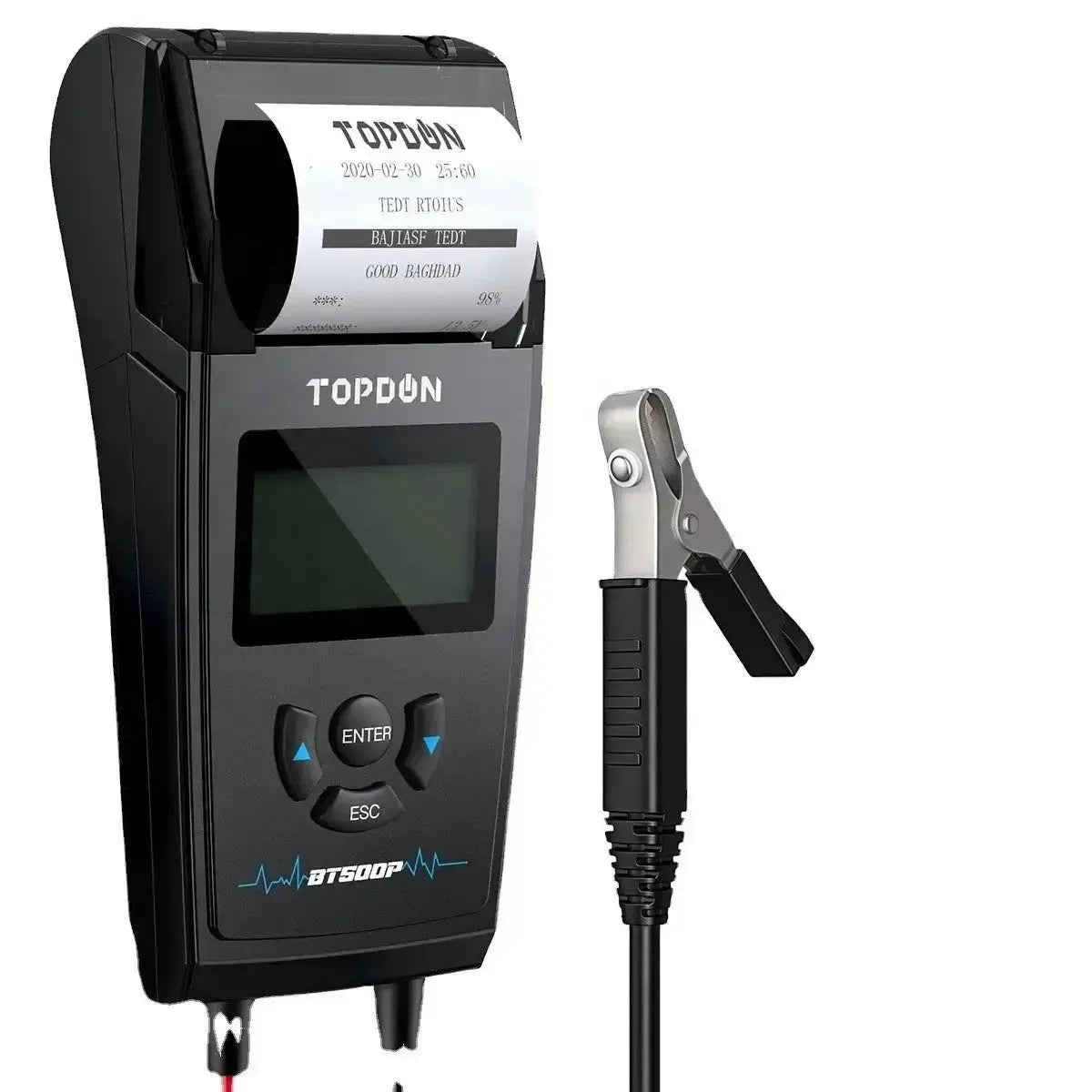

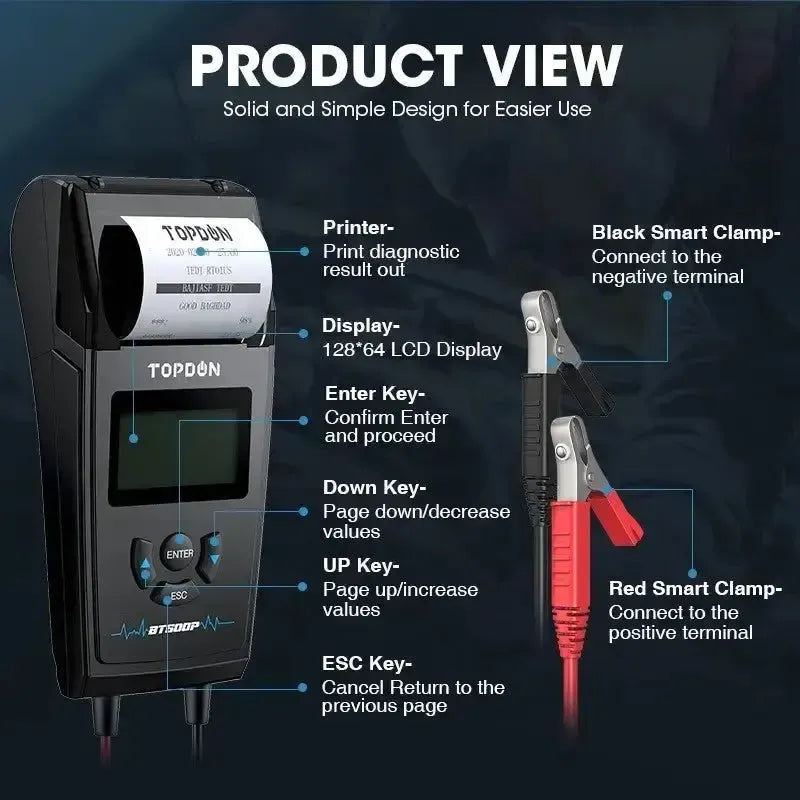

Topdon BT500P Battery Tester
The Topdon BT500P is an advanced Battery Tester with built-in thermal printer, designed for analyzing 12V and 24V lead-acid batteries in vehicles such as cars, trucks, motorcycles, and boats. With a test range of 100 to 1700 CCA and support for various battery types, this tester offers fast and accurate results. Thanks to the user-friendly interface and clear 2.8-inch LCD screen, the BT500P is suitable for both professionals and DIY enthusiasts.
The BT500P performs comprehensive tests, including battery tests, start tests, charging system tests, and load tests. The built-in thermal printer allows test results to be printed directly for easy documentation and reporting. With its robust design and portability, the BT500P is a reliable partner for battery diagnostics in various environments.
Functions:
-
Battery Tester: Assesses the health of the battery, including CCA value, internal resistance, state of charge (SOC), and overall condition (SOH).
-
Start test: Evaluates the battery's starting power by measuring the required starting current and voltage.
-
Charge test: Checks the vehicle's charging system, including the alternator and voltage regulator, to ensure proper operation.
-

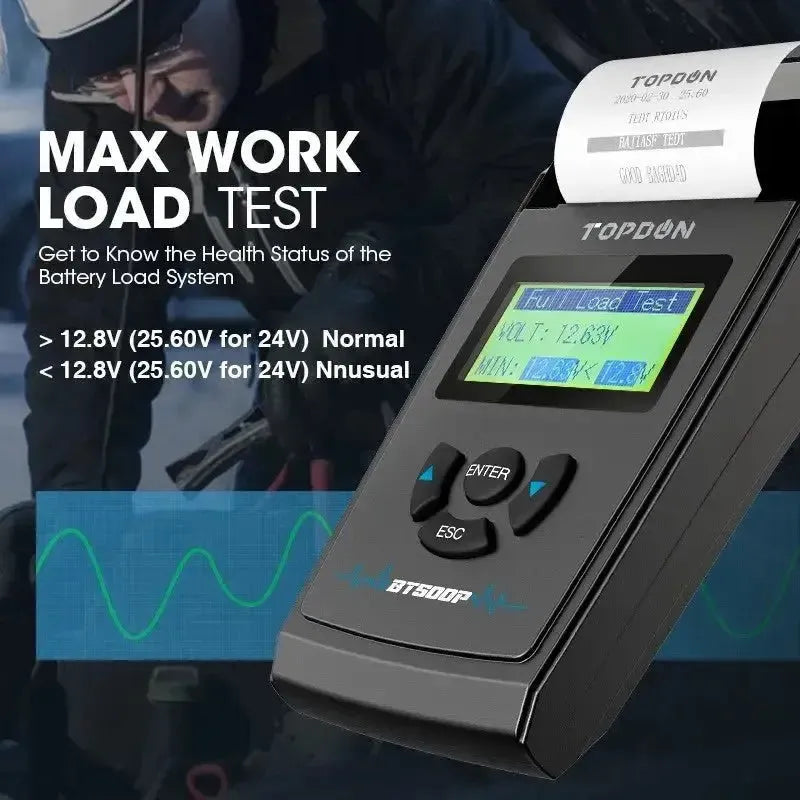

Load test: Simulates high load on the battery to evaluate performance under load.
-
Result printout: Allows test results to be printed directly with the integrated thermal printer.
Special features:
-

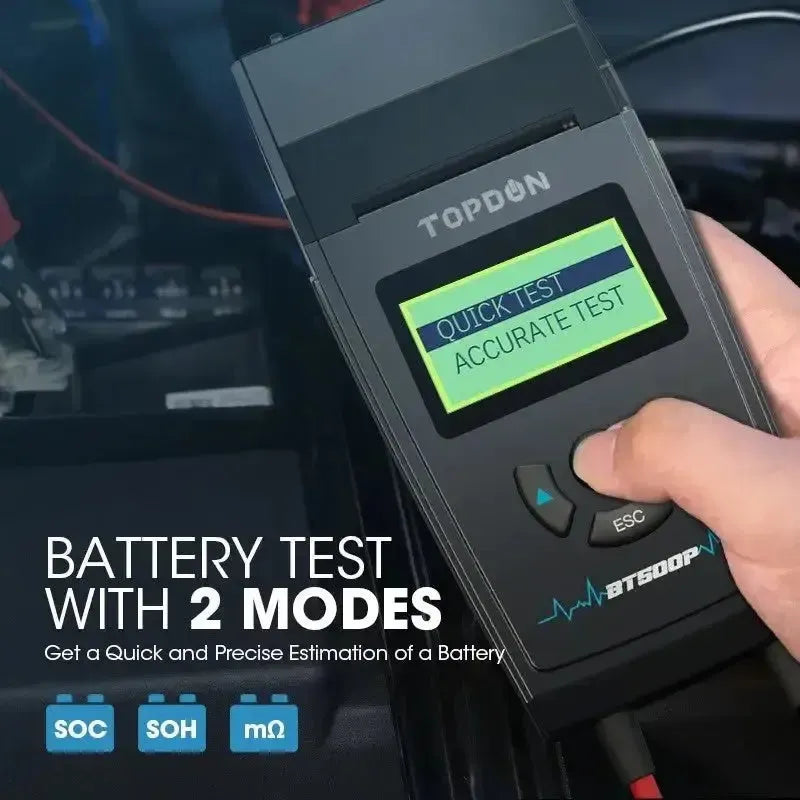

Quick Test mode: Enables fast tests without prior knowledge of battery type or CCA value.
-
Reverse polarity protection: Prevents damage to the device when clamps are connected incorrectly.
-
Robust design: Sturdy housing and anti-slip material for durability and ease of use.
-
No internal battery needed: Works directly when connected to the battery, without extra power supply.
Supported batteries:
-
Battery types: Lead-acid, AGM (flat plate and spiral), GEL, EFB
-
Battery Tester standards: CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB

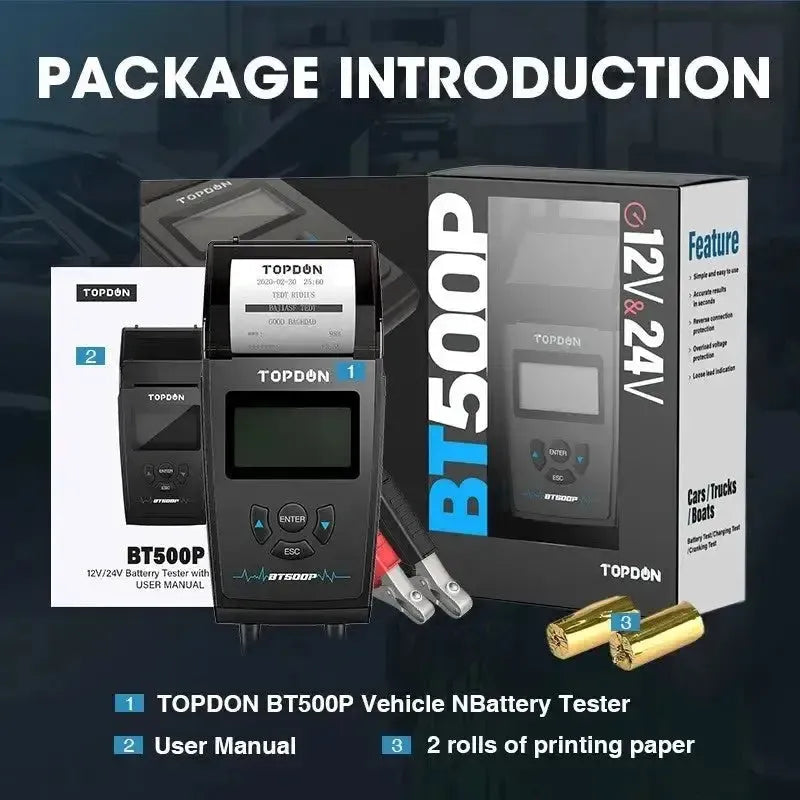

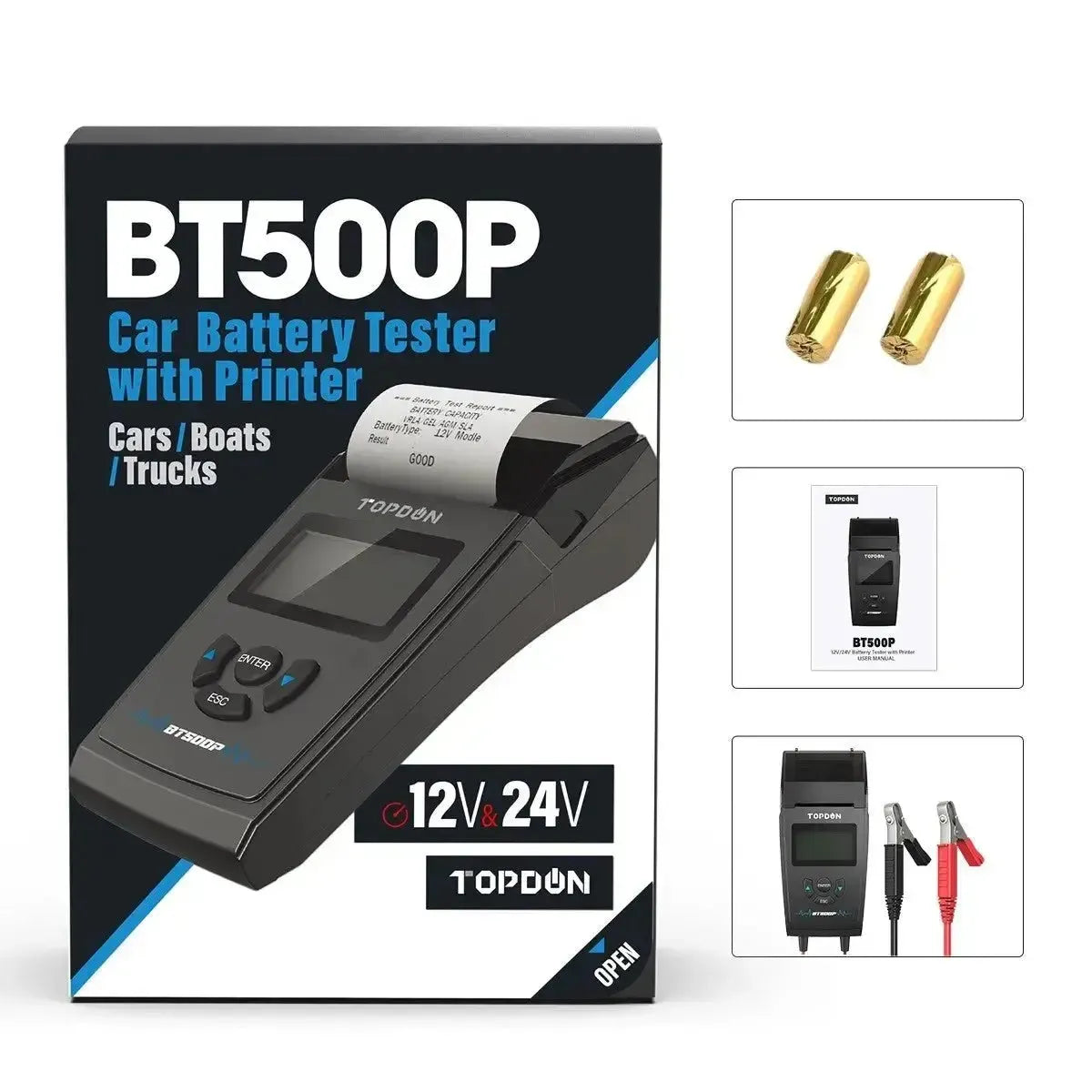

Package contents:
-
Topdon BT500P Battery Tester
-
Print paper (2 pieces)
-
Manual
Technical specifications
|
Specification |
Value |
|---|---|
|
System voltage |
12V / 24V |
|
Test range |
100 – 1700 CCA |
|
Display |
2.8-inch LCD screen (128x64 pixels) |
|
Operating temperature |
-20°C to 65°C |
|
Storage temperature |
-20°C to 70°C |
|
Dimensions |
310 x 93 x 55 mm |
|
Weight |
500 g |
|
Power supply |
No internal battery required |
