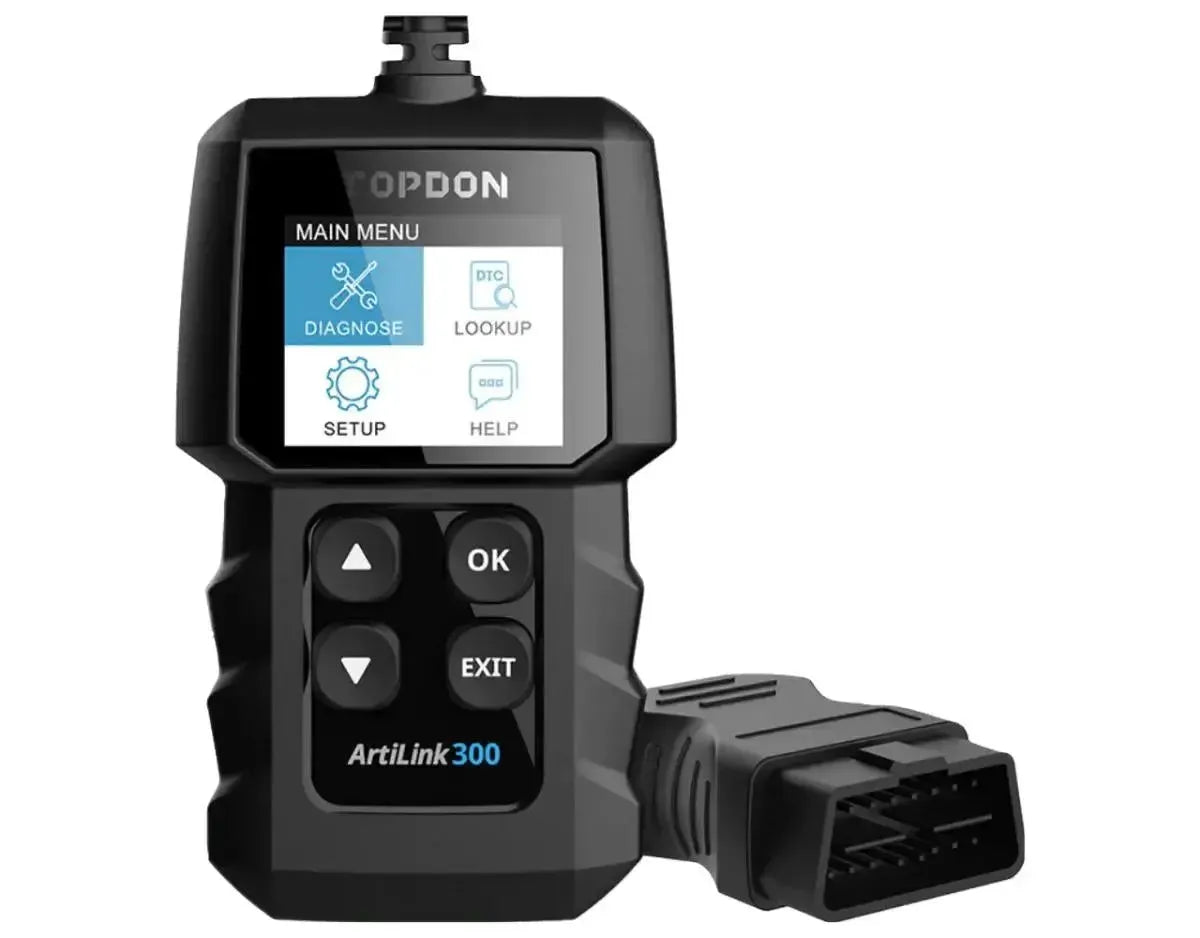

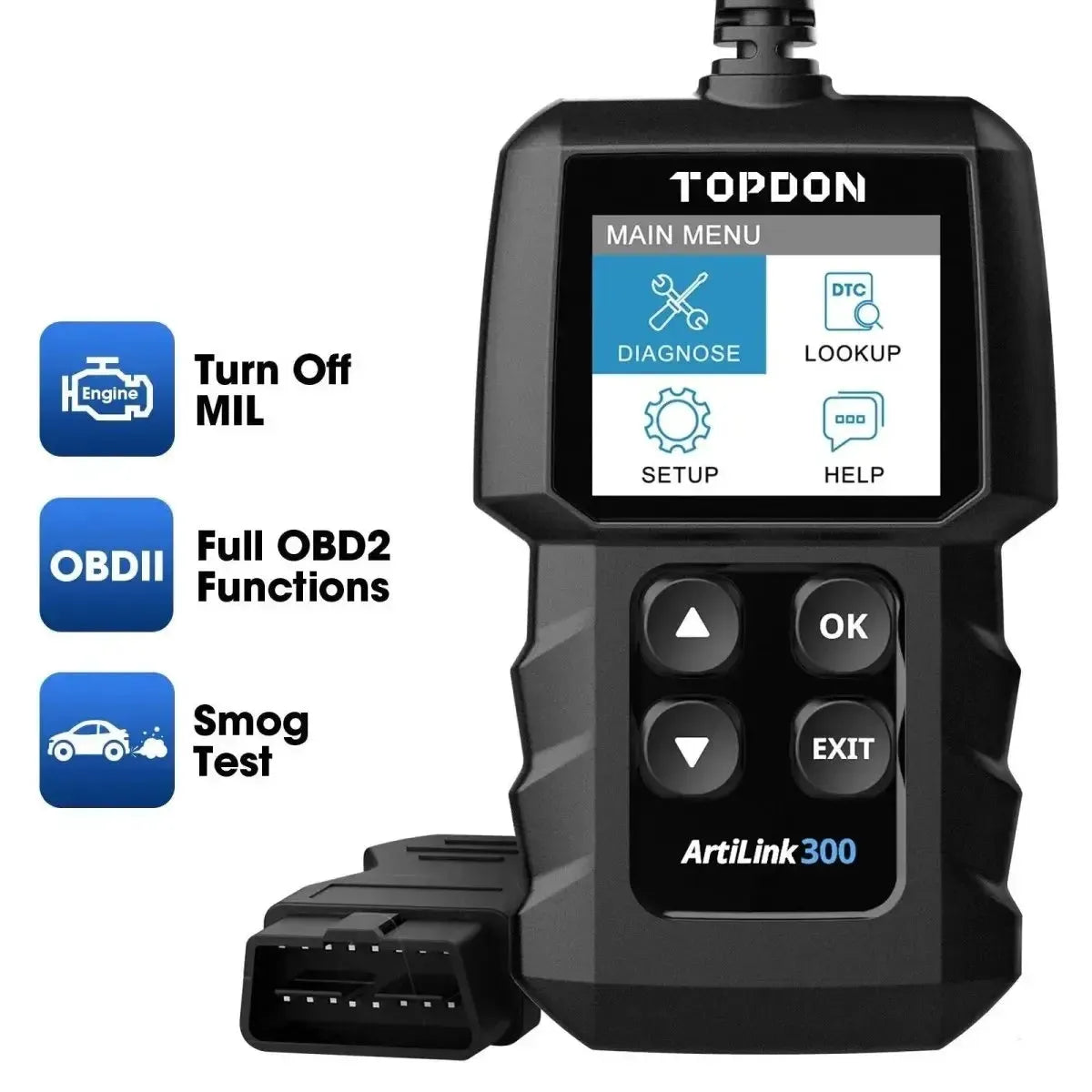

Topdon ArtiLink AL300 Car Fault Code Reader
The Topdon ArtiLink AL300 is a compact and affordable OBD2 code reader specially designed for DIYers and hobbyists. The device offers quick and easy access to engine faults in vehicles compliant with OBD2/EOBD protocols. Thanks to the bright, backlit 1.77 inch color screen and intuitive menu structure, the AL300 is easy to operate, even for users without a technical background.
The AL300 supports all ten OBD2 test modes, including reading live data and freeze frame data, as well as performing emission tests. The device is powered via the vehicle's OBD2 port and requires no batteries or external power. Additionally, the scanner is compatible with gasoline and diesel vehicles from model year 1996 onwards.

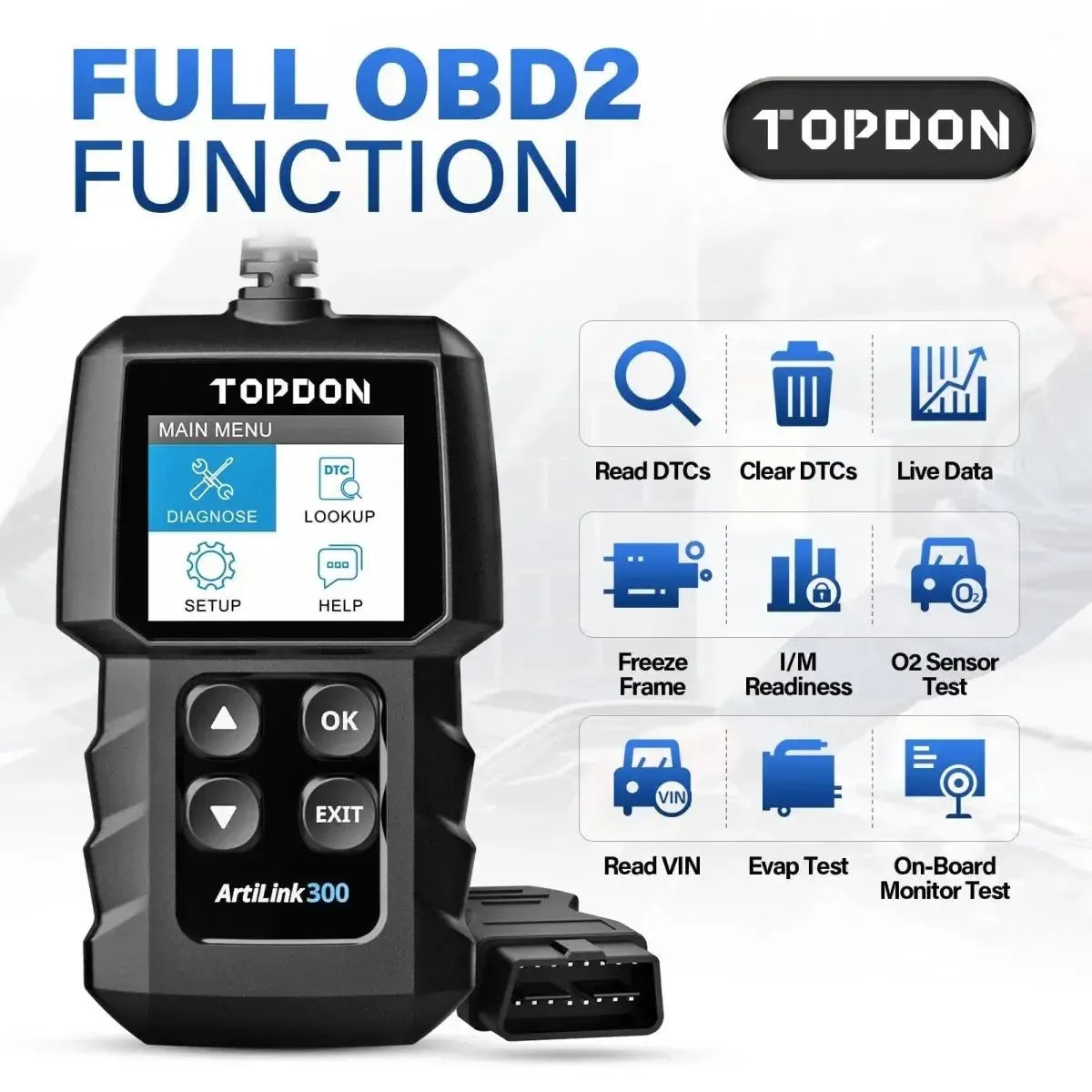

Diagnostic functions:
-
Read error codes: Reads stored, pending, and permanent error codes from the engine management system.
-
Clear error codes: Removes error codes and turns off the malfunction indicator lamp (MIL).
-
Live data: Displays real-time data from sensors in text form.
-
Freeze Frame: Displays frozen data at the moment an error code was stored.
-

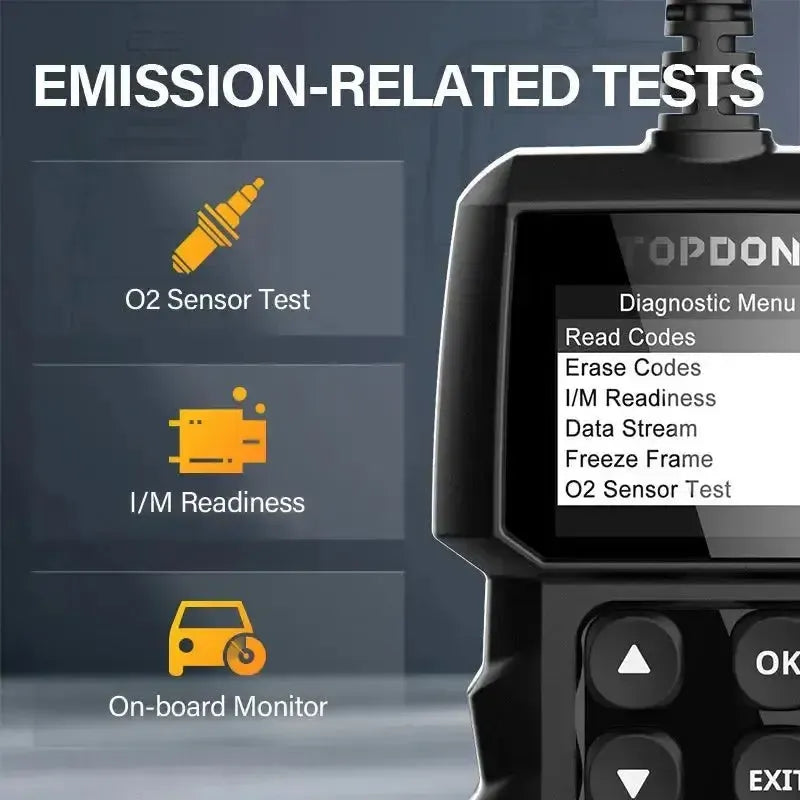

I/M Readiness: Checks the status of emission-related monitors for MOT inspections.
-
O2 sensor test: Analyzes the operation of lambda sensors.
-
On-board monitoring: Displays test results of emission-related components.
Special functions:
-
Error code lookup function: Immediately shows the meaning of error codes without external references.
-
Plug & Play: No external power needed; powered via the vehicle's OBD2 port.
-
Compact and portable design: Lightweight and easy to carry.
-
User-friendly operation: Equipped with four buttons for easy navigation.
Package contents:
-
Topdon ArtiLink AL300 Code Reader
-
Manual
Technical Specifications
|
Specification |
Value |
|---|---|
|
Supported protocols |
ISO9141, KWP2000, J1850 PWM, J1850 VPW, CAN |
|
Power supply voltage |
9–18V via OBD2 connection |
|
Screen |
1.77 inch TFT color screen |
|
Update function |
No |
|
Vehicle compatibility |
Gasoline and diesel vehicles with OBD2/EOBD (from model year 1996) |
|
Dimensions |
119.9 x 71.7 x 23.3 mm |
|
Weight |
Approximately 210 grams |
|
Connections |
OBD2 16-pins |
