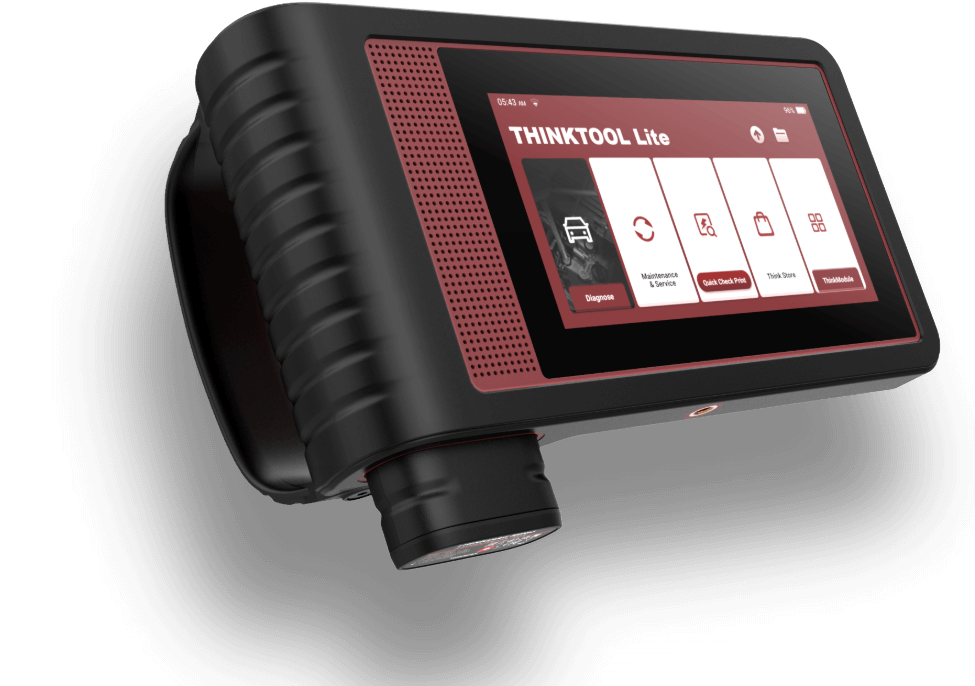

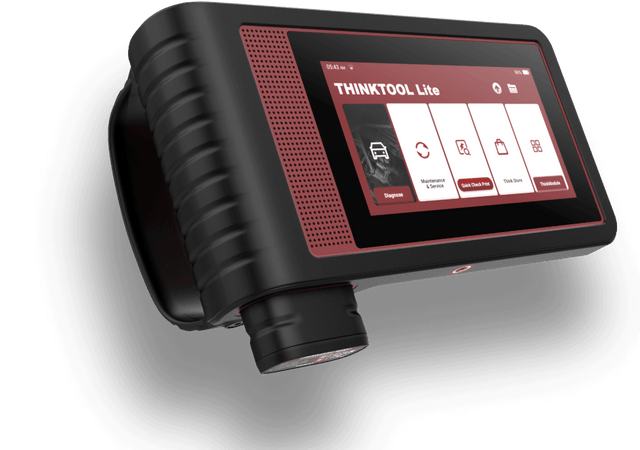

Thinkcar ThinkTool Lite | Diagnostic Tool | Car

The Thinkcar ThinkTool Lite is a vehicle diagnostic reader equipped with a VCI dongle for wireless communication via Bluetooth. The system runs on Android 10.0 and features a 5.99-inch touchscreen, 2 GB RAM, and 32 GB storage. This device supports diagnostic functions for more than 90 vehicle brands and comes with a license for 2 years of software updates.

The ThinkTool Lite offers extensive functionalities, including bi-directional control, topological display of modules, and support for more than 28 service and maintenance functions. The modular design allows expanding functionality with various optional hardware modules, such as an oscilloscope, Battery Tester, and videoscope.

---

Diagnostic functions:

The ThinkTool Lite performs a full system diagnosis on all electronic control units present in the vehicle.

• Read and clear fault codes: Reads and clears fault codes (DTCs) from all available systems, such as engine, transmission, ABS, and airbag.
• Live data: Displays real-time data from vehicle sensors and components in various display modes, including graphs and text.
• Actuator Test: Performs bi-directional tests to directly control components and actuators and check their operation.
• CarVIN: Automatically identifies the vehicle identification number (VIN) for a quick start of the diagnosis.

---

Service and maintenance functions:

This device supports more than 28 service and maintenance functions. Available functions may vary by vehicle brand, model, and year.

Engine and drivetrain:

• Reset oil service: Resets the oil level and maintenance interval after an oil change.
• Learn throttle valve: Initializes the throttle valve actuators to default values after replacement or cleaning.
• Code injectors: Writes the new injector code to the control unit after replacing an injector.
• Reset transmission adaptation values: Resets the learning values of the automatic transmission to factory settings.
• Learn crankshaft sensor: Performs a procedure to calibrate the crankshaft position sensor.
• Reset start/stop system: Configures the automatic start/stop system after component replacement.
• Reset air/fuel ratio: Reset the adjustment values for the air-fuel ratio.
• Bleed cooling system: Activates the electronic water pump to remove air from the cooling system.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Starts the forced regeneration of the DPF to remove blockages.
• Reset EGR valve adaptation values: Resets the learning values of the exhaust gas recirculation system after cleaning or replacement.
• Reset NOx sensor: Resets the stored values of the NOx catalyst after replacement or repair.
• Reset AdBlue system (SCR): Resets the urea dosing system after refilling or repairing the AdBlue system.

Brakes:

• Replace brake pads (EPB): Opens and closes the calipers of the electronic parking brake for maintenance.
• Bleed ABS: Performs a procedure to remove air from the ABS brake system.

Steering and chassis:

• Initialize steering angle sensor (SAS): Calibrates the steering angle sensor after replacement or alignment.
• Calibrate air suspension: Calibrates the level sensors of the air suspension system.

Safety systems:

• Reset tire pressure monitoring system (TPMS): Resets the tire pressure sensors and clears warning lights.
• Reset airbag: Resets the airbag module after a repair or component replacement.

Car body and electronics:

• Program immobilizer: Programs new keys or erases lost keys from the immobilizer memory.
• Register Battery: Registers a new Battery in the battery management system (BMS).
• Initialize adaptive headlights (AFS): Calibrates the system for swiveling headlights.
• Initialize sunroof: Reset the basic settings and positions of the sunroof.
• Seat calibration: Calibrates the memory functions of electrically adjustable seats.
• Calibrate windows: Initializes the electric window control after replacing the battery or motor.

Other functions:

• Adjust odometer (ODO): Corrects the odometer reading, for example after replacing the instrument panel.
• Enable/disable transport mode: Activates or deactivates the mode that limits power consumption during transport.
• Change language: Changes the system language of the vehicle display.
• Adjust tire size: Sets the new tire size in the onboard computer after mounting different tires.

---

Special functions and capabilities:

The ThinkTool Lite features various advanced functions for extensive diagnosis and analysis.

Codings and programming:

• ECU coding: Enables adjusting vehicle modules, replacing components, and activating hidden functions.

Cloud and reporting functions:

• Generate diagnostic reports: Creates a detailed report of the performed diagnosis, which can be saved or printed with the optional printer.

---

Optional expansion modules:

The ThinkTool Lite can be expanded with various optional modules. These expansions are specifically designed to enhance the functionality of the diagnostic device and are supplied separately.

Hardware modules and accessories:

• Battery Tester: Enables checking the status of the battery.
• Oscilloscope: For checking and diagnosing faults in vehicle circuits.
• Printer: Provides the ability to print diagnostic reports directly.
• T-Wand 200: A TPMS module for managing tire pressure sensors.
• Videoscope: An inspection camera for examining hard-to-reach areas in a vehicle.
• Thermal imaging camera: For scanning and recording the temperature of vehicle components.
• Work lamp: Provides additional lighting during diagnostic or repair work.

---

Supported car brands:

The Thinkcar ThinkTool Lite offers support for a wide range of car brands. Below is an overview of the compatible brands, categorized by region.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Borgward, Bugatti, Citroen, Dacia, Ferrari, Fiat, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Lotus, Maserati, Maybach, McLaren, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Ravon, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, Sprinter, UAZ, VAZ, Vauxhall, Volkswagen, Volvo, ZAZ.
• Asian: Acura, Daewoo, Daihatsu, Force, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Renault Samsung, Saipa, Samsung, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast.
• American: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, General Motors, Jeep, Lincoln, Tesla.
• Chinese: BAIC, BAIC HS, Bisu, Brilliance, BYD, Changan, Changhe, Chery, CheryEV, Cowin, Dongfeng, Exeed, FAW, Foton, Geely, Gonow, Great Wall, Hafei, Haima, Higer, Huanghai, ICH-X, JAC, Jetour, Jinlong, JMC, JMEV, Joylong, Karry, Kinglong, Landwind, Leapmotor, Lifan, Maple/Livan/Kandi, Maxus, MG, Naveco, Neta, Polarsun, Qoros, Rely, Riich, Roewe, SGM, SGMW, Shineray, Shuanghuan, Sino Gold, Skyworth/Skywell, Soueast, Sport Equipe, SWM, Trumpchi, VGV, Weltmeister, Xinchen, Xinguang, Yuejin, ZX Car, Zedriv, Zotye.

---

Package Contents:

• 1x Thinkcar ThinkTool Lite
• 1x ThinkDiag Mini3 Connector
• 1x ThinkCar Adapter
• 1x Type-C cable
• 1x Manual
• 1x Packing list
• 1x Password letter

---

License information:

• Including 2 years of updates: A software license for 24 months is included with the purchase.

After the license period expires, the basic functions of the device remain available. Access to new software updates and online functionalities will be disabled until the license is renewed.

---

Technical specifications:

Specification	Description
Product brand	Thinkcar
Product model	ThinkTool Lite
Operating system	Android 10.0
Screen size	5.99 inch TFT (IPS)
RAM memory	2 GB
Storage memory	32 GB
Connectivity	Wi-Fi (WLAN802.11b/g/n), Bluetooth 4.0
Camera	8 MP (rear)
Battery	3100 mAh / 7.6 V
