Thinkcar Thinktool Euro Master Car Diagnostic Tool

The Thinkcar Thinktool Euro Master is an advanced and powerful professional Diagnostic Tool, developed for universal workshops that work daily on various vehicle brands and systems. The system offers OE-level diagnosis, bidirectional control, extensive service functions, and advanced coding capabilities, making it an ideal solution for technicians seeking reliability and expandability in one device.

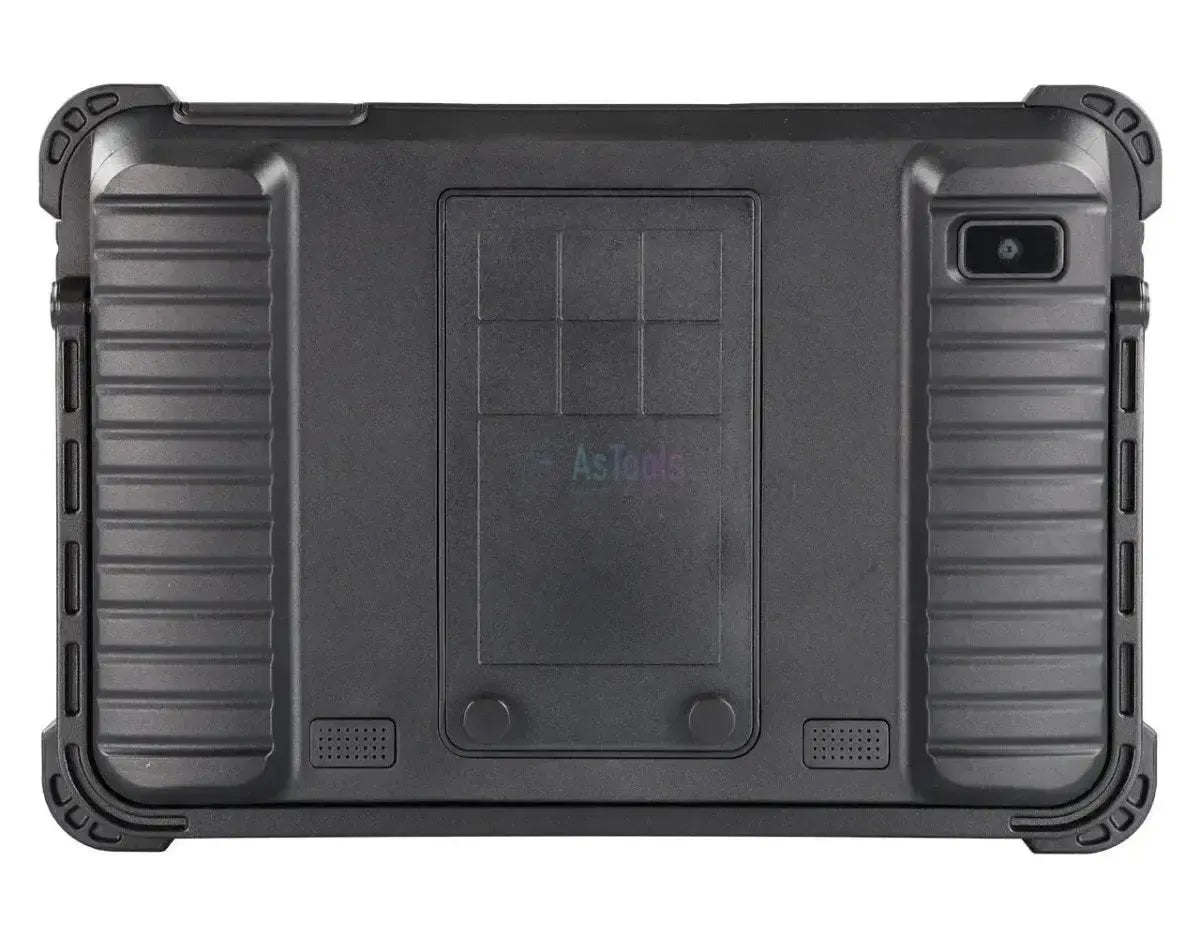

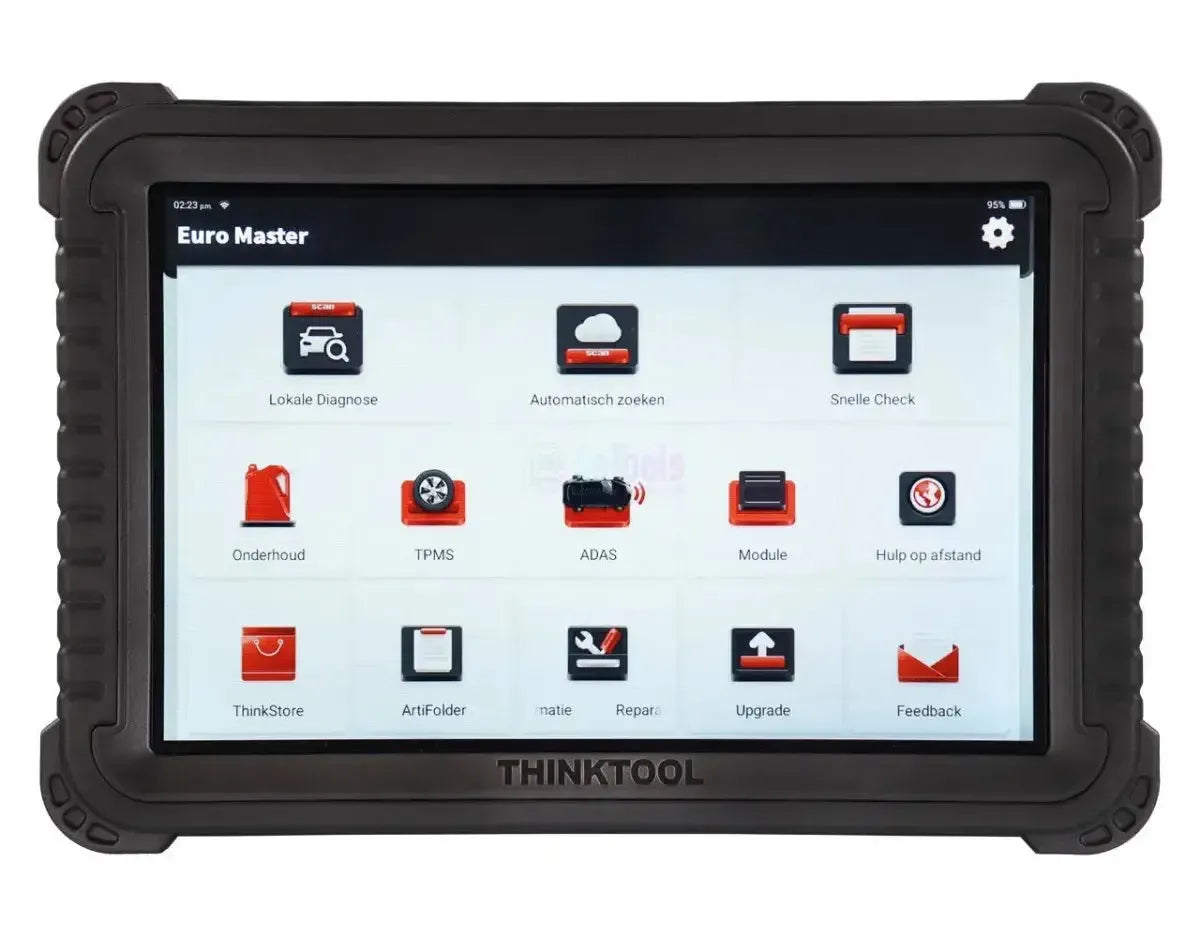

The Euro Master is built around a robust 10-inch HD touchscreen tablet with the stable and fast Android 10 operating system, offering an intuitive user interface with powerful performance. Communication with the vehicle is wireless via the included TVCI VCI (Vehicle Communication Interface), which supports the latest communication protocols such as CAN-FD and DoIP. This guarantees stable and fast diagnostics of the latest vehicle models, including modern networks and architectures.

Upon purchase, two years of free software updates are included by default. These updates provide access to new features and an expanding vehicle coverage of more than 220 brands worldwide. After this period, the device continues to operate on the last installed software version, but a annual license is required for access to further updates and cloud functionality.

---

Diagnostic functions:

The Thinktool Euro Master offers powerful OE-level diagnostic capabilities for more than 220 vehicle brands. Thanks to the TVCI interface, modern protocol support, and clear topology display, the system is suitable for both troubleshooting and advanced system analysis.

• Complete system diagnosis (OE-level): Access to all electronic modules in the vehicle, including engine, transmission, ABS, airbag (SRS), body control module (BCM), steering, climate control, ADAS and more. Supports reading and clearing fault codes with clear technical descriptions.
• Topology mapping: Visualizes all present ECUs and their communication status in an interactive network diagram. This speeds up fault localization and makes the structure of the vehicle network clear.
• Active tests (bidirectional control): Send direct commands to actuators, valves, relays, or other components to check their operation, for example activating fuel pumps, EGR valves, windows, lighting, or cooling fans.
• Live datastream: Displays real-time data from any system in text, graph, or analog format. Supports simultaneous display of multiple data streams and offers recording, export, and comparison functions for accurate analysis.
• AutoVIN technology: Automatically recognizes the vehicle via the chassis number (VIN) and selects make, model, and year, ensuring a quick and error-free start of the diagnostic session.

---

Maintenance and service functions:

The Thinktool Euro Master supports more than 35 maintenance and service functions, allowing essential vehicle systems to be reset, calibrated, or relearned after maintenance or replacement of parts. These functions apply to a very wide range of makes and models.

• Oil service reset (Service): Resets the maintenance interval and service notification after an oil change.
• Electronic parking brake (EPB): Activates and deactivates the electric handbrake for safe brake maintenance.
• Battery management system (BMS): Registers a new Battery and optimizes the charging strategy.
• Steering angle sensor (SAS): Calibrates the steering angle sensor after alignment or replacement of steering components.
• Diesel particulate filter (DPF): Starts a forced regeneration of the soot filter and clears related fault codes.
• ABS pump bleeding (ABS): Removes air from the ABS brake system after replacement or maintenance.
• TPMS reset: Recognizes and learns new tire pressure sensors and clears fault codes.
• Throttle body learning (ETC): Calibrates the throttle position after cleaning or replacing the throttle body.
• Injector coding: Programs the unique codes of new injectors for precise fuel injection.
• Transmission adaptation (CVT): Resets learning values of the automatic transmission for improved shifting performance.
• Crankshaft sensor learning (TEC): Relearns the crankshaft position after replacement or engine repair.
• AdBlue reset: Resets level measurement and fault codes of the urea injection system (SCR).
• Air suspension calibration: Restores and calibrates ride height on vehicles with electronic air suspension.
• Headlight adjustment (AFS): Calibrates adaptive or steering headlights.
• Start/stop settings: Enables or disables the automatic start/stop system depending on preference or system status.
• Initialize windows and sunroof: Restores automatic functions of electric windows or panoramic roofs.
• Seat occupancy sensor (SRS): Calibrates passenger detection for correct airbag activation.
• Transport mode: Puts vehicles in or out of transport mode during delivery or storage.
• Adjust system language: Changes the language display of the infotainment system.
• Air/fuel ratio reset (A/F): Restores adaptive values of the engine control after sensor or ECU replacement.

---

Programming and coding functions:

The Thinktool Euro Master supports advanced coding capabilities at OE level, allowing vehicle modules to be customized, reconfigured or adapted. The system is thus suitable for personalization, module replacement and advanced adjustments – within the scope of offline and guided functions.

• Online coding: Supports direct communication with the factory servers of selected brands, including Volkswagen, Audi, BMW and Porsche. Coding data is automatically retrieved for correct module configuration and restoring original settings after replacement.
• Activate hidden functions: Enables activation of hidden or deactivated functions via ECU coding, such as disabling the start/stop system, changing lighting logic, automatic mirror folding, or adjusting dashboard settings.
• Guided functions (VAG): For vehicles of the Volkswagen Group (VW, Audi, Seat, Skoda) the system includes step-by-step guides for complex coding procedures, key programming, module adaptation or system adjustments. This reduces errors and makes complex tasks accessible to technicians.
• Important limitation: The Euro Master does not support online ECU programming (flashing). For full ECU reprogramming, the Euro Master X with Smartlink C VCI is required.

---

Cloud and reporting features:

The Thinktool Euro Master offers professional cloud and reporting capabilities that optimize the workflow and facilitate collaboration with customers and technical support.

• Cloud storage & management: All pre-scan and post-scan reports are automatically saved in the Thinkcar Cloud. This ensures they are securely backed up, centrally managed and accessible anywhere from any device with internet connection. This simplifies customer management and documentation in the workshop.
• Professional reports: The system generates comprehensive diagnostic reports with fault codes, vehicle data and system status. Reports are fully customizable with workshop logo, customer data and notes and can be saved, printed or shared as PDF.
• Remote diagnostics (TeamViewer): Thanks to the built-in TeamViewer feature, technicians or support staff, with user permission, can take over the tablet remotely. This is ideal for complex fault diagnoses, brand-specific settings or remote guidance.

---

Additional features and special capabilities:

The Thinktool Euro Master is equipped with advanced features essential for the modern workshop and prepared for the latest vehicle technologies and regulations.

• Support for CAN-FD & DoIP: Thanks to compatibility with CAN-FD and DoIP, the system is suitable for communication with modern vehicle platforms from, among others, GM, Ford, BMW, Volvo and Land Rover. These protocols ensure fast, stable and future-proof diagnostics.
• FCA AutoAuth access: Provides direct, authorized access to the Secure Gateway (SGW) of vehicles from Fiat, Chrysler, Jeep and Alfa Romeo, when linked to a valid AutoAuth account. This allows diagnostic and maintenance functions to be fully performed without bypass cables or manual release.
• OBFCM / APK2 compatibility: Supports reading of On-Board Fuel Consumption Monitoring (OBFCM) data, as required within the APK2 inspection process. This enables the fuel and energy consumption of modern vehicles, including hybrid and electric models, to be recorded and reported to the RDW or other authorities.

---

Optional expansions and modules:

The Thinktool Euro Master is compatible with a wide range of professional expansion modules. This allows the system to be easily adapted to the needs of specialized diagnostic and service applications within the workshop.

• ADAS calibration: Compatible with Thinkcar's ADAS calibration frames for precise adjustment of driver assistance systems such as lane assist, front assist, adaptive cruise control, and blind spot detection after replacement or realignment of cameras and sensors.
• Battery analysis: Supports connection with the Thinkcar Battery Tester for comprehensive measurements of starting, charging, and battery circuits, including voltage, internal resistance, and battery status.
• Videoscope: Compatible with the Thinkcar Videoscope, ideal for visual inspection of hard-to-reach components, such as cylinder heads, EGR channels, or dashboards.
• Key Programming (PROG 3): Expandable with the PROG 3 module for advanced key and immobilizer functions, such as key coding, PIN code reading, and IMMO reset (brand dependent).
• TPMS tool (T-Wand 200): Compatible with the T-Wand 200 TPMS tool, enabling full TPMS service, including reading, programming, activating, and learning TPMS sensors.
• Oscilloscope (Scope Box): Supports expansion with the Thinkcar Scope Box, a 4-channel oscilloscope module for in-depth signal analysis of sensors, actuators, and data lines such as CAN bus.
• Thermal Camera: Compatible with the Thinkcar Thermal Imager, for detecting heat anomalies, short circuits, or poor contact in electrical systems.
• HD module: Expandable with the optional HD module (hardware + license) to perform diagnostics on heavy vehicles (24V) such as trucks, buses, and agricultural machinery.

---

Supported Car Brands:

• European brands: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroën, Dacia, DR, Ferrari, Fiat, FordEU, GAZ, Iveco, IZH, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, McLaren, Mercedes-Benz, MINI, Opel, PAZ, Peugeot, Porsche, Renault, Rolls-Royce, Rover, Saab, Seat, SeAZ, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volvo, Volkswagen, Volkswagen CV, ZAZ
• Asian brands: Acura, Daewoo, Daihatsu, Force, Fuso, GTR, Hino, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, SAIPA, Samsung, SsangYong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast
• American brands: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, Jeep, Lincoln
• Chinese brands: BAIC, BJEC, Brilliance, BYD, Changan, Changhe, Chery, DFSK, FAW, Foton, Geely, Gonow, GWM, Hafei, Haima, JAC, JAC Refine, Jinlong, JMC, Joylong, Lifan, Maxus, MG, Polarsun, Qoros, Senova, Senoua, Soueast, SGM, SGMW, Shineray, Spark, Trumpchi, Weiwang, Xinkai, Zotye, Zhongxing

---

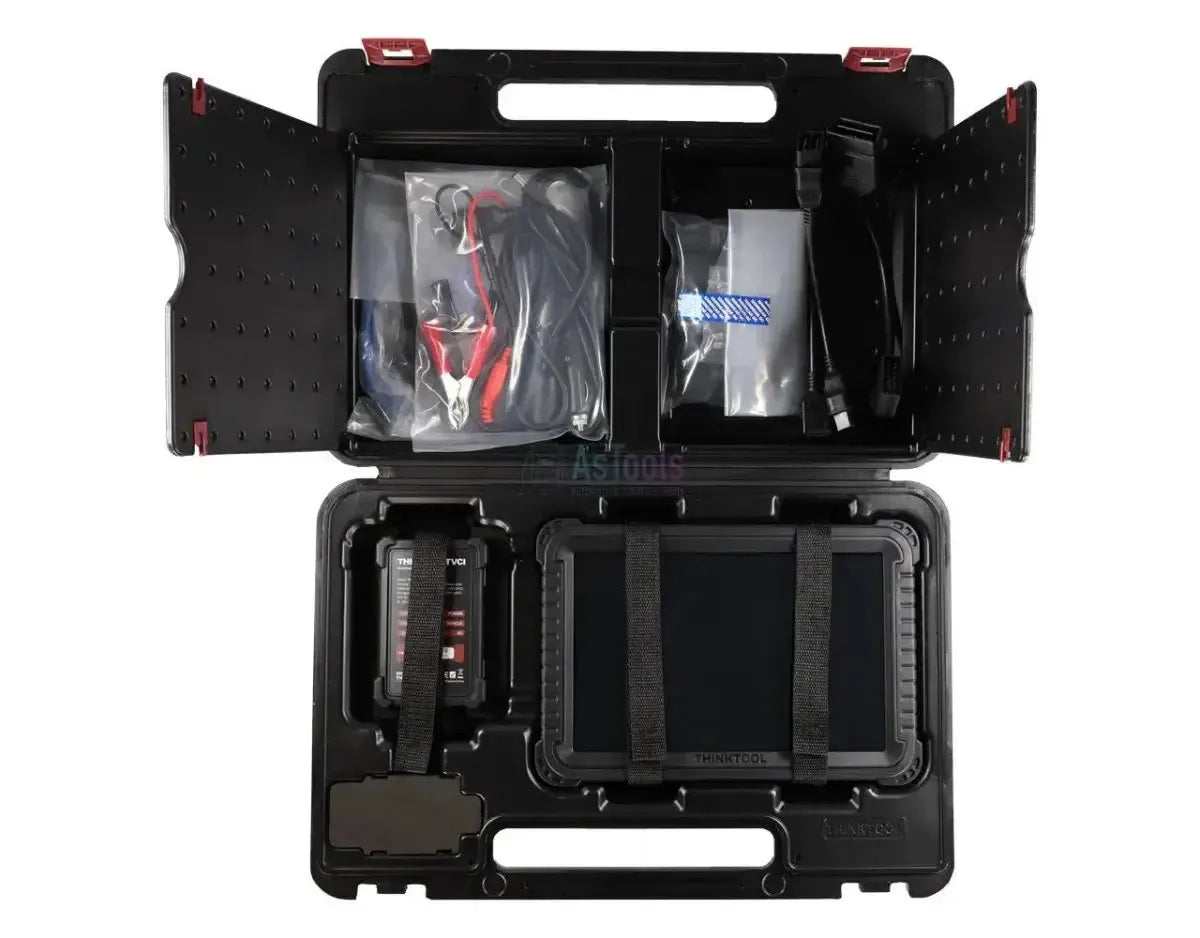

Package Contents:

• Thinkcar Thinktool Euro Master Diagnostic Tool
• Thinkcar TVCI Interface
• Thinkcar 16 Pins OBD2 Extension Cable
• USB-A - USB-C Adapter Cable
• USB-A - RJ45 Network Adapter Cable
• RJ45 Network Cable
• Charging Plug
• Manual

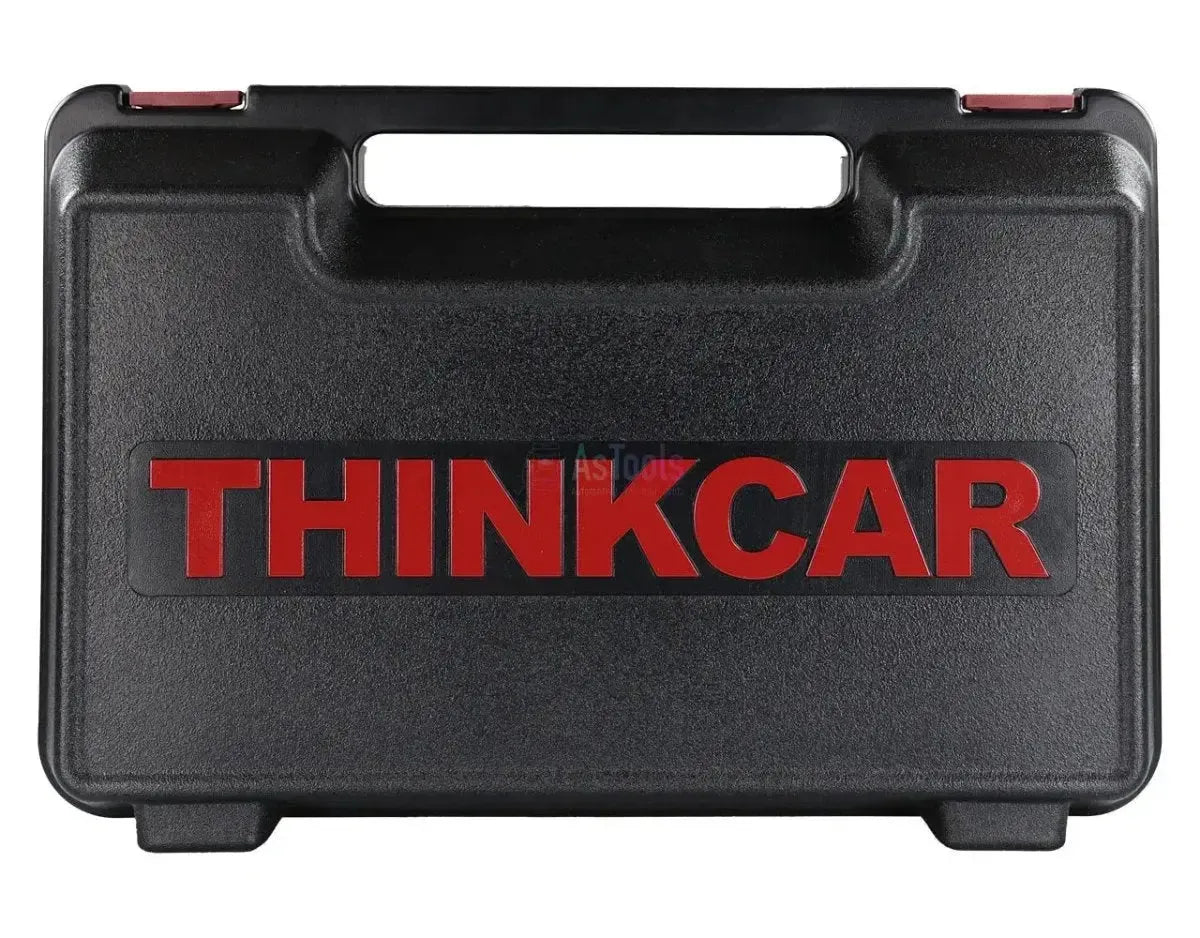

• Storage Case
• Thinkcar Battery Clamps Power Cable
• Thinkcar Cigarette Lighter Power Cable
• Thinkcar BMW F-Series Ethernet Adapter Cable
• Thinkcar 15 Pins DB15 - 16 Pins OBD2 Adapter Cable
• Thinkcar Honda 3 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar Chrysler 6 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar GM/VAZ 12 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar Toyota 17 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar BMW 20 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar Toyota 22 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar Mercedes-Benz 38 Pins OBD1 - 15 Pins DB15 Adapter
• Thinkcar Fiat 3 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Thinkcar Mitsubishi/Hyundai 12+16 Pins OBD1 - 15 Pins DB15 Adapter Cable
• Thinkcar Nissan 14+16 Pins OBD1 - 15 Pins DB15 Adapter Cable

---

License information:

• Including 2 years of updates: A 24-month update license is included with the purchase.

After the first year, the license can be renewed for an annual fee. The Diagnostic Tool remains fully functional for already supported models, even without license renewal. However, new software updates can no longer be installed, and some online features may be limited or no longer supported.

---

Technical specifications
