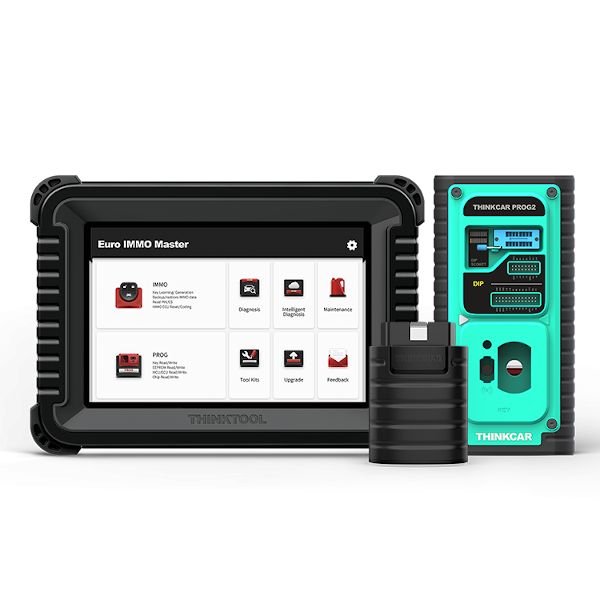

Thinkcar ThinkTool Euro Immo Master | Key programmer | Car

The Thinkcar ThinkTool Euro Immo Master is a reader and key programmer equipped with the Android 10 operating system. The device features a 10-inch touchscreen, 4 GB RAM, 64 GB storage, and a 12600 mAh Battery. The set includes the THINKCAR PROG 2, an advanced module for programming Car keys and performing anti-theft functions. The ThinkTool Euro Immo Master supports diagnostic functions for more than 100 vehicle brands, offers ECU coding and actuator tests. A license with 2 years of free updates is included with purchase.

In addition to extensive diagnostic capabilities, this system offers advanced functions for working with immobilizer systems. With the THINKCAR PROG 2, it is possible to read and write data from ECU, MCU, and EEPROM modules, both on the circuit board and externally. The system supports more than 1,000 different types of control units and memory chips. Specific functions include support for Volkswagen and Audi MQB platforms, reading and writing Mercedes-Benz infrared keys, and reading transmission data from BMW E, F, and G chassis.

---

Diagnostic functions:

The ThinkTool Euro Immo Master offers a range of diagnostic functions for analyzing and maintaining vehicle systems.

• Read and clear fault codes: Reads and removes fault codes (DTCs) from all present vehicle modules, such as the engine, transmission, ABS, and airbag.
• Live data: Displays real-time data from sensors and components in various views, including graphs. This function enables monitoring and analyzing system performance.
• Actuator tests: Directly controls components to test functionality. This allows actuators such as relays, injectors, and valves to be activated to check operation.

---

Key and EEPROM functions:

The included THINKCAR PROG 2 module offers extensive capabilities for programming keys and working with immobilizers and memory chips. The availability of functions may vary by vehicle make and model.

Key functions:

• Add key: Programs an additional key for the vehicle.
• All keys lost: Programs new keys when all original keys are lost.
• Learn remote control: Synchronizes the remote control with the vehicle.
• Read immobilizer data: Reads the data of the immobilizer system.
• Key generation: Generates data for new transponders.

EEPROM functions:

• EEPROM reading: Reads data from EEPROM and MCU memory chips and saves it.
• EEPROM programming: Writes new or modified data to EEPROM and MCU memory chips.

---

Service and maintenance functions:

More than 40 service and maintenance functions are supported. The availability of specific functions may vary depending on the vehicle brand, model, and year of manufacture.

Engine and Drivetrain:

• Learn electronic throttle valve: Resetting the throttle valve values to the standard factory settings after cleaning or replacement.
• Code injector: Entering new injector codes into the control unit for accurate fuel injection.
• Crankshaft sensor adaptive learning: Recalibration of the crankshaft position sensor for correct engine control.
• Learn clutch: Learning the clutch parameters after replacement or repair of the transmission.
• Relearn transmission: Resetting and recalibrating the adaptive values of the automatic transmission.
• Reset air/fuel ratio: Resetting the adaptive values for the air-fuel mixture.
• Bleed cooling system: Activating the electronic water pump to remove air from the cooling system after repairs.
• Check engine power balance: Monitoring and balancing the power output per cylinder to detect irregularities.
• Relative compression test: Performing a compression test via software to assess the mechanical condition of the engine.
• Learn turbo: Adjusting the turbocharger after replacement or maintenance.

Exhaust systems:

• Diesel particulate filter regeneration (DPF): Start a forced regeneration of the diesel particulate filter to remove soot buildup.
• Gasoline particulate filter regeneration (GPF): Start a forced regeneration of the gasoline particulate filter.
• Adjust EGR valve (EGR): Learn a new EGR valve after replacement for correct operation of the exhaust gas recirculation.
• Reset AdBlue: Reset the urea system after refilling the AdBlue fluid.
• Reset NOx sensor: Reset the learned values of the NOx sensor after replacement.

Brakes:

• Reset brake pads (EPB): Service functions for the electronic parking brake, such as opening and closing the brake calipers for maintenance.
• Bleed ABS system (ABS): Automatically bleed the brake system after replacement of ABS components.

Steering and Suspension:

• Initialize steering angle sensor (SAS): Calibrate the steering angle sensor, required after alignment or replacement of steering components.
• Calibrate air suspension: Calibrate the level sensors of the air suspension for correct ride height.
• Calibrate steering motor angle: Calibrate the angle sensor of the electric power steering motor.

Carrosserie and Electronics:

• Code ECU: Adjust vehicle configurations and activate options in control units.
• Initialize sunroof: Reset and calibrate the positions of the sunroof after replacement or power interruption.
• Set adaptive headlights (AFS): Calibrate the adaptive headlight system.
• Calibrate windows: Initialize the automatic open and close function of the electric windows.
• Initialize rain and light sensor: Initialize the combined rain and light sensor after windshield replacement.
• Adjust footwell module (FRM): Coding and initializing the footwell module.
• Calibrate gateway module: Calibrate the central gateway module for correct data communication between control units.

Safety systems:

• Reset airbag: Resetting the airbag module and fault codes after a repair.
• Reset immobilizer: Programming keys and resetting the immobilizer system.
• Reset TPMS database (TPMS): Resetting and relearning the tire pressure sensors.
• Set tire pressure threshold value: Setting the warning thresholds for the tire pressure monitoring system.
• Calibrate seat occupancy: Calibrating the sensor that detects whether a passenger seat is occupied.
• Calibrate intelligent cruise control system: Calibrating the sensors for adaptive cruise control.

Battery and Electrical System:

• Register Battery (BMS): Registering a new Battery in the battery management system.
• High-voltage Battery diagnosis: Performing diagnostics and maintenance on the Battery pack of hybrid or electric vehicles.
• Reset start/stop system: Resetting the settings of the automatic start/stop system.

Other functions:

• Reset maintenance interval: Resetting the oil and service warning after performing maintenance.
• Adjust tire size: Setting the correct tire size in the onboard computer for accurate speed measurement.
• Calibrate odometer: Calibrating the odometer after replacing the instrument panel.
• Change language: Changing the display language of the instrument panel and infotainment system.
• Deactivate/activate transport mode: Turning the transport mode on or off.
• Set personalization: Adjusting user-specific settings such as lighting, locking, and comfort features.

---

Special functions and capabilities:

This reading device offers advanced functions for adjusting and configuring vehicle systems.

Coding and programming:

• ECU Coding: Enables adjusting the software of control units, activating hidden functions, or changing a vehicle's configuration after component replacement.

---

Supported vehicle brands:

The Thinkcar ThinkTool Euro Immo Master supports a wide range of vehicle brands. Below is an overview of the supported brands, categorized by region.

• European: Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, Ferrari, Fiat, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Lotus, Maserati, Maybach, McLaren, Mercedes-Benz, Mini, Opel, PAZ, Peugeot, Porsche, Ravon, Renault, Rolls Royce, Rover, Saab, SeAZ, Seat, Skoda, Smart, Sprinter, UAZ, Vauxhall, VAZ, Volkswagen, Volvo, ZAZ.
• Asian: Acura, Ashok Leyland, Daewoo, Daihatsu, FUSO, HINO, Holden, Honda, Hyundai, IKCO, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perodua, Proton, Saipa, Samsung, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, VinFast.
• American: Buick, Cadillac, Chevrolet, Chrysler, Cirelli, Dodge, Ford, General Motors (GM), JEEP, Lincoln, Tesla.
• Chinese: BAIC, Bisu, Borgward, Brilliance, BYD, Changan, Changhe, Chery, Cowin, Dongfeng, Exeed, FAW, Foton, Geely, Gonow, Great Wall Motor (GWM), Hafei, Haima, Higer, Huanghai, ICH-X, JAC, Jetour, Jinlong, JMC, JMEV, Joylong, Karry, Kinglong, Landwind, Leap, Leopaard, Lifan, Luxgen, Maple, Maxus, MG, MVM, Naveco, NETA, NLM, Polarsun, Qoros, Rely, Riich, Roewe, Sany, SGM, SGMW, Shineray, Shuanghuan, Sino Gold, Skyworth, Soueast, SWM, Trumpchi, VGV, Weltmeister, Xinchen, Xinguang, Yuejin, ZX Car, Zedriv, Zotye.

---

Package Contents:

• 1x Thinkcar ThinkTool Euro Immo Master
• 1x THINKCAR PROG 2 Key Programmer
• 1x VCI Diagnostic Connector
• 1x Benz Infrared Analog Acquisition Key
• 1x EEPROM Chip Adapter
• 1x EEPROM Converter
• 1x MCU Converter V1
• 1x MCU Converter V2
• 1x 3-in-1 Charger (US, UK, EU plugs)
• 1x BENCH Cable
• 5x BENCH Connection Cable Type A
• 6x BENCH Connection Cable Type B
• 7x BENCH Connection Cable Type C
• 8x BENCH Connection Cable Type D
• 6x BENCH Connection Cable Type E
• 1x Diagnostic cable
• 1x Diagnostic extension cable
• 1x INS cable V1
• 1x INS cable V2
• 1x MCU cable V1
• 1x Programming cable
• 1x Charging cable
• 1x Power cable with Adapter
• 1x Manual
• 1x Package Contents list
• 1x Password letter

---

License information:

• Including 2 years of updates: A software license with 2 years of free updates is included with the purchase.

After the license period ends, the device will continue to function based on the last installed software version. Online features and the ability to download new software updates will no longer be available without purchasing a new license.

---

Technical specifications:

Specification	Description
Product Brand	Thinkcar
Product Model	ThinkTool Euro Immo Master
Operating System	Android 10
Screen Size	10 inch
Processor	MT6761, 4-Core, 2.0 GHz
RAM Memory	4 GB
Storage Memory	64 GB
Connectivity	Wi-Fi (802.11 b/g/n), Bluetooth 5.0
Camera	8 MP (rear)
Battery	12600 mAh / 3.7V
