OBDSTAR  |  SKU: M074 / 7.29.1

OBDSTAR (M074) | Yanmar 3-pins OBD – 16-pins OBD2 Adapter Cable | Internal combustion engine

€24,95 incl.
€20,62 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

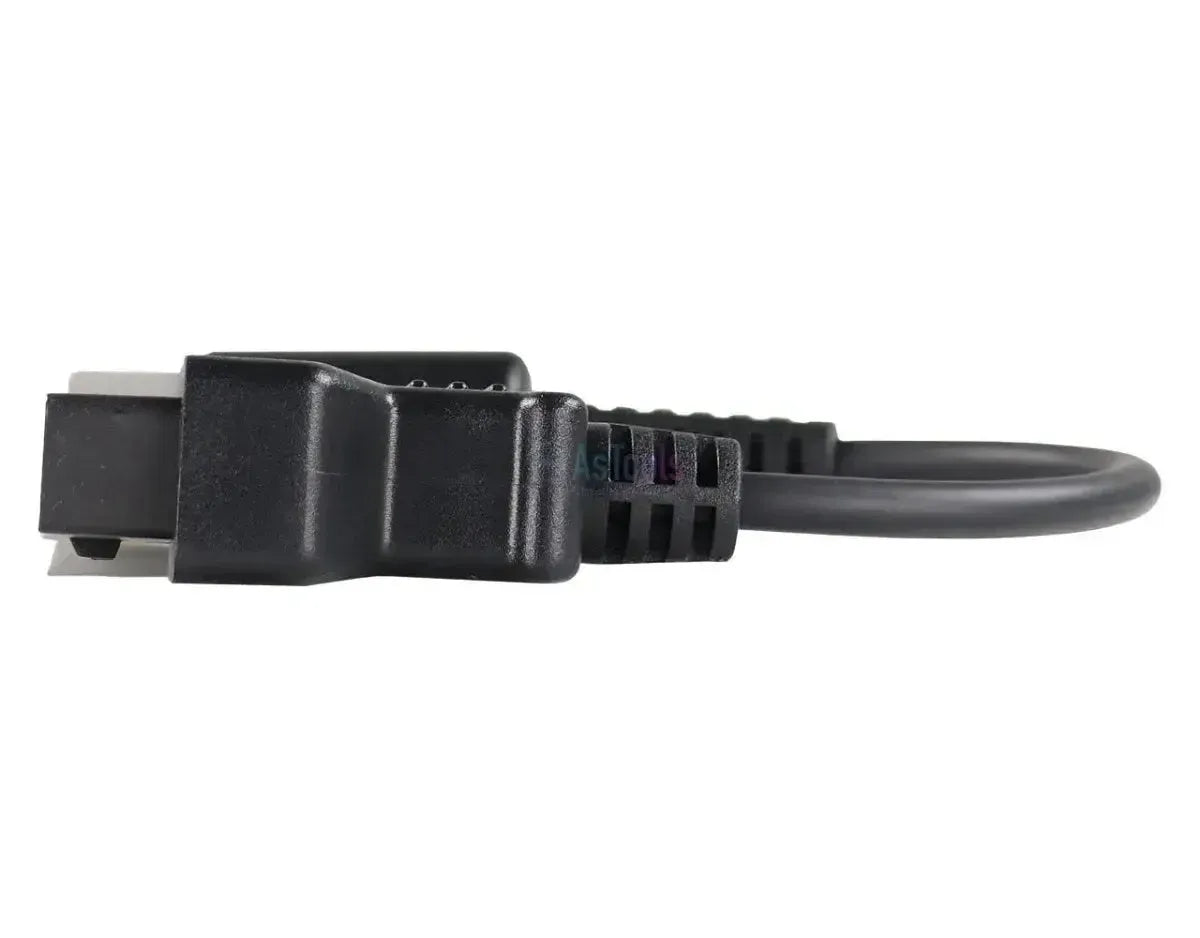

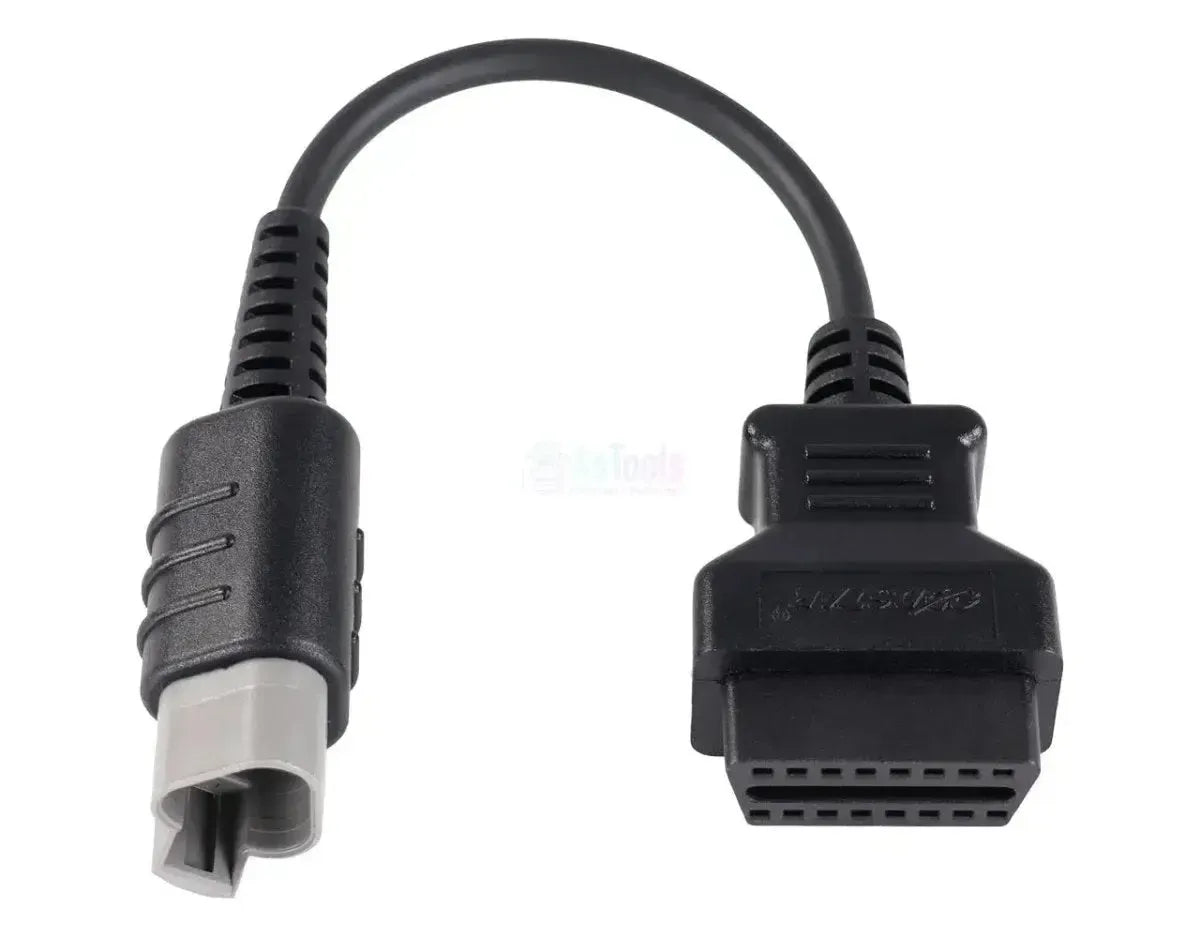

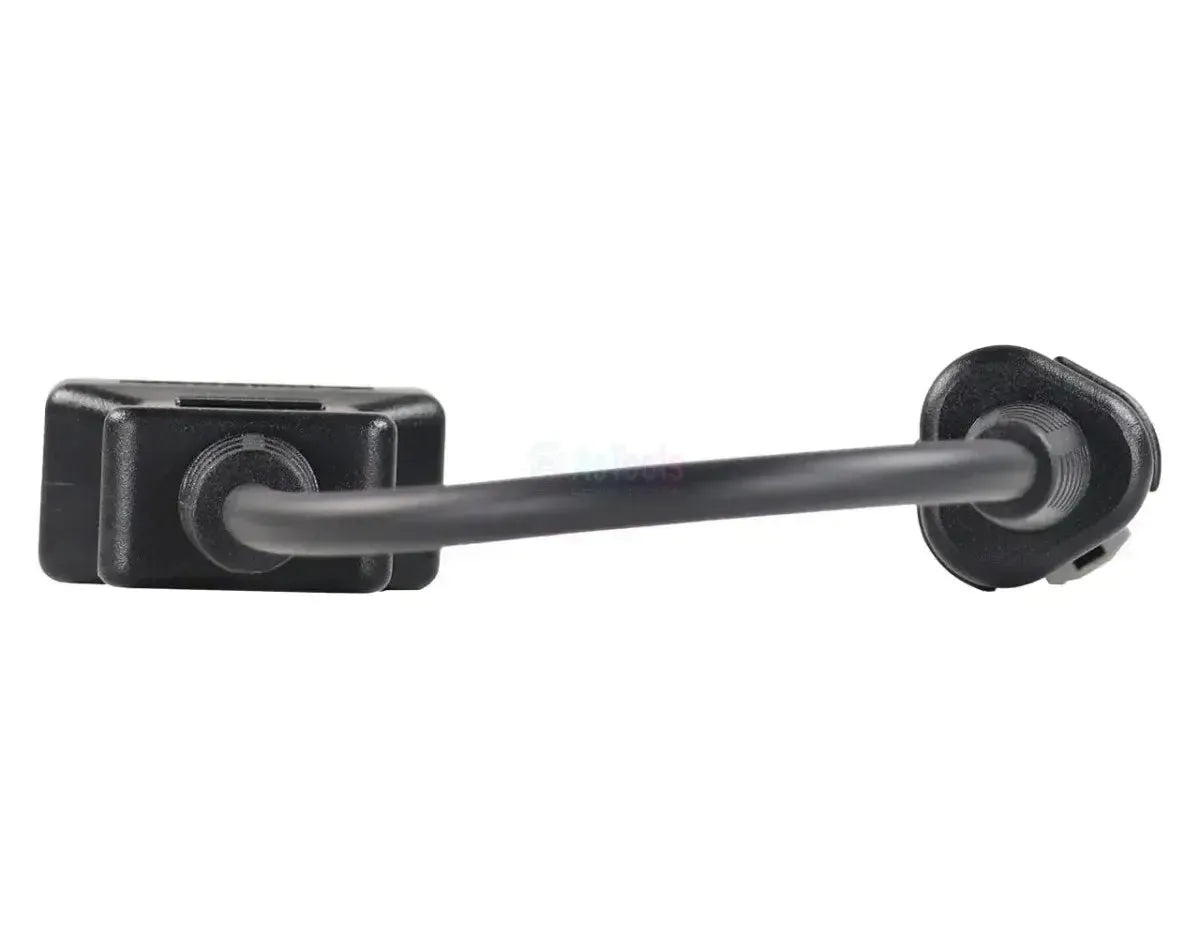

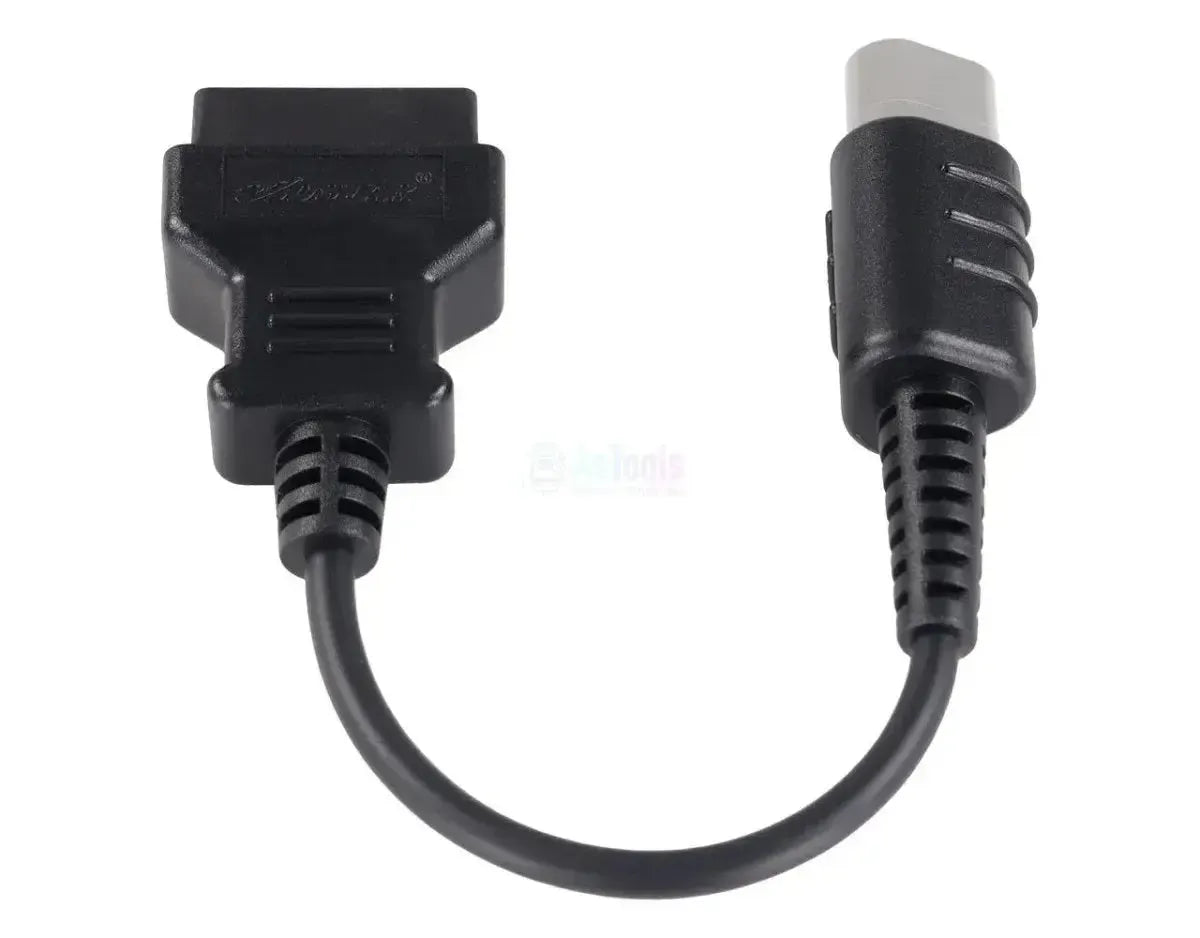

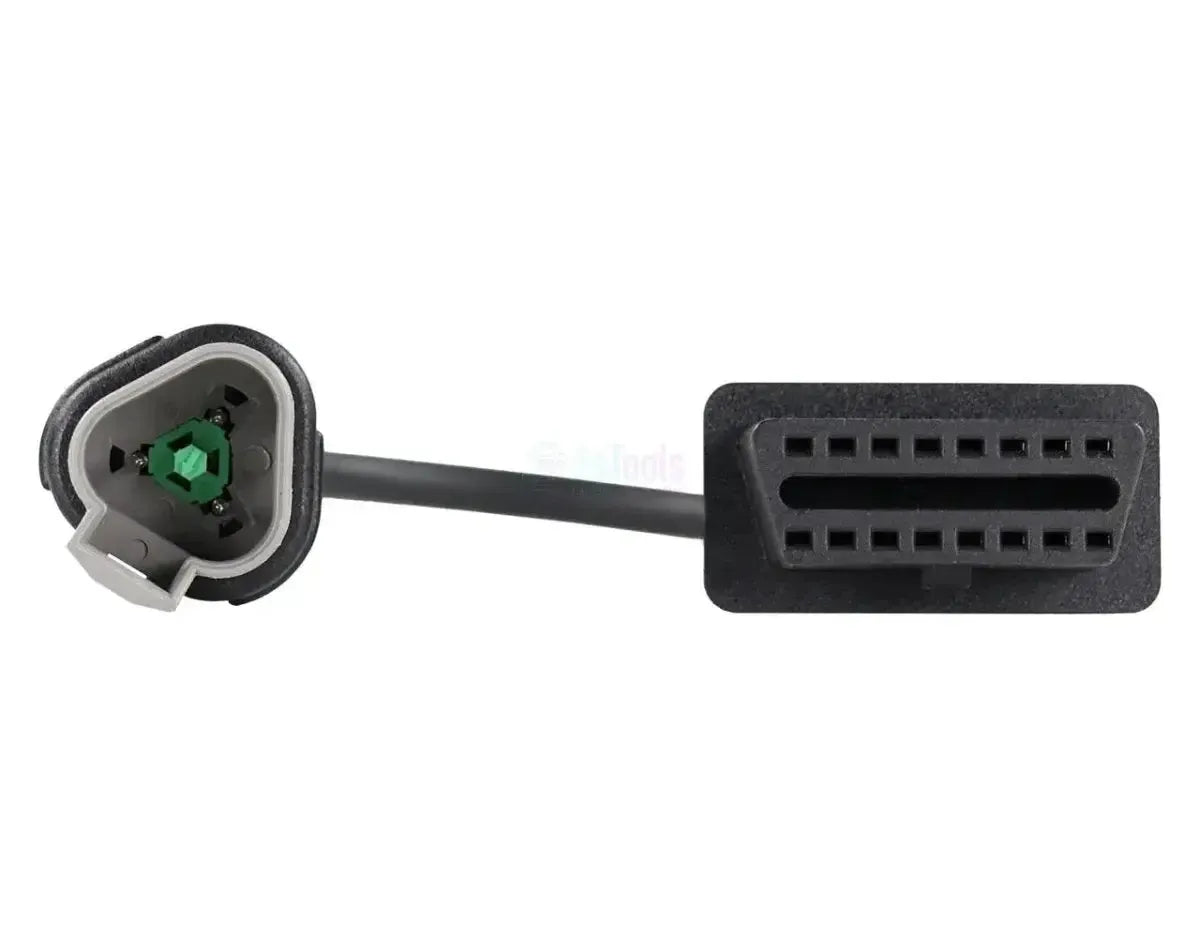

The OBDSTAR M074 is an adapter cable that converts a Yanmar 3-pin diagnostic connector to a standard 16-pin OBD2 port (J1962). The cable is designed for use with OBDSTAR diagnostic devices or programmers and enables diagnostics on Yanmar combustion engines equipped with a proprietary 3-pin connector. The cable features a Yanmar-specific 3-pin connector on one end and a standard OBD2 female connector on the other.

The adapter cable connects the diagnostic port of the Yanmar engine to the OBDSTAR diagnostic device via the OBD2 interface. The 3-pin Yanmar connector plugs directly into the engine-specific diagnostic socket, after which the signal is transmitted through the cable wiring to the 16-pin OBD2 female side. This allows the OBDSTAR device to communicate with the engine control unit (ECU) of the Yanmar engine for diagnostic and reading purposes. The cable length and wiring are tailored to the pin configuration of the Yanmar protocol, ensuring the correct signal lines are passed to the connected device.

ADVANTAGES

✔ Enables direct connection to the Yanmar-specific 3-pin diagnostic port without an intermediate adapter.
✔ Converts the Yanmar connector format to the universally applicable OBD2 interface (J1962), allowing compatible OBDSTAR devices to communicate directly.
✔ Specifically designed for Yanmar combustion engines, ensuring the pin configuration and signal lines are correctly matched to the engine protocol.

KEY POINTS

✕ Only suitable for use with OBDSTAR diagnostic devices or programmers; not compatible with diagnostic equipment from other brands.
✕ Only usable on Yanmar engines with a 3-pin diagnostic connector; not compatible with other engine manufacturers or connector formats.
✕ The available diagnostic functions depend on the software support of the connected OBDSTAR device for the specific Yanmar engine type.

Applications and functionalities

The OBDSTAR M074 Adapter Cable supports the following diagnostic applications on Yanmar engines via a compatible OBDSTAR device.

  • Read fault codes: Stored diagnostic trouble codes (DTCs) are read and displayed on the OBDSTAR device through the connection with the Yanmar ECU.
  • Clear fault codes: After diagnosis, fault codes can be cleared from the engine control unit memory via the connected OBDSTAR device.
  • Live data frames: Reading real-time engine parameters such as RPM, temperatures, and sensor values during operation of the Yanmar engine.
  • Connection conversion: Conversion of the Yanmar 3-pin diagnostic port to a 16-pin OBD2 connector for use with OBDSTAR diagnostic hardware.

Compatible vehicles and applications

The following Yanmar engines with a 3-pin diagnostic connector and combustion technology are compatible with the OBDSTAR M074 Adapter Cable when used with a compatible OBDSTAR device.

Yanmar:

  • Yanmar internal combustion engines with 3-pin OBD diagnostic connector
💡
Good to know: The Yanmar 3-pin diagnostic port is usually located on or near the engine management block. Refer to the engine manual for the exact location per engine type and model year.

Package Contents

  • 1x OBDSTAR (M074) | Yanmar 3-pin OBD – 16-pin OBD2 Adapter Cable | Internal combustion engine
