OBDSTAR  |  SKU: Toyota-30 Cable / 3.6

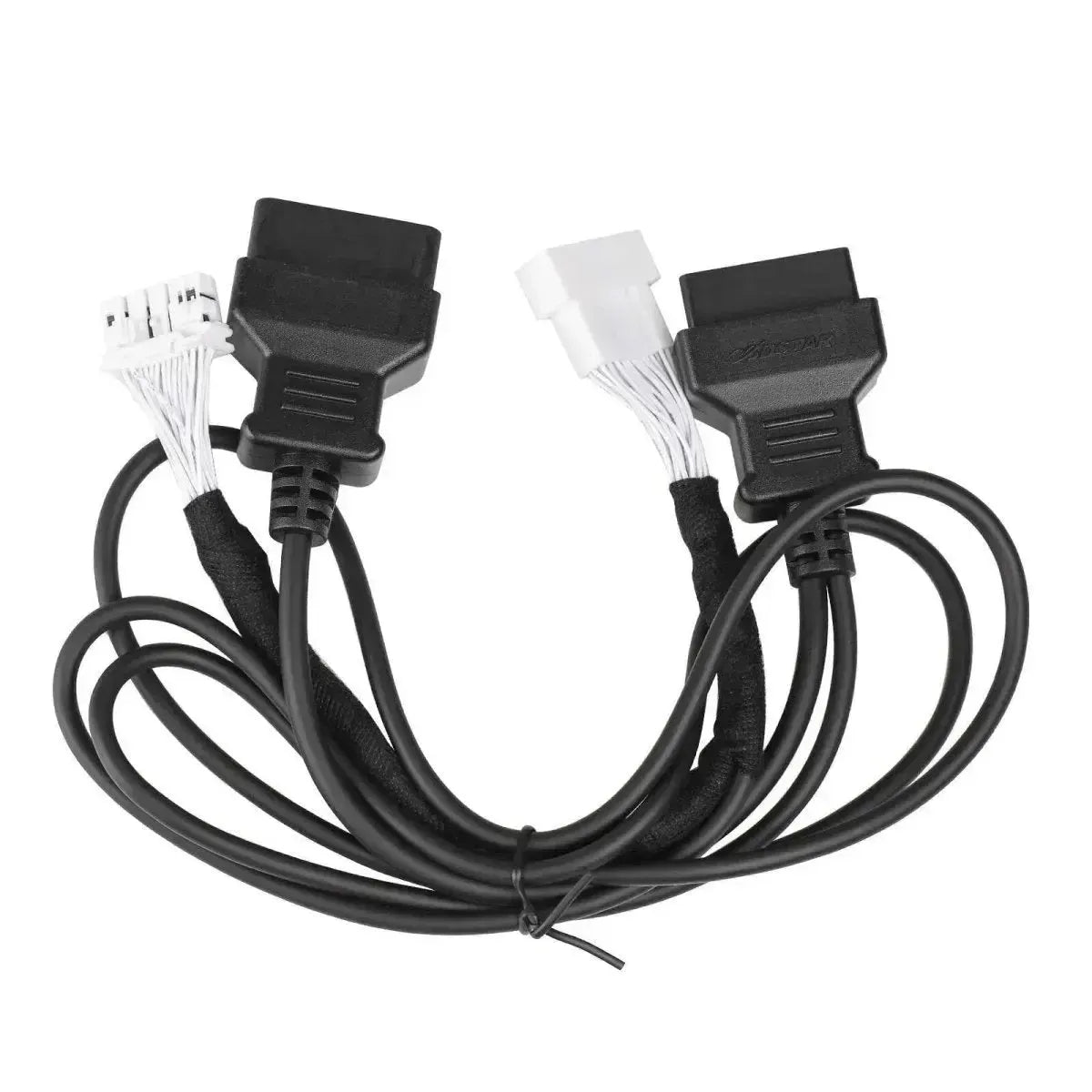

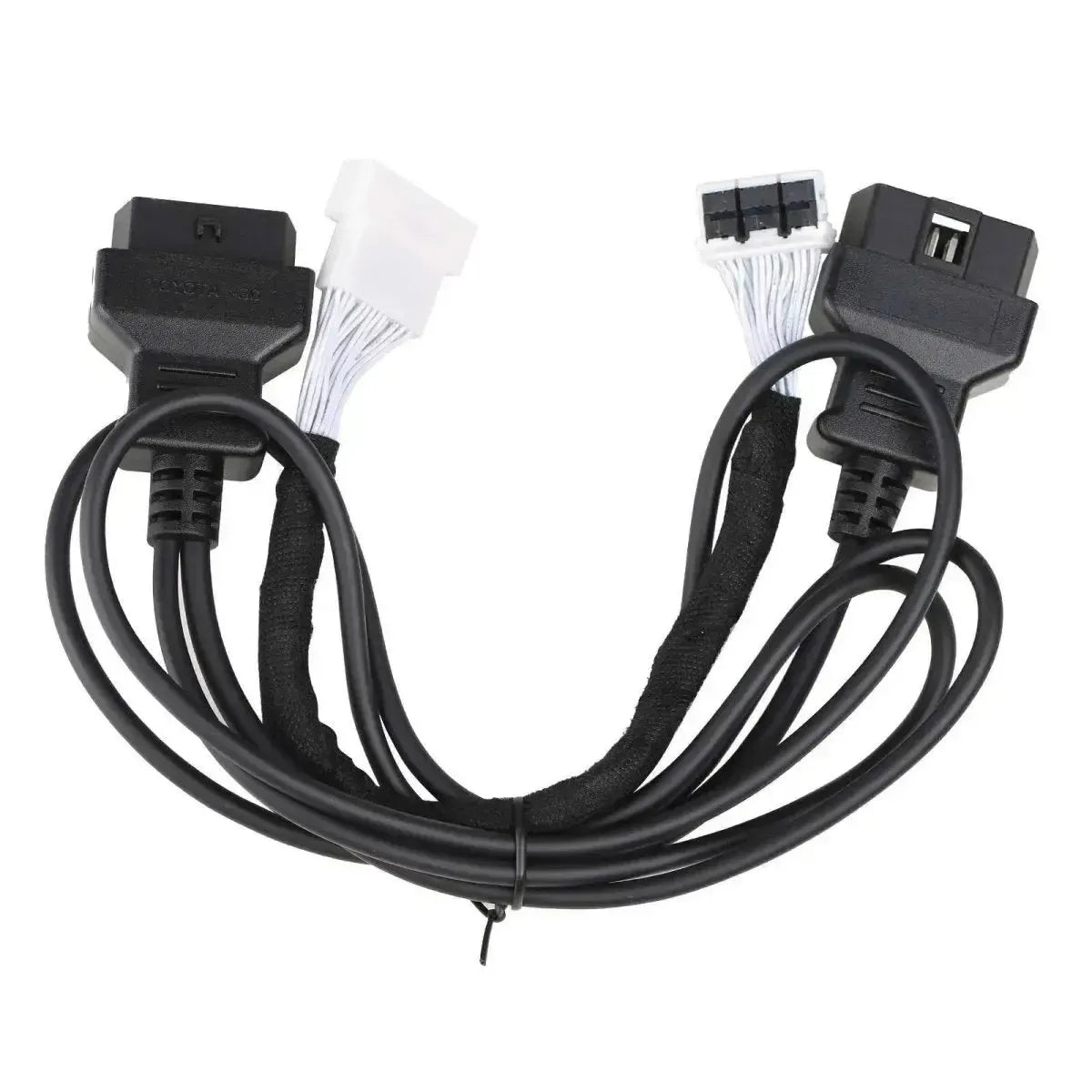

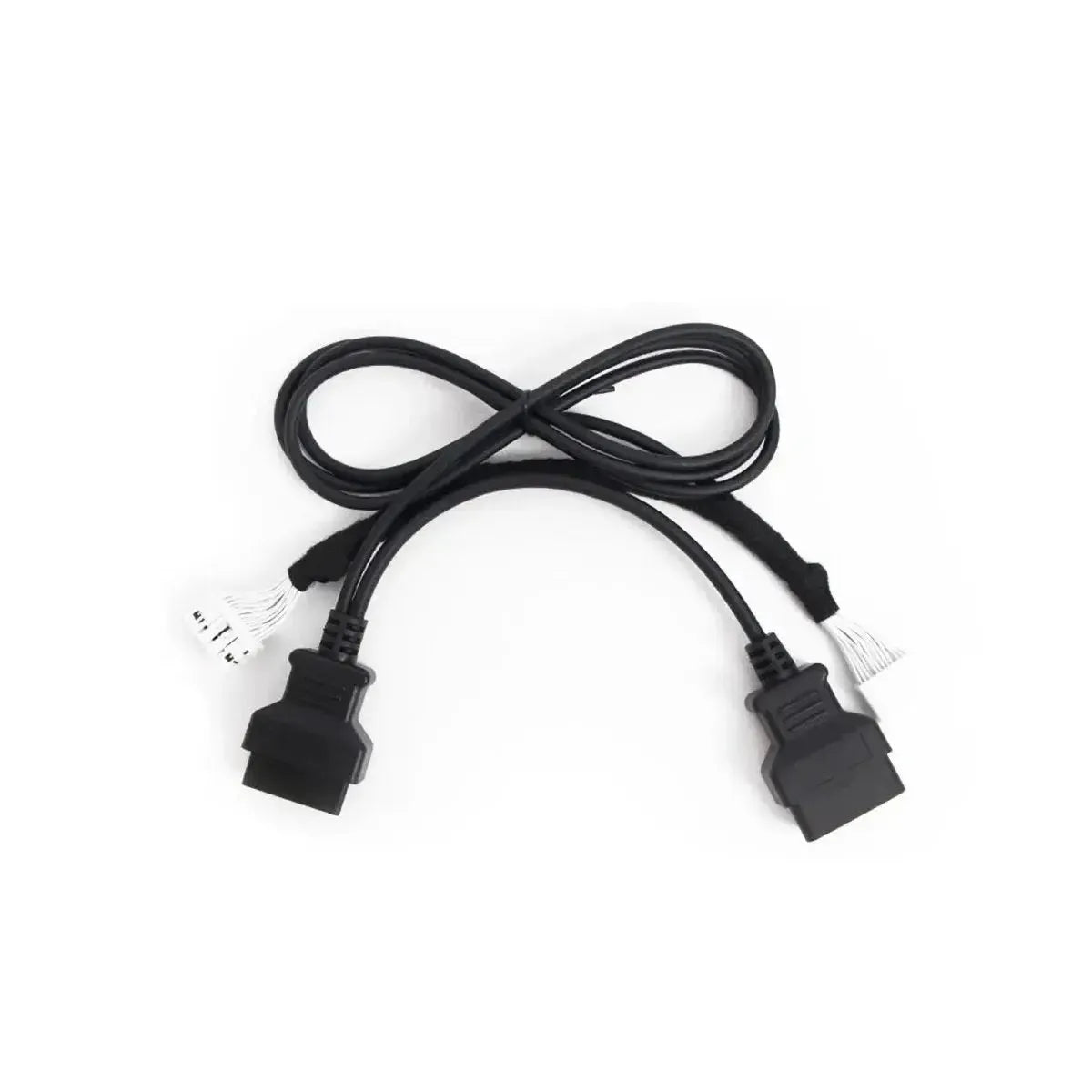

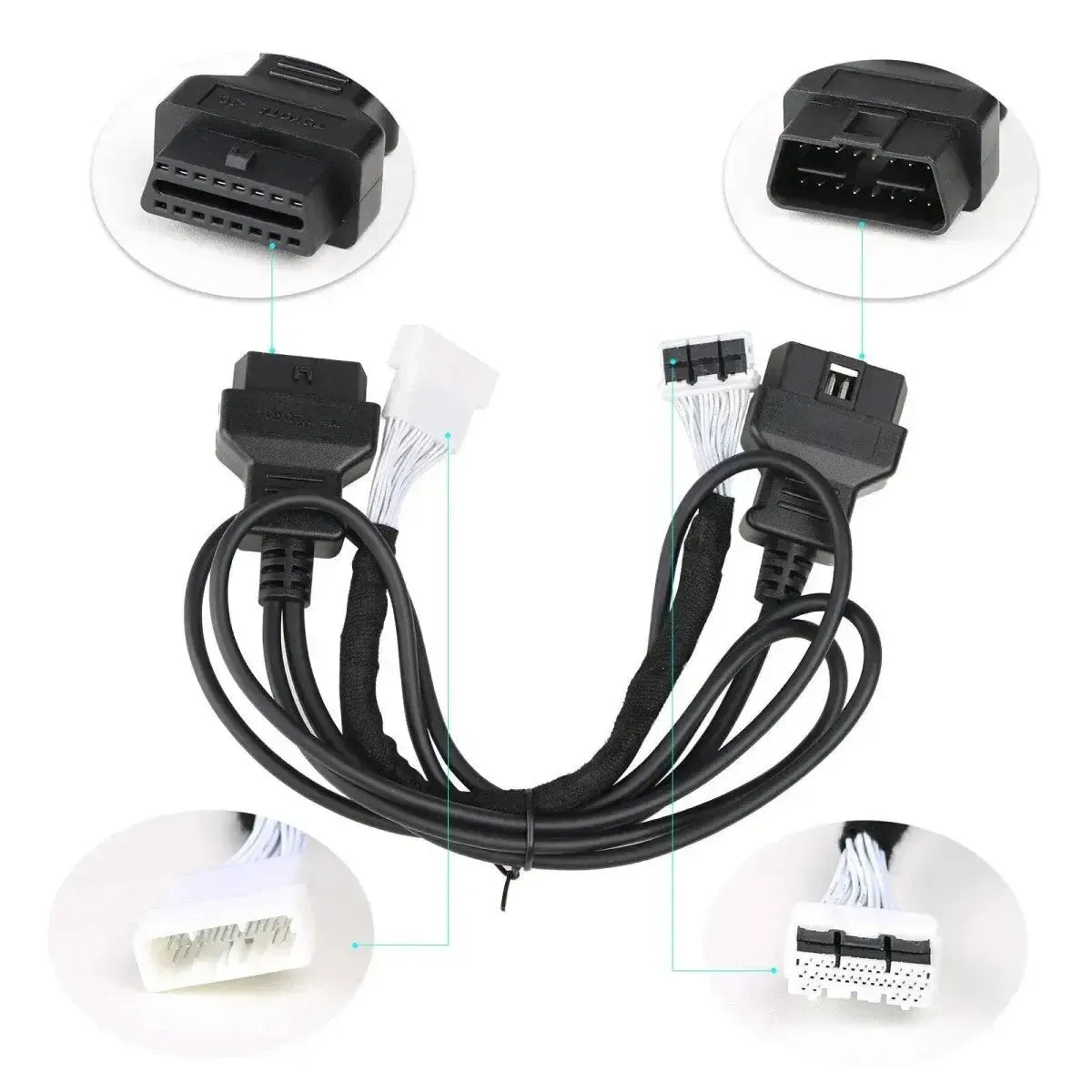

OBDSTAR | Toyota 30-pins IMMO - 16-pins OBD2 Adapter Cable | Passenger Car

€42,95 incl.
€35,50 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The OBDSTAR Toyota 30-pin IMMO to 16-pin OBD2 adapter cable is a specialized connection cable that converts the proprietary 30-pin IMMO connector of certain Toyota and Lexus models to a standard 16-pin OBD2 (J1962) diagnostic connector. The cable enables access to vehicles with 4A-, 8A-8A-, or 8A-89-type immobilizer boxes without removing the dashboard housing or instrument panel. The cable is exclusively compatible with OBDSTAR readers or programmers.

The adapter cable connects the vehicle’s IMMO connector directly to the OBD2 port of the OBDSTAR device, granting the device access to the vehicle’s immobilizer bus line. Through this connection, functions such as proximity key programming (even with total key loss, without a PIN code) and odometer calibration on specific dashboard types including H7F/JD1401, H7F/JD1441, and H7F/JD1442 can be performed. The cable also supports I2CA-, I2BA-8A-, and I2BA-89 proximity key programming via the S8JXXX series, with no PIN code required.

ADVANTAGES

✔ Allows proximity key programming in case of total key loss without requiring a PIN code.
✔ Provides access to the IMMO bus line without needing to remove the instrument panel or dashboard housing.
✔ Supports 4A-, 8A-8A-, and 8A-89-type immobilizer boxes, including the newly added I2CA-, I2BA-8A-, and I2BA-89 variants via S8JXXX.
✔ Enables odometer calibration on H7F/JD1401, H7F/JD1441, and H7F/JD1442 dashboard types.

KEY POINTS

✕ Only suitable for OBDSTAR readers or programmers; not compatible with diagnostic equipment from other brands.
✕ Available functions vary by vehicle model and IMMO type; please consult the current OBDSTAR compatibility list for definitive support.
✕ The odometer calibration function is limited to specific H7F dashboard types and is not available on all supported models.

Applications and functionalities

The Adapter Cable supports the following functions in combination with compatible OBDSTAR equipment:

  • Proximity key programming (with existing key): Adds an additional proximity key to the vehicle via the IMMO connector without entering a PIN code.
  • Proximity key programming for total key loss: Programs a new proximity key when all original keys are missing, without requiring a PIN code, on 4A-, 8A-8A-, 8A-89-, I2CA-, I2BA-8A-, and I2BA-89-systems.
  • Odometer calibration (H7F/JD1401): Adjusts the odometer on the H7F/JD1401 dashboard type via direct connection to the IMMO bus line.
  • Odometer calibration (H7F/JD1441): Performs odometer adjustment on the H7F/JD1441 dashboard type.
  • Odometer calibration (H7F/JD1442): Performs odometer adjustment on the H7F/JD1442 dashboard type.

Compatible vehicles and applications

The Adapter Cable is compatible with the Toyota and Lexus models listed below. Support depends on the IMMO type and the software version of the OBDSTAR device used.

Lexus:

  • NX: (2022–)
  • RX: (2023–)

Toyota:

  • Alphard: (2023–)
  • Camry: (2024–)
  • Corolla Cross Facelift (XC10): (2022–)
  • Corolla Facelift (E210): (2022–)
  • HiAce Facelift (XA50): (2022–)
  • Land Cruiser: (2021–)
  • ProAce Verso / Proace Verso (XL40): (2020–)
  • Sienna (XL40): (2020–)
  • Tundra: (2021–)
  • Yaris: (2020–)
  • Yaris Cross (XP210): (2021–)
💡
Good to know: The 30-pin IMMO connector is usually located behind the dashboard or in the steering column housing. The exact location varies by model and year of manufacture.

Package Contents

  • 1x OBDSTAR | Toyota 30-pins IMMO - 16-pins OBD2 Adapter Cable | Passenger Car
